SharkBite UR24615 Description

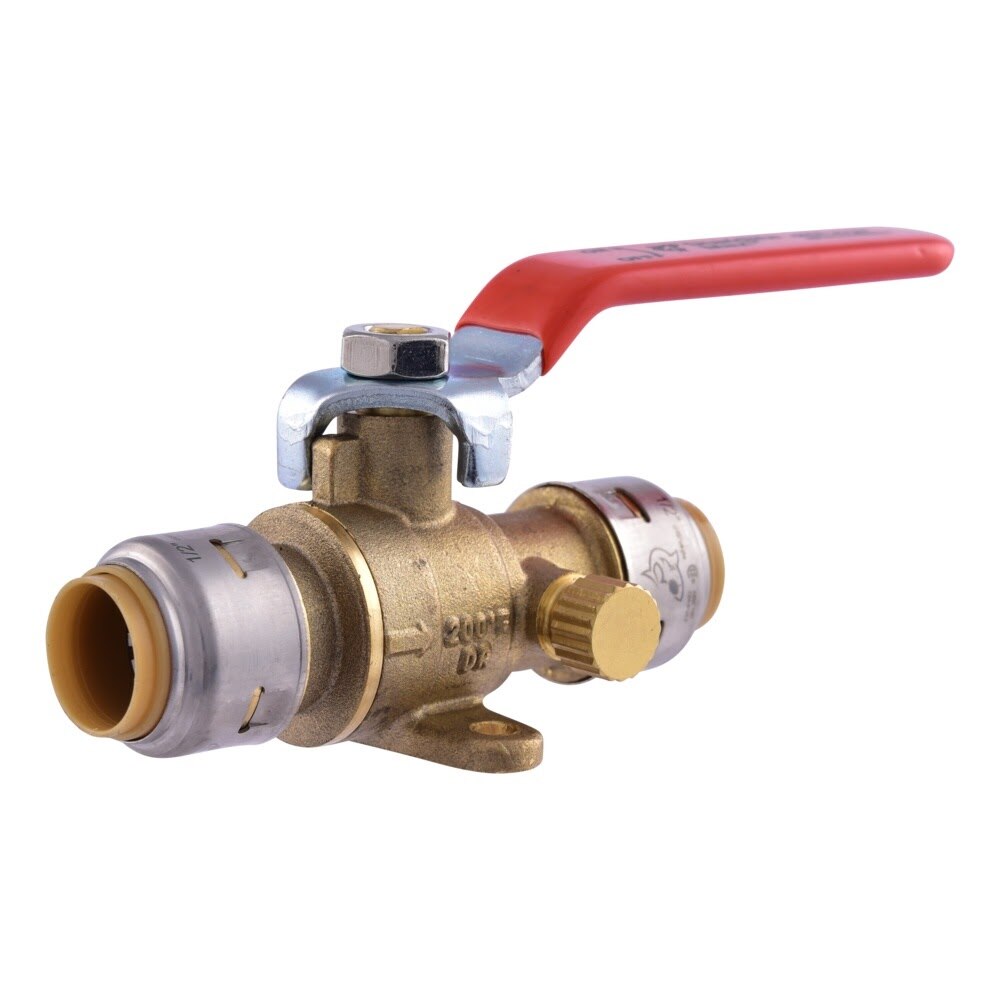

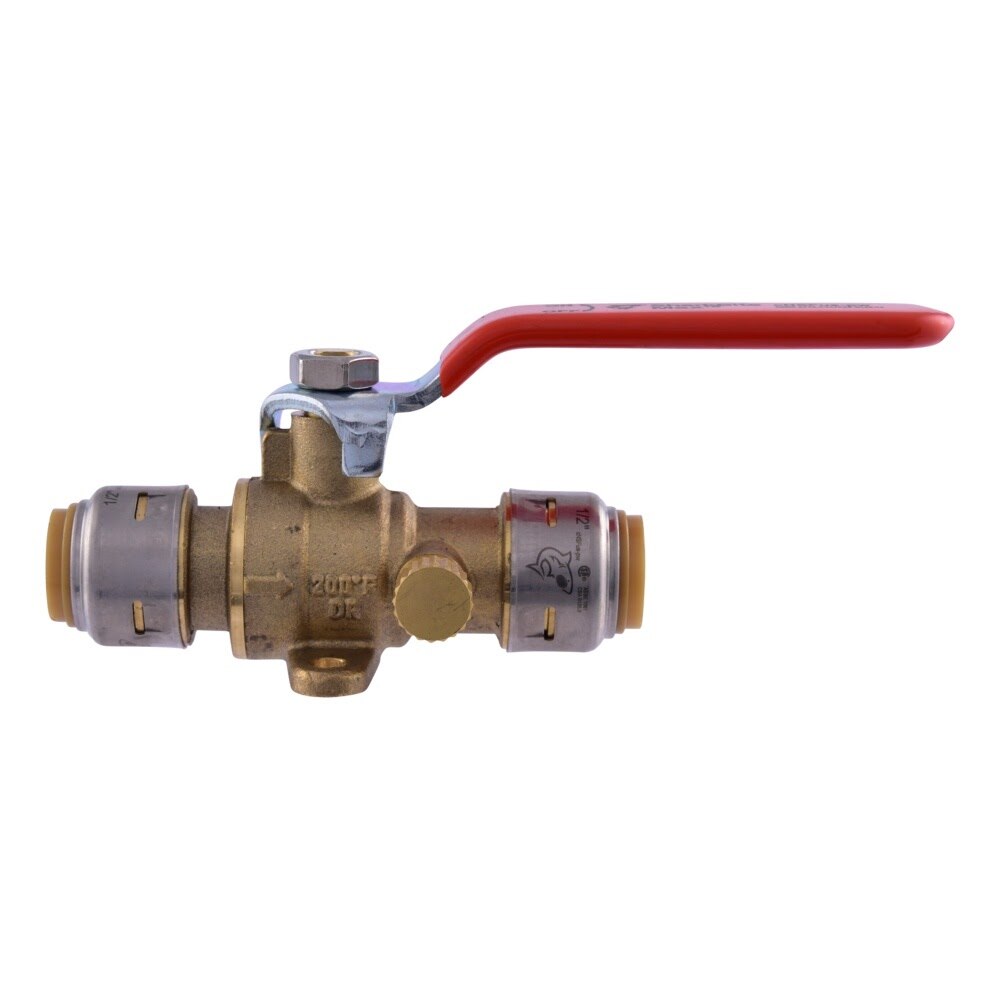

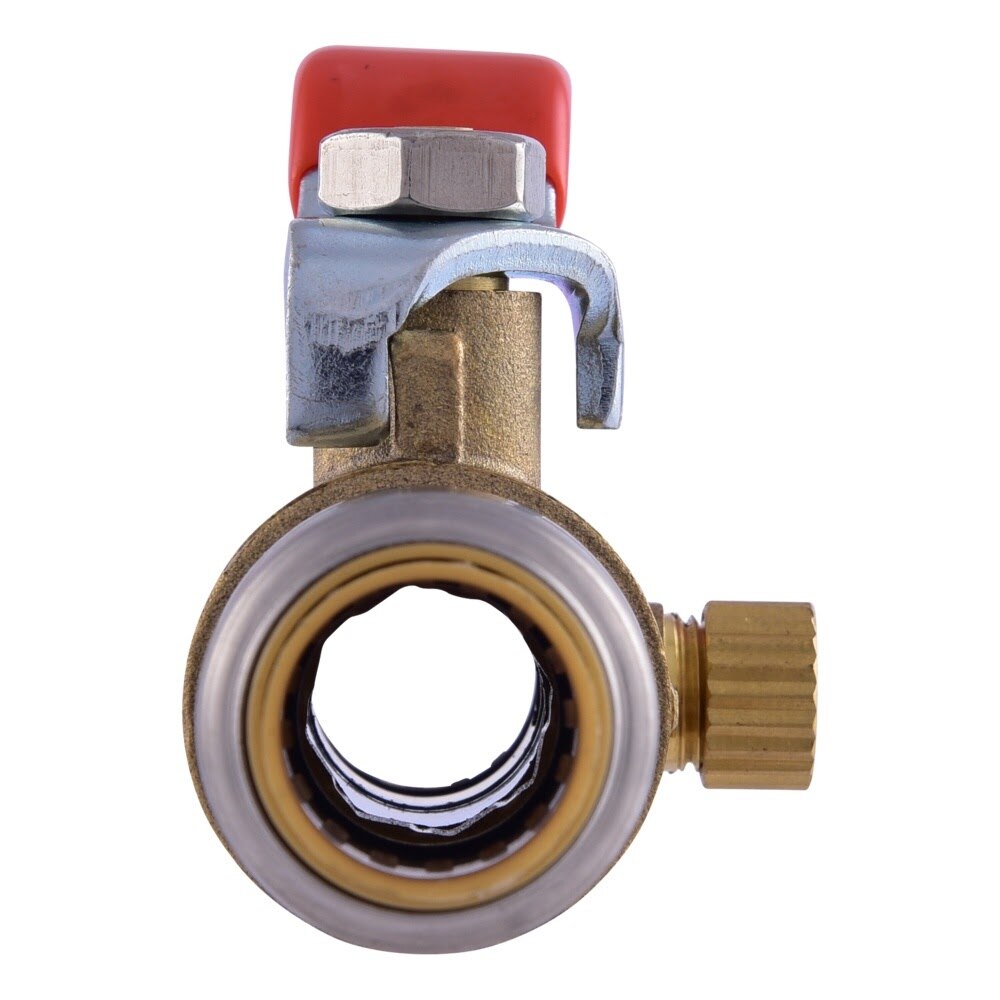

The SharkBite Max 1/2 in. x 1/2 in. ball valve delivers quick push to connect installation for potable water systems without special tools. Built with a corrosion-resistant brass body, integrated drain, and mounting bracket, it provides reliable quarter turn shutoff and works with PEX, copper, CPVC, PE-RT, and HDPE pipe on wet or dry lines.
SharkBite UR24615 Includes
- (1) 1/2 in. x 1/2 in. Quarter Turn Ball Valve with Drain and Mounting Bracket
SharkBite UR24615 Features
- Push to Connect ends install quickly without special tools
- Compatible with PEX, copper, CPVC, PE-RT, and HDPE pipe
- Quarter turn lever handle provides fast shutoff control
- Integrated drain helps service and empty lines
- Mounting bracket supports secure installation
- Can be installed on wet or dry lines and pressure tested immediately
- Rotatable after installation and removable
- Low lead DZR corrosion-resistant brass body
- Rated up to 200 DegreeF and 250 PSI
- Approved for behind the wall and underground applications when installed per guidelines
SharkBite UR24615 Specifications
| Product Type | Ball Valve |
| Size | 1/2 in. x 1/2 in. |
| Connection Type | Push to Connect x Push to Connect |
| Compatible Pipe Material | PEX, Copper, CPVC, PE-RT, HDPE |
| Application | Potable Water |
| Handle Style | Lever |
| Material | Brass |
| Maximum Pressure | 250 PSI |
| Maximum Working Temperature | 200 DegreeF |
| Inlet Diameter | 1/2 in. |
| Outlet Diameter | 1/2 in. |
| Product Length | 5.36 in. |
| Product Width | 1.93 in. |
| Product Height | 2.15 in. |
| Shipping Weight | 0.50 lb |
