SharkBite UR24616 Description

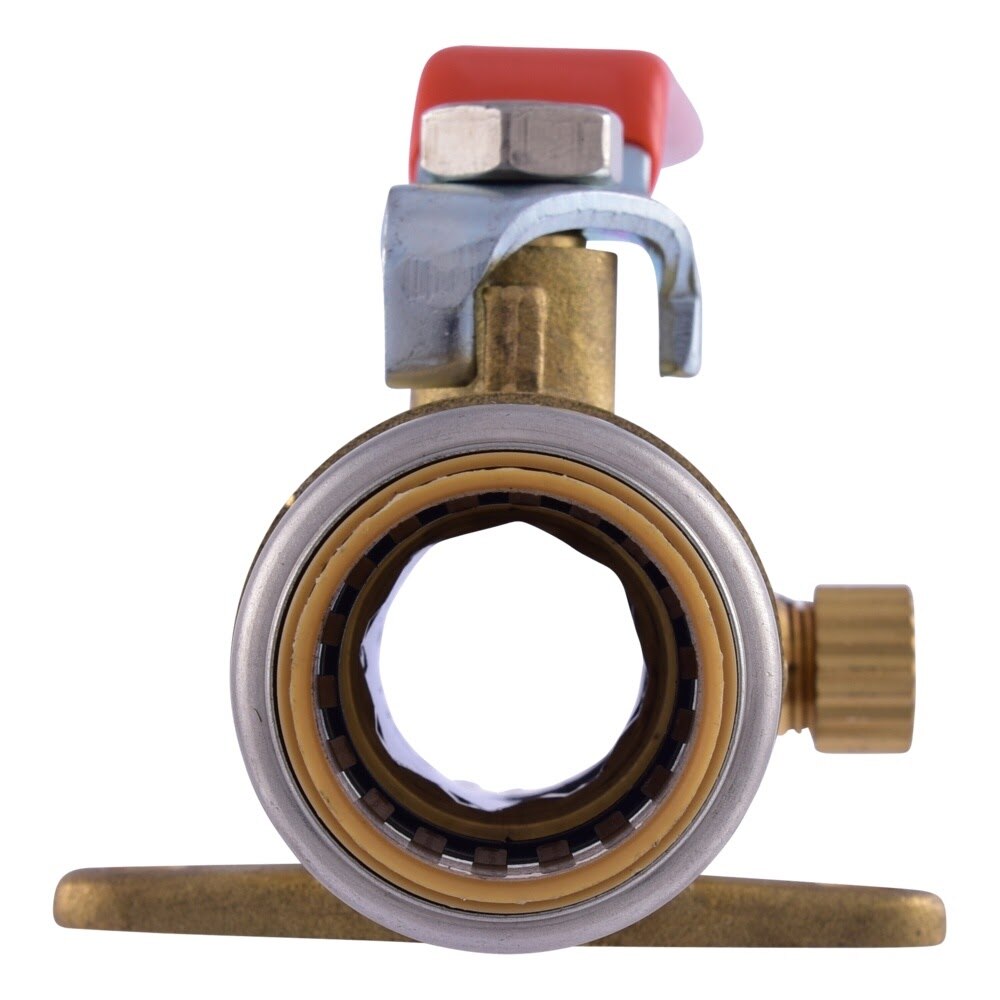

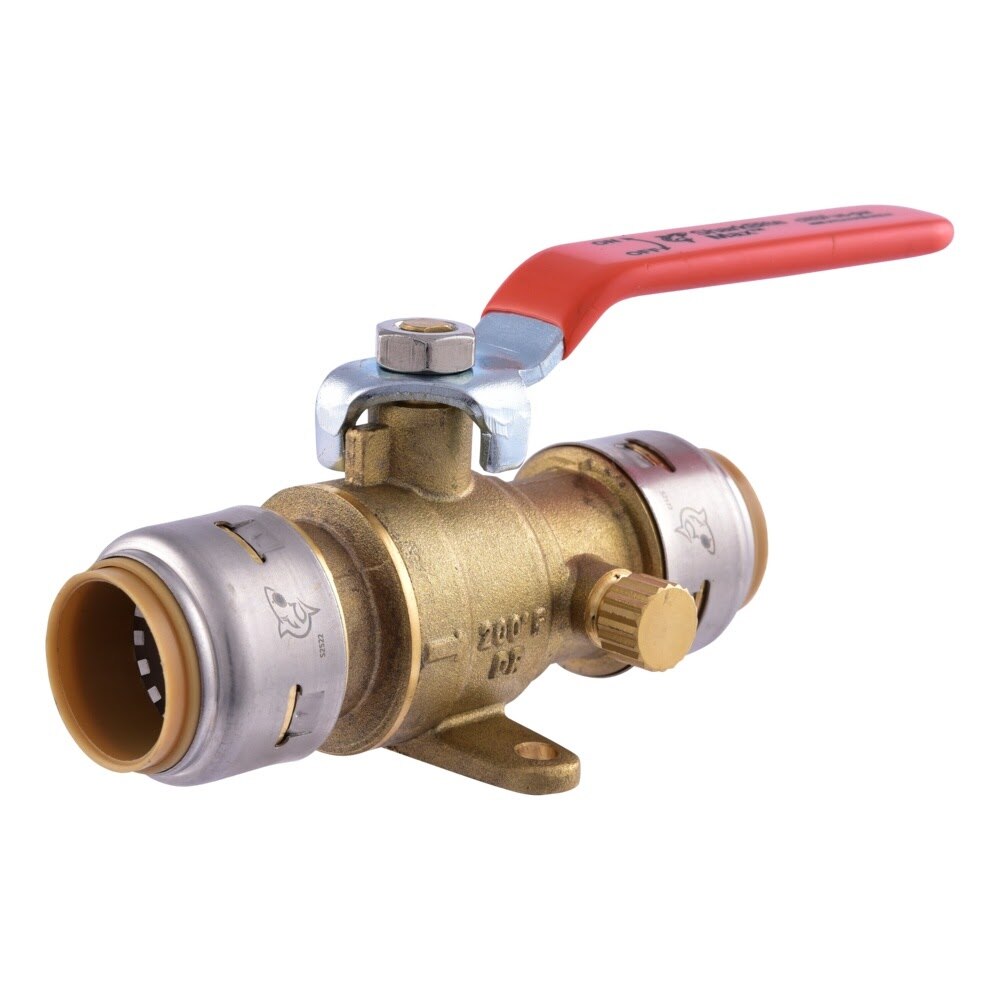

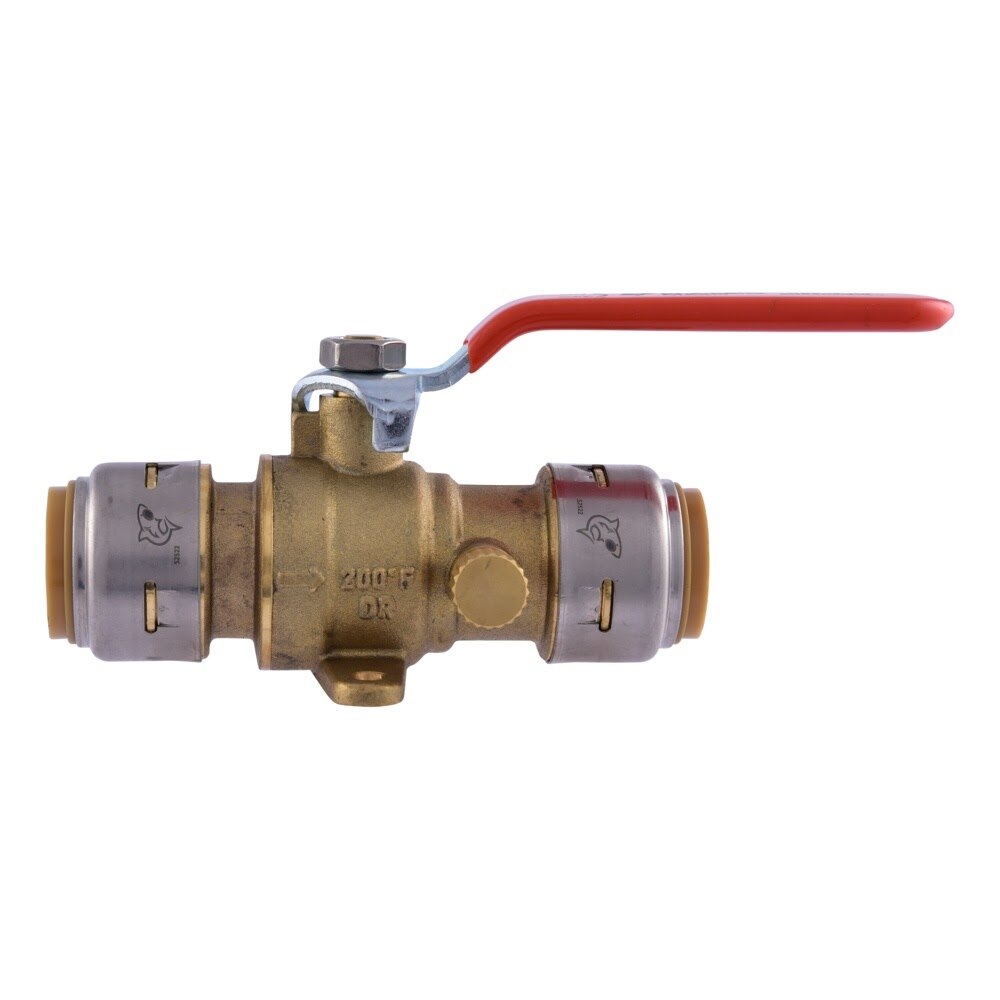

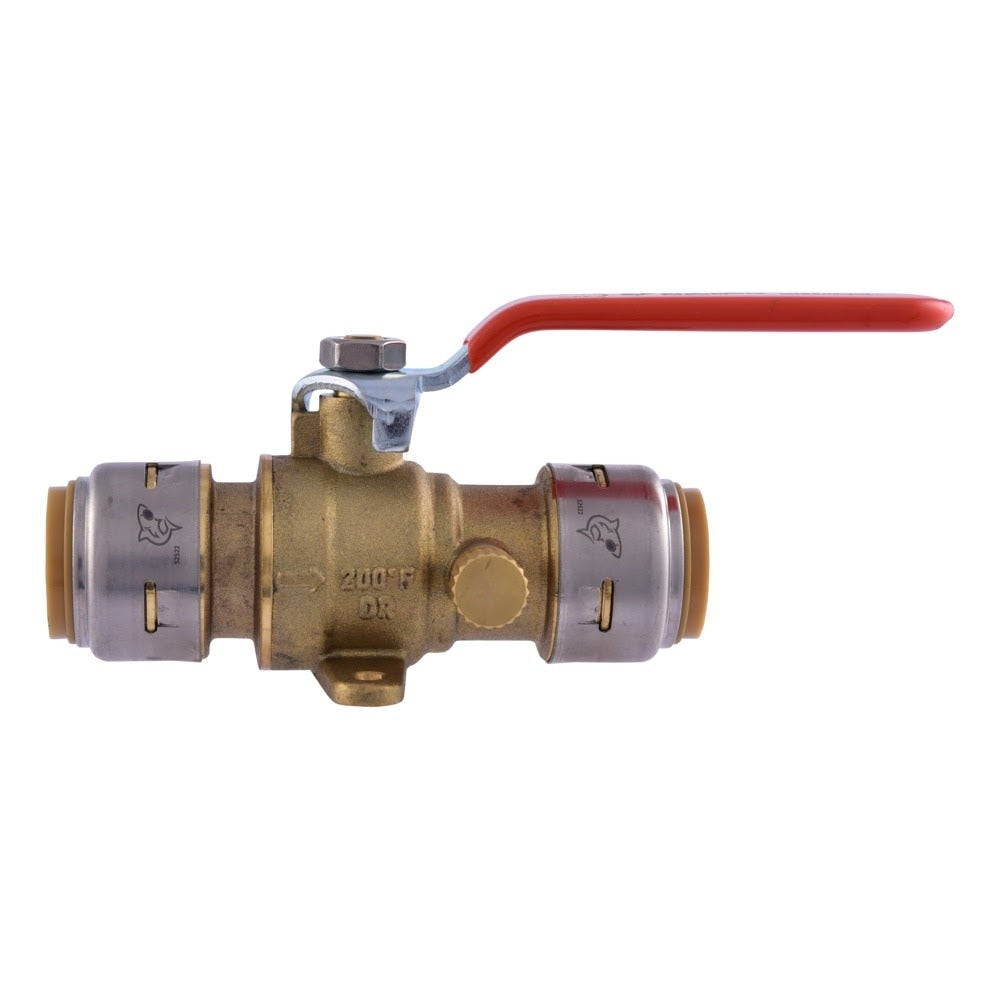

The SharkBite Max UR24616 is a 3/4 in. x 3/4 in. brass push-to-connect quarter-turn ball valve designed for fast shutoff on potable water lines. It features an integrated drain and mounting bracket, installs without special tools on wet or dry lines, and is compatible with PEX, copper, CPVC, PE-RT, and HDPE pipe.
SharkBite UR24616 Includes
- (1) 3/4 in. x 3/4 in. Max Quarter-Turn Ball Valve with Drain and Mounting Bracket
SharkBite UR24616 Features
- Push-to-connect design fits PEX, copper, CPVC, PE-RT, and HDPE pipe
- Quarter-turn lever handle provides quick shutoff control
- Integrated drain helps simplify line draining and service
- Mounting bracket drop ear design allows secure installation
- Installs without special tools on hot or cold water lines
- Can be installed on wet or dry lines and pressure tested immediately
- Rotatable after installation and removable
- Low-lead DZR corrosion-resistant brass body
- Rated for up to 250 PSI and 200 F
- Approved for underground and behind-the-wall applications when installed per requirements
SharkBite UR24616 Specifications
| Application | Potable Water |
| Material | Brass |
| Connection Type | Push-to-Connect x Push-to-Connect |
| Compatible Pipe Material | PEX, Copper, CPVC, PE-RT, HDPE |
| Inlet Diameter | 3/4 in. |
| Outlet Diameter | 3/4 in. |
| Handle Style | Lever |
| Indoor/Outdoor | Indoor, Outdoor |
| Features | Lead Free, Removable |
| Maximum Pressure | 250 PSI |
| Maximum Working Temperature | 200 F |
| Product Length | 5.63 in. |
| Product Width | 2.36 in. |
| Product Height | 2.41 in. |
| Product Weight | 0.71 lb |
Toolup Part # :
883571
