SharkBite UR24657 Description

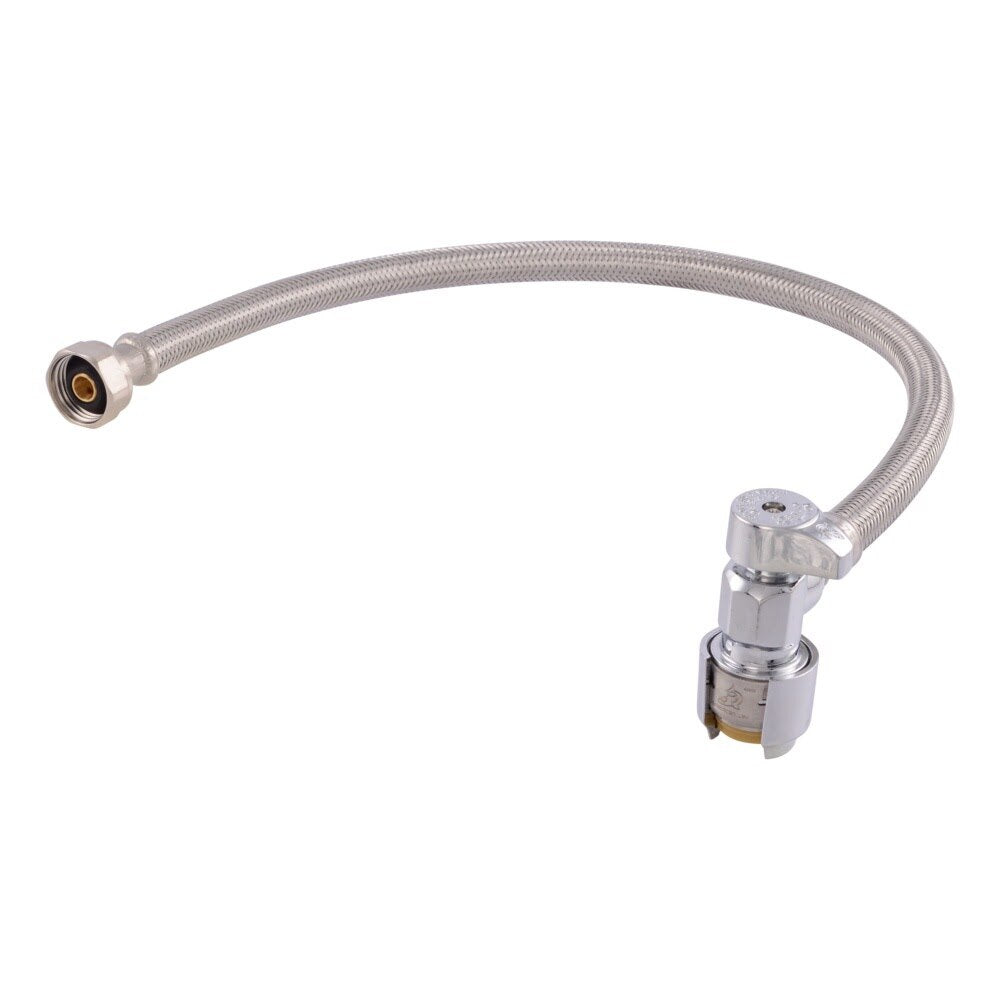

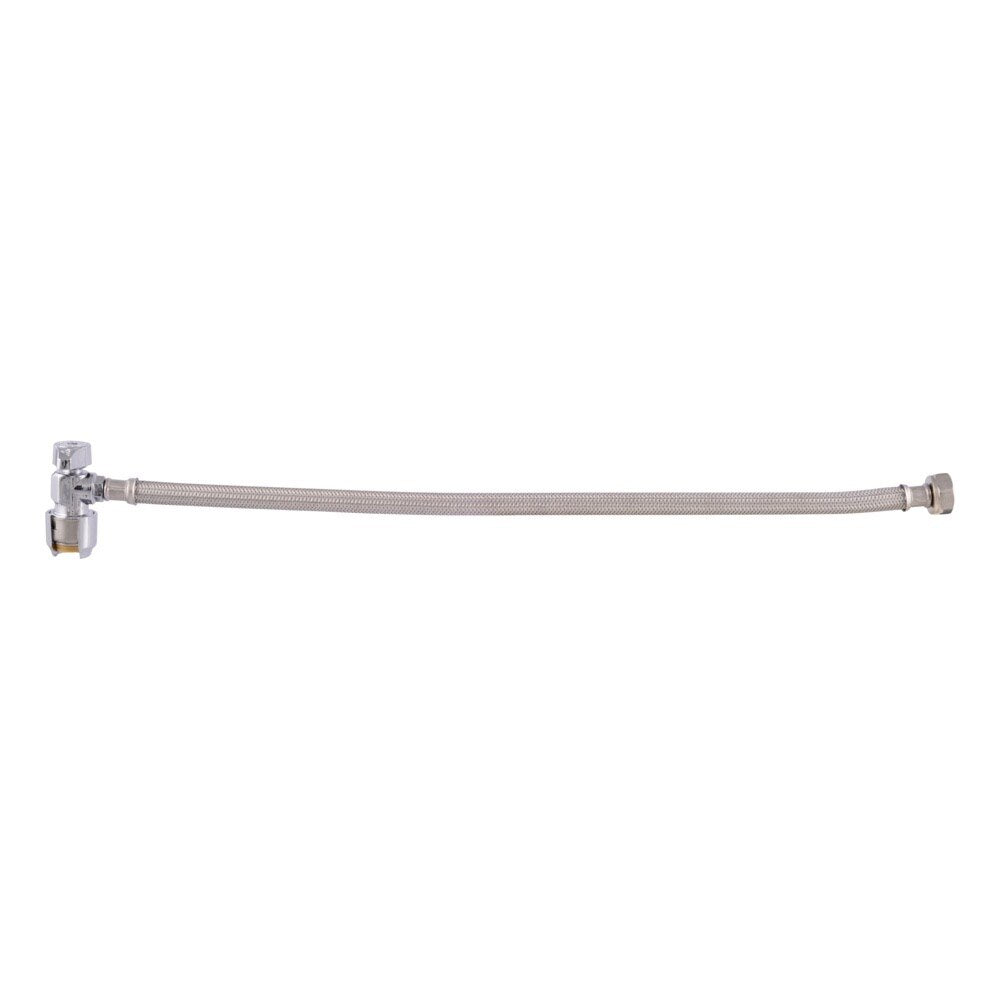

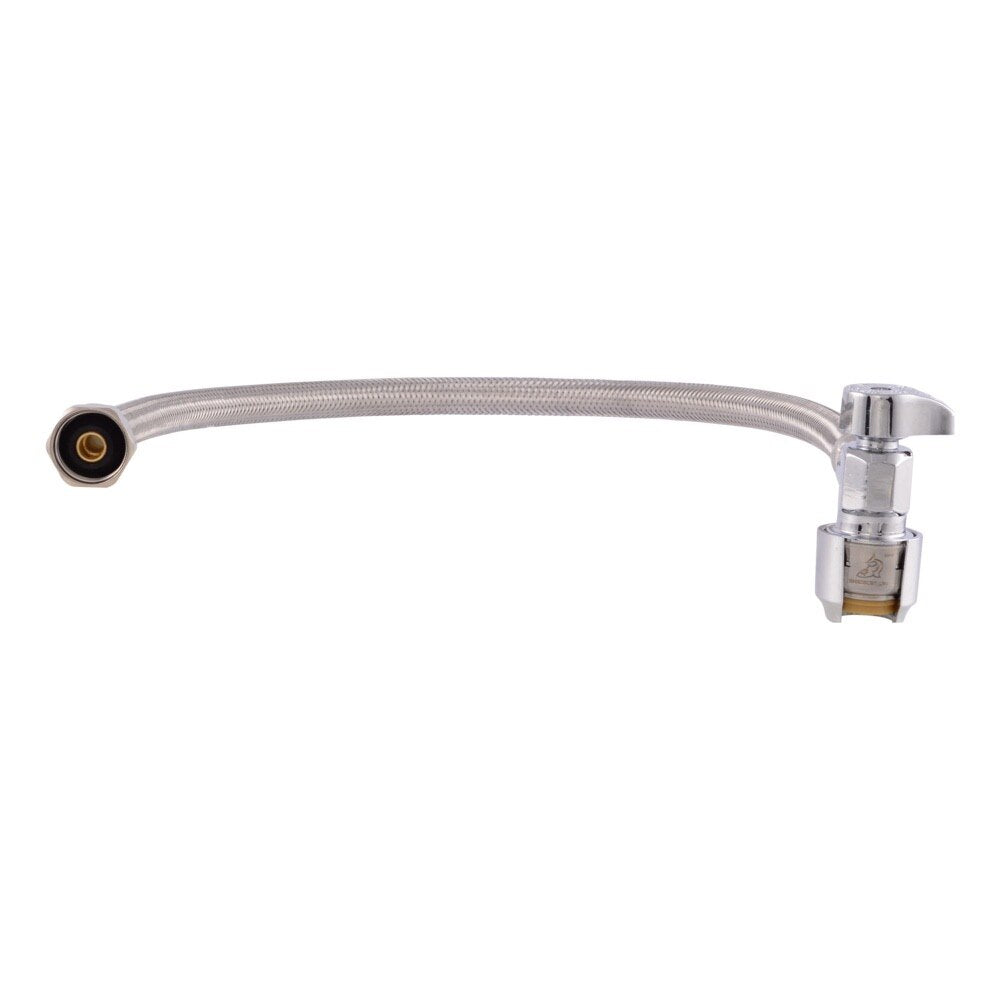

The SharkBite UR24657 is a 20 in. stainless steel braided faucet connector with an integrated 1/2 in. push-to-connect angle stop valve and 1/2 in. NPSM outlet. It delivers a fast, watertight installation without crimping, soldering, glue, or special tools, and it is compatible with PEX, copper, CPVC, PE-RT, and HDPE SDR-9 pipe.
SharkBite UR24657 Includes
- (1) Max stainless steel braided faucet connector with angle stop valve
SharkBite UR24657 Features
- Integrated 1/2 in. push-to-connect angle stop valve helps control water shutoff at the fixture
- 20 in. stainless steel braided supply line offers durable faucet connection
- Compatible with PEX, copper, CPVC, PE-RT, and HDPE SDR-9 pipe
- Installs without special tools, crimping, soldering, or glue
- Can be installed on wet lines and pressure tested immediately
- Rotates after installation for easier alignment in tight spaces
- DZR lead-free brass body with stainless steel retainer for added strength and durability
- Quarter-turn full-port brass ball valve provides reliable operation
- Rated up to 160 DegreeF and 125 psi
- Removable with a disconnect clip, disconnect tongs, or pro disconnect tool
SharkBite UR24657 Specifications
| Brand | SharkBite |
| SKU | UR24657 |
| Product Type | Faucet Connector with Angle Stop Valve |
| Inlet Connection | 1/2 in. Push-to-Connect |
| Outlet Connection | 1/2 in. NPSM |
| Connector Length | 20 in. |
| Supply Line Material | Stainless Steel Braided |
| Valve Body Material | DZR Lead-Free Brass |
| Valve Type | Quarter-Turn Full-Port Brass Ball Valve |
| Compatible Pipe Types | PEX, Copper, CPVC, PE-RT, HDPE SDR-9 |
| Maximum Pressure | 125 psi |
| Maximum Temperature | 160 DegreeF |
| Installation Type | Push-to-Connect |
| Each Shipping Weight | 0.41 lb |
| Case Quantity | 6 |
| Package Length | 15.24 in. |
| Package Width | 6.63 in. |
| Package Height | 6.63 in. |
