SharkBite UR24680 Description

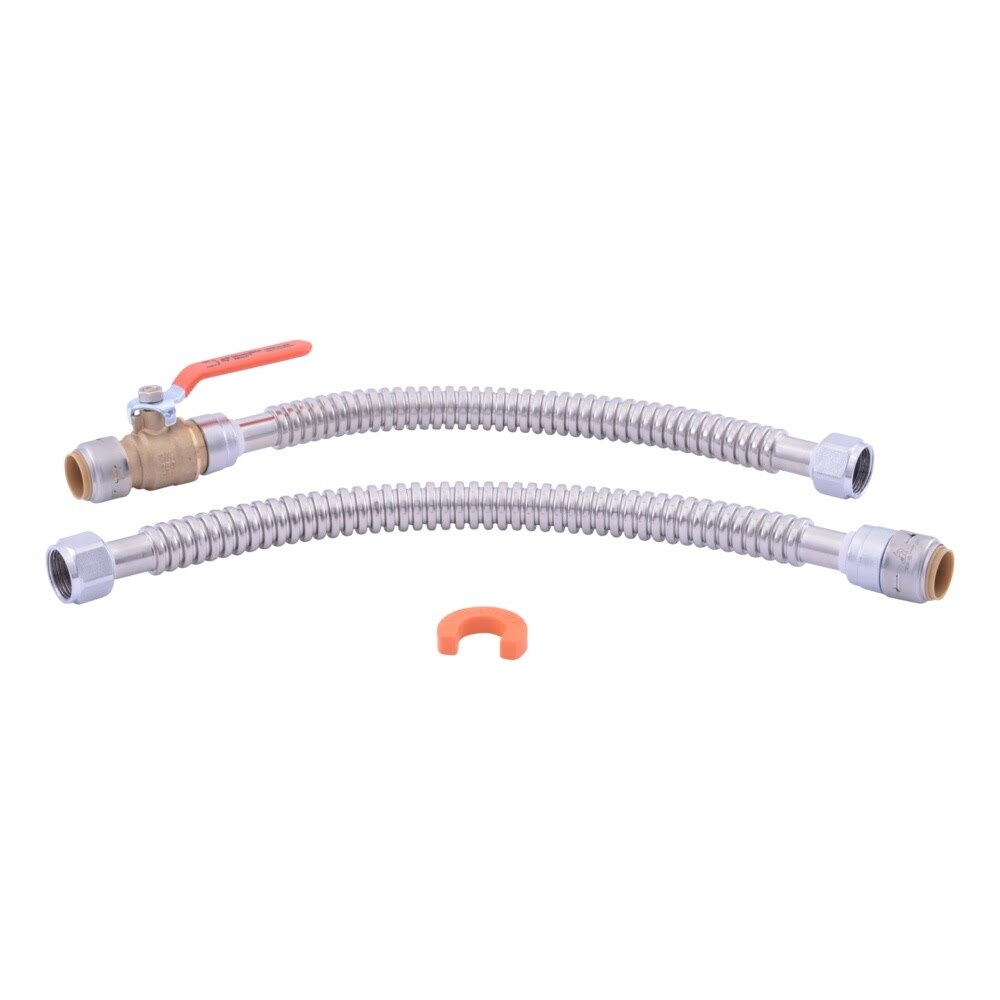

The SharkBite Max water heater connection kit is designed for fast, reliable installation in tight spaces. It includes two 18 in. stainless steel corrugated connectors, one with an integrated ball valve, plus a disconnect clip for easy removal and service.
SharkBite UR24680 Includes
- (1) Water Heater Connection Kit
- (1) 3/4 in. FIP x 3/4 in. SharkBite Max 18 in. Corrugated Water Heater Connector
- (1) 3/4 in. FIP x 3/4 in. SharkBite Max 18 in. Corrugated Water Heater Connector with Ball Valve
- (1) 3/4 in. Disconnect Clip
SharkBite UR24680 Features
- Designed for water heater connections in tight spaces
- Integrated ball valve allows easy shut-off
- Can be used as an alternative to hard piping
- Approved for electric and gas water heaters with a flue vent
- Compatible with PEX, copper, CPVC, PE-RT and HDPE SDR-9 pipe
- Can be installed on wet lines
- Stainless steel retainer adds strength and durability
- No special tools, crimping, soldering or glue required
- Can be rotated after installation
- Rated to 180 DegreeF and 200 psi
- Removable with disconnect clip, disconnect tongs or pro disconnect tool
SharkBite UR24680 Specifications
| Brand | SharkBite |
| Part Number | UR24680 |
| Product Type | Water Heater Connection Kit |
| Fitting System Compatibility | Push Fit |
| Connection Type | Push-Fit x FIP |
| Size | 3/4 in. x 3/4 in. |
| Length | 18 in. |
| Material | Stainless Steel |
| Thread Type | Female |
| Type | Corrugated |
| Tubing Compatibility | Copper, PEX, CPVC, PE-RT, HDPE SDR-9 |
| Insertion Depth | 15/16 in. |
| Lead Free | Yes |
| Standards Met | NSF |
| Maximum Pressure | 200 psi |
| Maximum Temperature | 180 DegreeF |
| Warranty | 25 Year |
| Application | Plumbing |
| Product Length | 17.99 in. |
| Product Width | 1.40 in. |
| Product Height | 3.76 in. |
| Shipping Weight | 1.45 lb |
