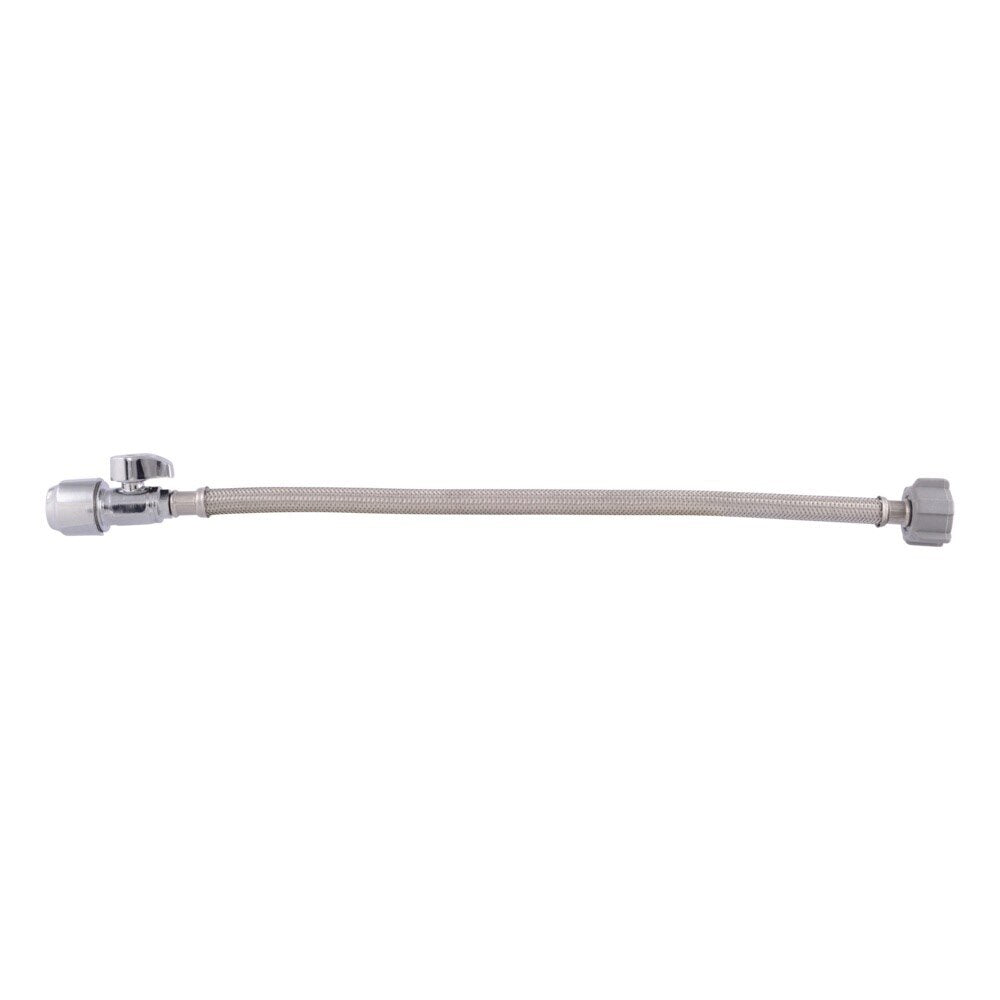

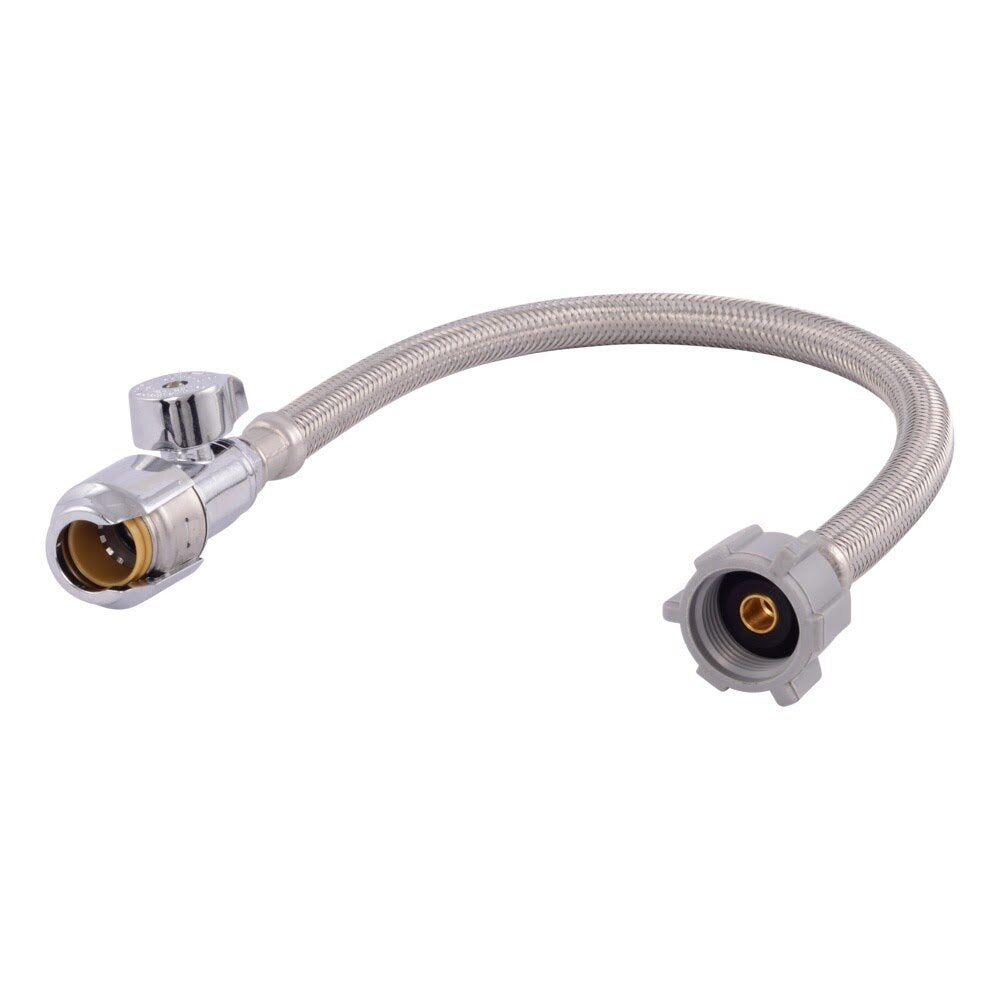

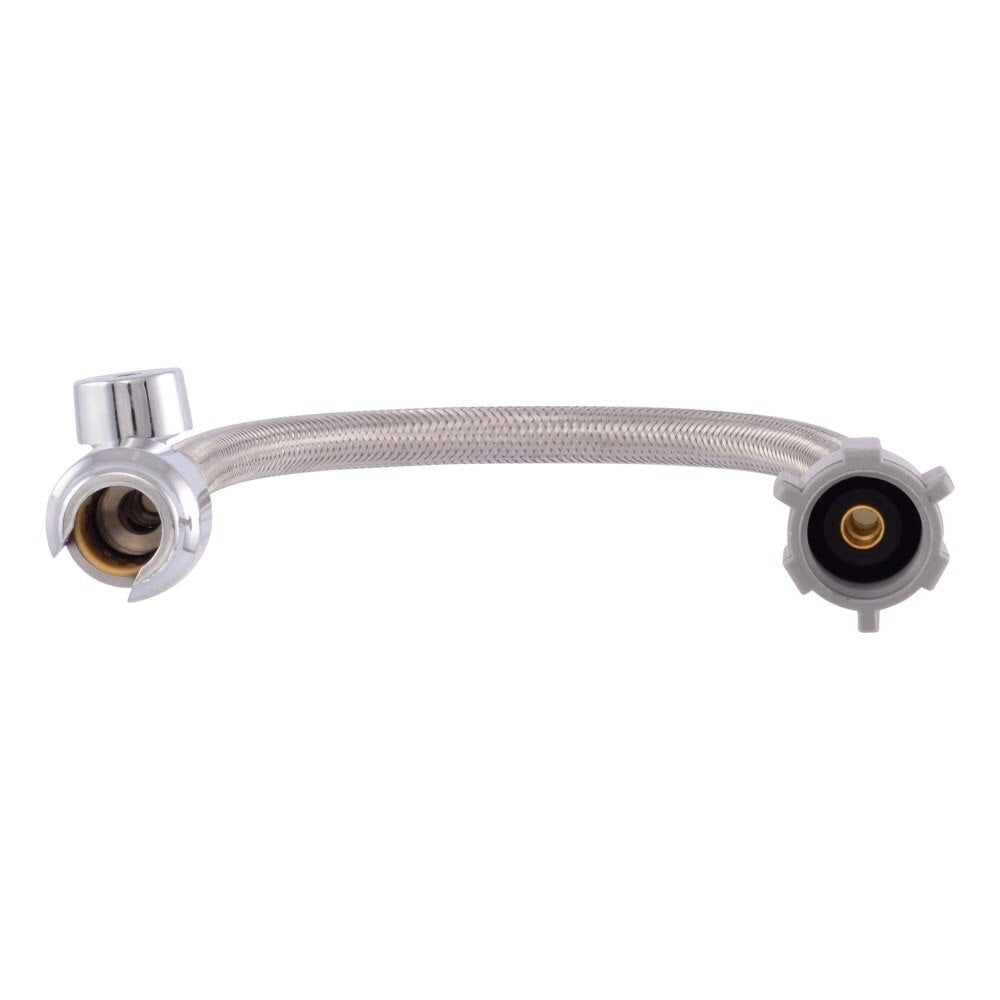

SharkBite UR24686 Description
The SharkBite Max toilet connector combines a 16 in. stainless steel braided supply line with an integrated straight stop valve for quick, reliable toilet connections. Its 1/2 in. push-to-connect inlet installs without soldering, crimping, or glue and is compatible with PEX, copper, CPVC, PE-RT, and HDPE SDR-9 pipe.
SharkBite UR24686 Includes
- (1) 16 in. Braided Toilet Connector with Straight Stop Valve
SharkBite UR24686 Features
- 1/2 in. push-to-connect inlet with 7/8 in. B/C outlet
- 16 in. stainless steel braided supply line
- Integrated straight stop valve for fixture shutoff
- Quarter-turn full-port brass ball valve for reliable operation
- Compatible with PEX, copper, CPVC, PE-RT, and HDPE SDR-9 pipe
- Installs on wet lines and can be pressure-tested immediately
- Stainless steel retainer adds strength and durability
- DZR lead-free brass body
- No special tools, crimping, soldering, or glue required
- Allows rotation after installation
- No tube liner required for PEX
- Rated up to 160 DegreeF and 125 psi
- Removable with a disconnect clip, disconnect tongs, or pro disconnect tool
SharkBite UR24686 Specifications
| Product Type | Toilet Connector with Straight Stop Valve |
| Inlet Size | 1/2 in. |
| Outlet Size | 7/8 in. B/C |
| Length | 16 in. |
| Supply Line Material | Stainless Steel |
| Body Material | DZR lead-free brass |
| Connection Type | Push-to-connect |
| Valve Type | Quarter-turn full-port brass ball valve |
| Compatible Pipe Materials | PEX, copper, CPVC, PE-RT, HDPE SDR-9 |
| Maximum Pressure | 125 psi |
| Maximum Temperature | 160 DegreeF |
Toolup Part # :
883910
