SharkBite UR24946 Description

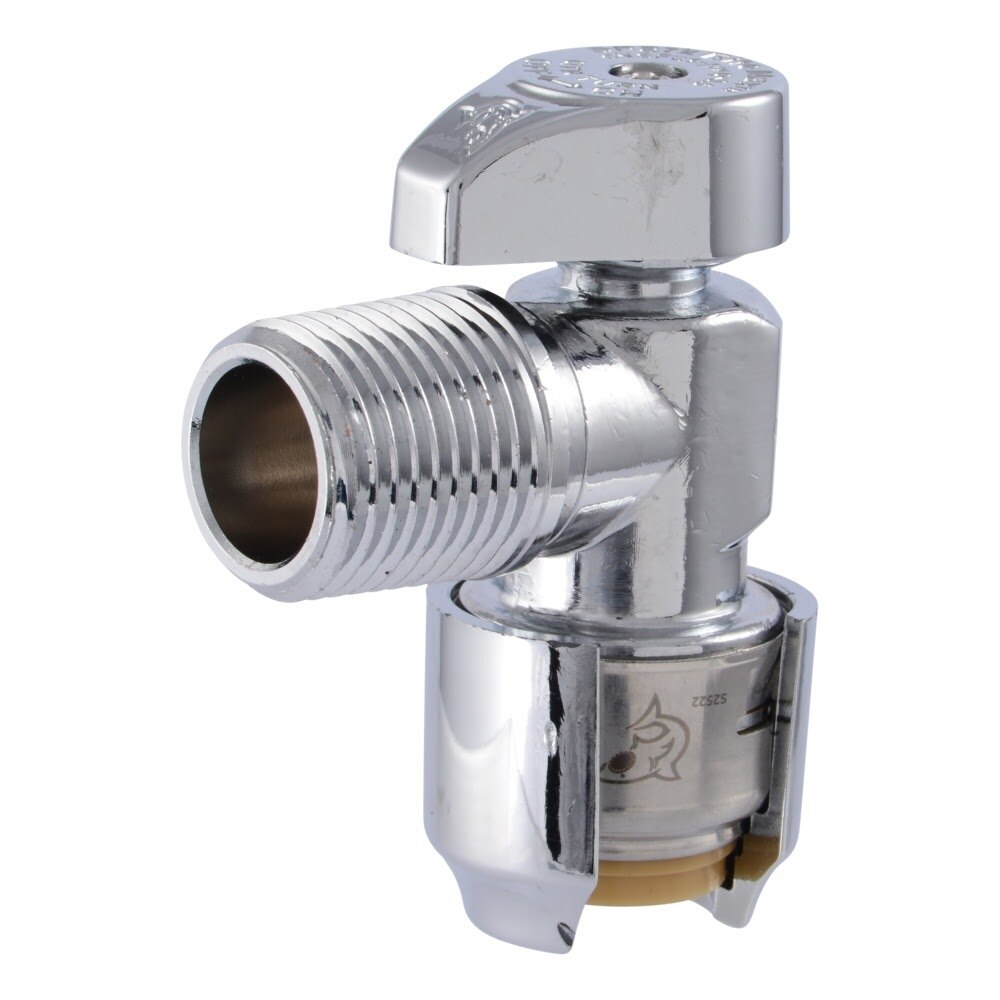

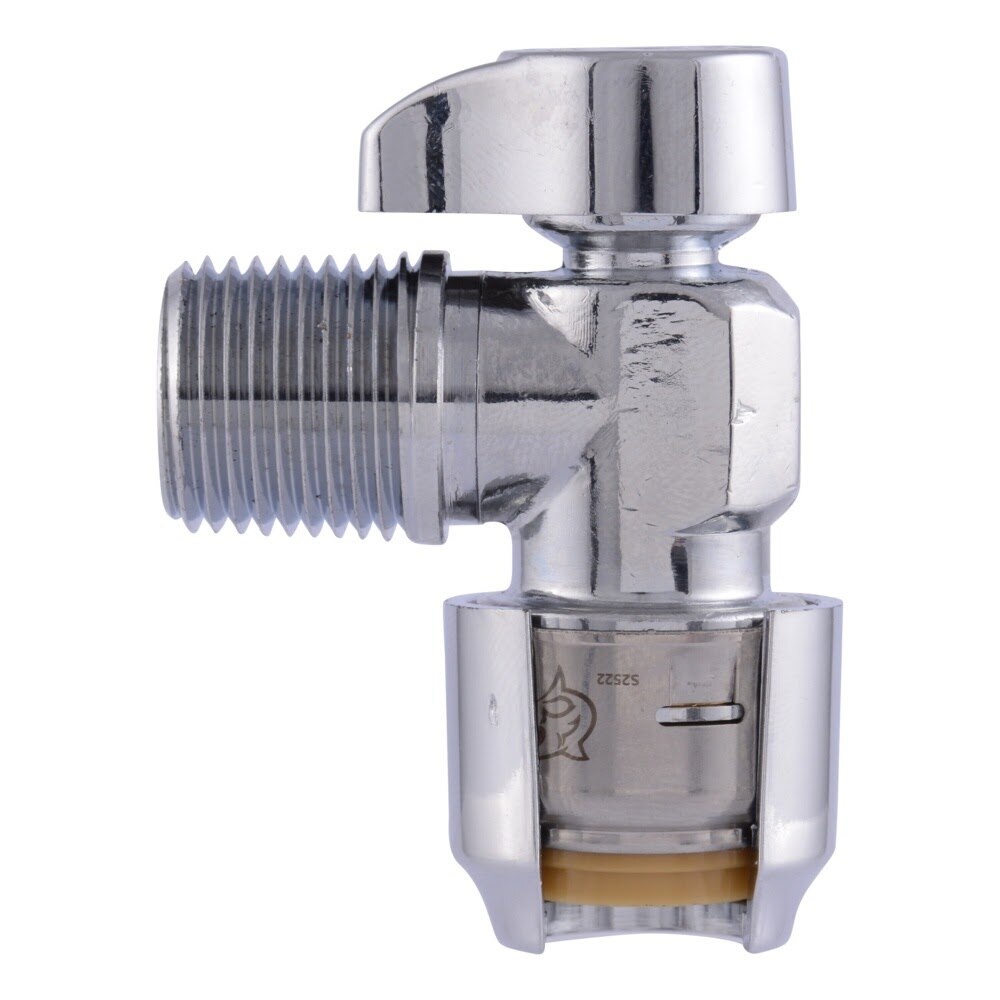

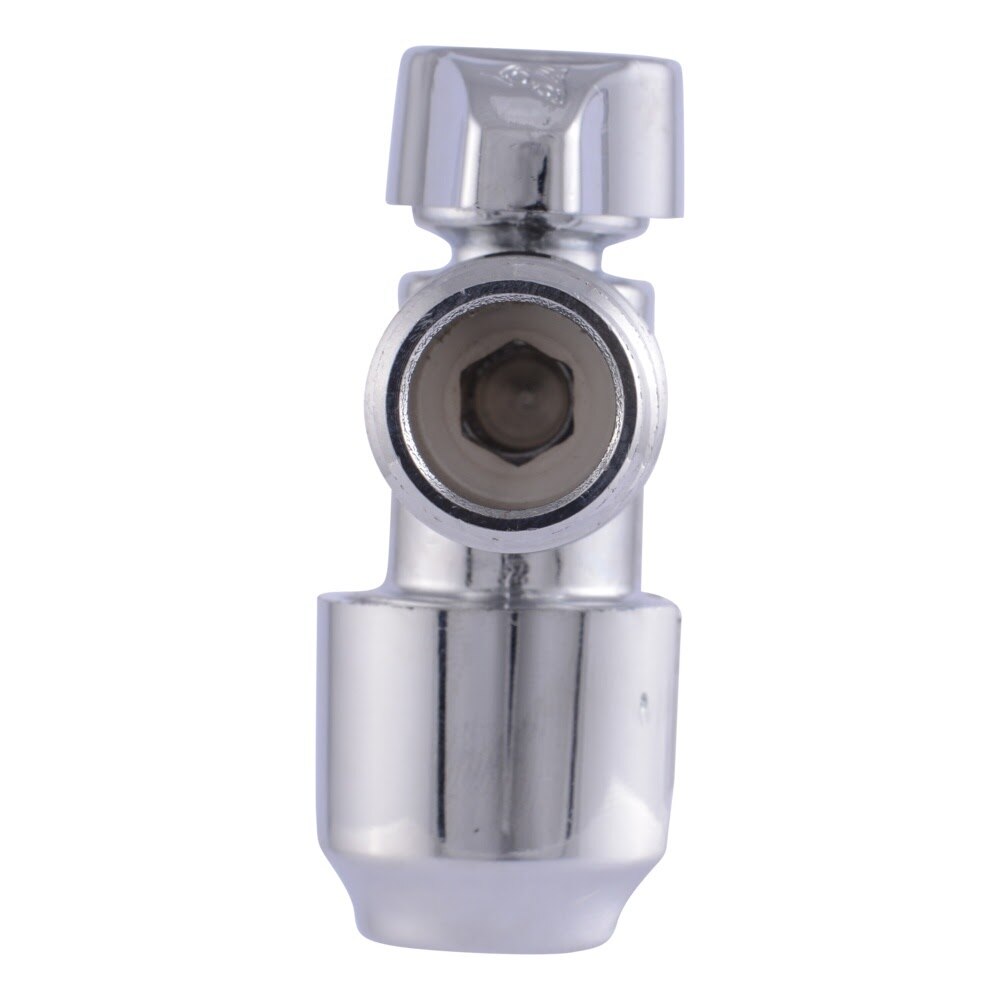

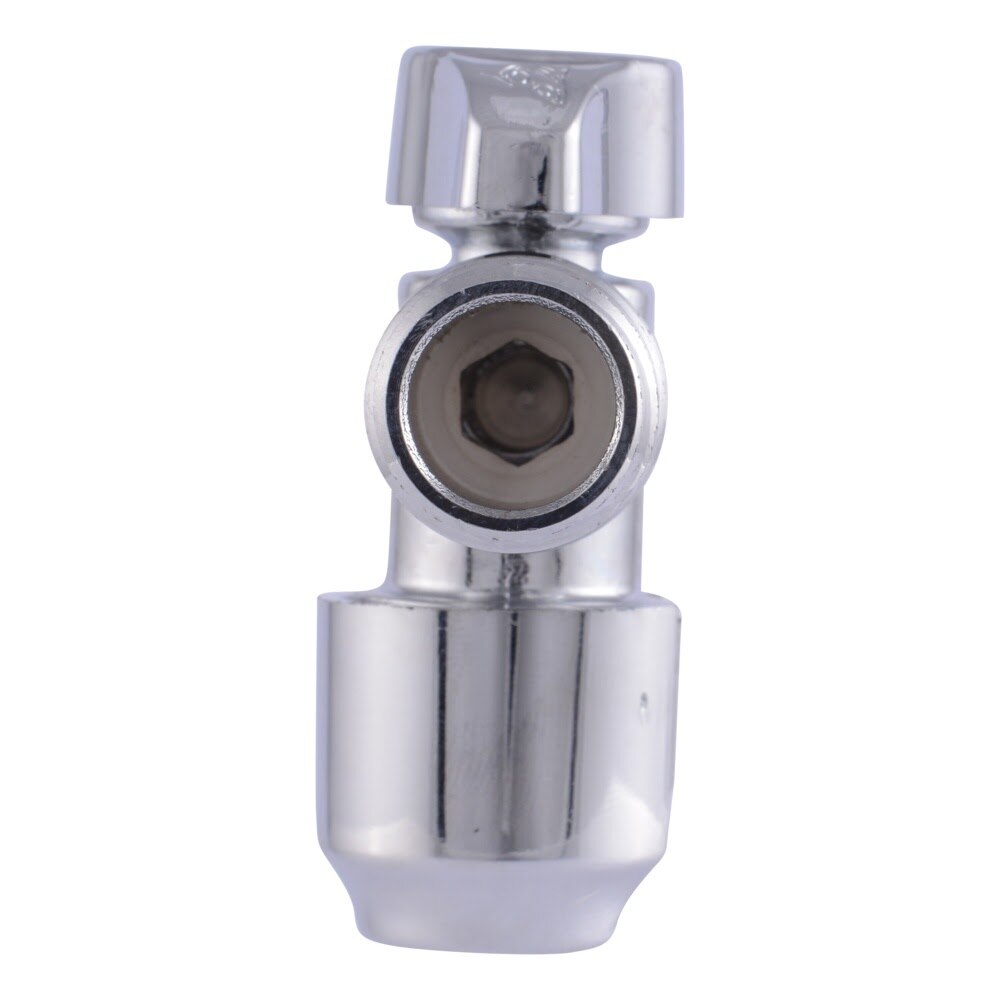

The SharkBite Max angle stop valve features a 1/2 in. push-to-connect inlet and 1/2 in. MIP outlet for fast, reliable shut-off connections on potable water lines. Designed for faucet and toilet applications, this chrome-plated brass quarter-turn valve installs without crimping, soldering, or glue and is compatible with PEX, copper, CPVC, PE-RT, and HDPE pipe.
SharkBite UR24946 Includes
- (1) SharkBite Max Quarter-Turn Angle Stop Valve
SharkBite UR24946 Features
- 1/2 in. push-to-connect inlet x 1/2 in. MIP outlet
- Quarter-turn angle stop valve for shut-off control at fixtures
- Compatible with PEX, copper, CPVC, PE-RT, and HDPE pipe
- Installs without special tools, crimping, soldering, or glue
- Can be installed on wet lines and pressure tested immediately
- Chrome-plated DZR lead-free brass body
- Stainless steel retainer adds strength and durability
- Removable connection can be rotated after installation
- Rated up to 160 Degree F and 125 PSI
- Suitable for potable water applications
- 25-year warranty when properly installed on PEX, copper, CPVC, and PE-RT
SharkBite UR24946 Specifications
| Application | Potable Water |
| Material | Brass |
| Color/Finish | Chrome-Plated |
| Connection | Push-to-Connect x MIP |
| Valve Configuration | Angle |
| Operation | Quarter-Turn |
| Inlet Diameter | 1/2 in. |
| Outlet Diameter | 1/2 in. |
| Compatible Pipe Material | PEX, Copper, CPVC, PE-RT, HDPE |
| Compatible Product | Faucet, Toilet |
| Maximum Pressure | 125 PSI |
| Maximum Working Temperature | 160 Degree F |
| Indoor/Outdoor | Indoor |
| Features | Removable |
| Product Length | 2.626 in. |
| Warranty | 25-year warranty when properly installed on PEX, copper, CPVC and PE-RT |
