SharkBite UR24947 Description

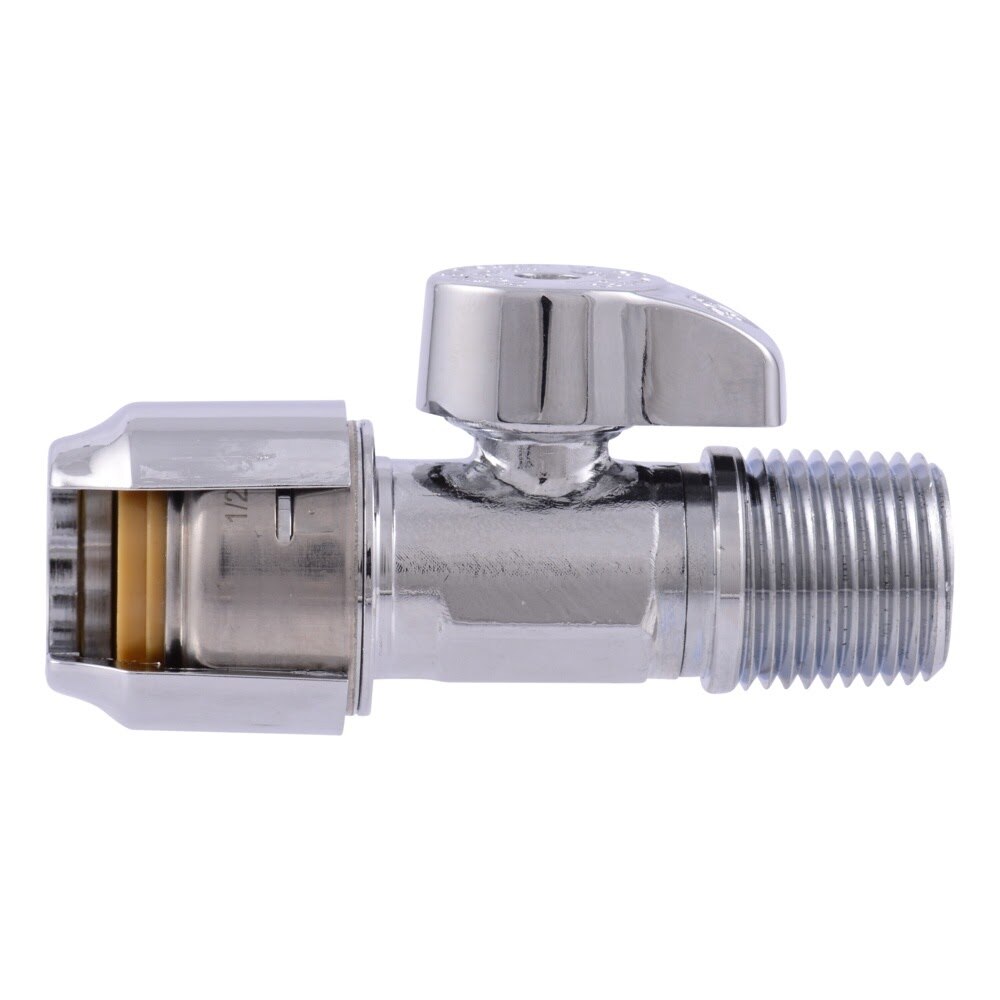

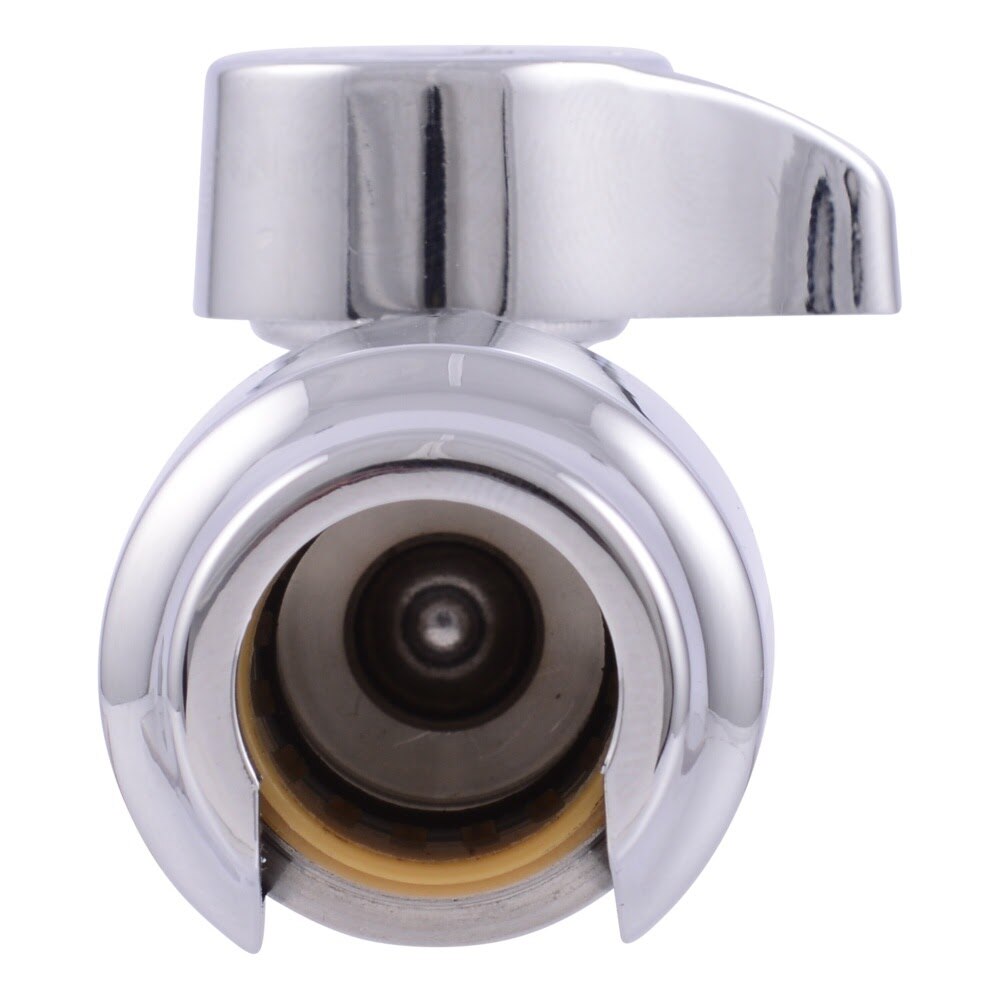

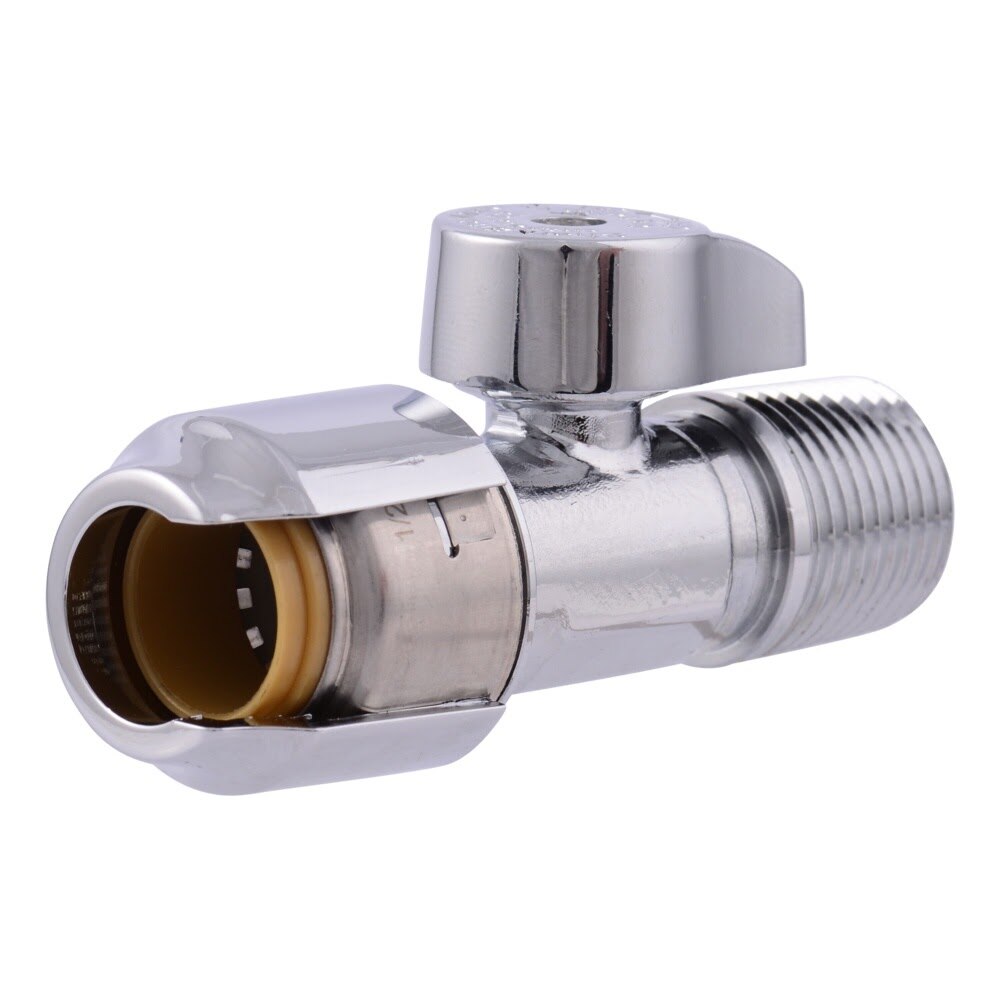

The SharkBite Max straight stop valve provides a fast, reliable shutoff solution for faucet and toilet supply lines. Featuring a 1/2 in. push-to-connect inlet and 1/2 in. MIP outlet, this chrome-plated brass quarter-turn valve installs without soldering, crimping, glue, or special tools and is compatible with PEX, copper, CPVC, PE-RT, and HDPE pipe.
SharkBite UR24947 Includes
- (1) 1/2 in. Push-to-Connect x 1/2 in. MIP Straight Stop Valve
SharkBite UR24947 Features
- Push-to-connect inlet allows fast installation with no soldering, crimping, glue, or special tools
- Quarter-turn straight stop design for convenient shutoff control
- Compatible with PEX, copper, CPVC, PE-RT, and HDPE pipe
- Chrome-plated lead-free brass body with stainless steel retainer for durability
- Can be installed on wet lines and pressure tested immediately
- Removable and can be rotated after installation
- No PEX tube liner required
- Approved for behind-the-wall applications with no access panels
- Approved for underground applications when wrapped for burial
- Rated for up to 125 psi and 160 DegreeF
SharkBite UR24947 Specifications
| Product Line | SharkBite Max |
| Application | Potable Water |
| Material | Brass |
| Finish | Chrome plated |
| Color/Finish | Silver |
| Connection | Push-to-Connect x MIP |
| Inlet Diameter | 1/2 in. |
| Outlet Diameter | 1/2 in. |
| Valve Configuration | Straight |
| Operation | Quarter-turn |
| Compatible Pipe Material | PEX, copper, CPVC, PE-RT, and HDPE |
| Compatible Product | Faucet, Toilet |
| Features | Removable |
| Indoor/Outdoor | Indoor |
| Maximum Pressure | 125 PSI |
| Maximum Working Temperature | 160 DegreeF |
| Product Length | 3.016 in. |
| Warranty | 25-year warranty when properly installed on PEX, copper, CPVC and PE-RT; 5-year warranty when properly installed with HDPE SDR-9 |
