SharkBite UR24983A Description

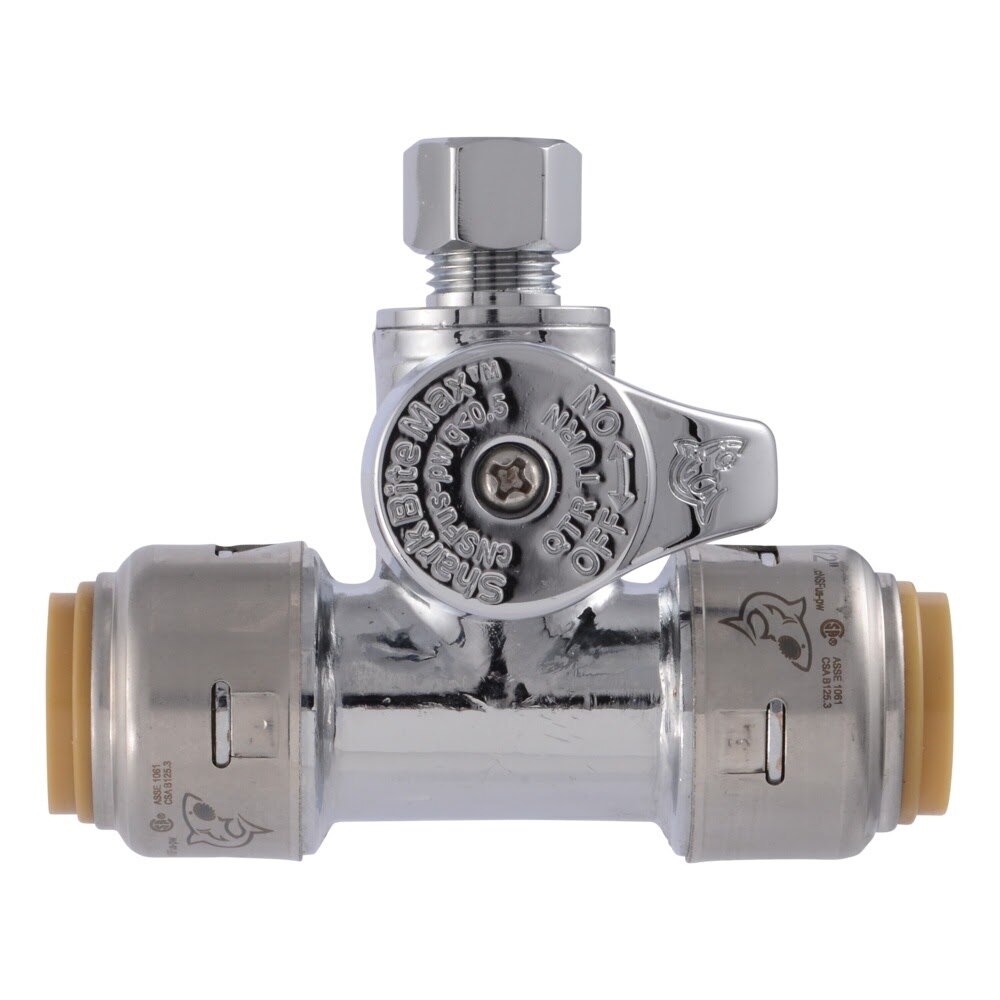

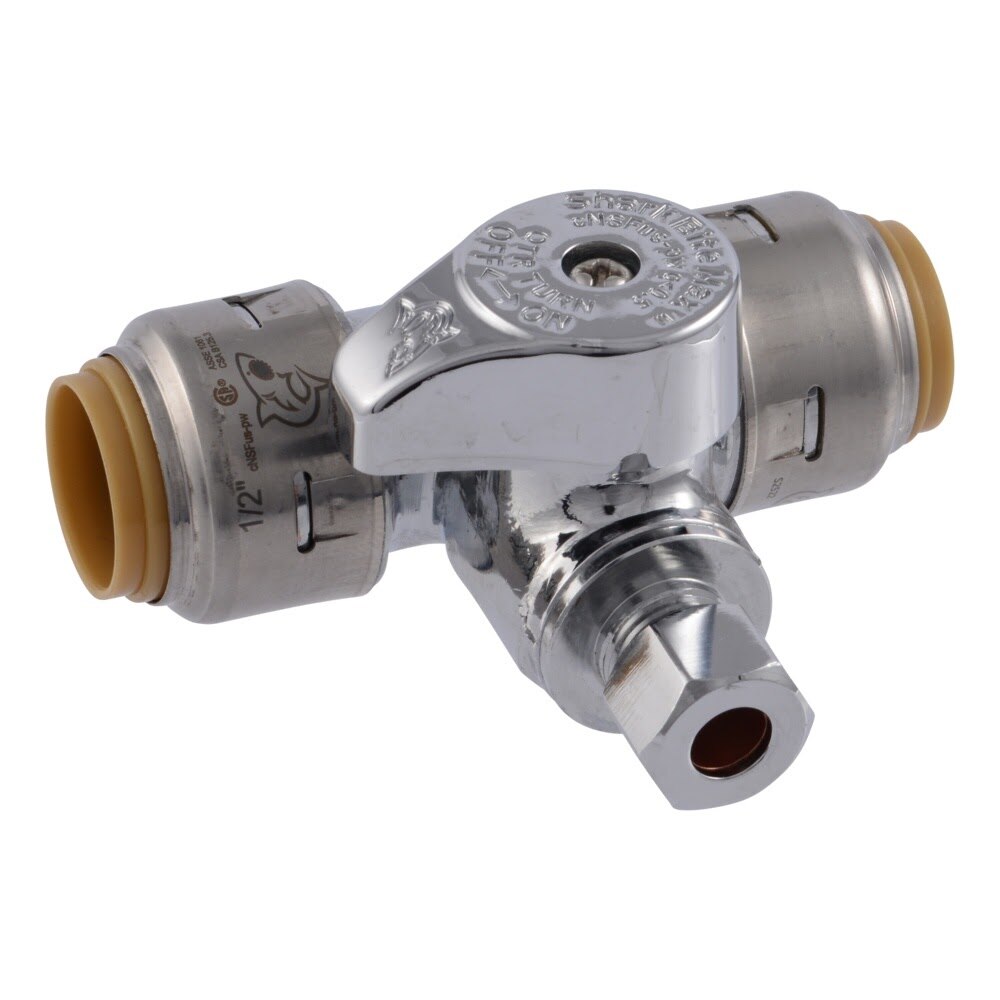

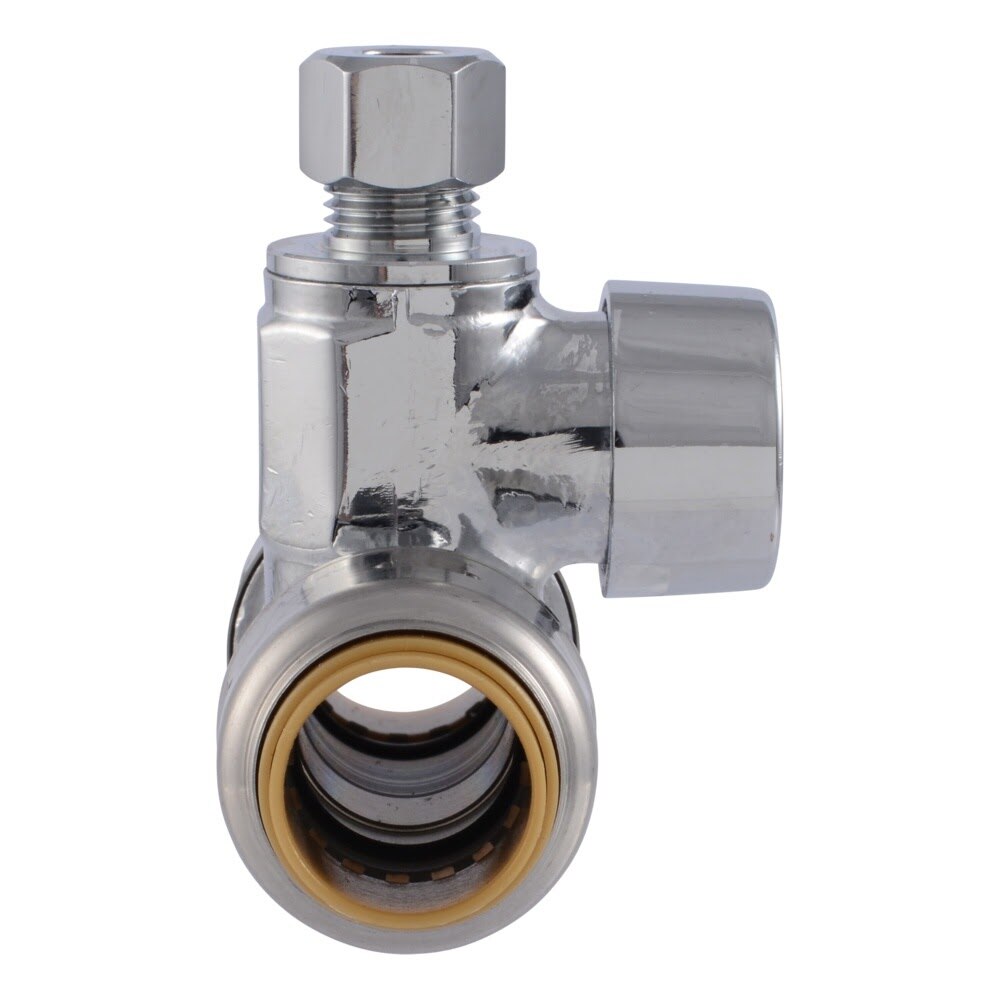

The SharkBite Max service stop tee provides a fast, reliable way to connect 1/2 in. PEX, copper, CPVC, PE-RT, or HDPE pipe to a 1/4 in. OD compression outlet for faucet and toilet supply applications. Its chrome-plated brass body installs without special tools, works on wet lines, and is rated for 125 PSI and 160 F.
SharkBite UR24983A Includes
- (1) Service Stop Tee
SharkBite UR24983A Features
- Push-to-connect installation for PEX, copper, CPVC, PE-RT, and HDPE pipe
- 1/2 in. x 1/2 in. x 1/4 in. OD compression configuration for faucet and toilet supply connections
- Chrome-plated DZR lead-free brass body with stainless steel retainer for durability
- No special tools, crimping, soldering, or glue required
- Can be installed on wet lines and pressure tested immediately
- Half the insertion force with double the burst pressure
- Removable design can be rotated after installation
- No PEX tube liner required
- Approved for behind-the-wall applications with no access panels
- Approved for underground applications when wrapped for burial
- Rated for 125 PSI and 160 F
- Third-party listed and compliant with applicable U.S. and Canadian plumbing codes
- 25-year warranty when properly installed on PEX, copper, CPVC, and PE-RT
SharkBite UR24983A Specifications
| Application | Potable Water |
| Material | Brass |
| Finish | Chrome-Plated |
| Color | Silver |
| Compatible Pipe Material | PEX, Copper, CPVC, PE-RT, HDPE |
| Compatible Product | Faucet, Toilet |
| Connection Type | Push-to-Connect x Push-to-Connect x Compression |
| Inlet Diameter | 1/2 in. |
| Branch Diameter | 1/2 in. |
| Outlet Diameter | 1/4 in. OD |
| Valve Configuration | Straight |
| Features | Removable |
| Indoor/Outdoor | Indoor |
| Maximum Pressure | 125 PSI |
| Maximum Working Temperature | 160 F |
| Product Length | 2.874 in. |
| Shipping Weight | 0.38 lb |
| Warranty | 25-year warranty when properly installed on PEX, copper, CPVC and PE-RT |
