SharkBite UR249A Description

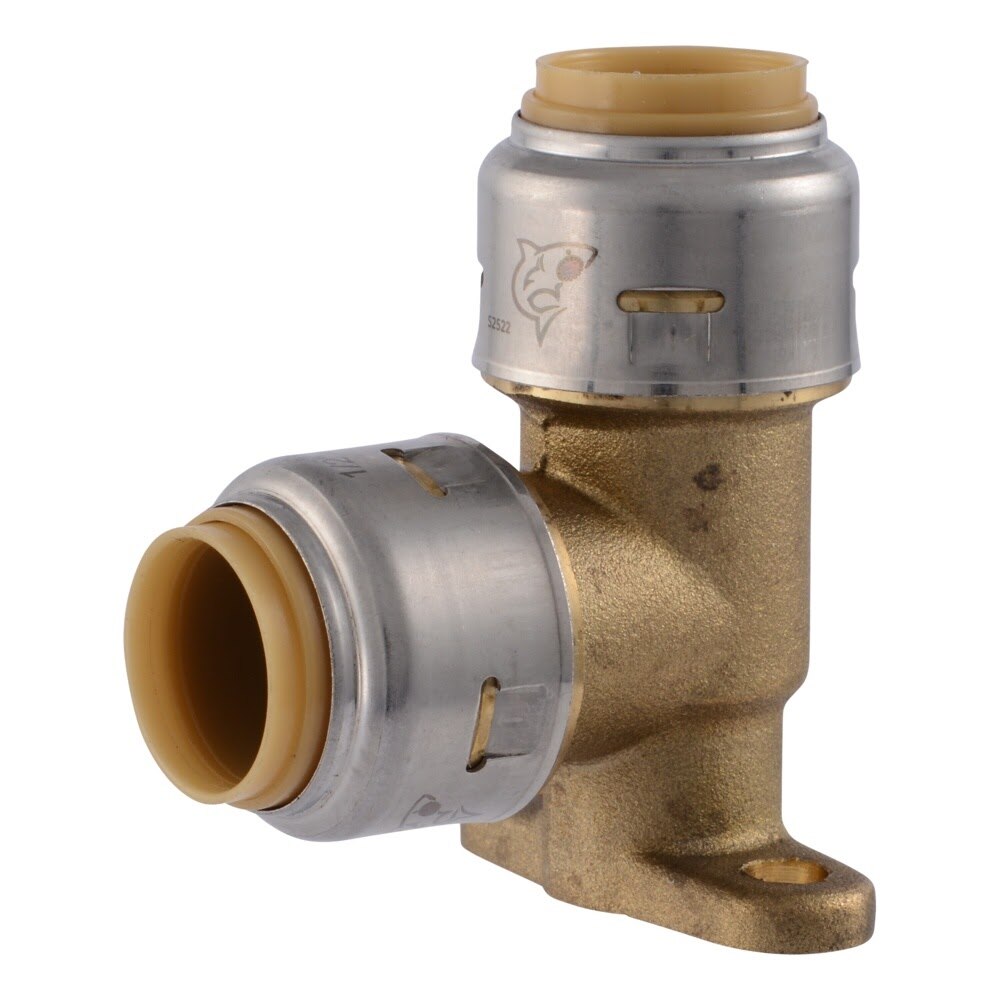

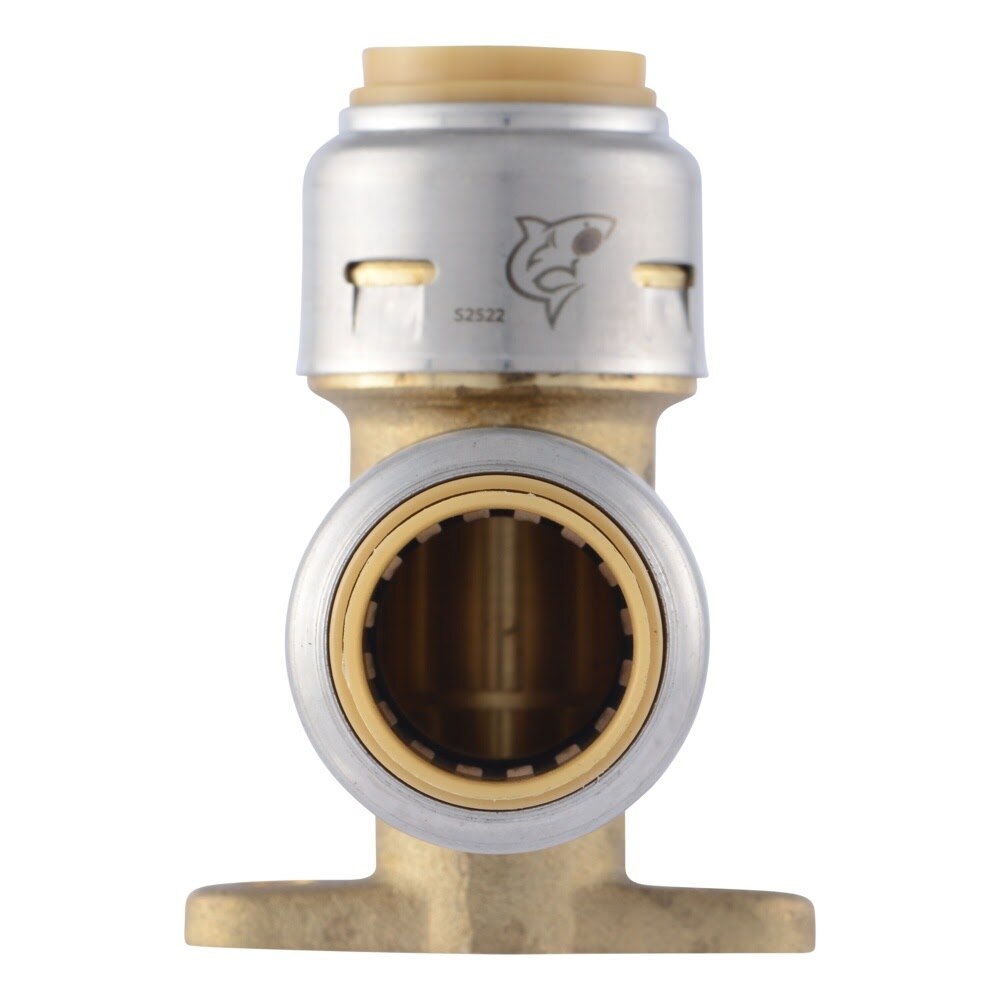

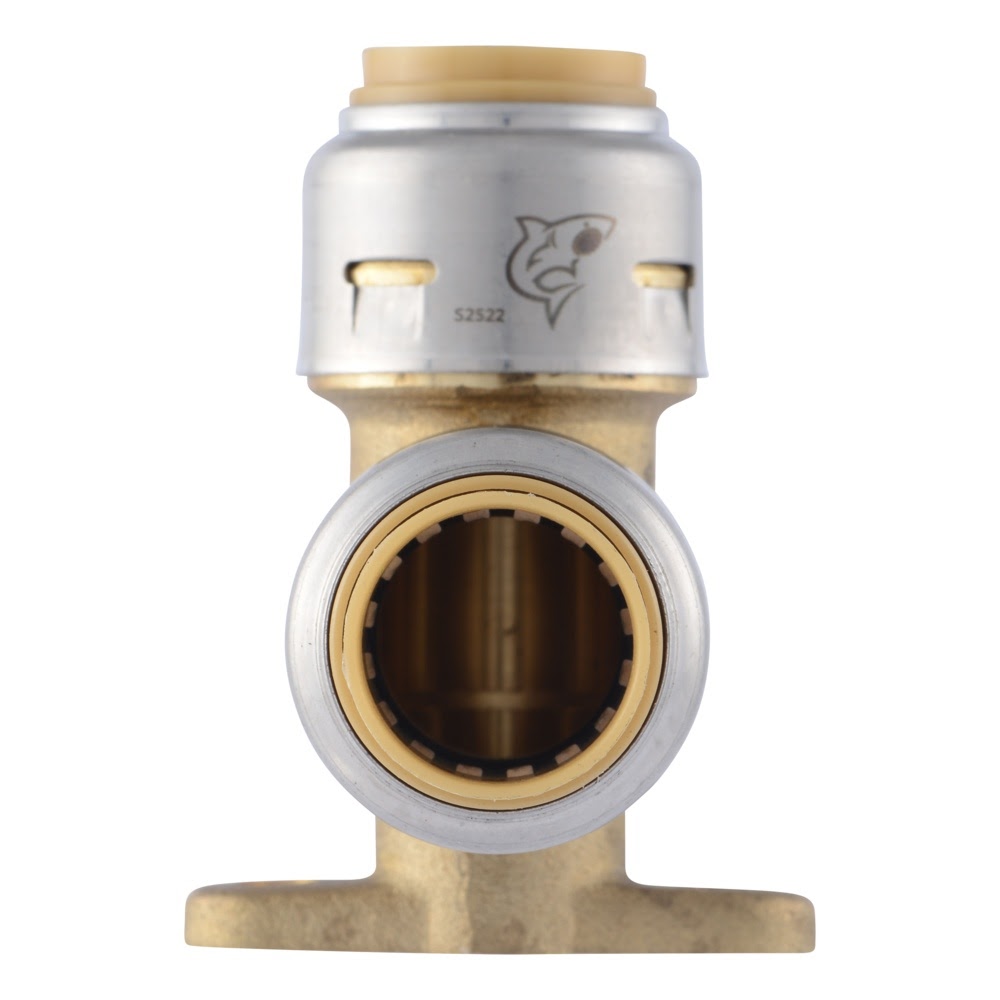

The SharkBite Max UR249A is a 1/2 in x 1/2 in push-to-connect brass 90 Degree drop ear elbow fitting designed for potable water applications. It connects PEX, copper, CPVC, and PE-RT pipe without special tools, can be installed on wet lines, and allows immediate pressure testing after installation.
SharkBite UR249A Includes
- (1) 1/2 in x 1/2 in Push-to-Connect Brass Drop Ear Elbow Fitting
SharkBite UR249A Features
- Fast push-to-connect installation for PEX, copper, CPVC, and PE-RT pipe
- Half the insertion force with double the burst pressure
- Brass body with stainless steel retainer for strength and durability
- No special tools, crimping, soldering, or glue required
- Can be installed on wet lines and pressure tested immediately
- Removable and rotatable after installation
- No PEX tube liner required
- Approved for behind-the-wall applications with no access panels
- Approved for underground applications when wrapped for burial
- Rated to 200 F and 400 psi
- Third-party listed and compliant with applicable US and Canadian plumbing codes
- Patented technology
SharkBite UR249A Specifications
| Product Series | SharkBite Max |
| Application | Potable Water |
| Fitting Type | Drop Ear Elbow |
| Bend Degree | 90 Degree |
| Material | Brass |
| Connection Type | Push-to-Connect x Push-to-Connect |
| Fitting Size | 1/2 in x 1/2 in |
| Compatible Pipe Materials | PEX, Copper, CPVC, and PE-RT |
| Maximum Working Temperature | 200 F |
| Maximum Working Pressure | 400 psi |
| Removable | Yes |
| Rotatable After Installation | Yes |
| Product Weight | 0.185 lb |
