SharkBite UR25558 Description

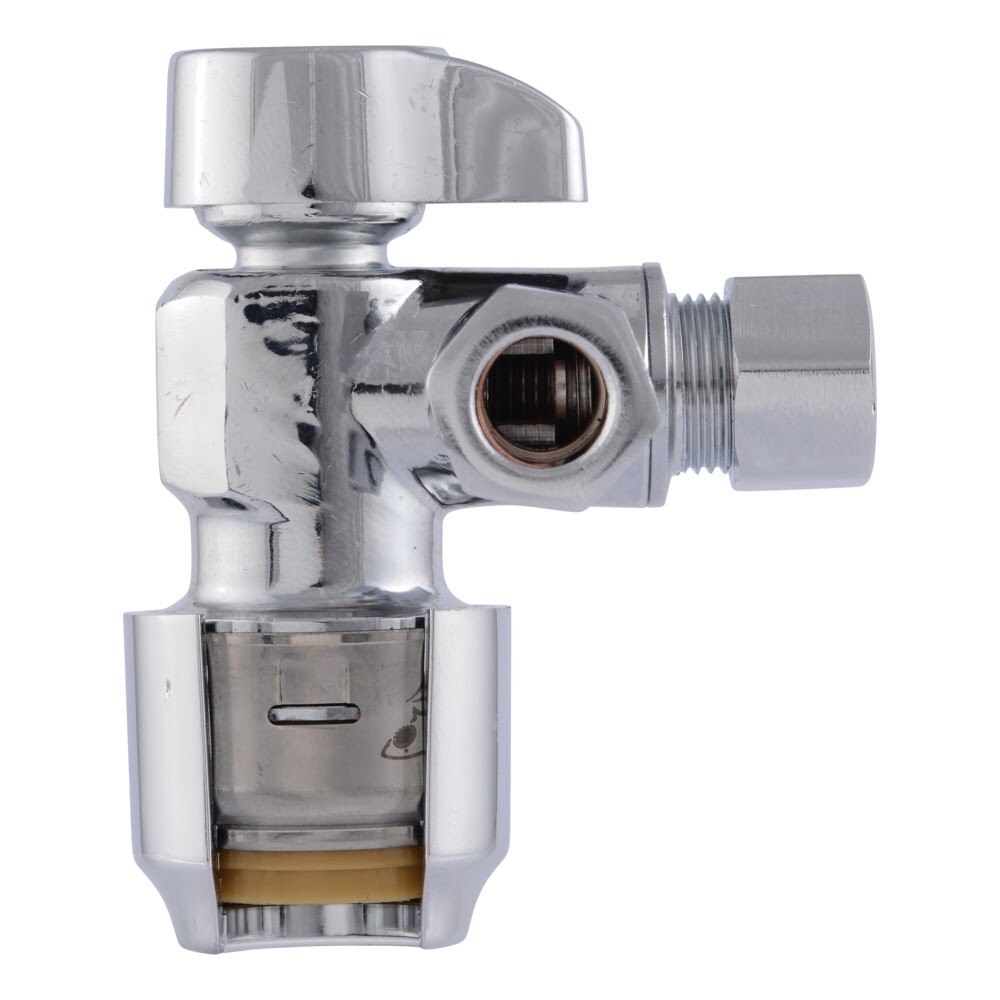

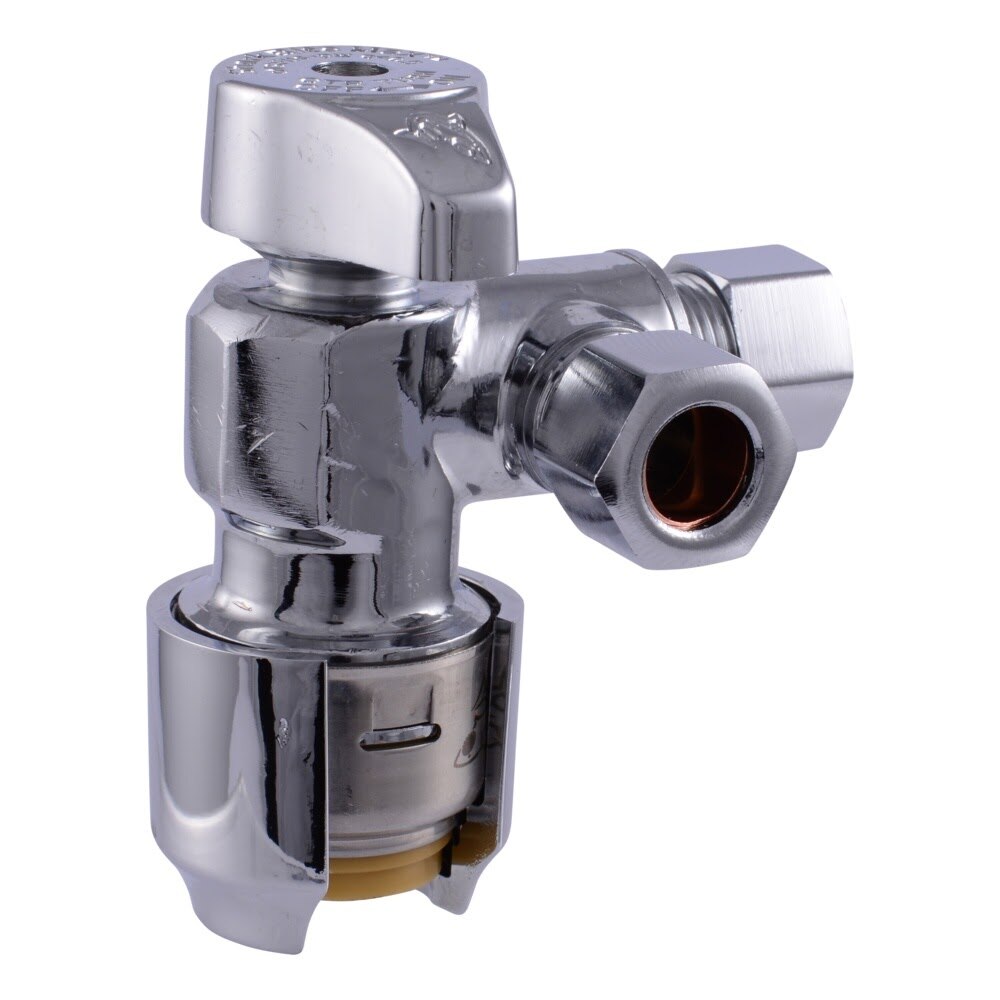

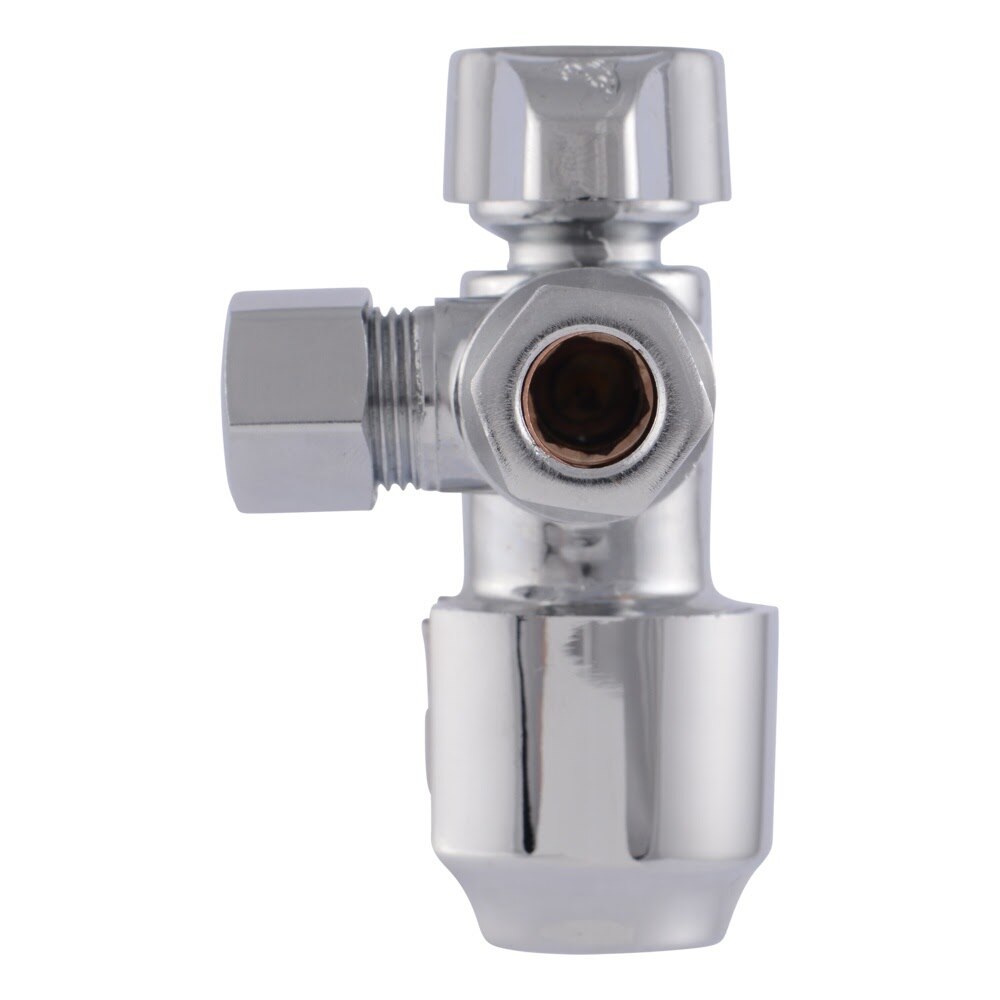

The SharkBite Max dual outlet stop valve provides a fast way to connect 1/2 in. pipe to two 3/8 in. OD compression outlets for faucet or toilet shut-off applications. Its push-to-connect inlet installs without special tools, works with multiple pipe types, and allows immediate pressure testing on wet lines.
SharkBite UR25558 Includes
- (1) Dual Outlet Stop Valve
SharkBite UR25558 Features
- Push-to-connect 1/2 in. inlet with dual 3/8 in. OD compression outlets
- Quarter-turn angle valve design for shut-off control
- Compatible with PEX, copper, CPVC, PE-RT, and HDPE pipe
- Installs without crimping, soldering, glue, or special tools
- Can be installed on wet lines and pressure tested immediately
- Removable and rotatable after installation
- Lead-free DZR brass body with stainless steel retainer
- Rated to 125 PSI and 160 DegreeF
- Approved for behind-the-wall applications with no access panels
- Suitable for underground applications when wrapped for burial
SharkBite UR25558 Specifications
| Brand | SharkBite |
| Model | UR25558 |
| Valve Type | Quarter-Turn Angle Dual Outlet Stop Valve |
| Valve Configuration | Dual Outlet |
| Inlet Size | 1/2 in. |
| Inlet Connection | Push-to-Connect |
| Outlet 1 Size | 3/8 in. OD |
| Outlet 2 Size | 3/8 in. OD |
| Outlet Connection | Compression |
| Material | Brass |
| Finish | Silver |
| Application | Potable Water |
| Compatible Product | Faucet, Toilet |
| Compatible Pipe Material | PEX, copper, CPVC, PE-RT, HDPE |
| Maximum Pressure | 125 PSI |
| Maximum Working Temperature | 160 DegreeF |
| Indoor/Outdoor | Indoor |
| Features | Removable |
| Product Length | 2.618 in. |
| Product Width | 4.38 in. |
| Product Height | 7.00 in. |
| Shipping Weight | 0.34 lb |
| Warranty | 25-year warranty when properly installed on PEX, copper, CPVC and PE-RT |
