SharkBite UR25567 Description
The SharkBite Max Shower and Tub Installation Kit includes the fittings needed to install a shower arm or tub spout with fast push-to-connect connections. Designed for use with 1/2 in. PEX, copper, CPVC, PE-RT, or HDPE SDR-9 pipe, this all-in-one kit supports behind-the-wall applications, installs on wet lines, and requires no special tools, soldering, crimping, or glue.

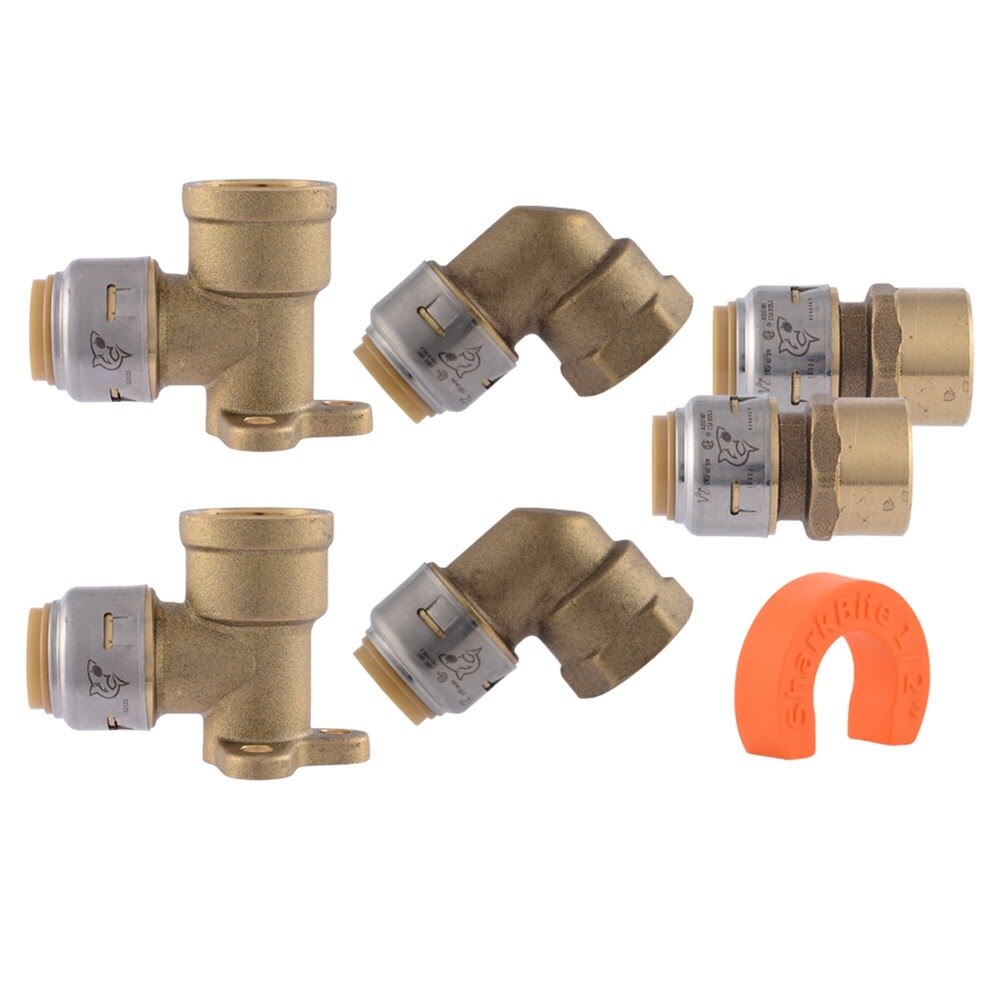

SharkBite UR25567 Includes
- (1) 1/2 in. Shower and Tub Max Push Installation Kit
- (2) 1/2 in. Max Push Female Adapter
- (2) 1/2 in. Max Push Female Adapter Elbow
- (2) 1/2 in. Max Push Drop-Ear Elbow
- (1) 1/2 in. Disconnect Clip
SharkBite UR25567 Features
- All-in-one kit for shower arm or tub spout installation
- Push-to-connect design works with PEX, copper, CPVC, PE-RT, and HDPE SDR-9 pipe
- Approved for behind-the-wall applications with no access panel required
- Can be installed on wet lines and pressure tested immediately
- Half the insertion effort and double the burst pressure compared to first generation SharkBite fittings
- Stainless steel retainer adds strength and durability
- High-performance DZR lead-free brass body
- No special tools, crimping, soldering, or glue required
- Can be rotated after installation
- No tube liner required for PEX
- Rated to 200 DegreeF and 250 psi
- Can be removed with the included disconnect clip or compatible disconnect tools
SharkBite UR25567 Specifications
| Size | 1/2 in. |
| Connection Type | Push-to-connect |
| Application | Shower arm or tub spout installation |
| Compatible Pipe Materials | PEX, copper, CPVC, PE-RT, HDPE SDR-9 |
| Material | Lead-free DZR brass body with stainless steel retainer |
| Maximum Working Temperature | 200 DegreeF |
| Maximum Working Pressure | 250 psi |
| Behind-the-Wall Approved | Yes |
| Wet Line Installation | Yes |
| Rotatable After Installation | Yes |
| PEX Tube Liner Required | No |
| Package Height | 9.00 in. |
| Package Width | 4.88 in. |
| Package Length | 1.81 in. |
