SharkBite UR256A Description

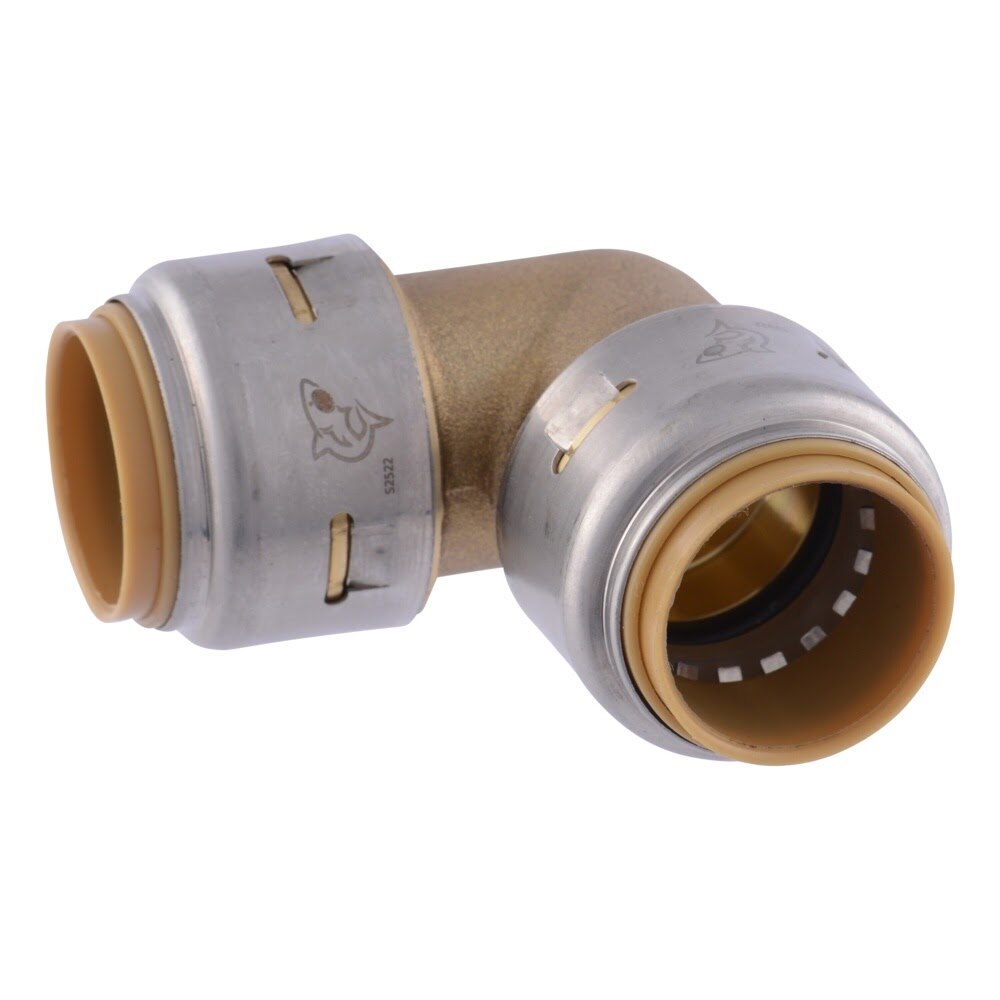

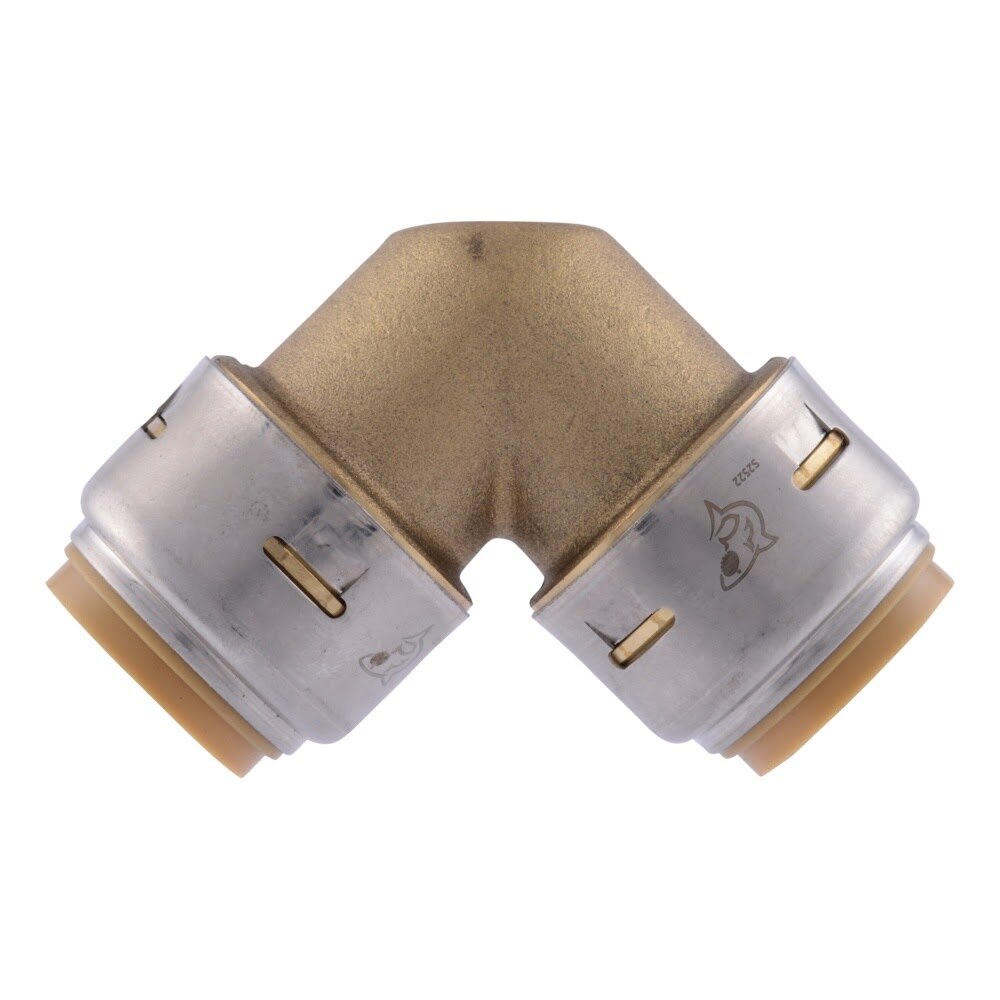

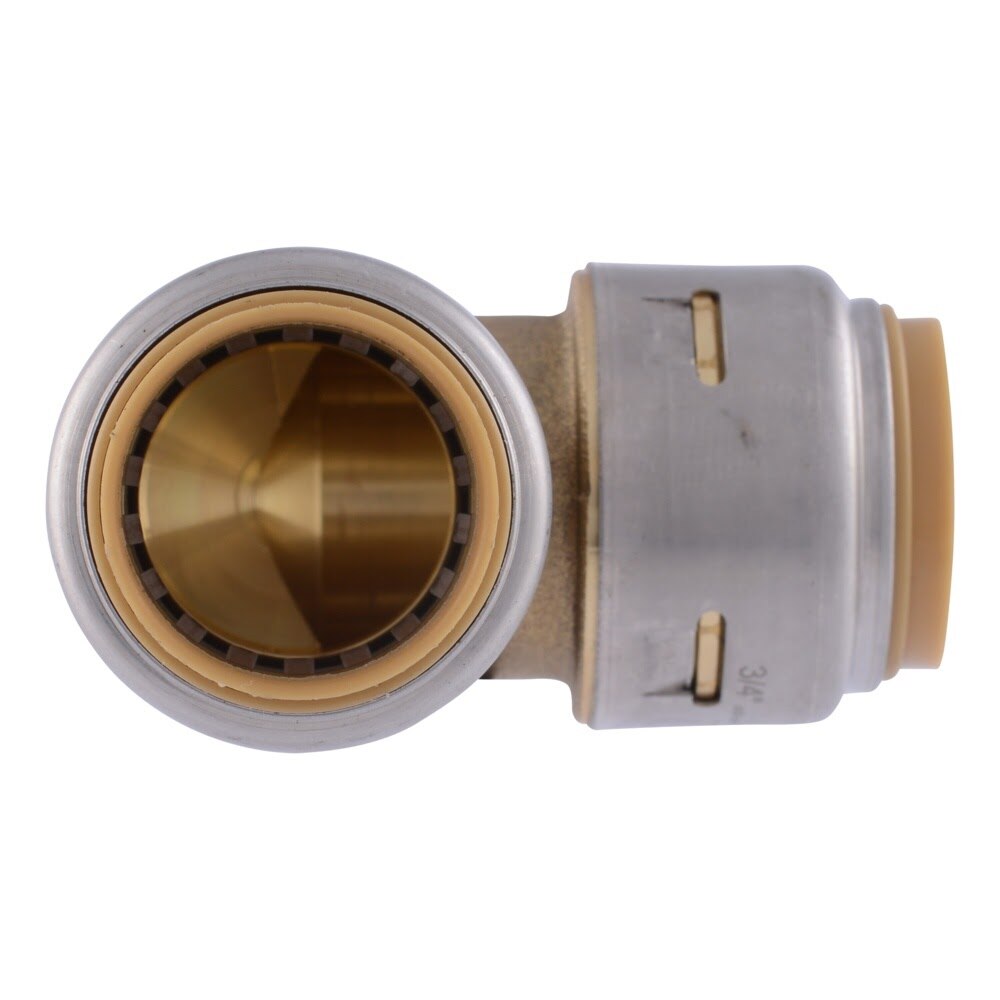

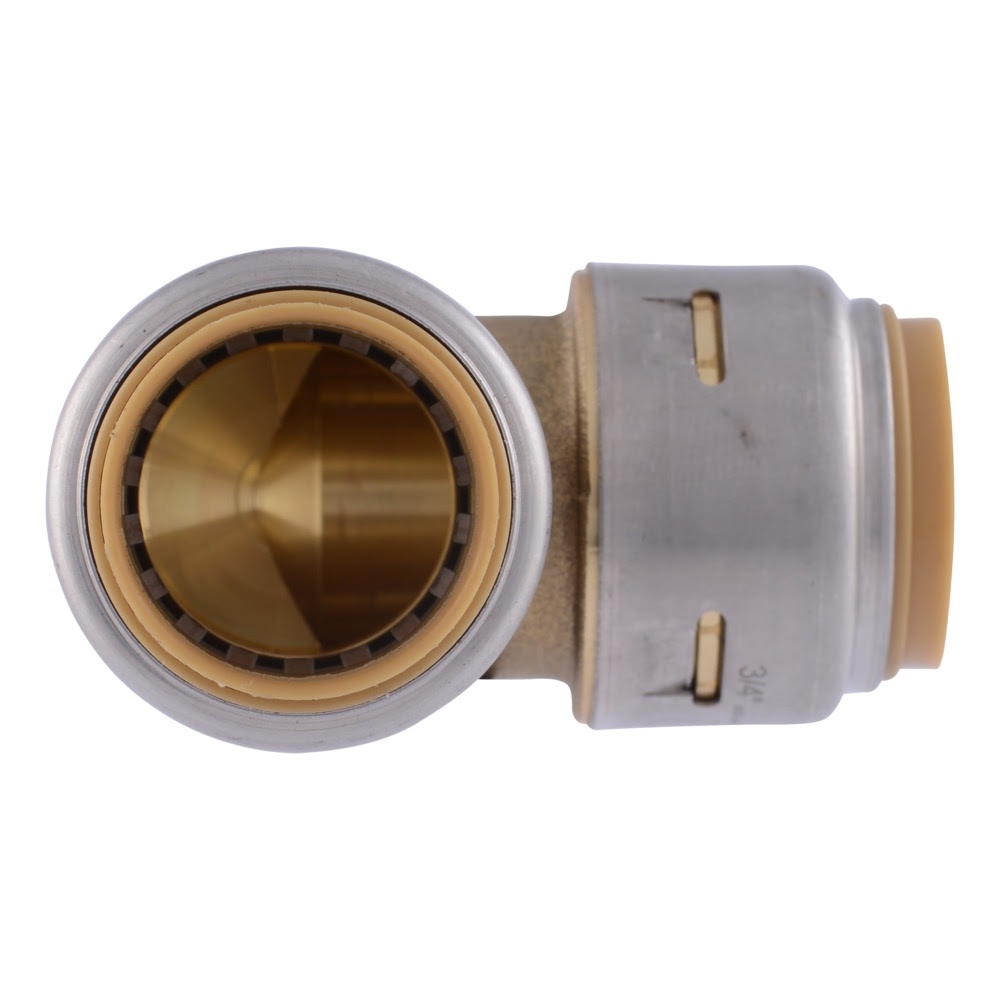

The SharkBite Max 3/4 in. x 3/4 in. 90 Degree elbow fitting provides a fast push-to-connect connection for PEX, copper, CPVC, and PE-RT pipe. Its lead-free brass body and stainless steel retainer deliver durable performance, and the fitting can be installed on wet lines with immediate pressure testing up to 200 F and 400 PSI.
SharkBite UR256A Includes
- (1) SharkBite Max 90 Degree Elbow Fitting
SharkBite UR256A Features
- Push-to-connect design enables fast installation
- Compatible with PEX, copper, CPVC, and PE-RT pipe
- Can be installed on wet lines and pressure tested immediately
- No special tools, crimping, soldering, or glue required
- Lead-free DZR brass body for durability
- Stainless steel retainer adds strength
- Removable and can be rotated after installation
- Approved for behind-the-wall applications with no access panels
- Approved for underground applications when wrapped for burial
- Rated up to 200 F and 400 PSI
- No PEX tube liner required
- Backed by a 25-year warranty when properly installed on PEX, copper, CPVC, and PE-RT
SharkBite UR256A Specifications
| Series | Max |
| Application | Potable Water |
| Bend Degree | 90 Degree |
| Fitting Type | Elbow |
| Material | Brass |
| Connection Type | Push Fit |
| Connection 1 | PTC |
| Connection 2 | PTC |
| Fitting Size | 3/4 in. x 3/4 in. |
| Compatible Pipe Material | PEX, Copper, CPVC, PE-RT |
| Maximum Working Temperature | 200 F |
| Maximum Working Pressure | 400 PSI |
| Features | Removable |
| Pack Size | 1 |
| Product Weight | 0.243 lb |
| Warranty | 25-year warranty when properly installed on PEX, copper, CPVC and PE-RT |
Toolup Part # :
884569
