SharkBite UR274A Description

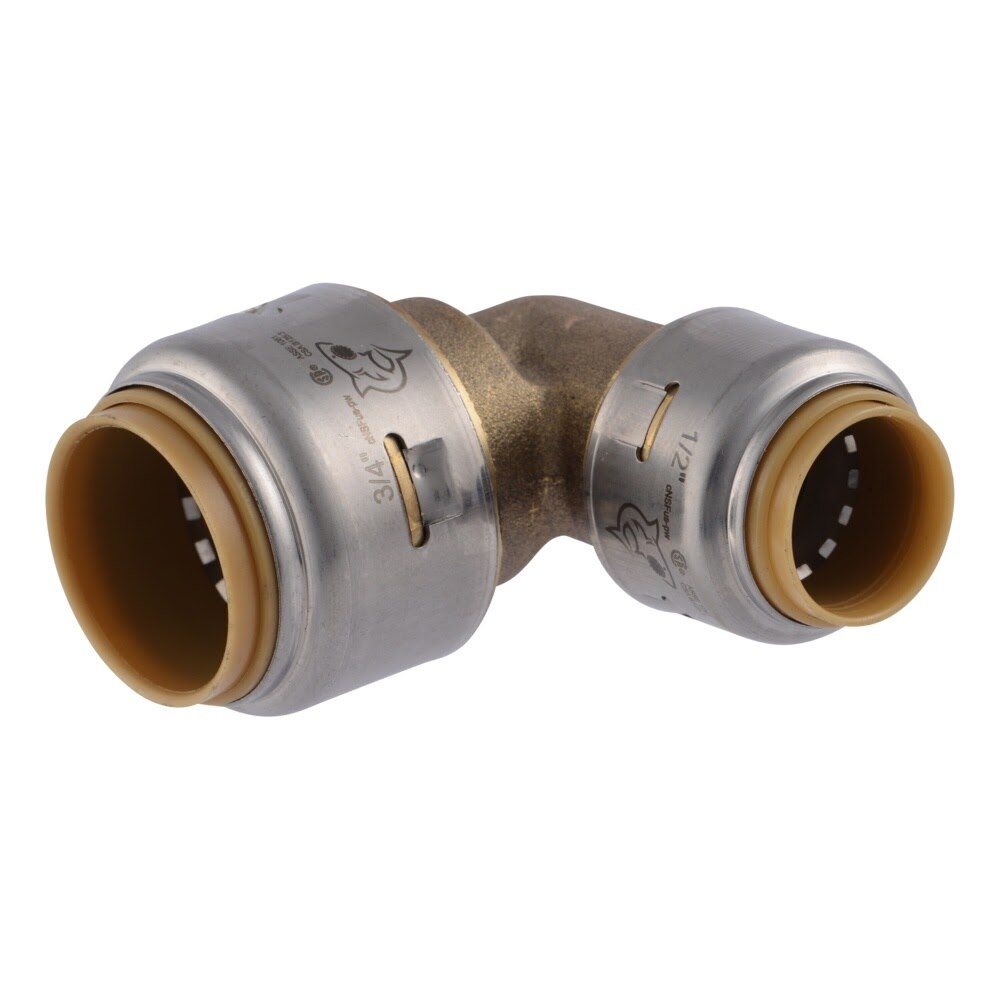

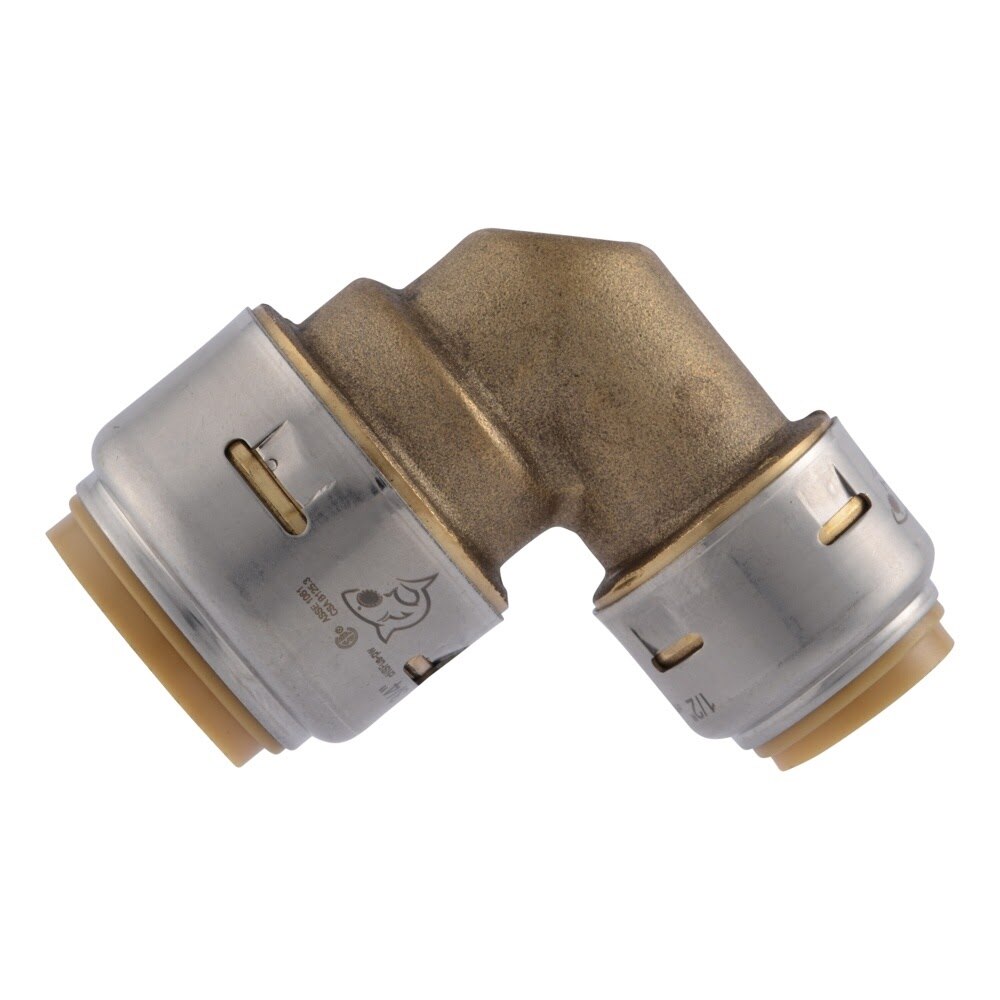

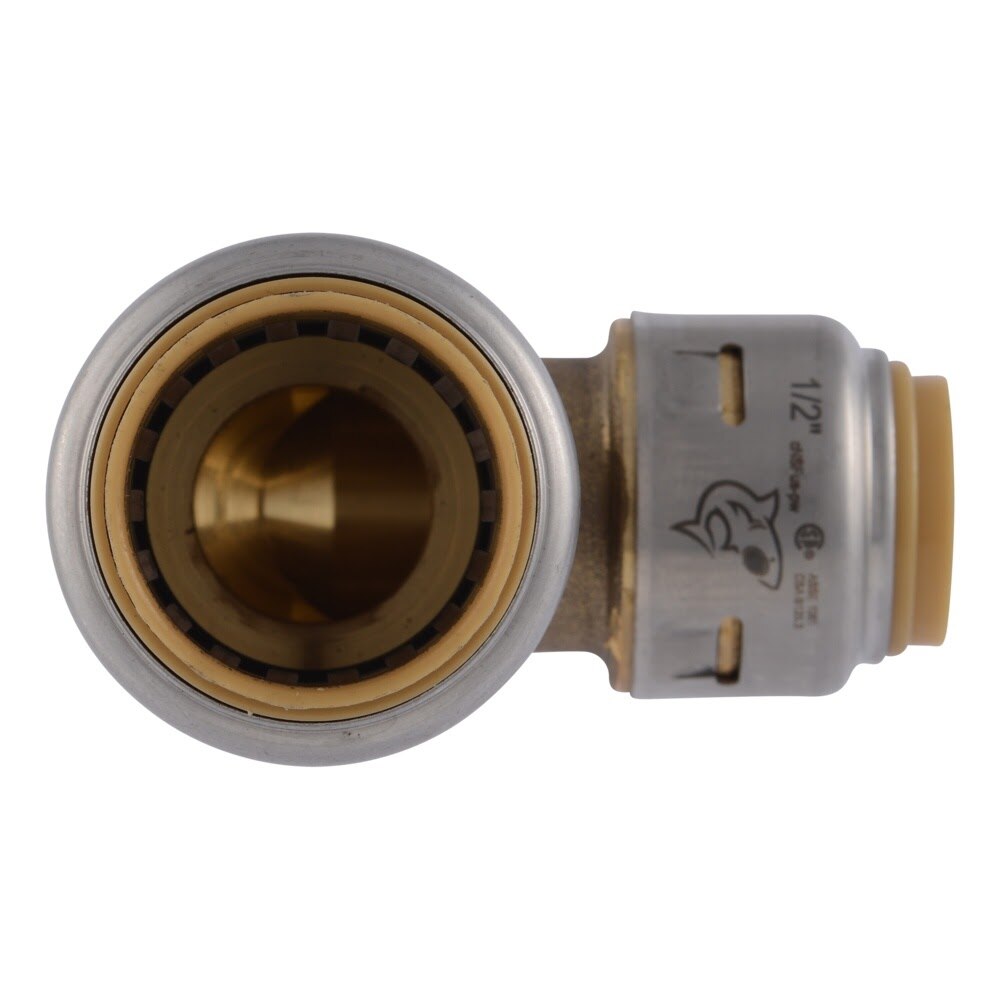

The SharkBite Max 3/4 in. x 1/2 in. brass 90 degree reducing elbow fitting provides a fast push to connect solution for joining different pipe sizes in potable water applications. Compatible with PEX, copper, CPVC, and PE-RT pipe, it installs without special tools, can be used on wet lines, and is rated up to 200 F and 400 PSI.
SharkBite UR274A Includes
- (1) SharkBite Max 90 Degree Reducing Elbow Fitting
SharkBite UR274A Features
- Push to connect design installs without special tools, crimping, soldering, or glue
- Reducing 90 degree elbow connects 3/4 in. and 1/2 in. pipe
- Compatible with PEX, copper, CPVC, and PE-RT pipe
- Can be installed on wet lines and pressure tested immediately
- Stainless steel retainer adds strength and durability
- High-performance DZR lead-free brass body
- Removable and can be rotated after installation
- No PEX tube liner required
- Approved for behind-the-wall applications with no access panels
- Approved for underground applications when wrapped for burial
- Rated up to 200 F and 400 PSI
SharkBite UR274A Specifications
| Application | Potable Water |
| Bend Degree | 90 Degree |
| Material | Brass |
| Connection | PTC x PTC |
| Connectivity | Push Fit |
| Compatible Pipe Material | PEX, Copper, CPVC, PE-RT |
| Double Fitting Size | 3/4 in. x 1/2 in. |
| Fitting 1 Size | 3/4 in. |
| Fitting 2 Size | 1/2 in. |
| Maximum Working Temperature | 200 F |
| Maximum Working Pressure | 400 psi |
| Features | Removable |
| Product Weight | 0.190 lb |
Toolup Part # :
884762
