SharkBite UR278A Description

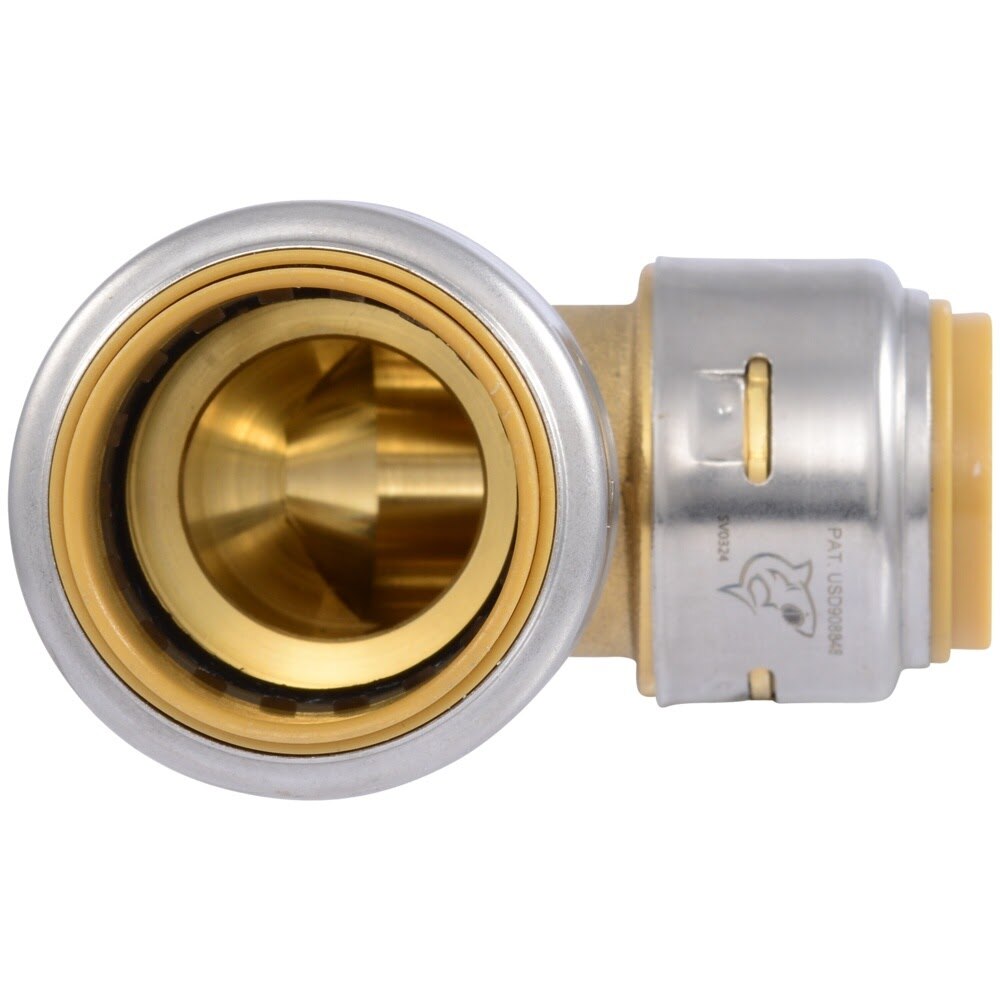

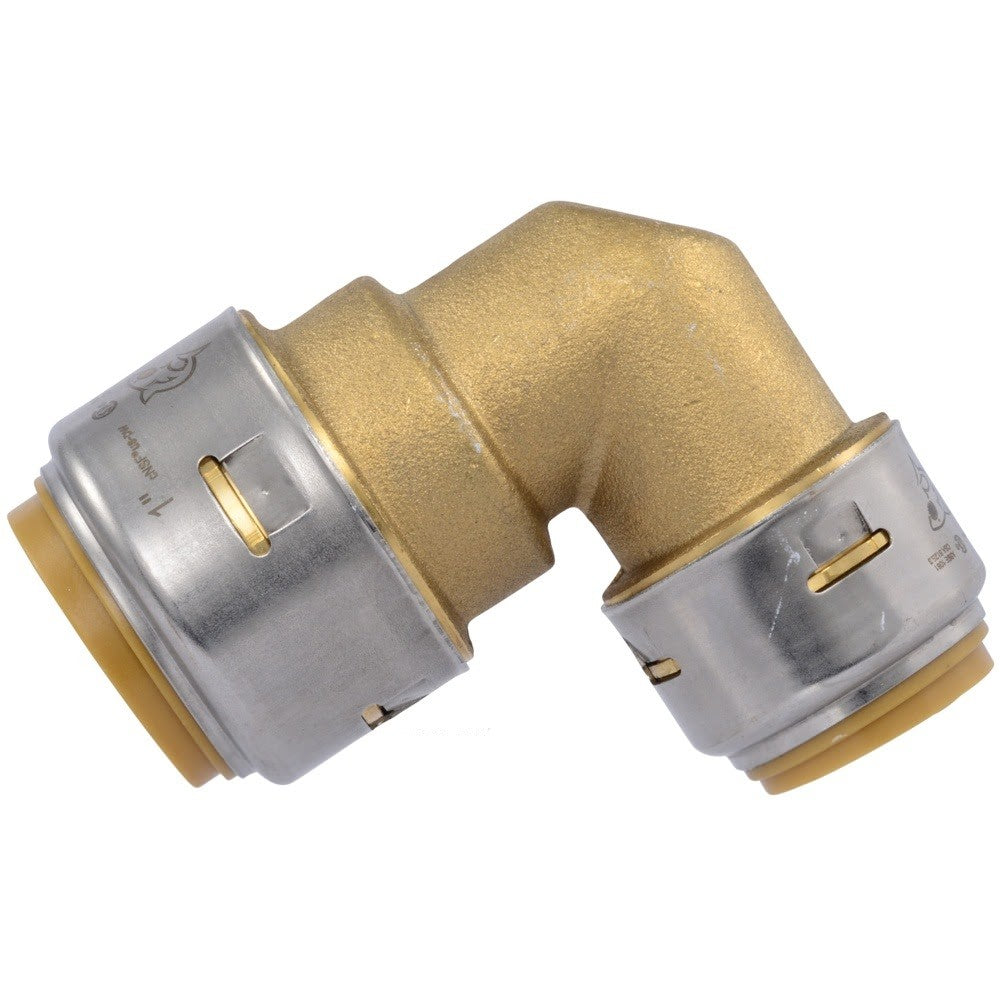

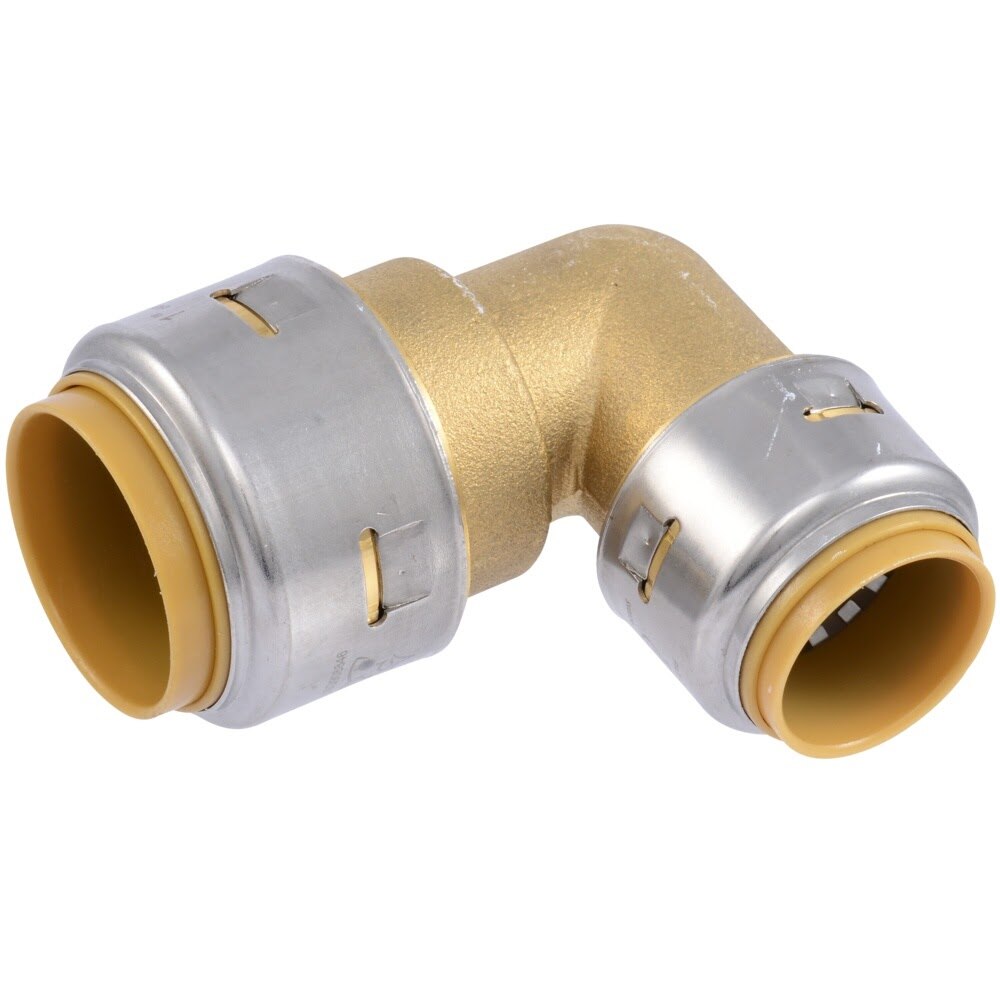

The SharkBite Max 1 in. x 3/4 in. push-to-connect 90 Degree reducing elbow provides a fast way to connect and redirect potable water lines. Built with a low-lead DZR corrosion-resistant brass body, it is compatible with PEX, copper, CPVC, and PE-RT pipe, installs on wet lines, and can be rotated or removed after installation.
SharkBite UR278A Includes
- (1) SharkBite Max 1 in. x 3/4 in. Push-to-Connect 90 Degree Reducing Elbow
SharkBite UR278A Features
- Push-to-connect design for fast installation
- Reducing 90 Degree elbow adapts 1 in. to 3/4 in. pipe
- Compatible with PEX, copper, CPVC, and PE-RT pipe
- Can be installed on wet lines and pressure tested immediately
- Rotatable after installation and removable
- PEX tube liner not required
- Approved for underground and behind-the-wall applications with wrapping required for underground burial
- Low-lead DZR corrosion-resistant brass body
- Rated to 200 Degree F and 400 psi
- Designed for potable water applications
SharkBite UR278A Specifications
| Brand | SharkBite |
| Series | Max |
| Type | Elbow |
| Sub Type | Reducer elbow |
| Material | Brass |
| Connection Type (End 1) | Push-to-connect |
| Connection Type (End 2) | Push-to-connect |
| Diameter (End 1) | 1 in. |
| Diameter (End 2) | 3/4 in. |
| Angle | 90 Degree |
| Common Use | Potable water |
| Maximum Working Temperature | 200 Degree F |
| Minimum Working Temperature | 33 Degree F |
| Maximum Pressure | 400 psi |
| Removable | Yes |
| For Use With Copper | Yes |
| For Use With CPVC | Yes |
| For Use With PEX | Yes |
| For Use With PE-RT | Yes |
| For Use With RVs | Yes |
| Safety Listing | NSF safety listing |
| Code Approvals | NSF/ANSI 14, NSF/ANSI/CAN 61, NSF/ANSI/CAN 372 |
| Warranty | 25-year limited |
| Each Length | 1.77 in. |
| Each Width | 5.25 in. |
| Each Height | 8.00 in. |
| Each Shipping Weight | 0.42 lb. |
