Description
Description
SharkBite UR280A Description

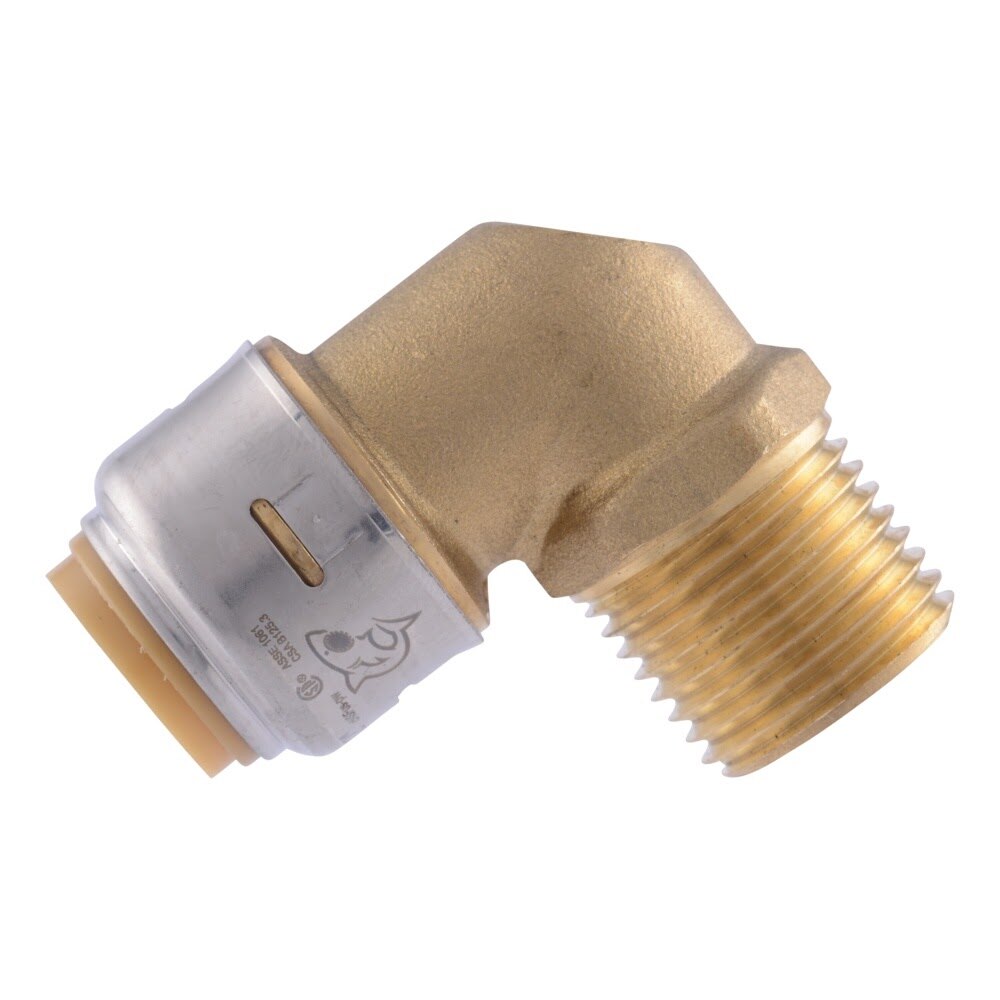

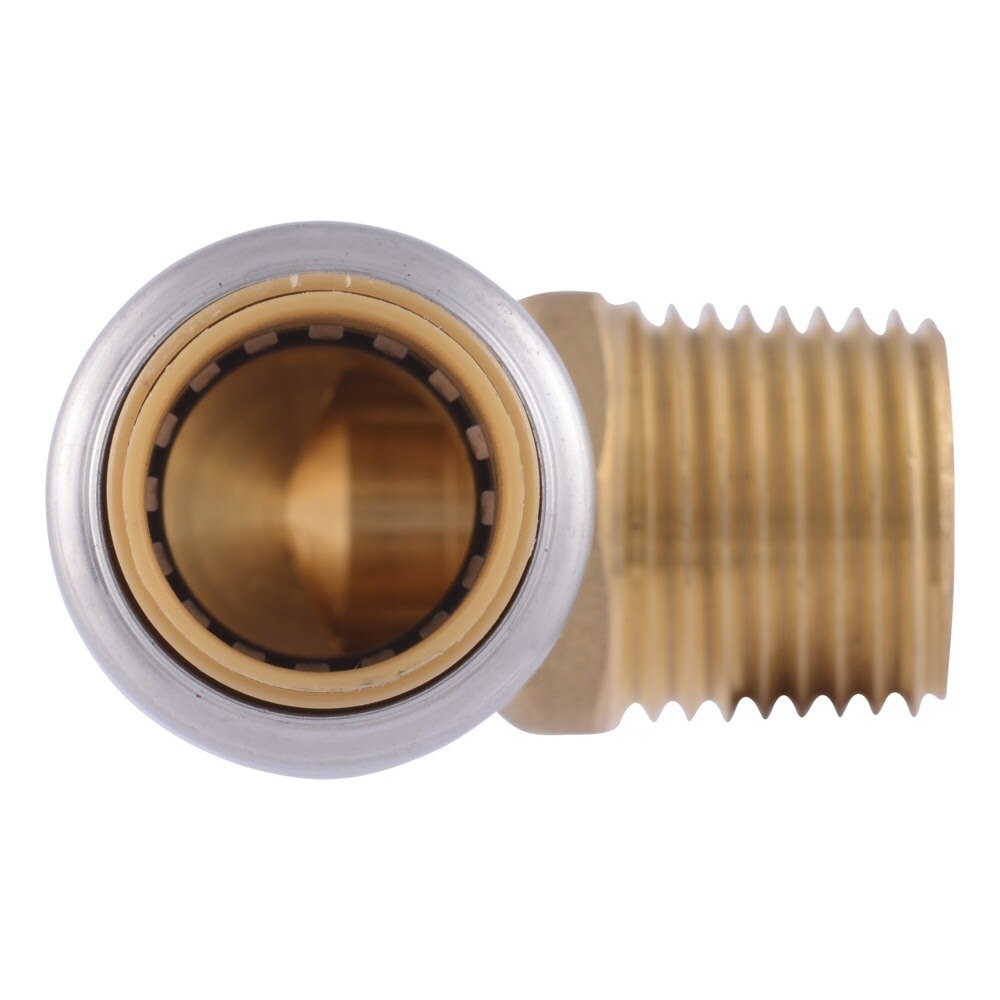

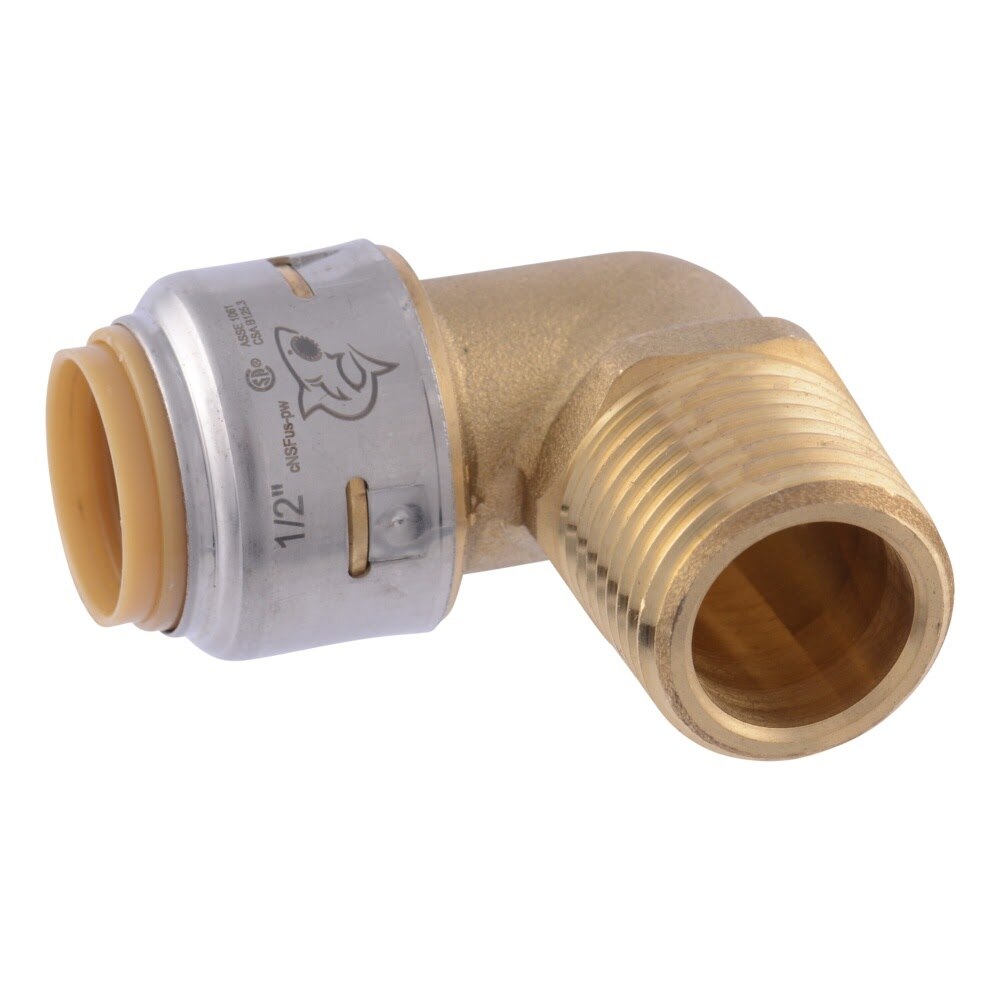

The SharkBite UR280A 1/2 in. x 1/2 in. Max Push Male Adapter Elbow is a lead-free brass push-to-connect fitting designed for fast pipe transitions. It connects compatible CTS pipe to a male NPT threaded elbow connection and works with PEX, copper, CPVC, PE-RT, and HDPE SDR-9 pipe without crimping, soldering, glue, or special tools.
SharkBite UR280A Includes
- (1) 1/2 in. x 1/2 in. Max Push Male Adapter Elbow
SharkBite UR280A Features
- Push-to-connect end works with PEX, copper, CPVC, PE-RT, and HDPE SDR-9 pipe
- Male NPT threaded elbow design is ideal for pipe transitions
- Lead-free DZR brass body for durability
- Stainless steel retainer adds strength
- No special tools, crimping, soldering, or glue required
- Can be installed on wet lines and pressure tested immediately
- Can be rotated after installation
- No tube liner required for PEX
- Rated to 200 DegreeF and 400 psi
- Provides reduced insertion effort and higher pressure rating compared to first-generation SharkBite push-to-connect fittings
SharkBite UR280A Specifications
| Brand | SharkBite |
| Model | UR280A |
| Product Type | Male adapter elbow |
| Pipe Size | 1/2 in. x 1/2 in. MNPT |
| Connection Type | Push-to-connect x MNPT |
| Material | Lead-free DZR brass |
| Compatible Pipe Types | PEX, copper, CPVC, PE-RT, HDPE SDR-9 |
| Maximum Pressure | 400 psi |
| Maximum Temperature | 200 DegreeF |
| Package Length (in) | 6.75 |
| Package Width (in) | 4.50 |
| Package Height (in) | 1.02 |
Toolup Part # :
884898
