SharkBite UR3016A Description

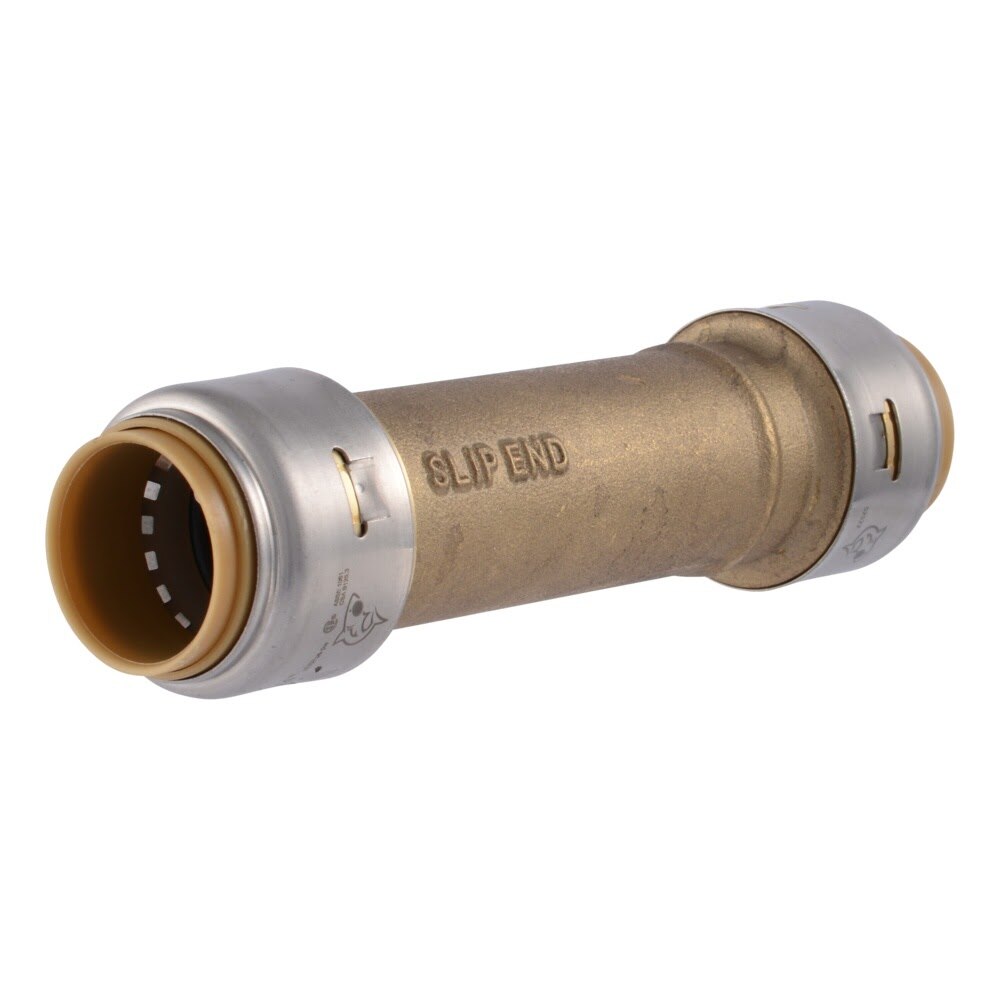

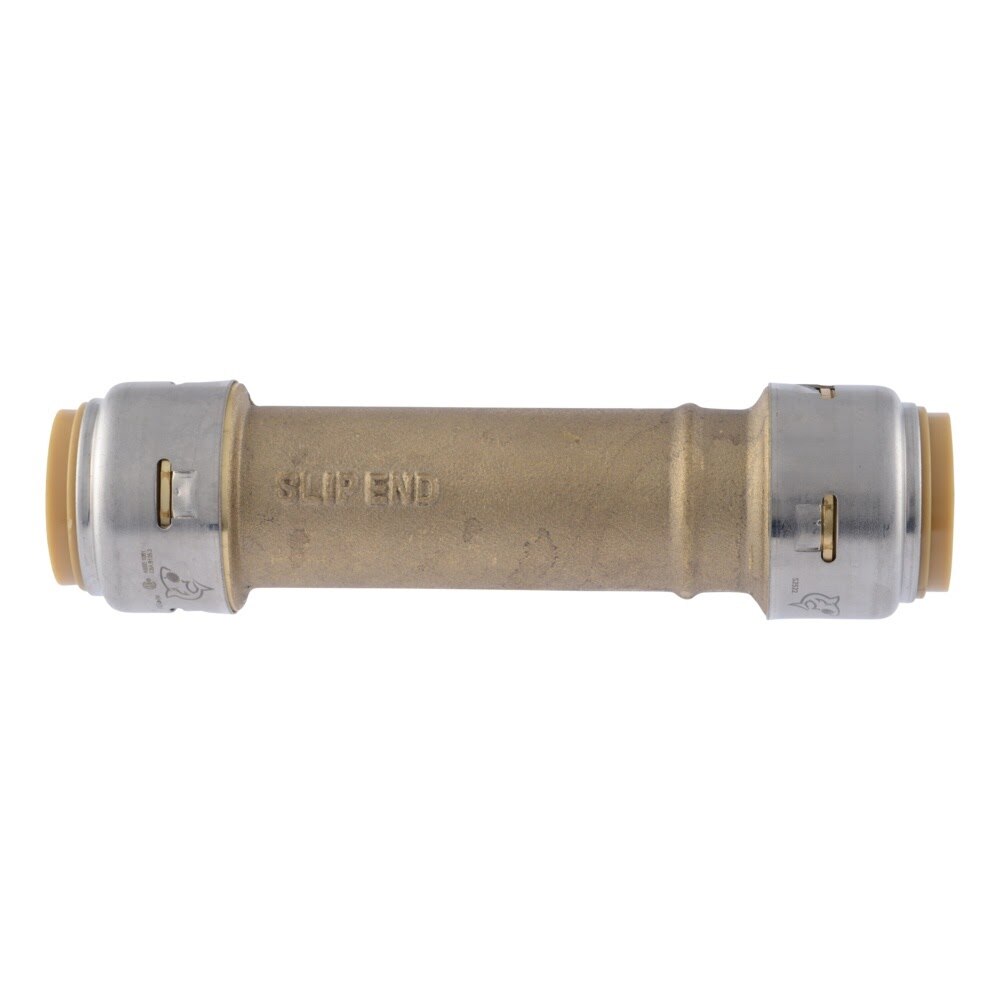

This SharkBite Max 3/4 in. x 3/4 in. slip coupling is a push-to-connect brass fitting for potable water applications. It connects PEX, copper, CPVC, and PE-RT pipe, installs without crimping, soldering, or glue, and can be installed on wet lines for immediate pressure testing. The removable fitting features a lead-free DZR brass body, stainless steel retainer, and a 200 Degrees F, 400 psi rating.
SharkBite UR3016A Includes
- (1) 3/4 in. x 3/4 in. Max Push to Connect Brass Slip Coupling
SharkBite UR3016A Features
- Push-to-connect design works with PEX, copper, CPVC, and PE-RT pipe
- Slip coupling fitting for 3/4 in. x 3/4 in. connections
- Can be installed on wet lines and pressure tested immediately
- Half the insertion force with double the burst pressure
- No special tools, crimping, soldering, or glue required
- Removable fitting can be rotated after installation
- Lead-free DZR brass body with stainless steel retainer
- Approved for behind-the-wall applications with no access panels
- Approved for underground applications when wrapped for burial
- Rated to 200 Degrees F and 400 psi
SharkBite UR3016A Specifications
| Brand | SharkBite |
| Part Number | UR3016A |
| Product Type | Slip Coupling |
| Fitting Size Dimensions | 3/4 in. x 3/4 in. |
| Material | Brass |
| Connection Type | Push to Connect |
| Connection | PTC x PTC |
| Application | Potable Water |
| Compatible Pipe Material | PEX, copper, CPVC, PE-RT |
| Maximum Working Temperature | 200 F |
| Maximum Working Pressure | 400 psi |
| Feature | Removable |
| Product Length | 4.921 in. |
| Pack Size | 1 |
| Each Shipping Weight | 0.35 lb |
