SharkBite UR3068FX18 Description
This 18 in. stainless steel braided water heater connector features a 1/2 in. SharkBite Max push-fit connection and a 3/4 in. female iron pipe end for quick installation in tight spaces. Built with a stainless steel braid and lead-free brass body, it is designed for water heater applications and works with PEX, copper, CPVC, PE-RT, and HDPE SDR-9 pipe without crimping, soldering, or glue.
SharkBite UR3068FX18 Includes

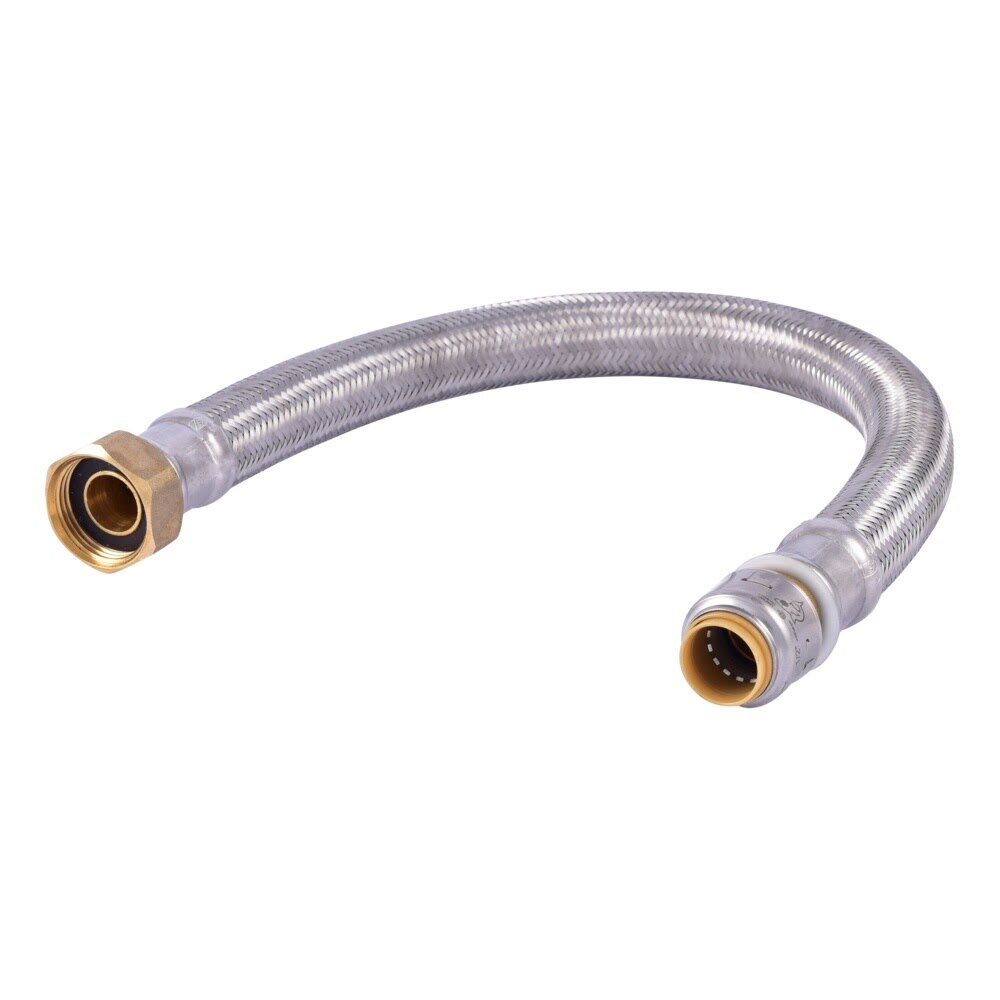

- (1) 1/2 in. x 3/4 in. FIP 18 in. Stainless Steel Braided Water Heater Connector
SharkBite UR3068FX18 Features
- 18 in. braided connector for water heater hookups
- 1/2 in. SharkBite Max push-fit x 3/4 in. female iron pipe connection
- Compatible with PEX, copper, CPVC, PE-RT, and HDPE SDR-9 pipe
- Stainless steel braided construction with lead-free brass body
- Helps connect water heaters where existing pipes do not line up
- Installs without crimping, soldering, glue, or special tools
- Can be installed on wet lines and pressure tested immediately
- Can be rotated after installation for easier alignment
- No tube liner required for PEX
- Rated up to 200 psi and 140 Degree F
- Approved for use on electric or gas water heaters with a flue vent
SharkBite UR3068FX18 Specifications
| Size | 1/2 in. x 3/4 in. |
| Length | 18 in. |
| Connection Type | Push-Fit x FIP |
| Thread Type | Female |
| Material | Stainless Steel |
| Type | Braided |
| Fitting System Compatibility | Push Fit |
| Tubing Compatibility | PEX, copper, CPVC, PE-RT, HDPE SDR-9 |
| Insertion Depth | 1-1/4 in. |
| Maximum Pressure | 200 psi |
| Maximum Temperature | 140 Degree F |
| Standards Met | NSF |
| Application | Plumbing |
| Lead Free | Yes |
| Shipping Weight | 0.56 lb |
Toolup Part # :
883808
WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov
