SharkBite UR3068FX18BV Description
The SharkBite Max water heater connector features an 18 in. stainless steel braided hose with an integrated ball valve to help make fast, secure connections in tight spaces. Designed for water heater installations, it connects to compatible PEX, copper, CPVC, PE-RT, and HDPE SDR-9 pipe without soldering, crimping, or glue.
SharkBite UR3068FX18BV Includes

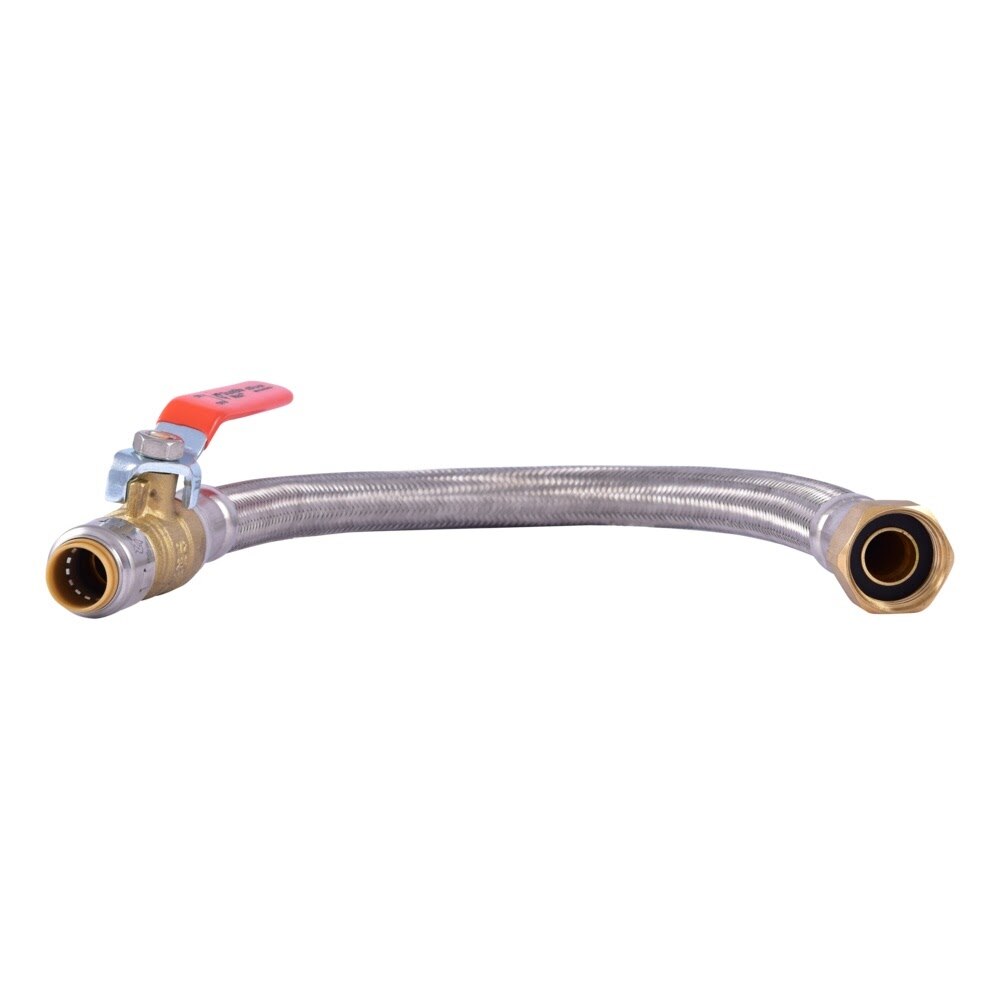

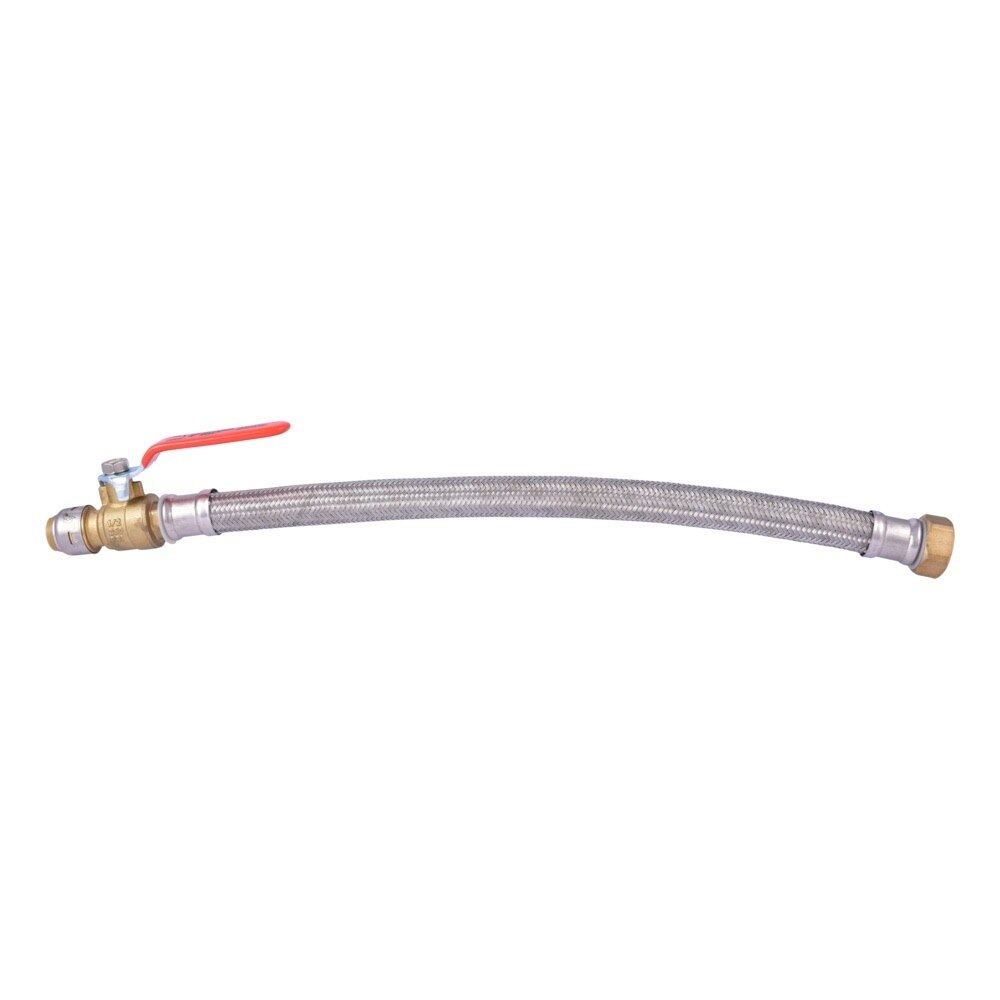

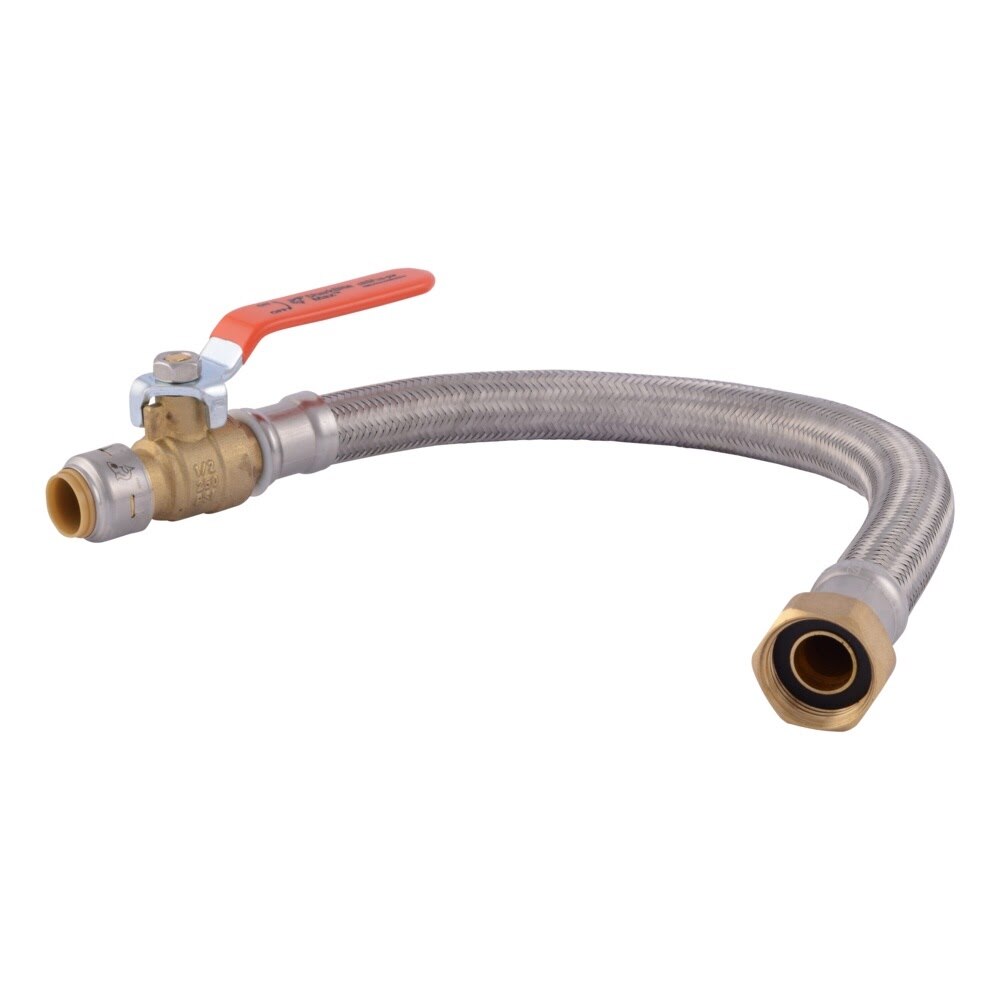

- (1) 1/2 in. x 3/4 in. FIP 18 in. Stainless Steel Braided Water Heater Connector with Ball Valve
SharkBite UR3068FX18BV Features
- Integrated ball valve allows the water heater supply to be shut off
- Flexible braided connector helps connect water heaters where existing pipes do not line up
- Push-to-connect design installs without special tools, crimping, soldering, or glue
- Compatible with PEX, copper, CPVC, PE-RT, and HDPE SDR-9 pipe
- Can be installed on wet lines and pressure tested immediately
- Stainless steel retainer adds strength and durability
- High-performance DZR lead-free brass fitting body
- Can be rotated after installation
- No tube liner required for PEX
- Rated to 140 F and 200 psi
- Can be removed using a disconnect clip, disconnect tongs, or pro disconnect tool
SharkBite UR3068FX18BV Specifications
| Brand | SharkBite |
| Product Type | Water Heater Connector |
| Connection Size 1 | 1/2 in. |
| Connection Type 1 | Push-to-Connect |
| Connection Size 2 | 3/4 in. |
| Connection Type 2 | FIP |
| Hose Length | 18 in. |
| Hose Material | Stainless Steel Braided |
| Body Material | DZR Lead-Free Brass |
| Valve Type | Ball Valve |
| Maximum Pressure | 200 psi |
| Maximum Temperature | 140 F |
| Compatible Pipe Material | PEX, Copper, CPVC, PE-RT, HDPE SDR-9 |
| Product Length (in) | 18.31 |
| Product Width (in) | 1.26 |
| Product Height (in) | 2.19 |
| Shipping Weight (lb) | 0.87 |
