SharkBite UR3068FX24 Description

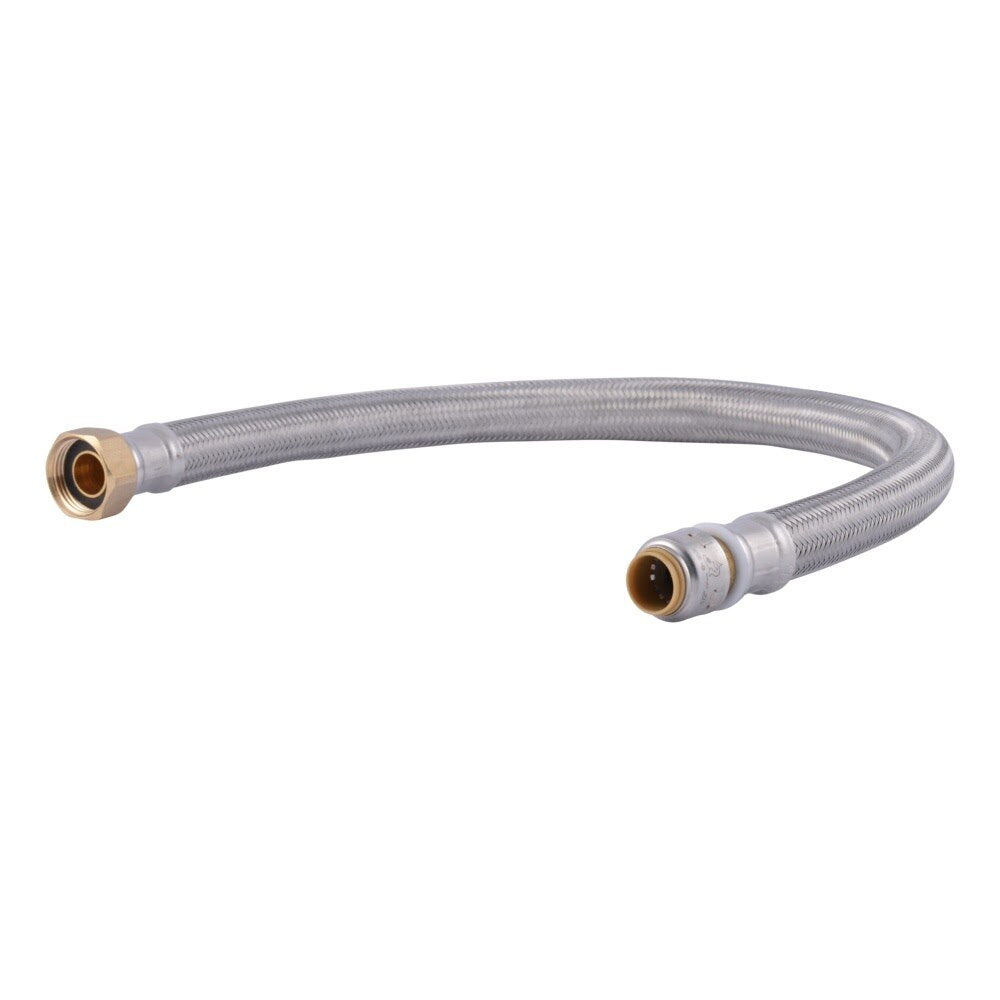

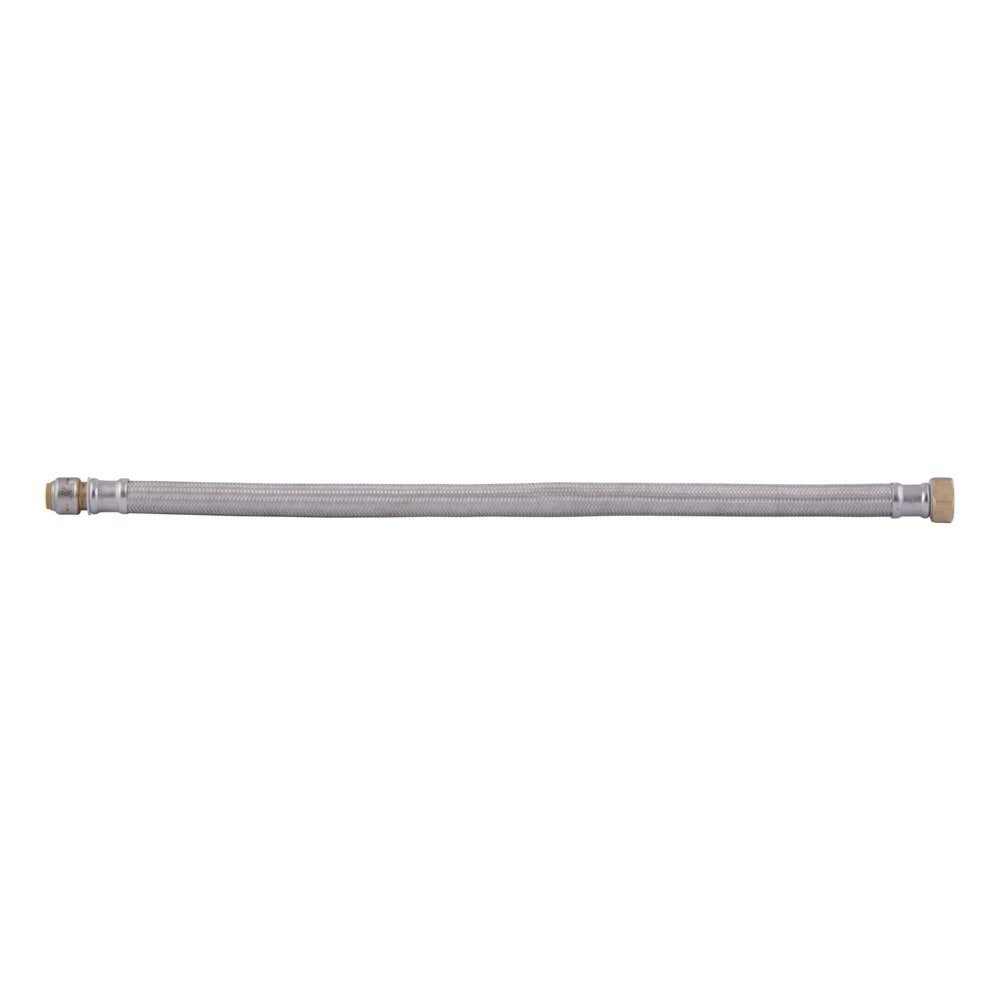

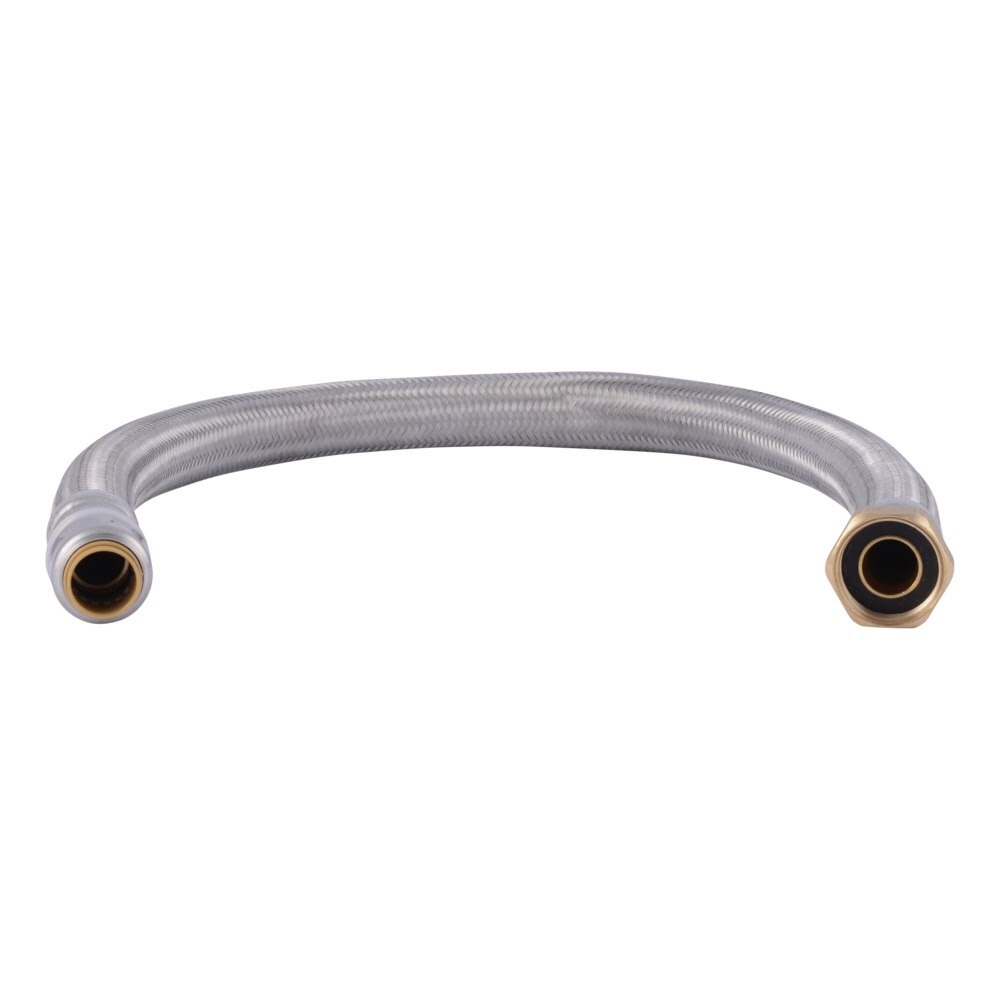

The SharkBite Max water heater connector features a 1/2 in. push-to-connect end and a 3/4 in. FIP connection with a 24 in. stainless steel braided hose for fast, reliable water heater installation in tight spaces. Its push-to-connect design helps simplify installation without crimping, soldering, or glue.
SharkBite UR3068FX24 Includes
- (1) Stainless Steel Braided Water Heater Connector
SharkBite UR3068FX24 Features
- 1/2 in. push-to-connect x 3/4 in. FIP connection
- 24 in. stainless steel braided connector hose
- Designed for water heater installations in tight spaces
- Compatible with PEX, copper, CPVC, PE-RT, and HDPE SDR-9 pipe
- Can be installed on wet lines and pressure tested immediately
- No special tools, crimping, soldering, or glue required
- Can be rotated after installation
- No tube liner required for PEX
- Stainless steel retainer adds strength and durability
- High-performance DZR lead-free brass body
- Rated to 140 degrees F and 200 psi
SharkBite UR3068FX24 Specifications
| Brand | SharkBite |
| Part Number | UR3068FX24 |
| Series | Max |
| Product Type | Water Heater Connector |
| Connection 1 | 1/2 in. push-to-connect |
| Connection 2 | 3/4 in. FIP |
| Length | 24 in. |
| Hose Material | Stainless steel braided |
| Body Material | DZR lead-free brass |
| Compatible Pipe Materials | PEX, copper, CPVC, PE-RT, HDPE SDR-9 |
| Maximum Pressure | 200 psi |
| Maximum Temperature | 140 degrees F |
| Shipping Weight | 0.68 lb |
