SharkBite UR3088FX15 Description

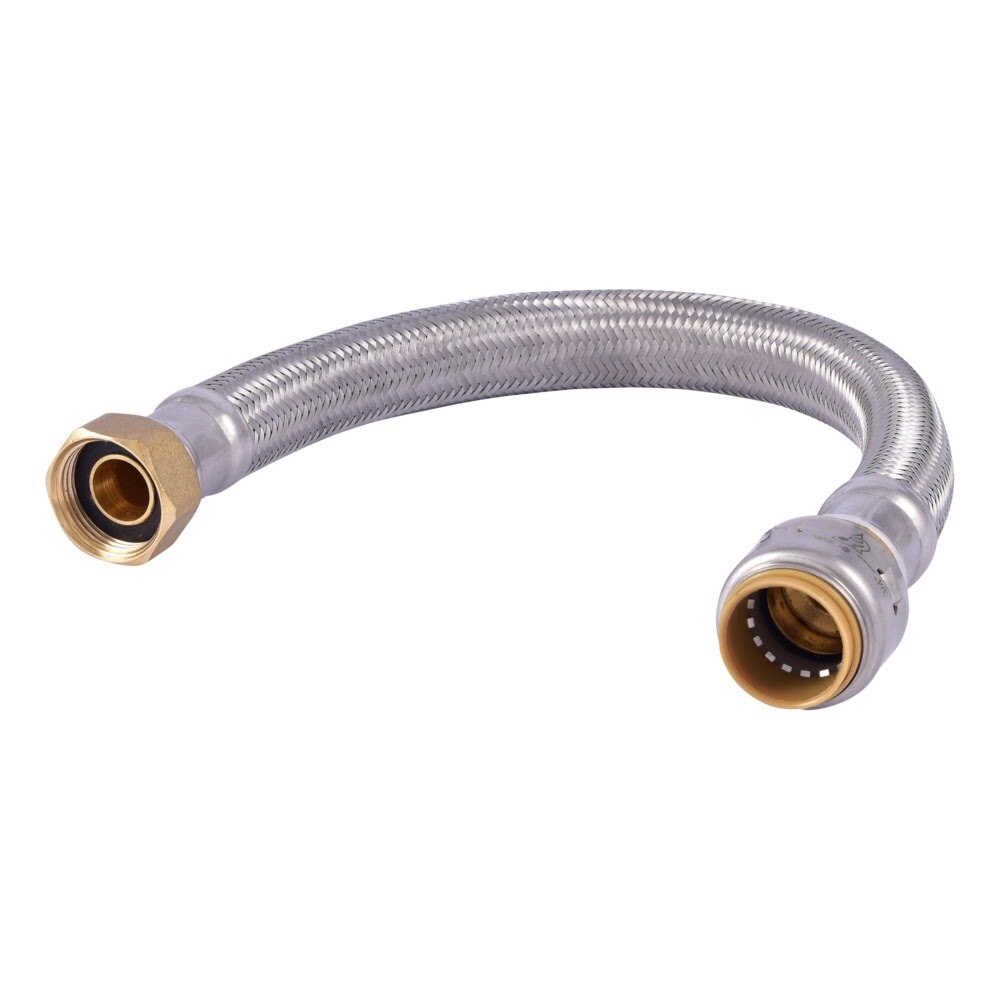

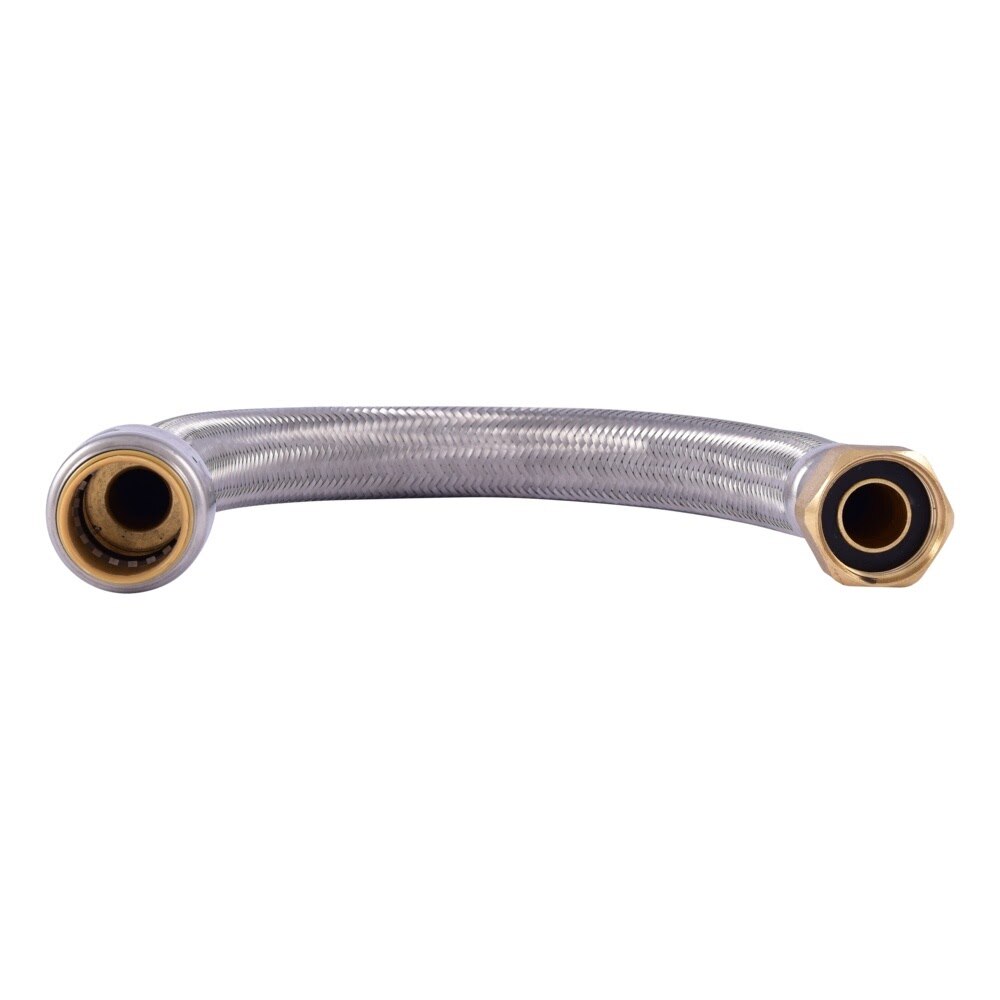

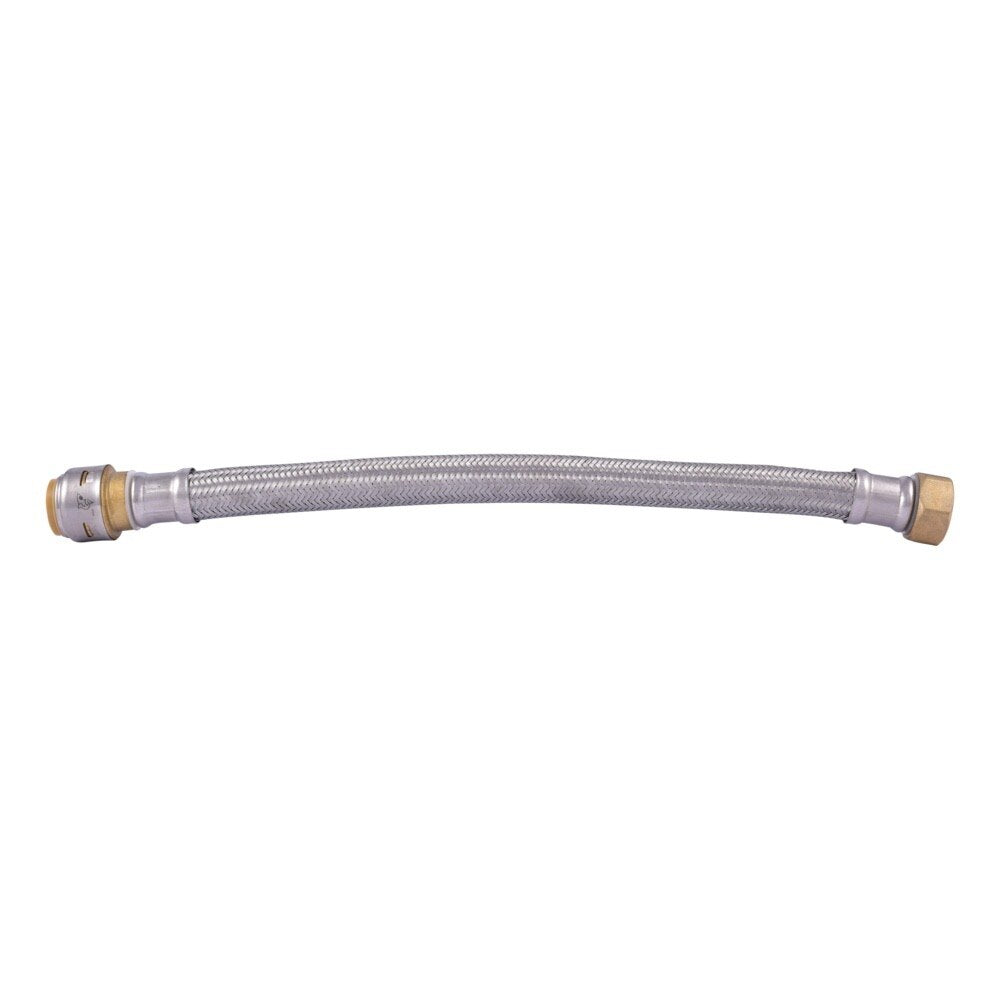

The SharkBite Max UR3088FX15 is a 15 in. braided stainless steel water heater connector with a 3/4 in. push-to-connect end and a 3/4 in. FIP end. It installs without special tools, works with multiple pipe types, and is approved for electric and gas water heaters with flue vent.
SharkBite UR3088FX15 Includes
- (1) Water Heater Connector
SharkBite UR3088FX15 Features
- 3/4 in. push-to-connect x 3/4 in. FIP connection with 15 in. hose length
- Compatible with PEX, copper, CPVC, PE-RT, and HDPE pipe
- Braided stainless steel hose with corrosion-resistant low-lead DZR brass body
- No special tools required for installation
- Can be installed on wet or dry lines and pressure tested immediately
- Rotatable after installation and removable
- PEX tube liner not required
- Approved for electric and gas water heaters with flue vent
- Rated for up to 200 psi
- Rated for temperatures up to 140 F
SharkBite UR3088FX15 Specifications
| Brand | SharkBite |
| Model | UR3088FX15 |
| Product Type | Water Heater Connector |
| Connection 1 Type | Push-to-Connect |
| Connection 1 Size | 3/4 in. |
| Connection 2 Type | FIP |
| Connection 2 Size | 3/4 in. |
| Hose Length | 15 in. |
| Material | Stainless Steel |
| Body Material | Low-lead DZR brass |
| Finish Family | Silver Metallic |
| Compatible Pipe Material | PEX, copper, CPVC, PE-RT, HDPE |
| Application | Water heater supply line |
| Maximum Pressure | 200 psi |
| Maximum Temperature | 140 F |
| Product Height | 1.29 in. |
| Product Width | 1.29 in. |
| Product Length | 15 in. |
| Shipping Weight | 0.53 lb |
| Warranty | 25-year warranty when used with PEX, copper, CPVC and PE-RT pipe |
