SharkBite UR3088FX24 Description

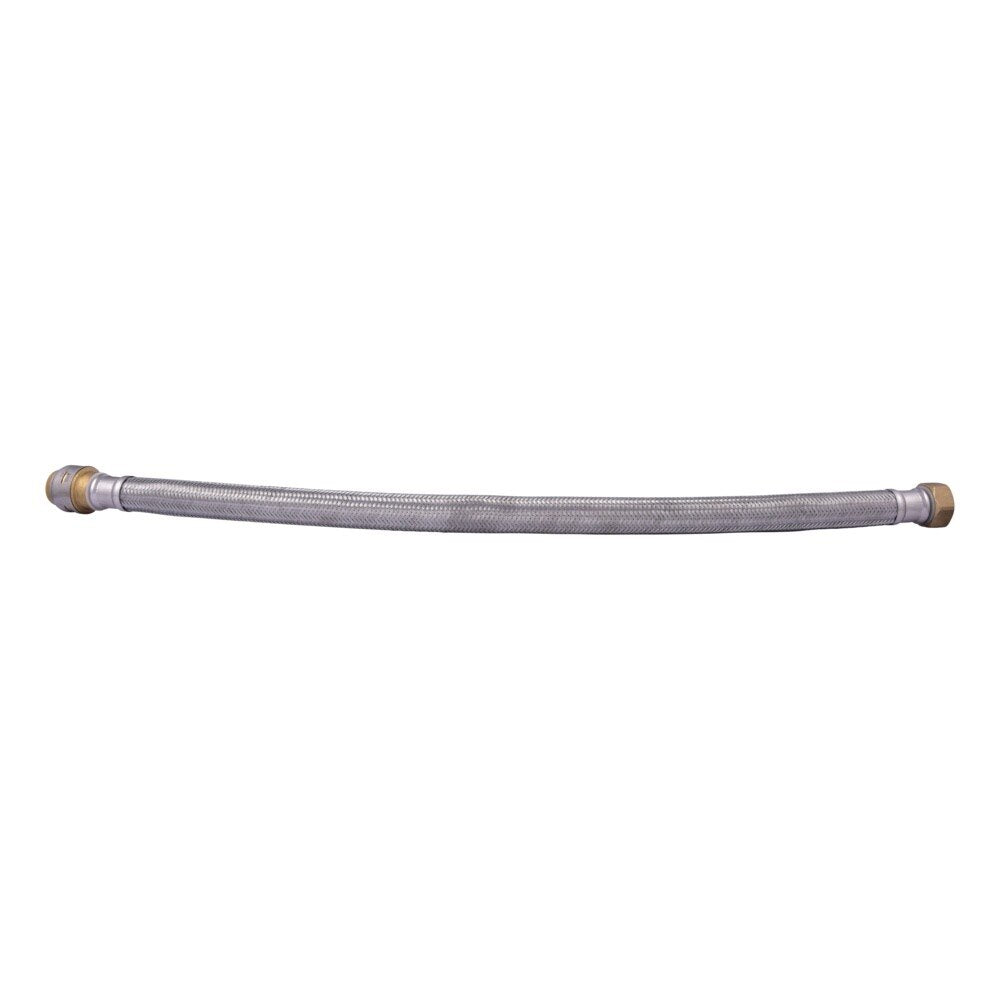

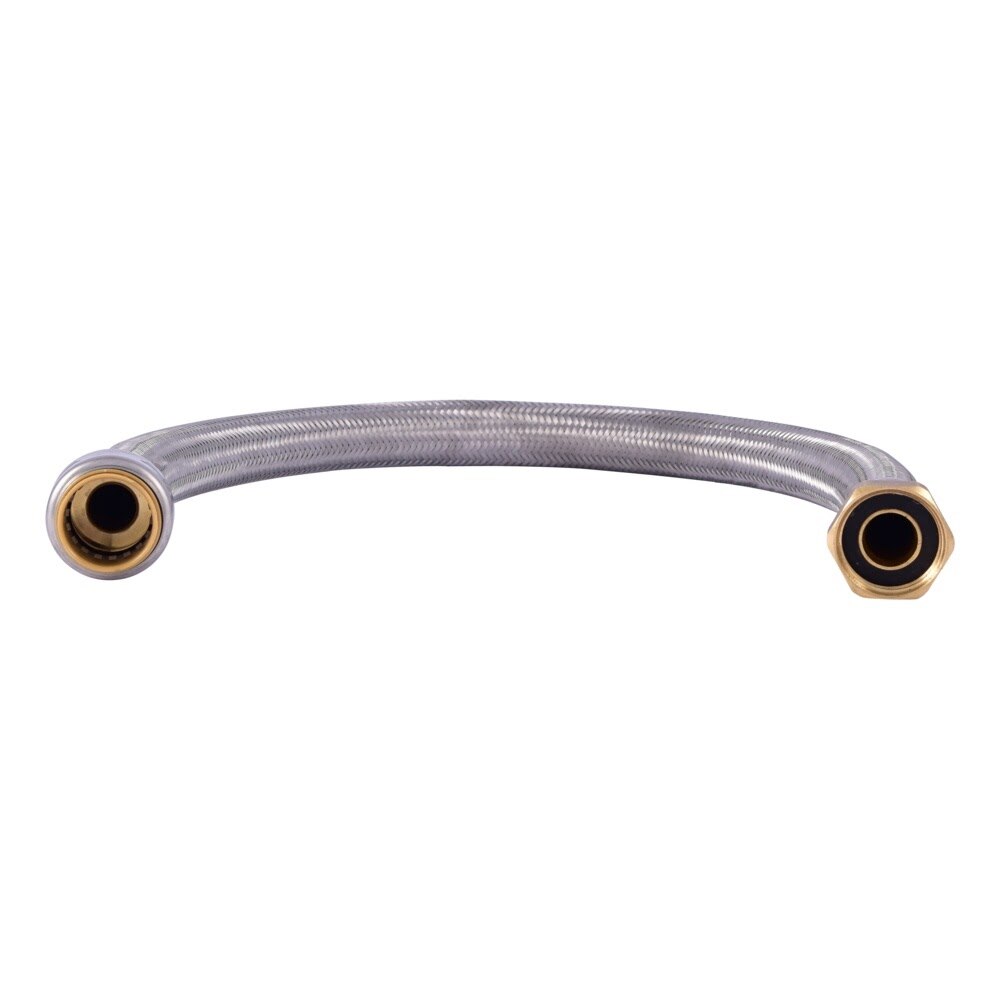

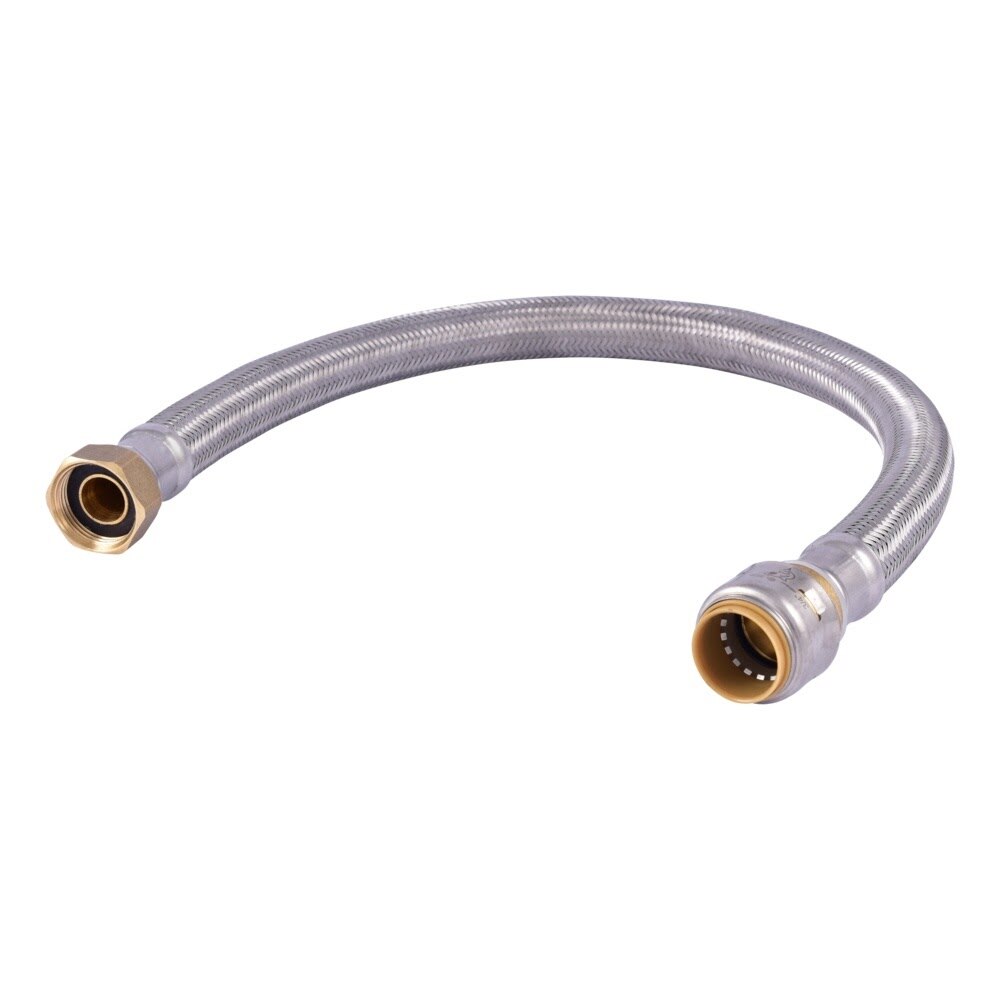

The SharkBite Max 24 in. braided water heater connector delivers fast installation with a 3/4 in. push-to-connect end and a 3/4 in. FIP connection. Its braided stainless steel hose and corrosion-resistant brass body are designed for water heater applications and are compatible with PEX, copper, CPVC, PE-RT, and HDPE pipe.
SharkBite UR3088FX24 Includes
- (1) 3/4 in. Push-to-Connect x 3/4 in. FIP x 24 in. Braided Water Heater Connector
SharkBite UR3088FX24 Features
- Fast push-to-connect installation on PEX, copper, CPVC, PE-RT, and HDPE pipe
- 3/4 in. FIP connection on one end for water heater hookup
- Braided stainless steel construction for durable supply line use
- Can be installed on wet or dry lines and pressure tested immediately
- No special tools required for installation
- Rotatable after installation and removable
- PEX tube liner not required
- Approved for electric and gas water heaters with flue vent
- Low-lead DZR corrosion-resistant brass body
- Rated to 140 F and 200 psi
- Approved for underground and behind-the-wall applications when installed per requirements
- Half the insertion force with double the burst pressure
SharkBite UR3088FX24 Specifications
| Brand | SharkBite |
| SKU | UR3088FX24 |
| Product Type | Water Heater Connector |
| Connection 1 | 3/4 in. Push-to-Connect |
| Connection 2 | 3/4 in. FIP |
| Connector Length | 24 in. |
| Material | Stainless Steel |
| Body Material | Low-lead DZR brass |
| Compatible Pipe Materials | PEX, copper, CPVC, PE-RT, HDPE |
| Application | Electric and gas water heaters with flue vent |
| Maximum Pressure | 200 psi |
| Maximum Temperature | 140 F |
| Finish Family | Silver Metallic |
| Pack Size | 1 |
| Product Length (in) | 24.02 |
| Product Width (in) | 1.32 |
| Product Height (in) | 1.32 |
| Shipping Weight (lb) | 0.71 |
