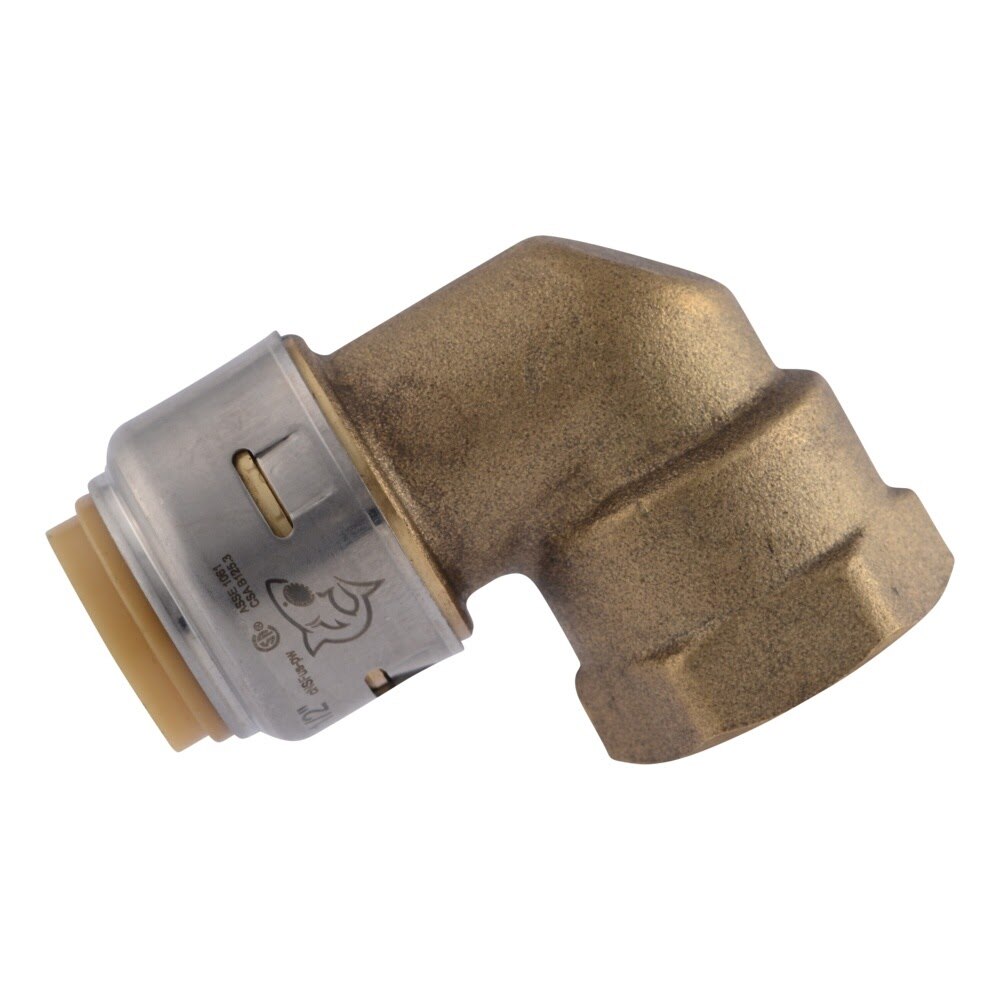

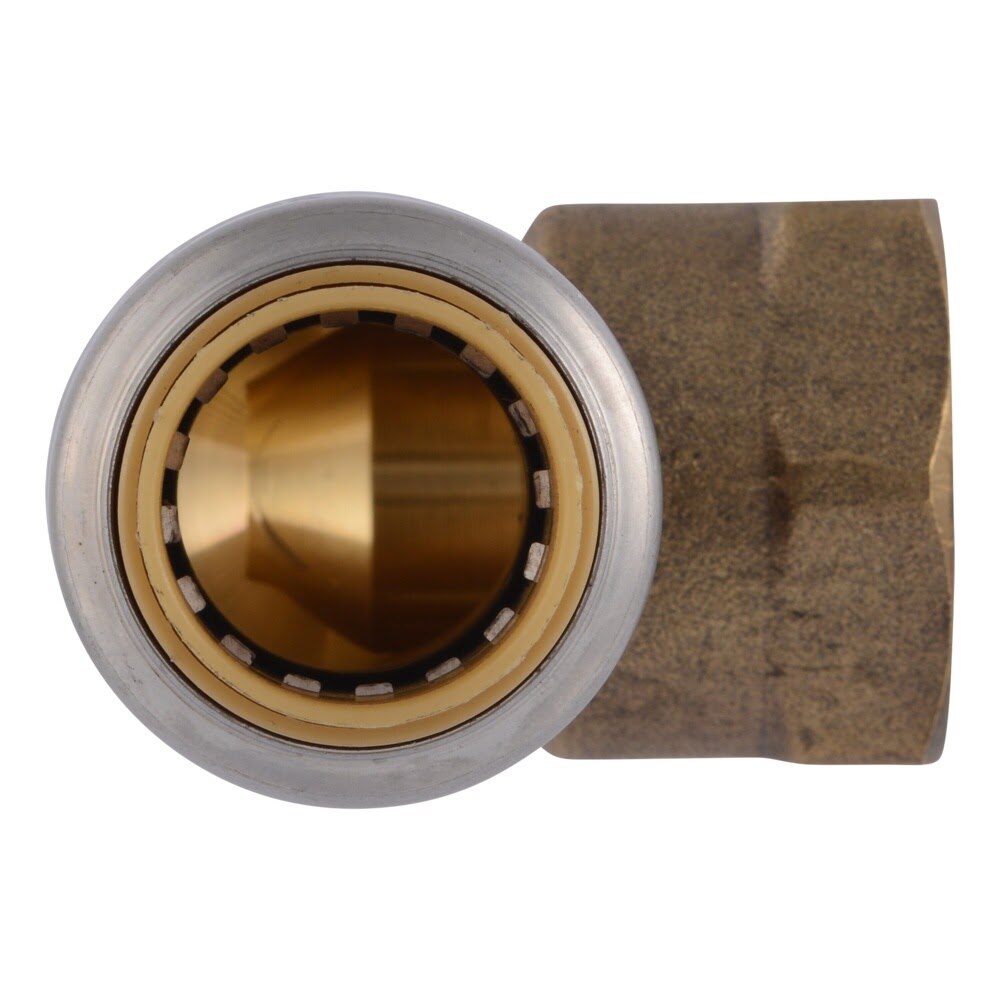

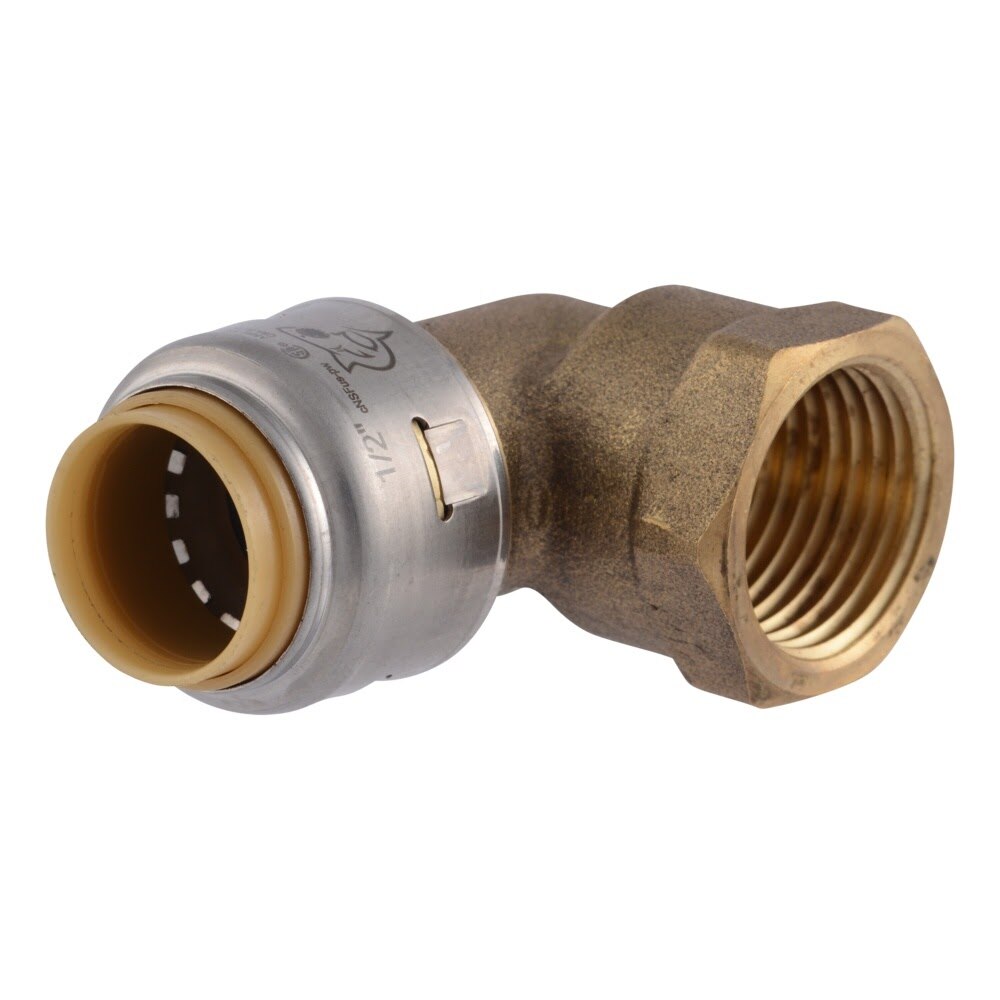

SharkBite UR308A Description
The SharkBite UR308A is a 1/2 in. x 1/2 in. brass 90 Degree adapter elbow with a push-to-connect end and FNPT connection. It is designed for potable water applications and works with PEX, copper, CPVC, and PE-RT pipe. The fitting installs without special tools and can be used on wet lines with immediate pressure testing.
SharkBite UR308A Includes
- (1) 1/2 in. x 1/2 in. Max Push-to-Connect x FNPT Brass 90 Degree Adapter Elbow
SharkBite UR308A Features
- Push-to-connect x FNPT brass 90 Degree elbow design
- Compatible with PEX, copper, CPVC, and PE-RT pipe
- No special tools, crimping, soldering, or glue required
- Can be installed on wet lines and pressure tested immediately
- Half the insertion force with double the burst pressure
- Stainless steel retainer adds strength and durability
- Lead-free DZR brass body
- Can be rotated after installation
- No PEX tube liner required
- Approved for behind-the-wall applications with no access panels
- Approved for underground applications with wrap required for burial
- Rated to 200 F and 400 psi
SharkBite UR308A Specifications
| Application | Potable Water |
| Bend Degree | 90 Degree |
| Material | Brass |
| Connection | Push-to-Connect x FNPT |
| Connection 1 | Push-to-Connect |
| Connection 2 | FNPT |
| Fitting Size | 1/2 in. x 1/2 in. |
| Compatible Pipe Material | PEX, copper, CPVC, and PE-RT |
| Maximum Working Temperature | 200 F |
| Maximum Working Pressure | 400 psi |
| Pack Size | 1 |
| Product Length (in) | 6.75 |
| Product Width (in) | 4.50 |
| Product Height (in) | 1.02 |
| Product Weight (lb) | 0.16 |
Toolup Part # :
884859
