SharkBite UR314A Description

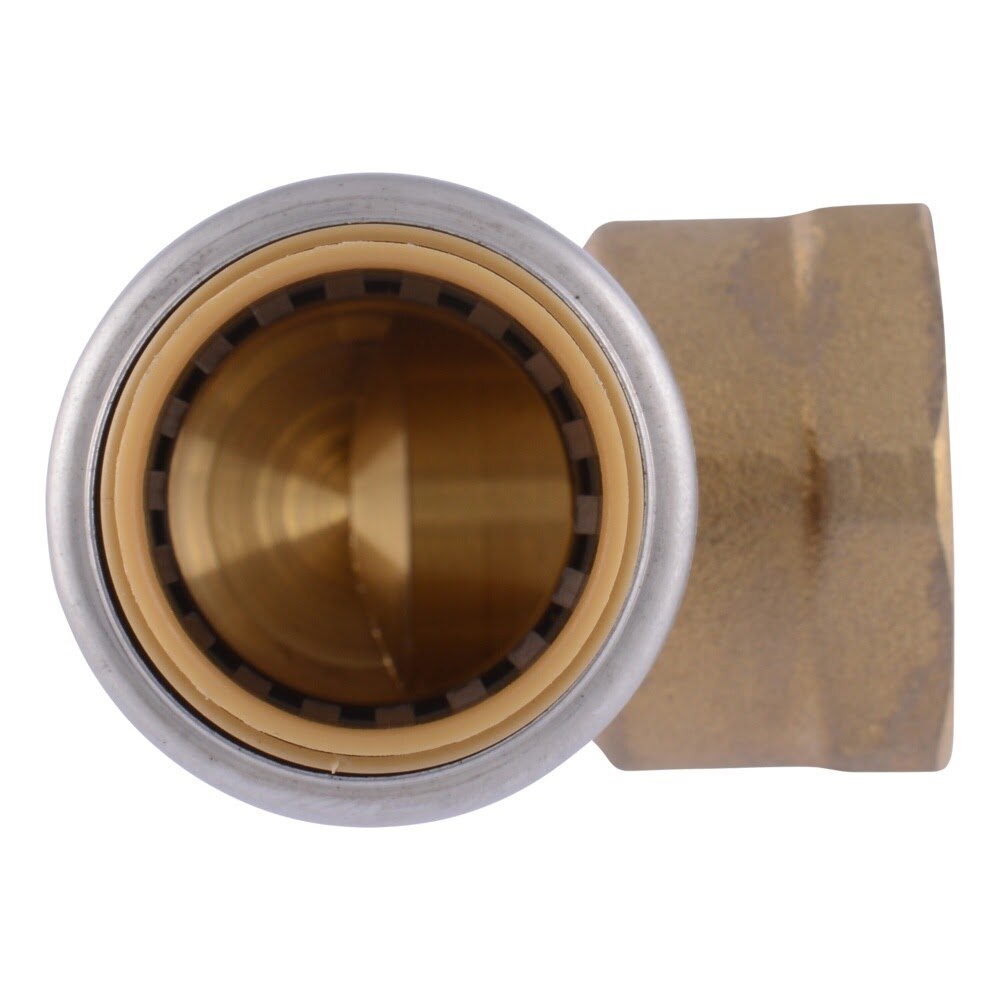

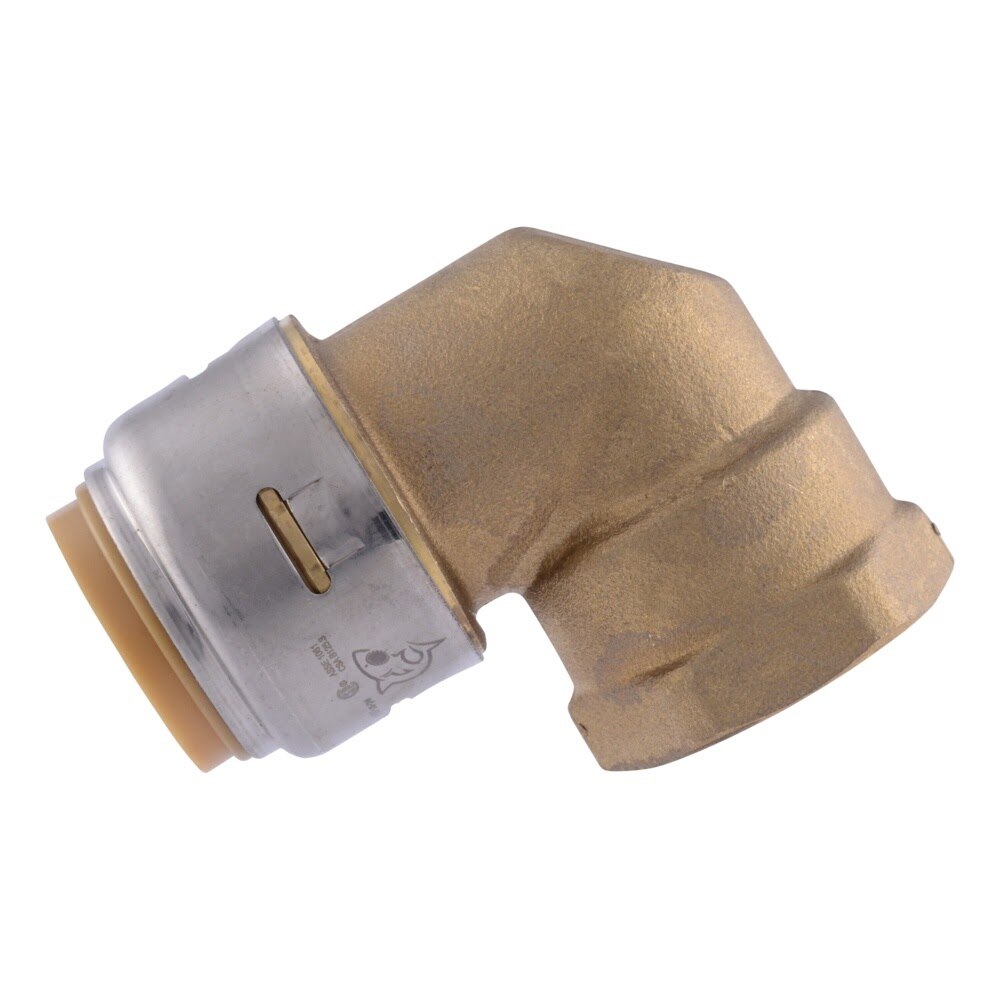

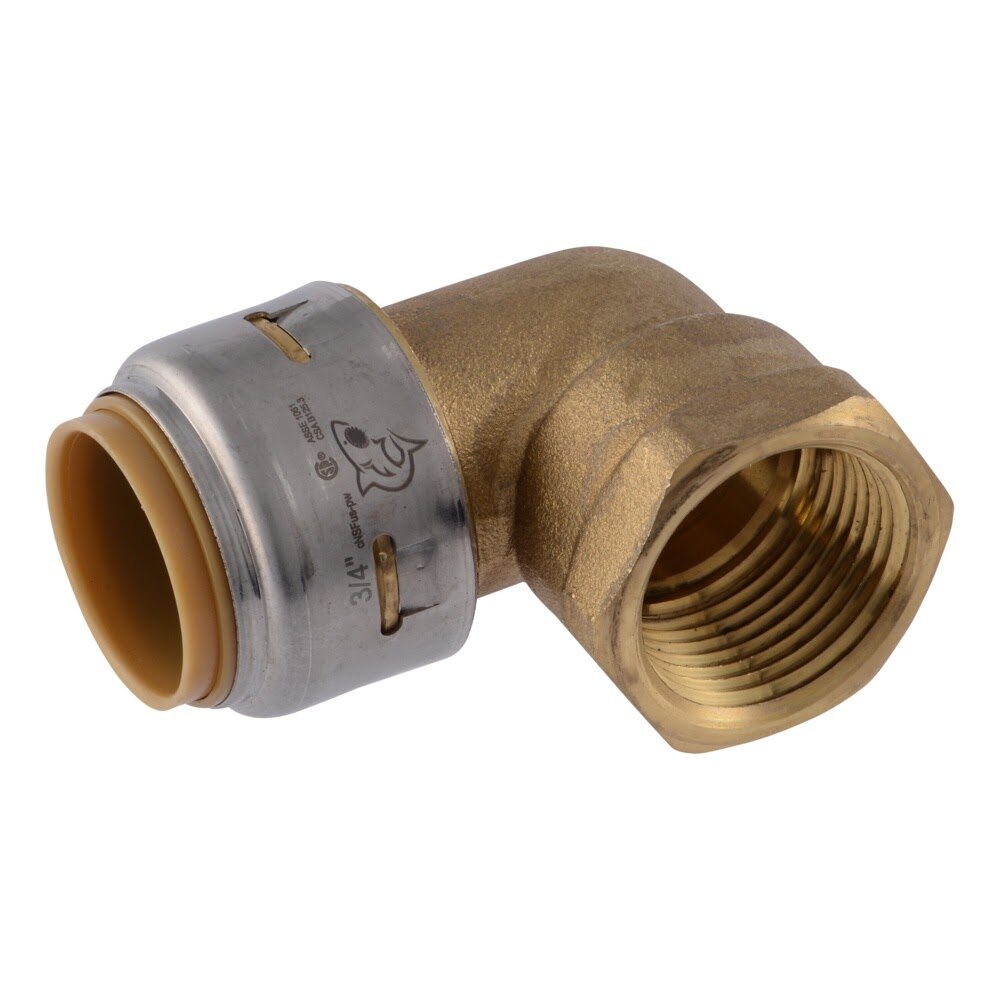

The SharkBite Max 3/4 in. x 3/4 in. push-to-connect female adapter elbow connects PEX, copper, CPVC, PE-RT, or HDPE SDR-9 pipe to a female NPT threaded connection. Built with a DZR lead-free brass body and stainless steel retainer, it installs without soldering, crimping, or glue and can be pressure tested immediately.
SharkBite UR314A Includes
- (1) 3/4 in. x 3/4 in. Max Push FNPT Adapter Elbow
SharkBite UR314A Features
- Push-to-connect design works with PEX, copper, CPVC, PE-RT, and HDPE SDR-9 pipe
- Half the insertion effort and double the pressure rating compared to first-generation SharkBite push-to-connect products
- Installs on wet lines and can be pressure tested immediately
- Stainless steel retainer increases strength and durability
- DZR lead-free brass body provides dependable performance
- No special tools, crimping, soldering, or glue required
- Rotates after installation for easier alignment in tight spaces
- No tube liner required for PEX
- Rated to 200 DegreeF and 400 psi
- Removable with a disconnect clip, disconnect tongs, or pro disconnect tool
SharkBite UR314A Specifications
| Brand | SharkBite |
| Series | SharkBite Max |
| Product Type | Female Adapter Elbow |
| Size | 3/4 in. x 3/4 in. |
| Connection Type | Push-to-Connect x FNPT |
| Compatible Pipe Materials | PEX, copper, CPVC, PE-RT, HDPE SDR-9 |
| Body Material | DZR lead-free brass |
| Retainer Material | Stainless steel |
| Maximum Pressure | 400 psi |
| Maximum Temperature | 200 DegreeF |
| Install on Wet Lines | Yes |
| PEX Tube Liner Required | No |
| Rotatable After Installation | Yes |
| Shipping Weight | 0.26 lb |
