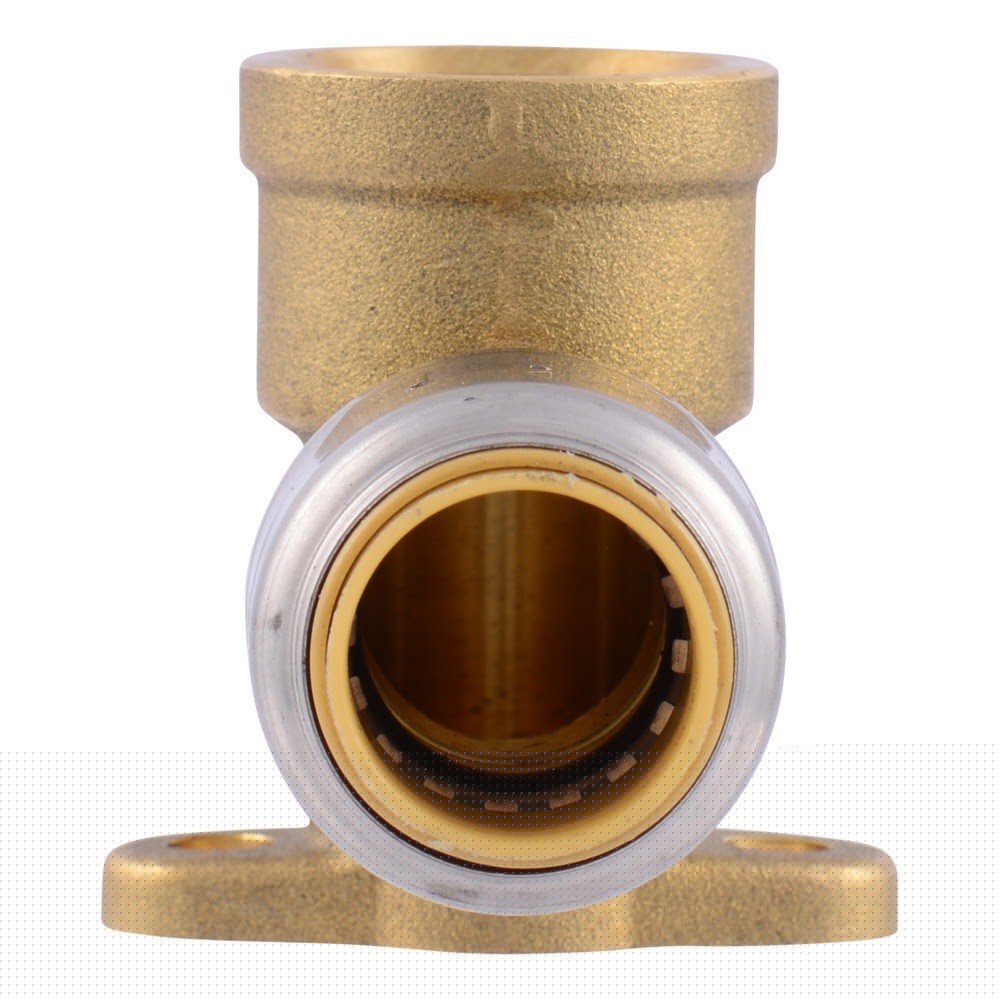

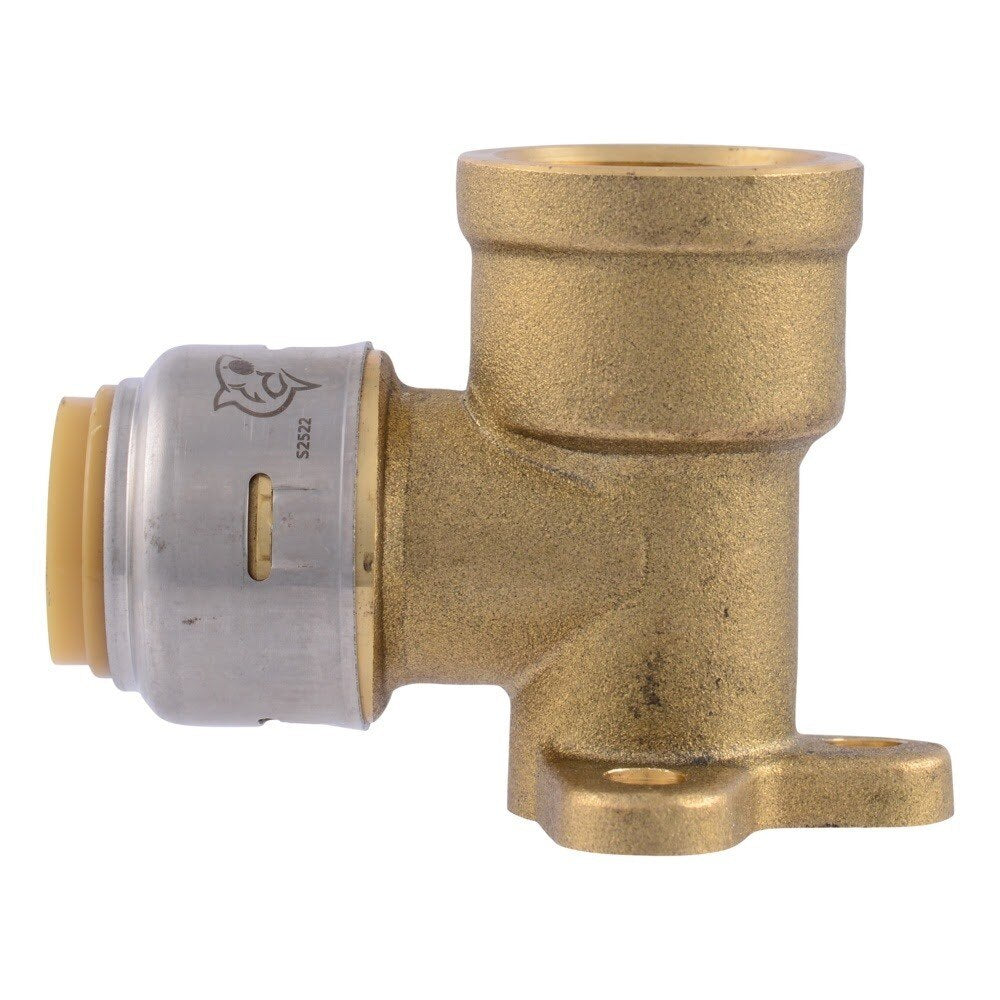

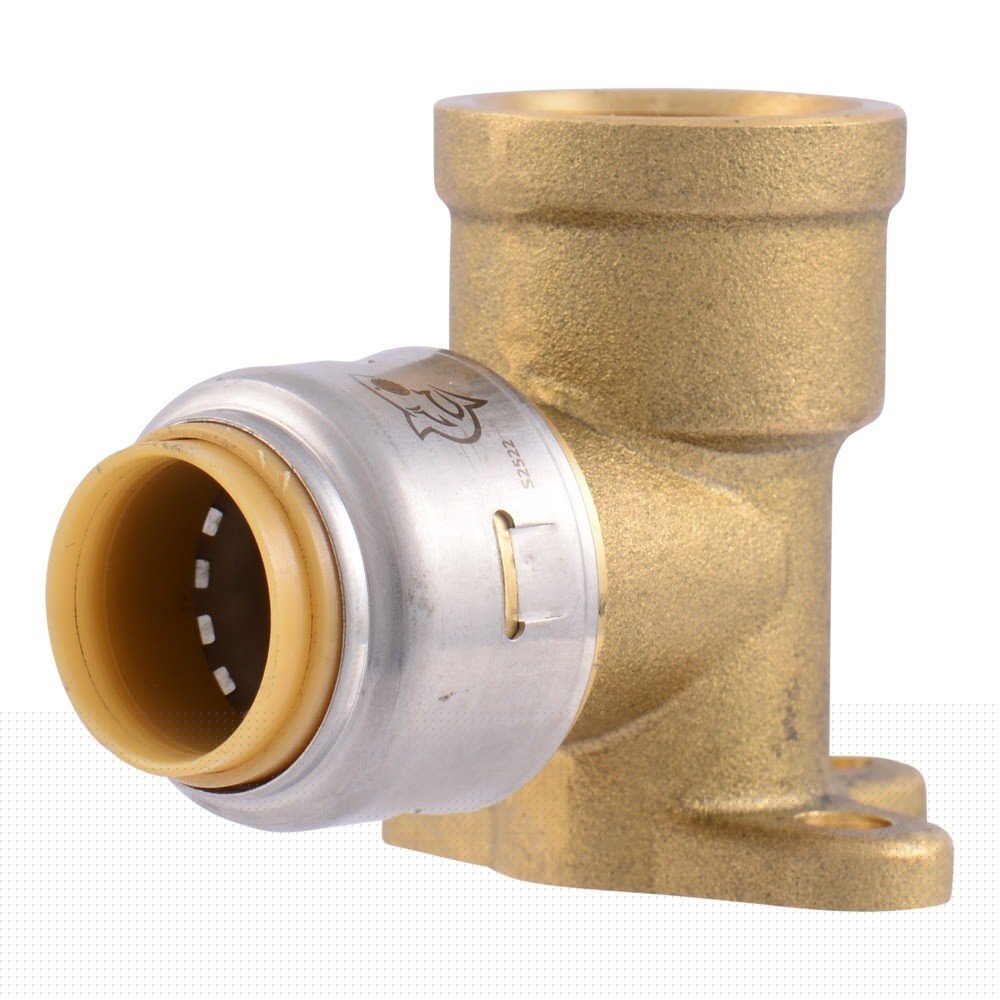

SharkBite UR334A Description
The SharkBite Max UR334A is a 1/2 in. x 1/2 in. brass 90 Degree drop ear elbow that combines a push-to-connect inlet with a female NPT outlet for fast plumbing connections. It installs on PEX, copper, CPVC, or PE-RT pipe without special tools, can be used on wet lines, and is rated up to 200 F and 400 psi for potable water applications.
SharkBite UR334A Includes
- (1) SharkBite Max Push-to-Connect x FNPT Drop Ear Elbow Fitting
SharkBite UR334A Features
- Push-to-connect inlet and FNPT outlet for fast 90 Degree plumbing connections
- Compatible with PEX, copper, CPVC, and PE-RT pipe
- Can be installed on wet lines and pressure tested immediately
- No special tools, crimping, soldering, or glue required
- High-performance lead-free DZR brass body
- Stainless steel retainer adds strength and durability
- Can be rotated after installation
- No PEX tube liner required
- Approved for behind-the-wall applications with no access panels
- Approved for underground applications when wrapped for burial
- Rated up to 200 F and 400 psi
- Removable fitting design
SharkBite UR334A Specifications
| Brand | SharkBite |
| Model | UR334A |
| Product Type | Drop Ear Elbow Fitting |
| Size | 1/2 in. x 1/2 in. |
| Bend Degree | 90 Degree |
| Connection | Push-to-Connect x FNPT |
| Connection 1 | Push-to-Connect |
| Connection 2 | FNPT |
| Material | Brass |
| Application | Potable Water |
| Compatible Pipe Material | PEX, Copper, CPVC, PE-RT |
| Lead Free | Yes |
| Maximum Working Temperature | 200 F |
| Maximum Working Pressure | 400 psi |
| Removable | Yes |
| Pack Size | 1 |
| Product Weight | 0.227 lb |
| Warranty | 25-year when properly installed on PEX, copper, CPVC, and PE-RT; 5-year when properly installed with HDPE SDR-9 |
