SharkBite UR340A Description

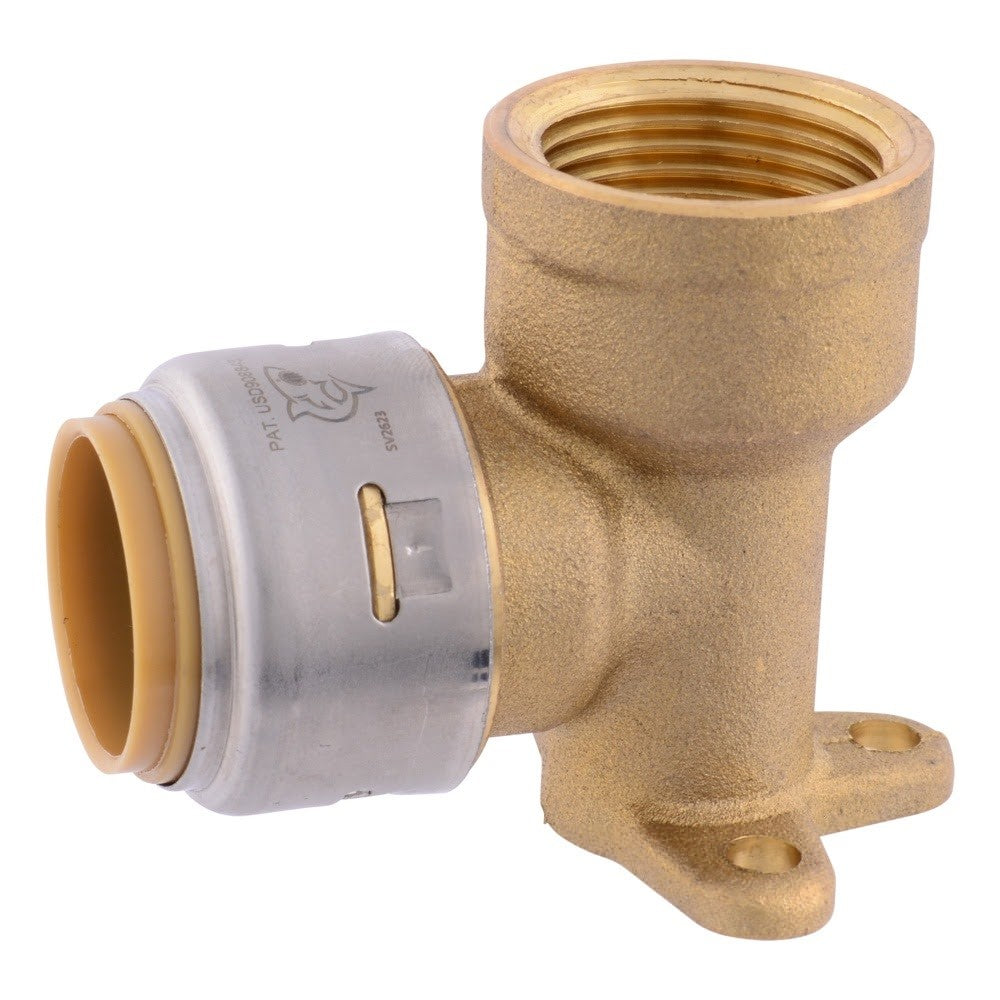

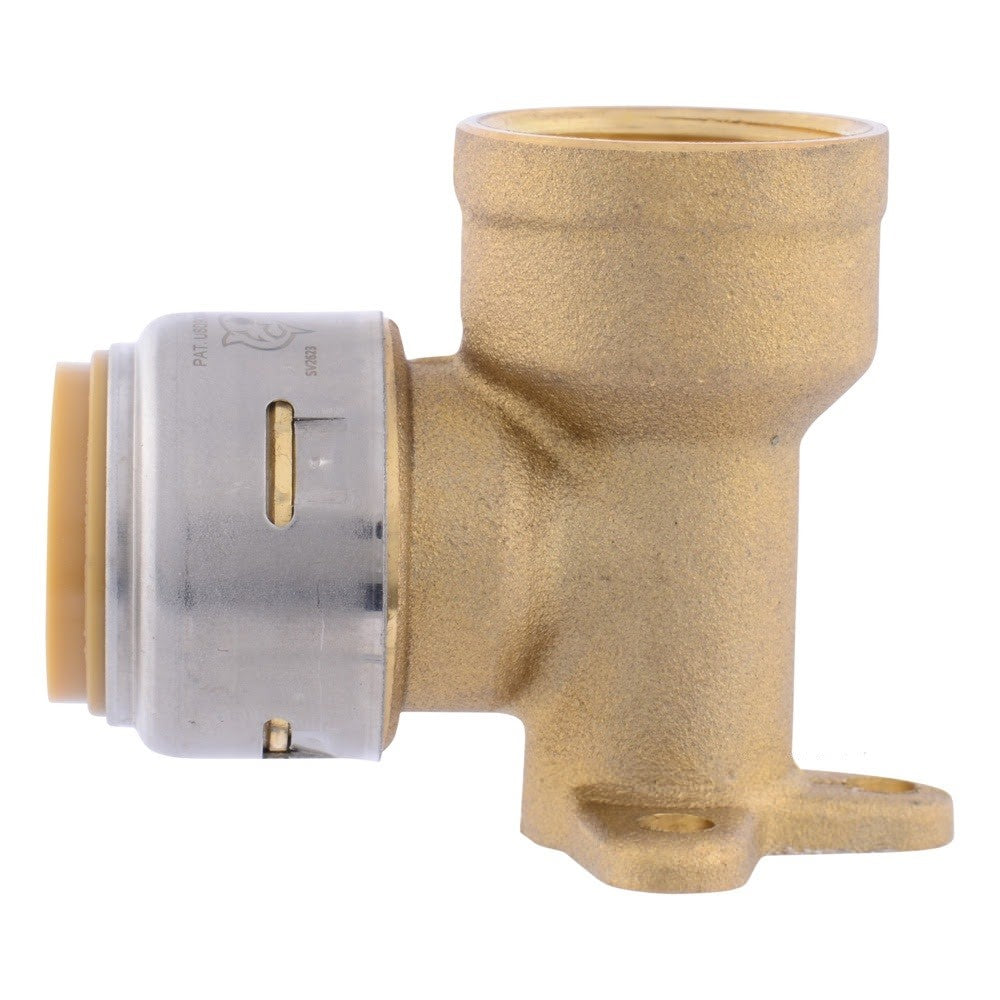

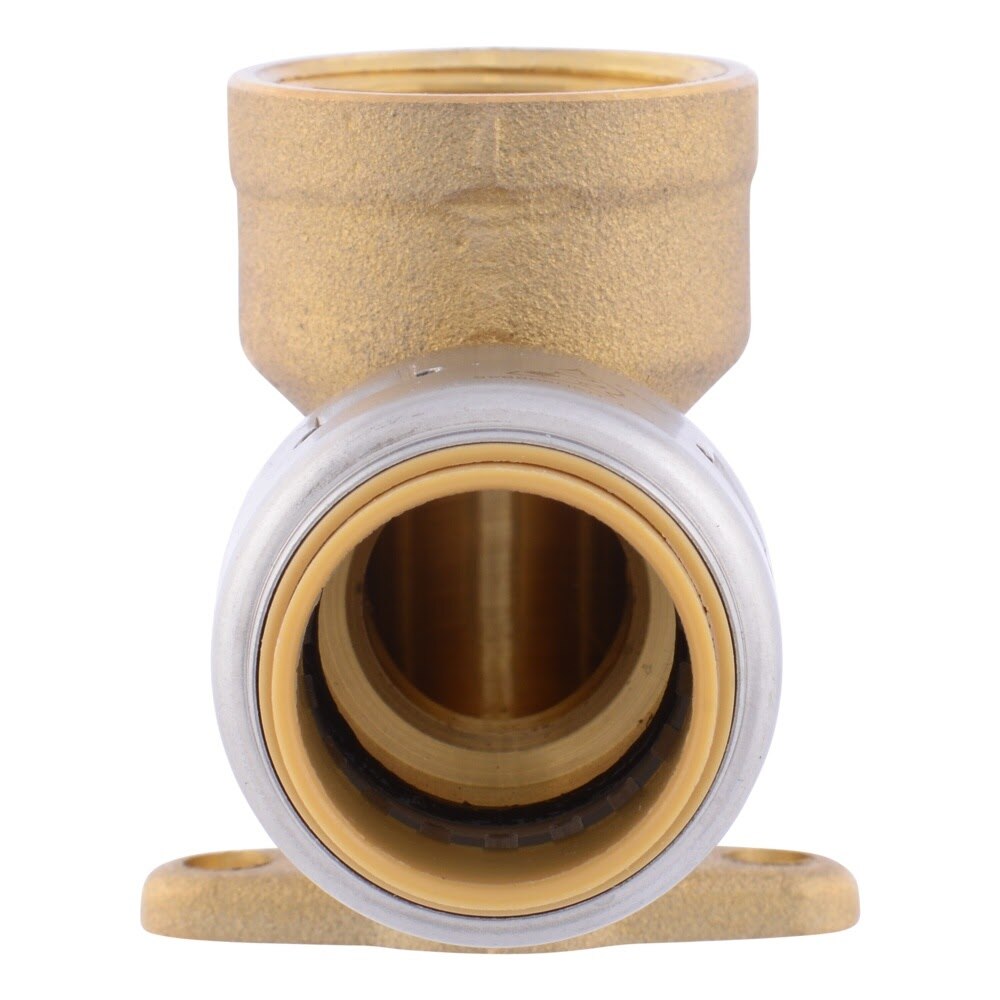

The SharkBite Max 3/4 in x 3/4 in FNPT drop ear elbow provides a fast push-fit x female NPT connection for potable water and hydronic heating applications. Its lead-free, corrosion-resistant DZR brass body installs without soldering and is approved for use behind walls and underground.
SharkBite UR340A Includes
- (1) 3/4 in x 3/4 in SharkBite Max FNPT Drop Ear Elbow
SharkBite UR340A Features
- Instant push-fit connection requires no soldering
- 3/4 in push-fit x 3/4 in FNPT configuration
- Lead-free DZR brass body resists corrosion
- Compatible with OD controlled copper, CPVC, and PEX pipe
- Certified to 200 PSI and 200 degrees F
- Approved for potable water and hydronic heating systems
- Suitable for underground installation and behind-wall applications without access panels
- Integrated design with no loose components
- Drop ear mounting tabs allow secure fastening
SharkBite UR340A Specifications
| Size | 3/4 in x 3/4 in |
| Connection Type | Push-Fit x FNPT |
| Thread Size | 3/4 in |
| Insertion Depth | 1-1/8 in |
| Lead Free | Yes |
| Compatible Pipe Materials | Copper, CPVC, PEX |
| Maximum Pressure | 200 PSI |
| Maximum Temperature | 200 degrees F (93 degrees C) |
| Material | DZR brass |
| Applications | Potable water and hydronic heating |
| Installation Locations | Underground and behind walls without access panels |
| Listings | ANSI/NSF-61, IAPMO, IGC 188 |
