SharkBite UR351A Description
The SharkBite Max UR351A stub-out elbow is a 1/2 in. push-to-connect fitting with an 8 in. copper tube for fast rough-in plumbing installation. Its lead-free brass body installs without soldering, crimping, or glue and is compatible with PEX, copper, CPVC, PE-RT, and HDPE SDR-9 pipe.

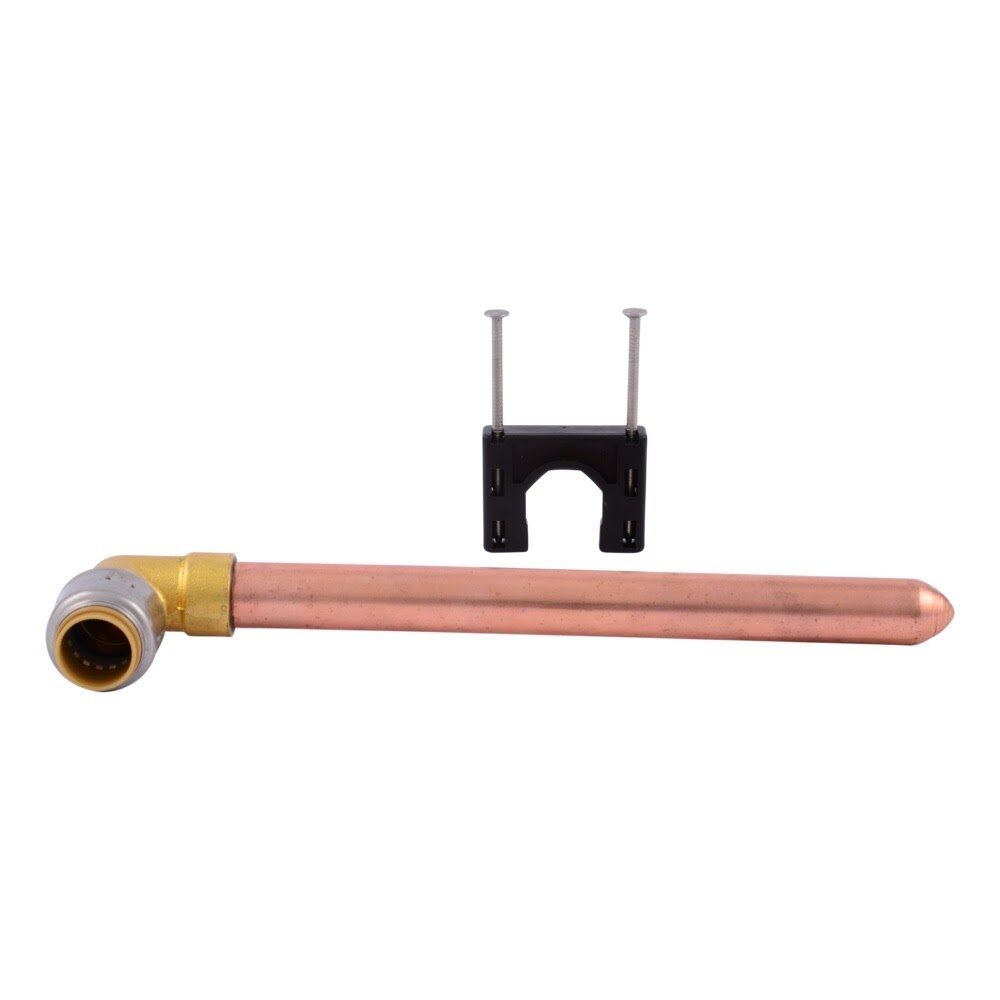

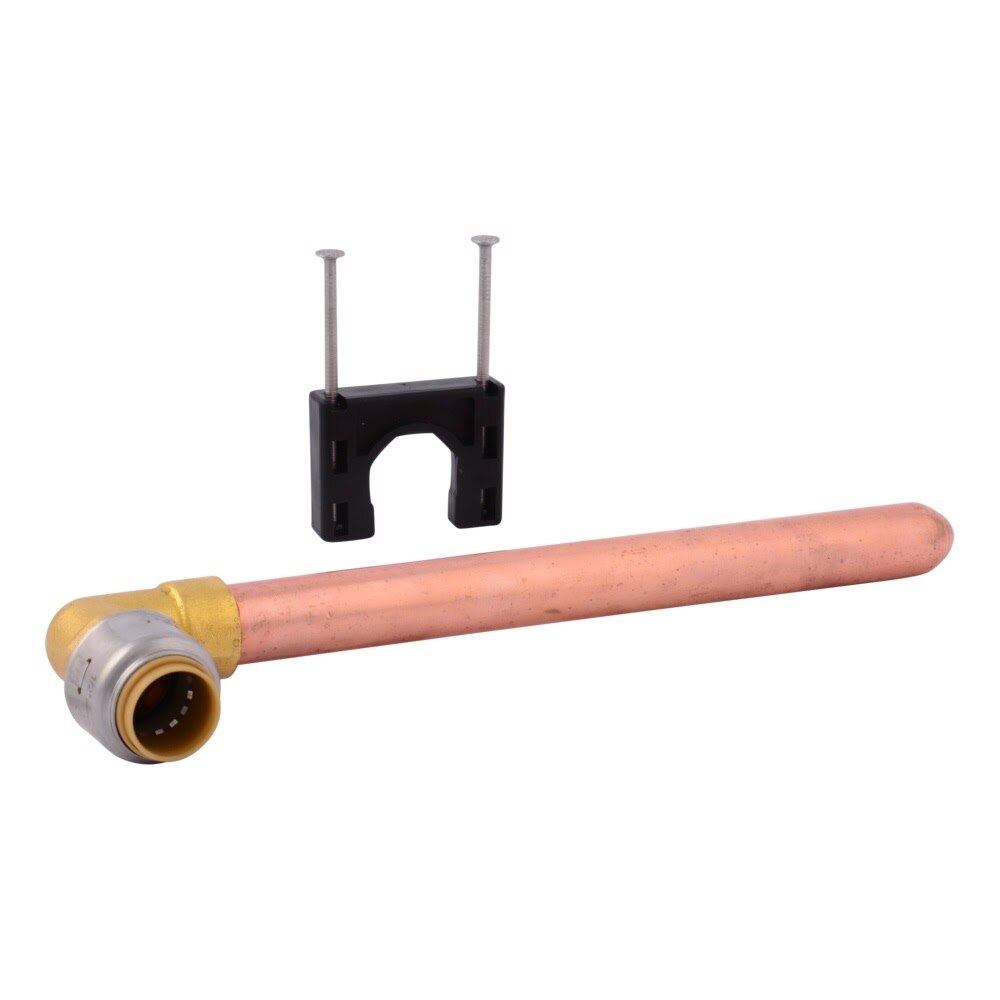

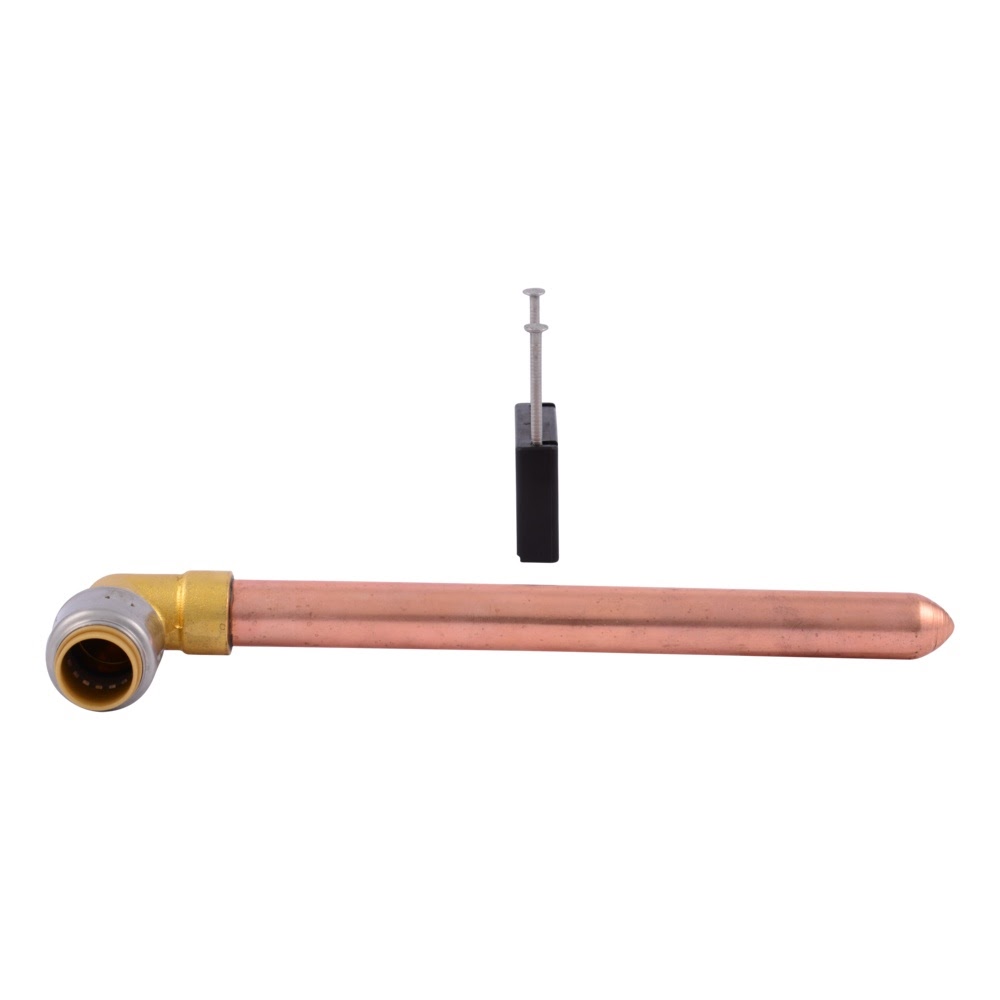

SharkBite UR351A Includes
- (1) SharkBite Max Stub-Out Elbow
- (1) Mounting Clip
- (2) Nails
SharkBite UR351A Features
- Push-to-connect design for fast rough-in plumbing installation
- Compatible with PEX, copper, CPVC, PE-RT, and HDPE SDR-9 pipe
- Installs on wet lines and can be pressure tested immediately
- Lead-free DZR brass body for durability
- Stainless steel retainer adds strength
- No special tools, crimping, soldering, or glue required
- Can be rotated after installation
- No tube liner required for PEX
- Suitable for underground and behind-the-wall applications when installed per manufacturer instructions
- Can be removed with compatible disconnect tools
SharkBite UR351A Specifications
| Product Type | Stub-Out Elbow |
| Size | 1/2 in. |
| Connection Type | Push Fit |
| Connection Size | 1/2 in. x 1/2 in. |
| Copper Tube Length | 8 in. |
| Material | Lead-free DZR brass |
| Max Pressure | 200 psi |
| Max Temperature | 200 F |
| Tubing Compatibility | PEX, Copper, CPVC, PE-RT, HDPE SDR-9 |
| Insertion Depth | 15/16 in. |
| Lead Free | Yes |
| Warranty | 25 Year |
| Application | Heating |
Toolup Part # :
884116
