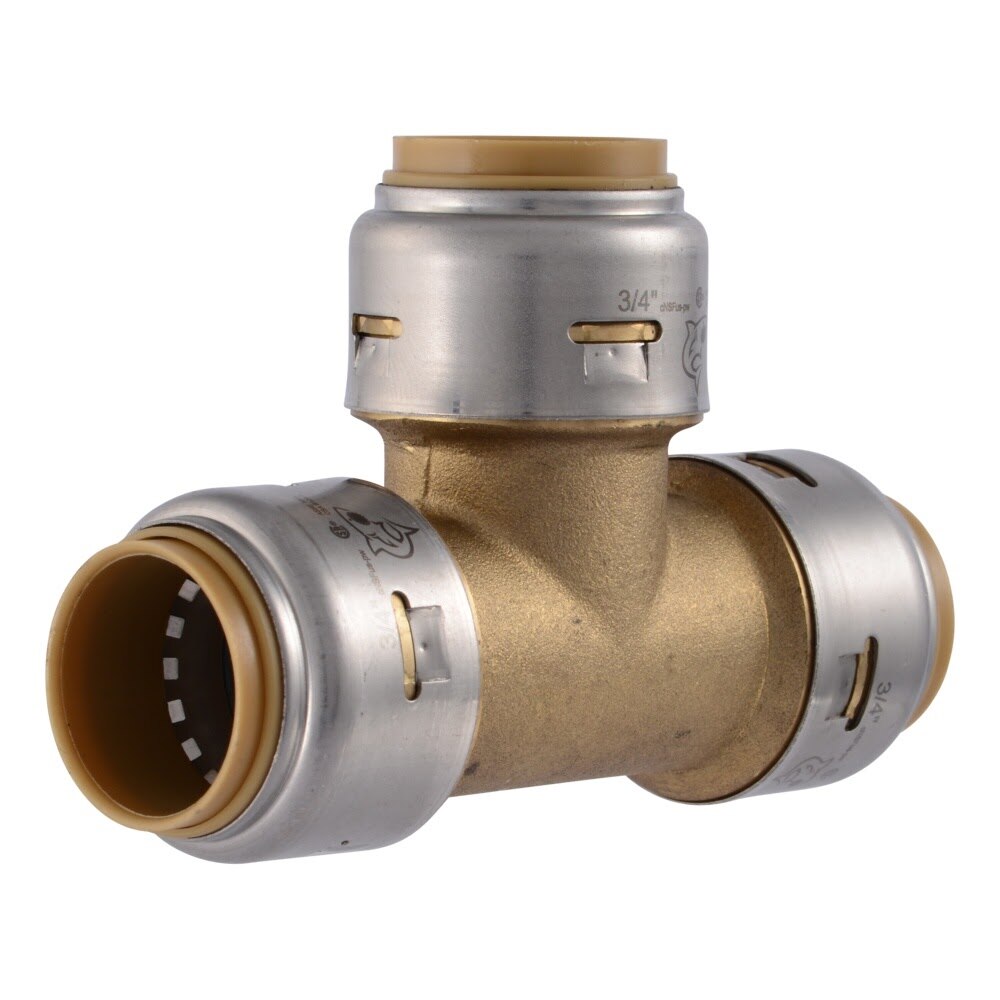

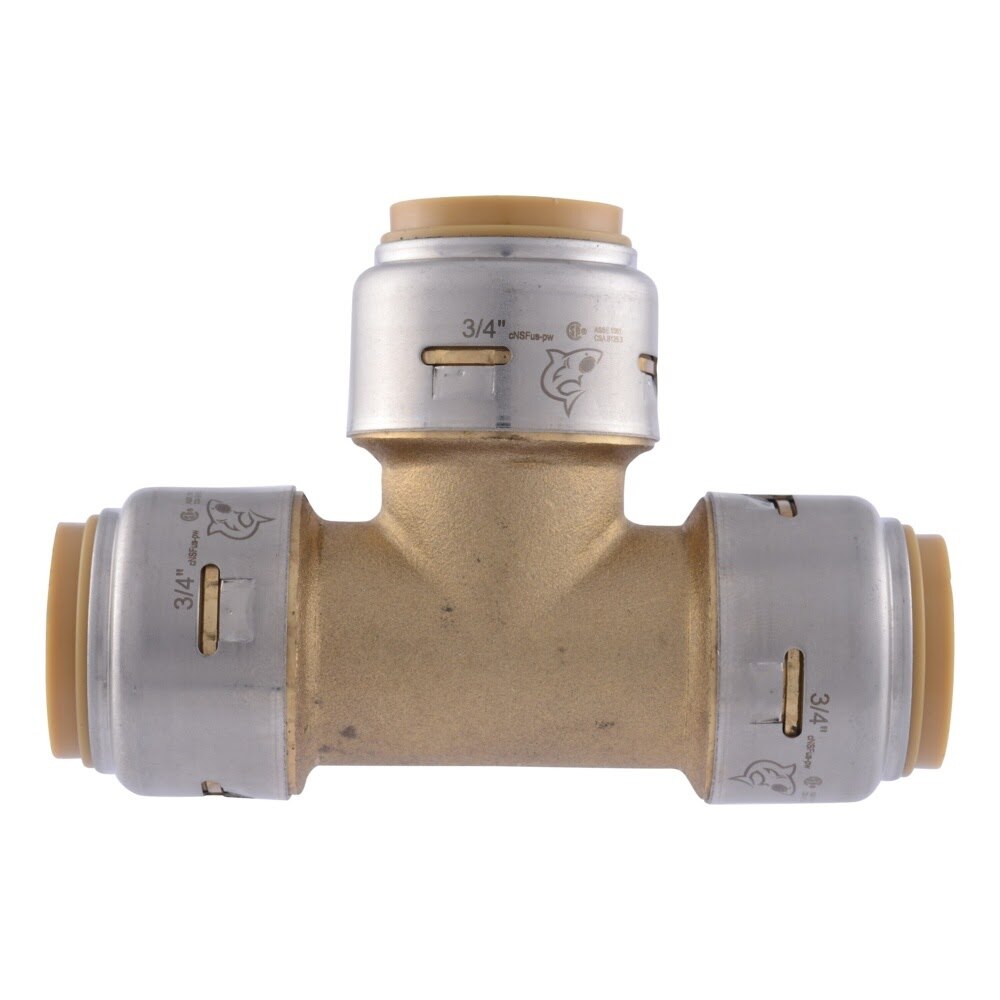

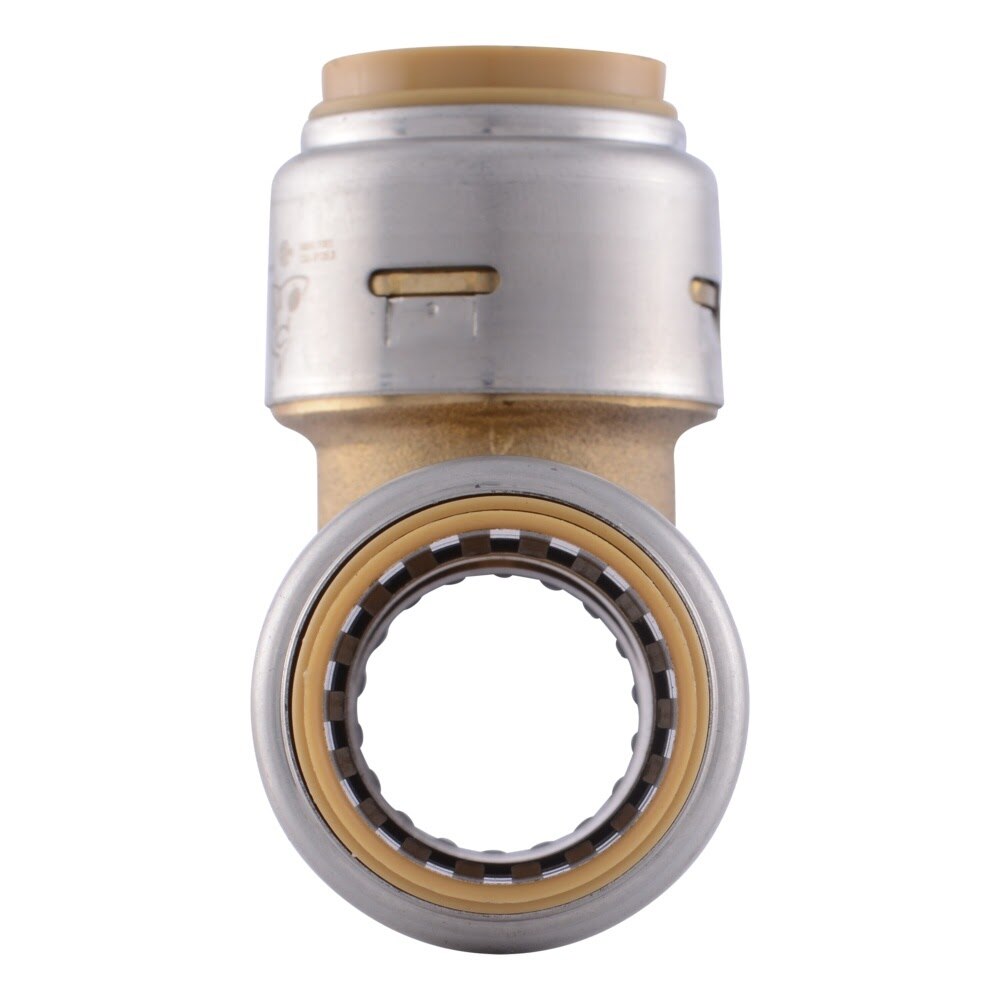

SharkBite UR370A Description
The SharkBite Max 3/4 in. x 3/4 in. x 3/4 in. brass tee fitting provides a fast push-to-connect solution for creating branch connections in potable water lines. Designed for use with PEX, copper, CPVC, and PE-RT pipe, it installs without soldering, crimping, or glue and can be used on wet lines with immediate pressure testing.
SharkBite UR370A Includes
- (1) Max 3/4 in. x 3/4 in. x 3/4 in. Push-to-Connect Brass Tee Fitting
SharkBite UR370A Features
- Fast push-to-connect installation for PEX, copper, CPVC, and PE-RT pipe
- Half the insertion force with double the burst pressure
- Can be installed on wet lines and pressure tested immediately
- Stainless steel retainer adds strength and durability
- High-performance DZR lead-free brass body
- No special tools, crimping, soldering, or glue required
- Can be rotated after installation
- No PEX tube liner required
- Approved for behind-the-wall applications with no access panels
- Approved for underground applications when wrapped for burial
- Rated to 200 F and 400 psi
- Removable design
- Third-party listed and compliant with applicable U.S. and Canadian plumbing codes
- 25-year warranty when properly installed on PEX, copper, CPVC, and PE-RT
SharkBite UR370A Specifications
| Application | Potable Water |
| Fitting Type | Tee |
| Fitting Size Dimensions | 3/4 in. x 3/4 in. x 3/4 in. |
| Material | Brass |
| Body Material | DZR lead-free brass |
| Retainer Material | Stainless steel |
| Connection Type | Push-to-Connect |
| Connection Configuration | PTC x PTC x PTC |
| Compatible Pipe Material | PEX, copper, CPVC, and PE-RT |
| Removable | Yes |
| Rotatable After Installation | Yes |
| Maximum Working Temperature | 200 F |
| Maximum Working Pressure | 400 psi |
| Behind-the-Wall Approved | Yes |
| Underground Approved | Yes, wrap required for burial |
| Warranty | 25-year warranty when properly installed on PEX, copper, CPVC and PE-RT |
