SharkBite UR374A Description

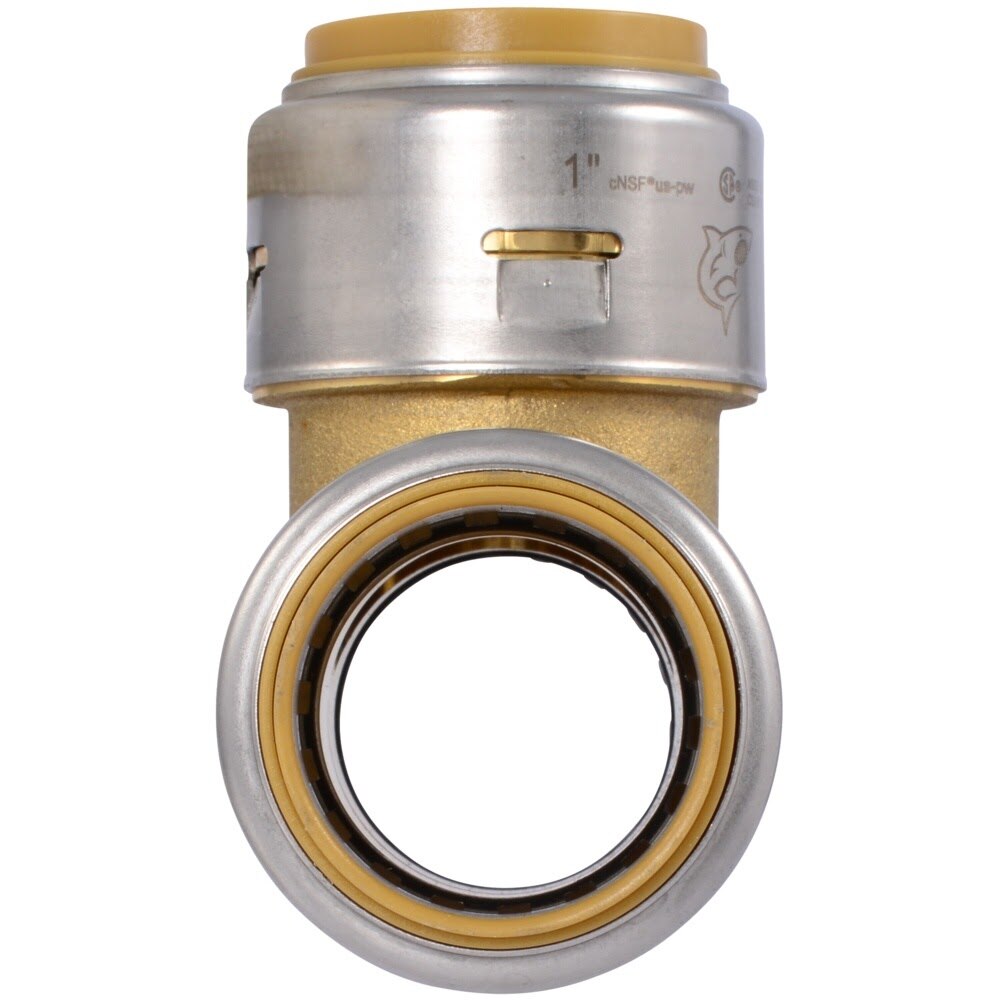

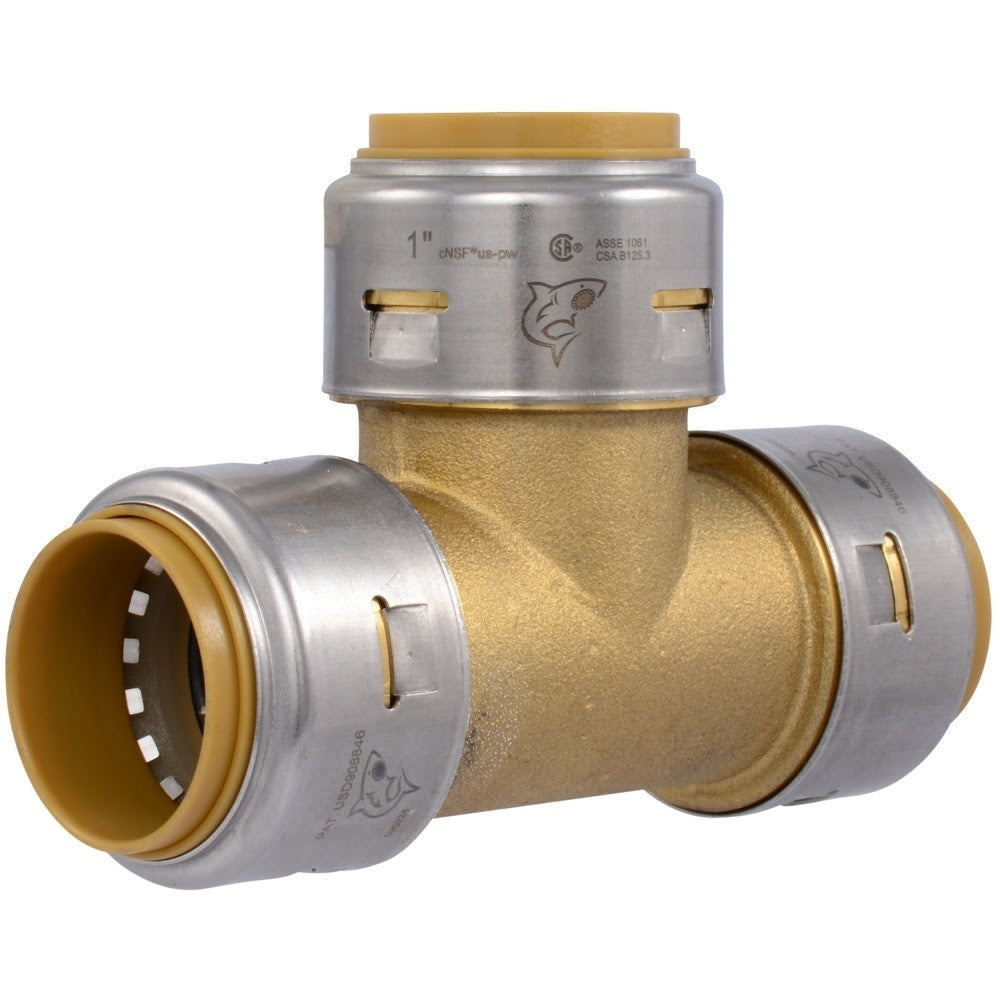

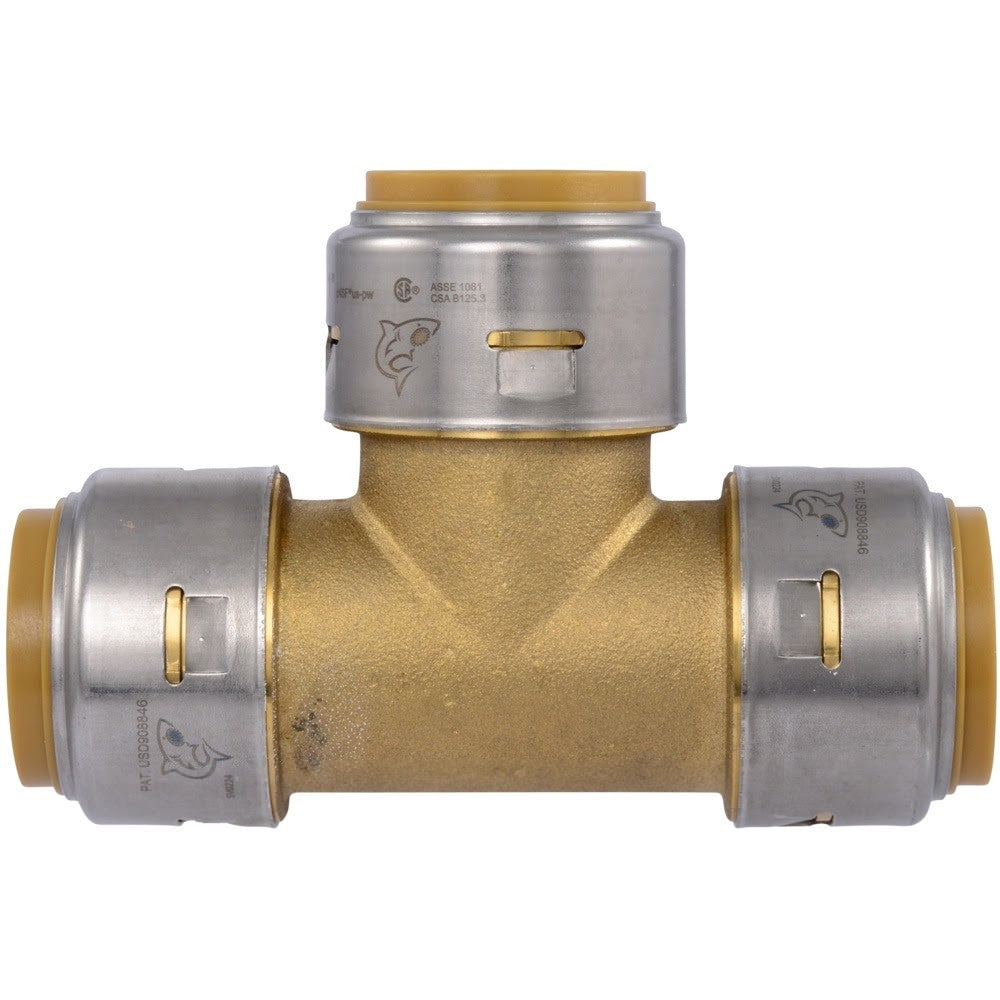

The SharkBite Max UR374A is a 1 in. x 1 in. x 1 in. push-to-connect brass tee fitting for potable water applications. It connects PEX, copper, CPVC, and PE-RT pipe without soldering, clamps, unions, or glue, and it can be installed on wet lines for immediate pressure testing.
SharkBite UR374A Includes
- (1) SharkBite Max 1 in. x 1 in. x 1 in. Tee Fitting
SharkBite UR374A Features
- Push-to-connect installation for fast connections
- Compatible with PEX, copper, CPVC, and PE-RT pipe
- No soldering, clamps, unions, or glue required
- Half the insertion force with double the burst pressure
- Can be installed on wet lines and pressure tested immediately
- Rotatable after installation and removable
- PEX tube liner not required
- Approved for underground and behind-the-wall applications when installed per instructions
- Low-lead DZR corrosion-resistant brass body
- Newly designed stainless steel collet retainer for added strength
- Rated up to 200 Degree F and 400 psi
SharkBite UR374A Specifications
| Application | Potable Water |
| Material | Brass |
| Fitting Type | Tee |
| Connection | PTC x PTC x PTC |
| Connectivity | Push Fit |
| Compatible Pipe Material | Multi-Purpose |
| Fitting Size Dimensions | 1" x 1" x 1" |
| Fitting 1 Size | 1" |
| Fitting 2 Size | 1" |
| Fitting 3 Size | 1" |
| Maximum Working Temperature (F) | 200 |
| Maximum Working Pressure (psi) | 400 |
| Features | Removable |
| Pack Size | 1 |
| Each Length | 1.77 |
| Each Width | 5.25 |
| Each Height | 8.00 |
| Each Shipping Weight | 0.70 |
Toolup Part # :
883595
