SharkBite UR380A Description

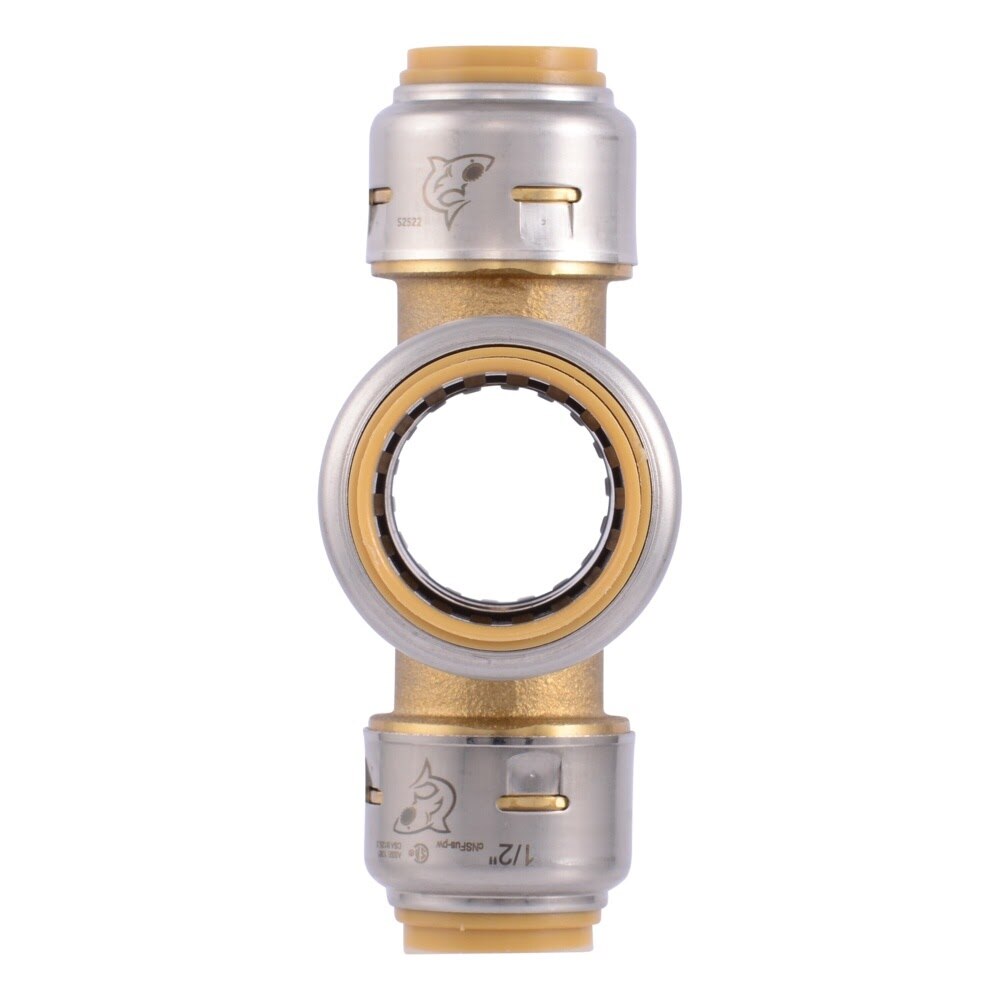

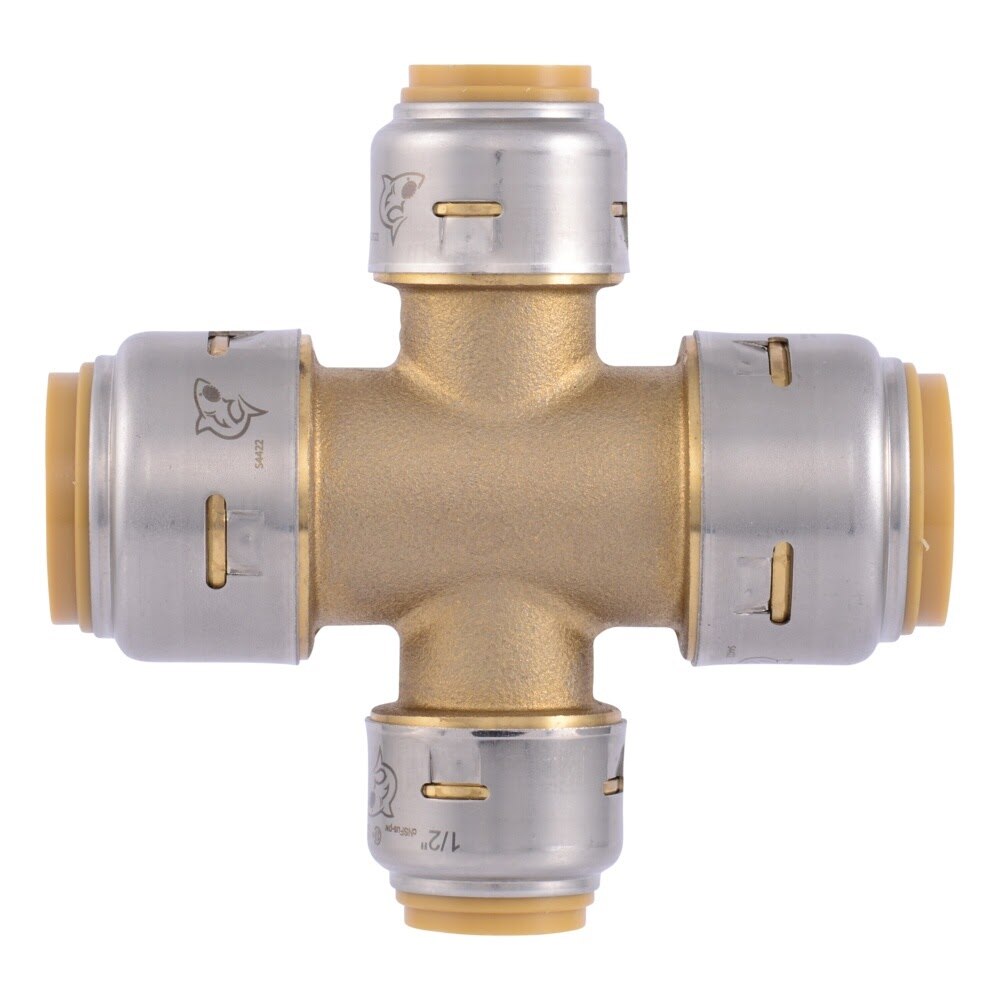

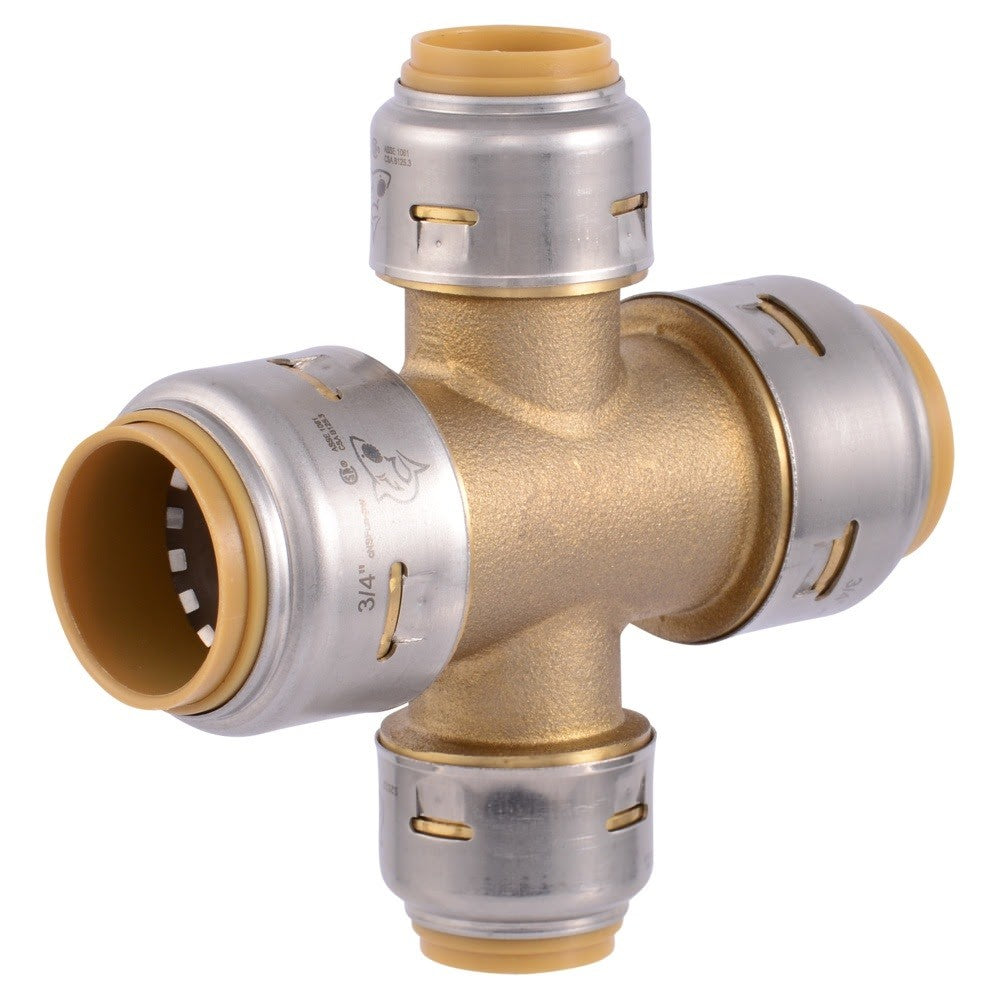

The SharkBite Max cross tee fitting provides a fast push to connect solution for plumbing layouts that combine 3/4 in and 1/2 in pipe runs. Built with a lead-free DZR brass body and stainless steel retainer, it connects PEX, copper, CPVC, and PE-RT pipe without crimping, soldering, or glue, and it can be installed on wet lines with immediate pressure testing.
SharkBite UR380A Includes
- (1) SharkBite Max 3/4 in x 3/4 in x 1/2 in x 1/2 in Cross Tee Fitting
SharkBite UR380A Features
- Push to connect design installs without crimping, soldering, or glue
- Compatible with PEX, copper, CPVC, and PE-RT pipe
- Half the insertion force with double the burst pressure
- Can be installed on wet lines and pressure tested immediately
- Lead-free DZR brass body with stainless steel retainer for durability
- Removable and can be rotated after installation
- No PEX tube liner required
- Approved for behind-the-wall applications with no access panels
- Approved for underground applications when wrapped for burial
- Rated to 200 F and 250 psi
- 25-year warranty when properly installed on PEX, copper, CPVC, and PE-RT
SharkBite UR380A Specifications
| Product Type | Cross tee fitting |
| Series | SharkBite Max |
| Material | Lead-free DZR brass |
| Connection Type | Push to connect |
| Fitting Size | 3/4 in x 3/4 in x 1/2 in x 1/2 in |
| Compatible Pipe Material | PEX, copper, CPVC, PE-RT |
| Application | Potable water |
| Maximum Working Temperature | 200 F |
| Maximum Working Pressure | 250 psi |
| Removable | Yes |
| Behind-the-Wall Approved | Yes |
| Underground Approved | Yes, wrap required for burial |
| Warranty | 25-year warranty when properly installed on PEX, copper, CPVC and PE-RT |
