Description
Description

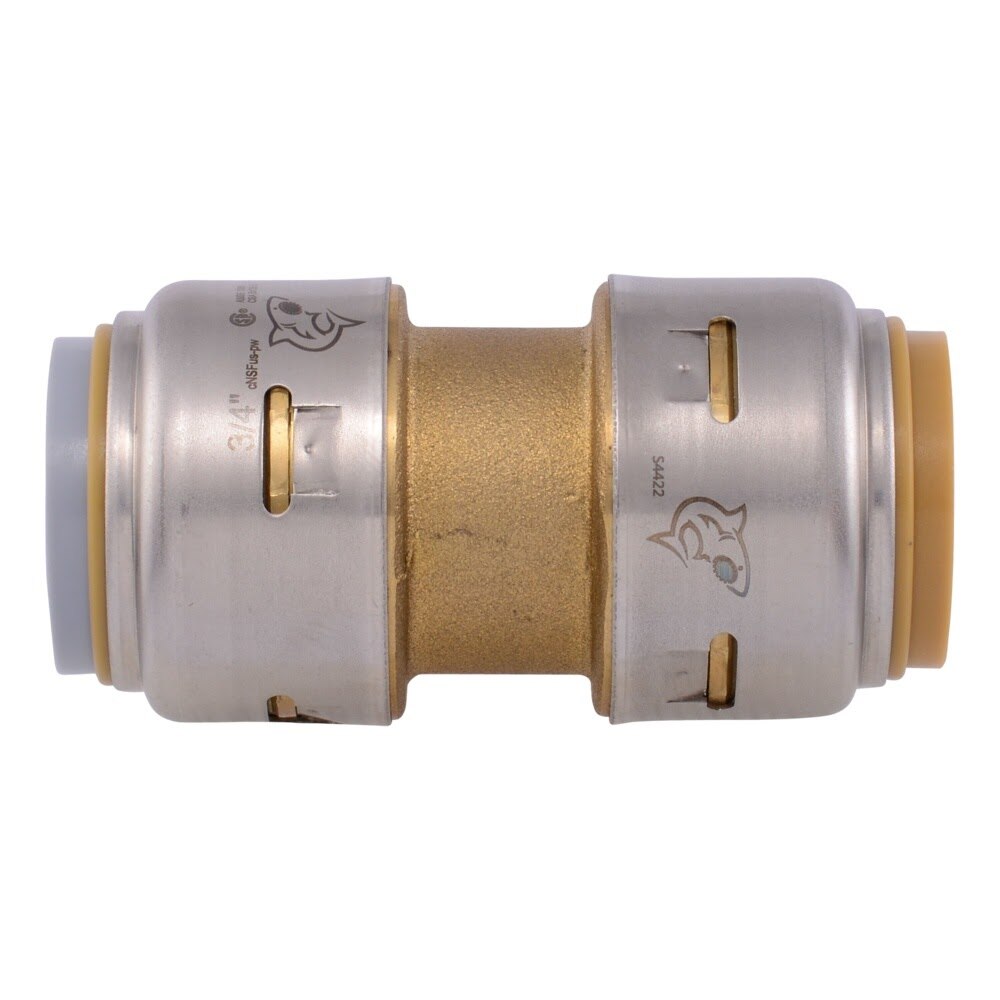

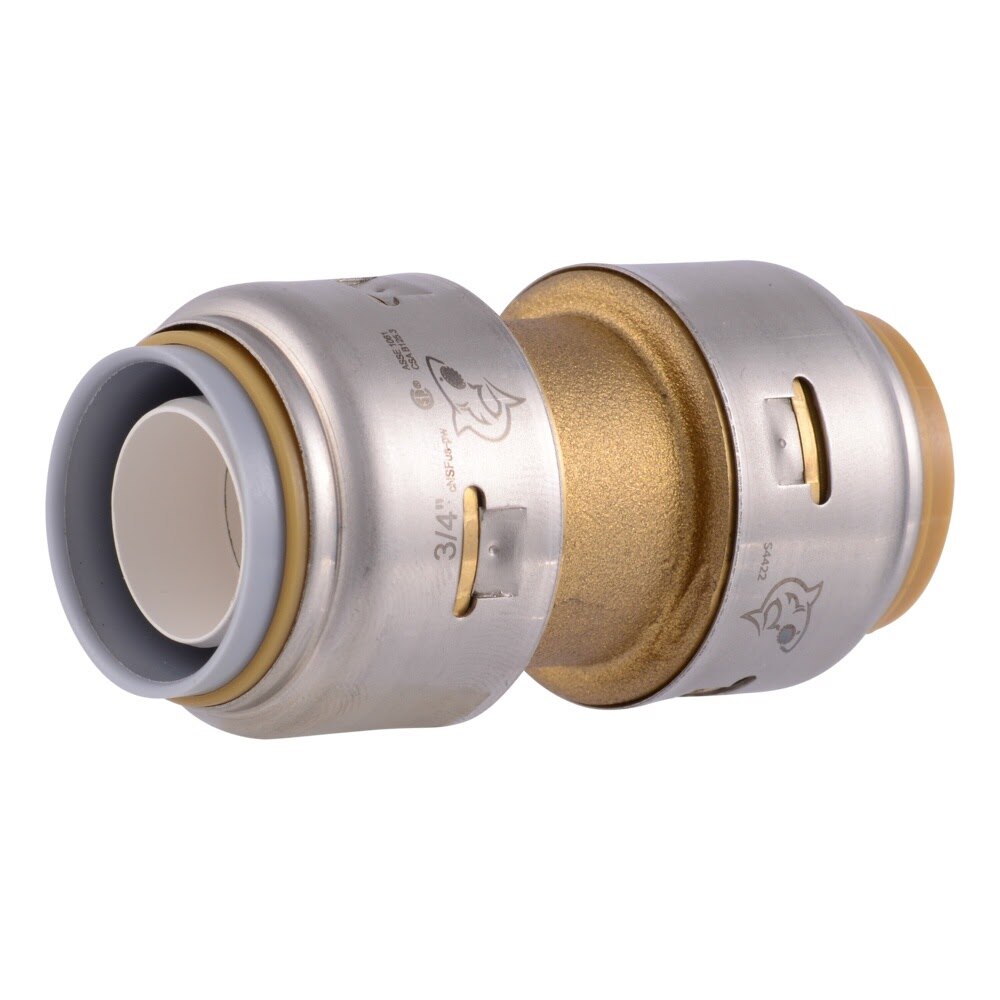

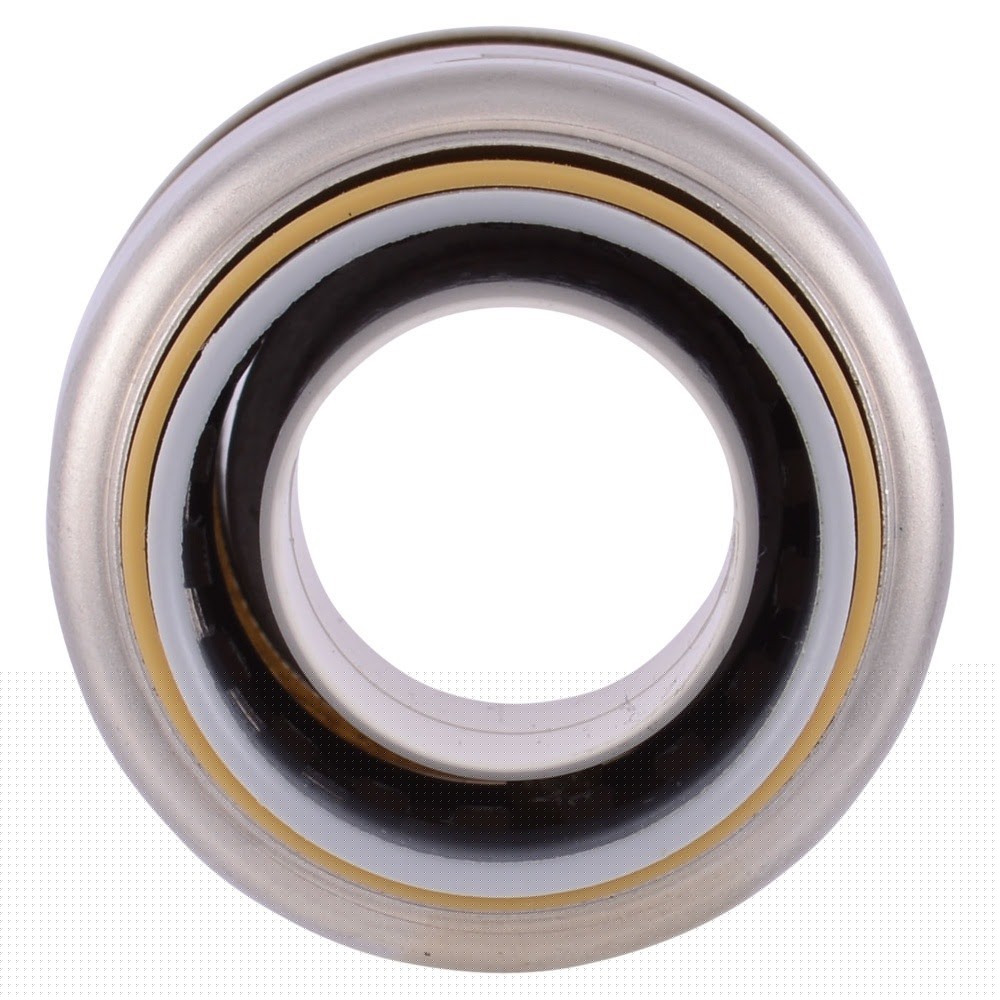

SharkBite UR4016A Description
The SharkBite Max transition coupling provides a fast push-to-connect connection between 3/4 in. polybutylene pipe and 3/4 in. CTS PEX, copper, CPVC, PE-RT, or HDPE SDR-9 pipe. Its lead-free DZR brass body and stainless steel retainer deliver durable performance, and the fitting can be installed on wet lines and pressure tested immediately.
SharkBite UR4016A Includes
- (1) 3/4 in. PB x 3/4 in. CTS SharkBite Max Transition Coupling
SharkBite UR4016A Features
- Push-to-connect design allows quick installation without special tools, crimping, soldering, or glue
- Transitions 3/4 in. polybutylene pipe to 3/4 in. CTS PEX, copper, CPVC, PE-RT, or HDPE SDR-9 pipe
- Half the insertion force compared to 1st generation SharkBite fittings
- Can be installed on wet lines and pressure tested immediately
- Stainless steel retainer adds strength and durability
- High-performance DZR lead-free brass body
- Color-coordinated collars help identify the correct pipe side
- Can be rotated after installation
- No tube liner required for PEX
- Rated to 200 DegreeF and 400 psi
- Can be removed with a disconnect clip, disconnect tongs, or pro disconnect tool
SharkBite UR4016A Specifications
| Brand | SharkBite |
| Part Number | UR4016A |
| Product Type | Transition Coupling |
| Connection Type | Push-to-Connect |
| Size 1 | 3/4 in. PB |
| Size 2 | 3/4 in. CTS |
| Application | Transition between polybutylene pipe and PEX, copper, CPVC, PE-RT, or HDPE SDR-9 pipe |
| Material | DZR lead-free brass |
| Retainer Material | Stainless Steel |
| Maximum Temperature | 200 DegreeF |
| Maximum Pressure | 400 psi |
| Rotatable After Installation | Yes |
| PEX Tube Liner Required | No |
| Install On Wet Lines | Yes |
| Package Length | 7.00 in. |
| Package Width | 4.50 in. |
| Package Height | 1.31 in. |
| Shipping Weight | 0.17 lb |
