SharkBite UR454A Description

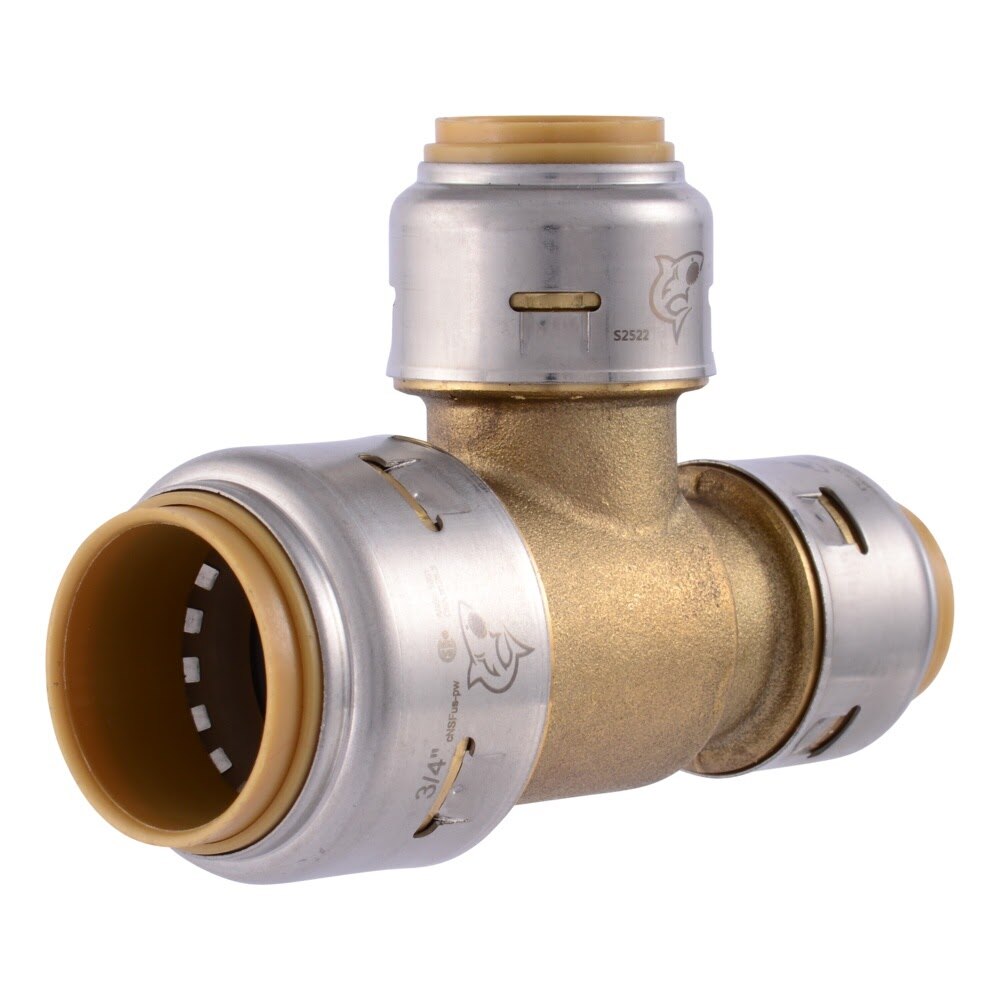

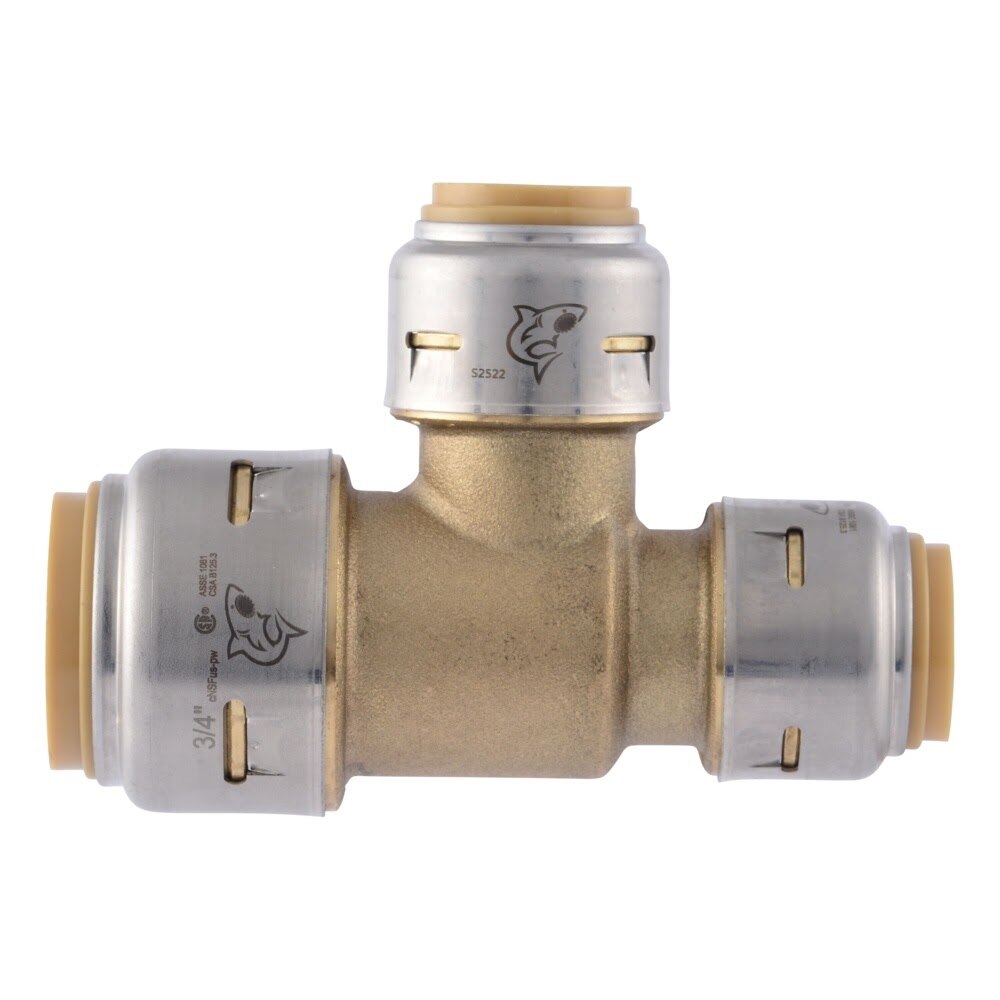

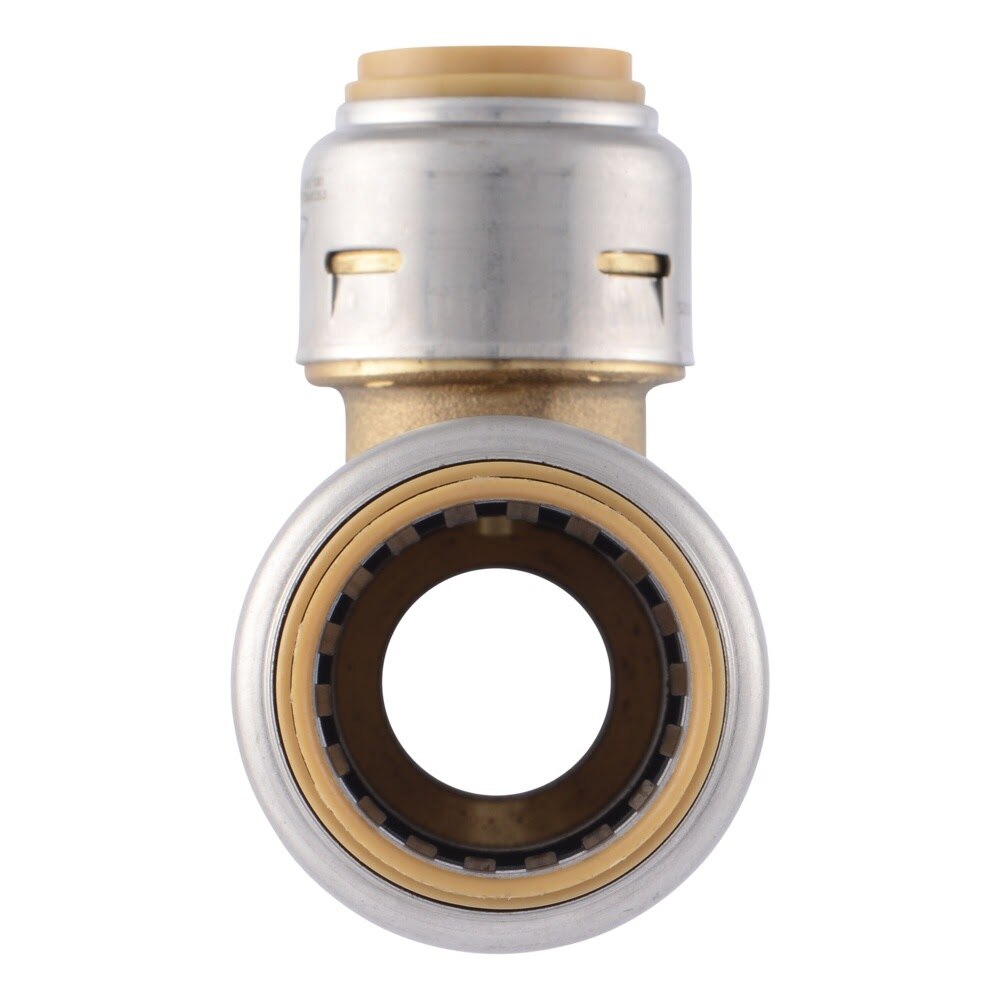

The SharkBite Max reducing tee creates a fast branch connection from 3/4 in. pipe to two 1/2 in. lines with push-to-connect ends. Built with a DZR lead-free brass body and stainless steel retainer, it works with PEX, copper, CPVC, and PE-RT pipe, installs without special tools, and can be pressure tested immediately, even on wet lines.
SharkBite UR454A Includes
- (1) SharkBite Max 3/4 in. x 1/2 in. x 1/2 in. Push-to-Connect Brass Reducing Tee Fitting
SharkBite UR454A Features
- Push-to-connect design creates fast connections without special tools
- Compatible with PEX, copper, CPVC, and PE-RT pipe
- Half the insertion force with double the burst pressure
- Can be installed on wet lines and pressure tested immediately
- Removable and rotatable after installation
- Stainless steel retainer adds strength and durability
- DZR lead-free brass body for dependable performance
- No crimping, soldering, glue, or PEX tube liner required
- Approved for behind-the-wall applications with no access panels
- Approved for underground applications when wrapped for burial
- Rated for up to 200 F and 400 psi
- Third-party listed and compliant with applicable US and Canadian plumbing codes
SharkBite UR454A Specifications
| Application | Potable Water |
| Material | Brass |
| Body Material | DZR lead-free brass |
| Retainer Material | Stainless steel |
| Connection Type | Push-to-Connect |
| Connection | PTC x PTC x PTC |
| Compatible Pipe Material | PEX, copper, CPVC, and PE-RT |
| Fitting Size Dimensions | 3/4 in. x 1/2 in. x 1/2 in. |
| Fitting 1 Size | 3/4 in. |
| Fitting 2 Size | 1/2 in. |
| Fitting 3 Size | 1/2 in. |
| Maximum Working Temperature | 200 F |
| Maximum Working Pressure | 400 psi |
| Feature | Removable |
| Pack Size | 1 |
| Product Length | 7.25 in. |
| Product Width | 4.50 in. |
| Product Height | 1.31 in. |
| Product Weight | 0.25 lb |
