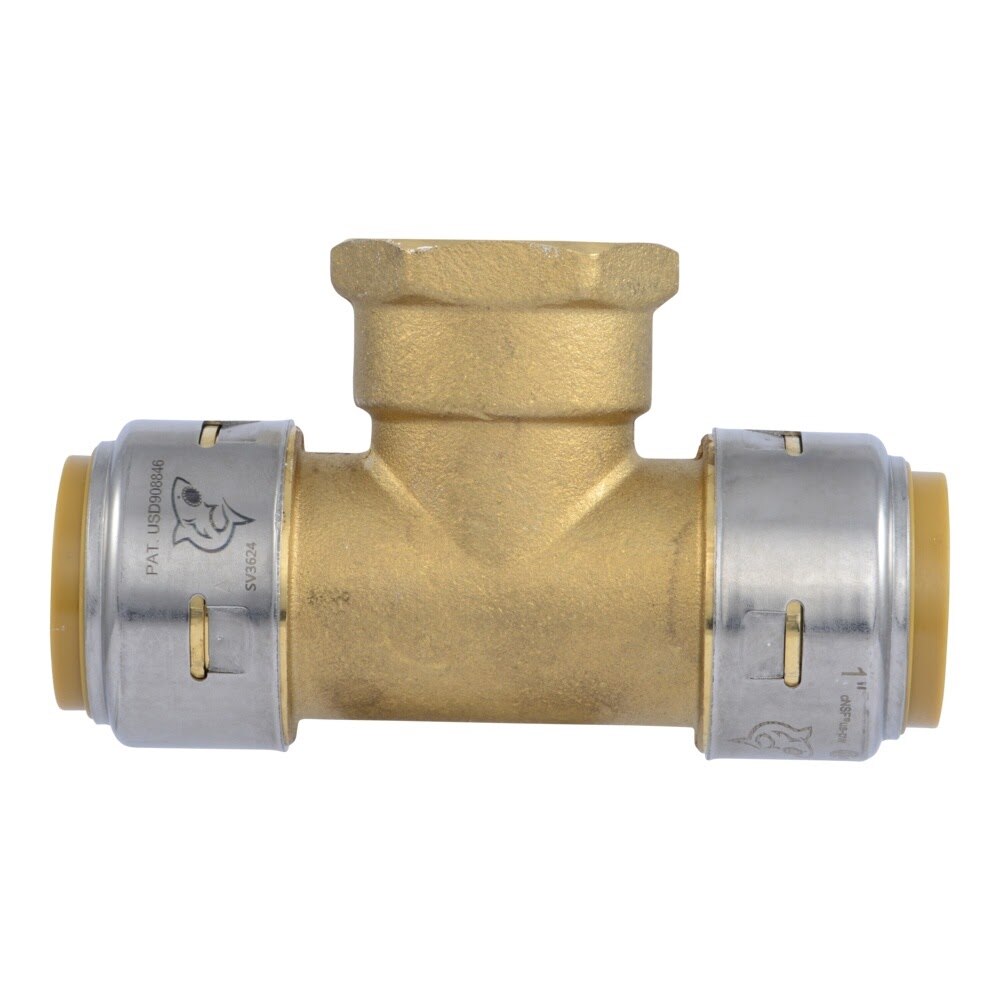

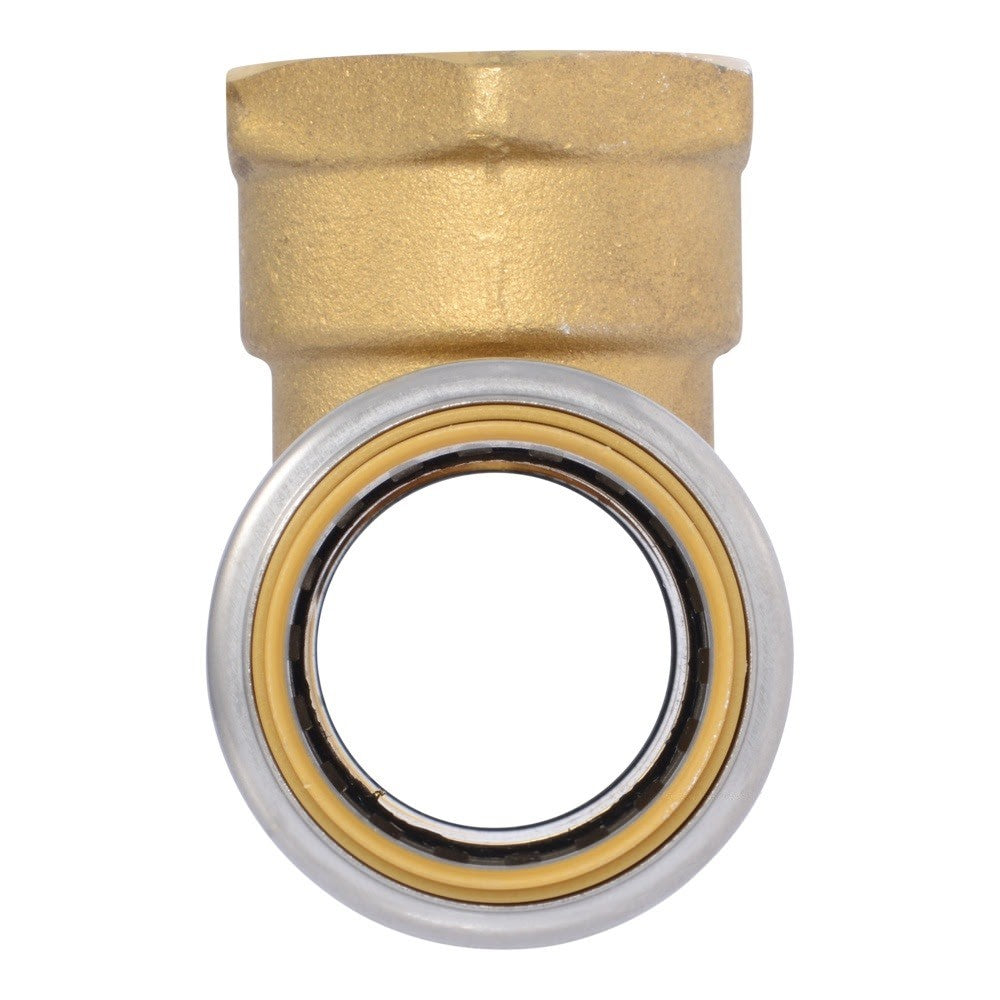

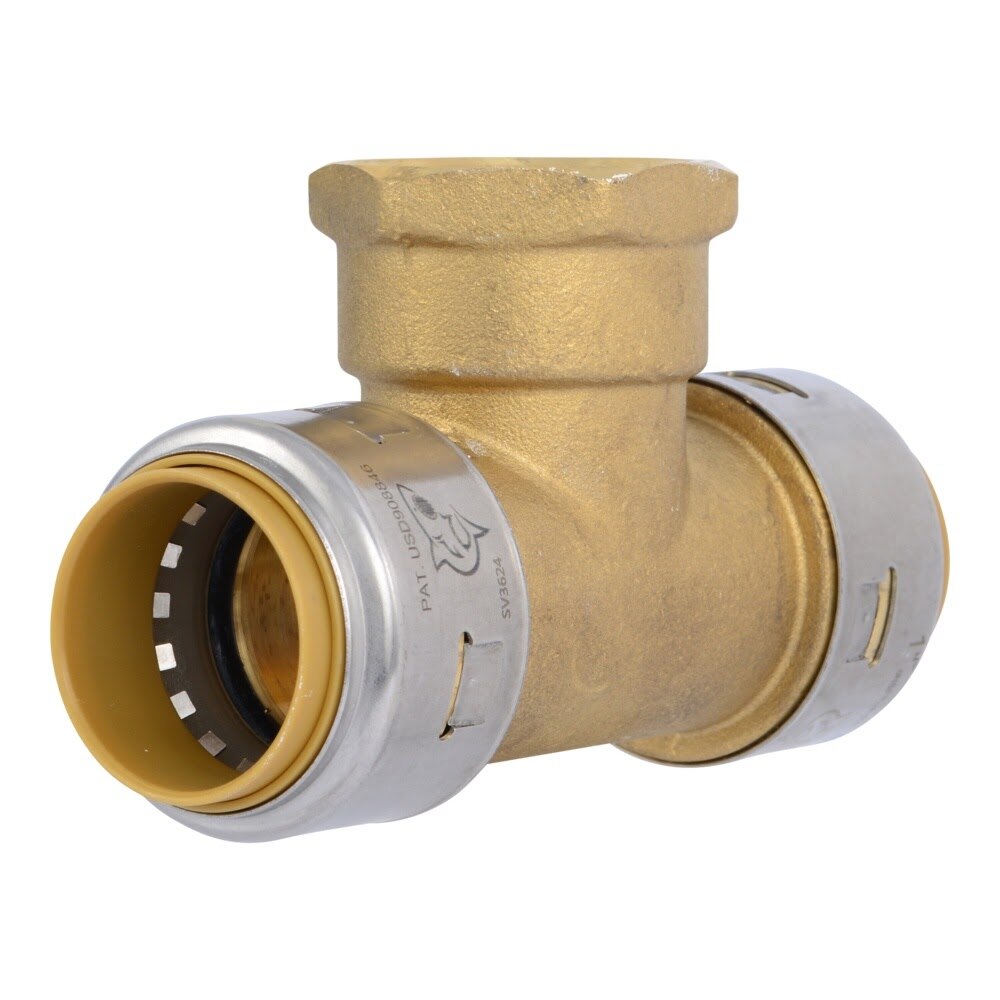

SharkBite UR464 Description
SharkBite UR464 is a 1 in. x 1 in. x 1 in. Max Female Center Tee designed to connect branch lines to existing water lines with two push-to-connect ends and a female threaded center outlet. Made from DZR lead-free brass, it works with PEX, copper, CPVC, PE-RT, and HDPE SDR-9 pipe and installs without soldering, crimping, glue, or special tools.
SharkBite UR464 Includes
- (1) 1 in. x 1 in. x 1 in. FNPT Max Female Center Tee
SharkBite UR464 Features
- Push-to-connect ends connect PEX, copper, CPVC, PE-RT, and HDPE SDR-9 pipe
- 1 in. FNPT female threaded center connection for direct fixture hookups
- DZR lead-free brass body for durability
- Stainless steel retainer adds strength and durability
- Installs without soldering, crimping, glue, or special tools
- Can be installed on wet lines and pressure tested immediately
- Can be rotated after installation for easier alignment
- Rated to 200 F and 400 psi
- Half the insertion effort and double the pressure rating compared to first generation SharkBite push-to-connect fittings
- Can be removed with a disconnect clip, disconnect tongs, or pro disconnect tool
SharkBite UR464 Specifications
| Brand | SharkBite |
| Manufacturer Part Number | UR464 |
| Product Type | Max Female Center Tee |
| Series | SharkBite Max |
| Nominal Size | 1 in. x 1 in. x 1 in. |
| Connection Configuration | Push-to-Connect x FNPT x Push-to-Connect |
| Thread Type | FNPT |
| Material | DZR Brass |
| Lead Free | Yes |
| Compatible Pipe Materials | PEX, Copper, CPVC, PE-RT, HDPE SDR-9 |
| Maximum Pressure | 400 psi |
| Maximum Temperature | 200 F |
| Product Length (in) | 4.29 |
| Product Width (in) | 2.50 |
| Product Height (in) | 1.61 |
| Product Weight (lb) | 0.62 |
