SharkBite UR518A Description

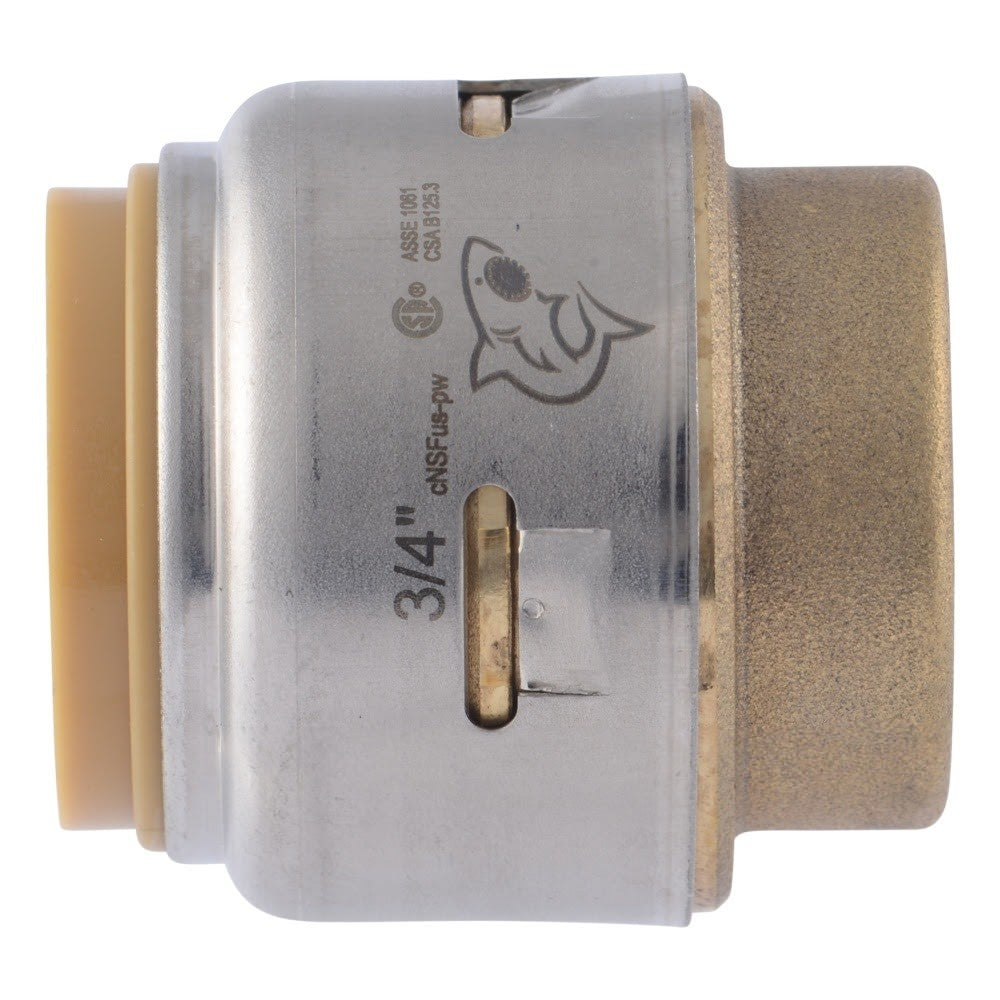

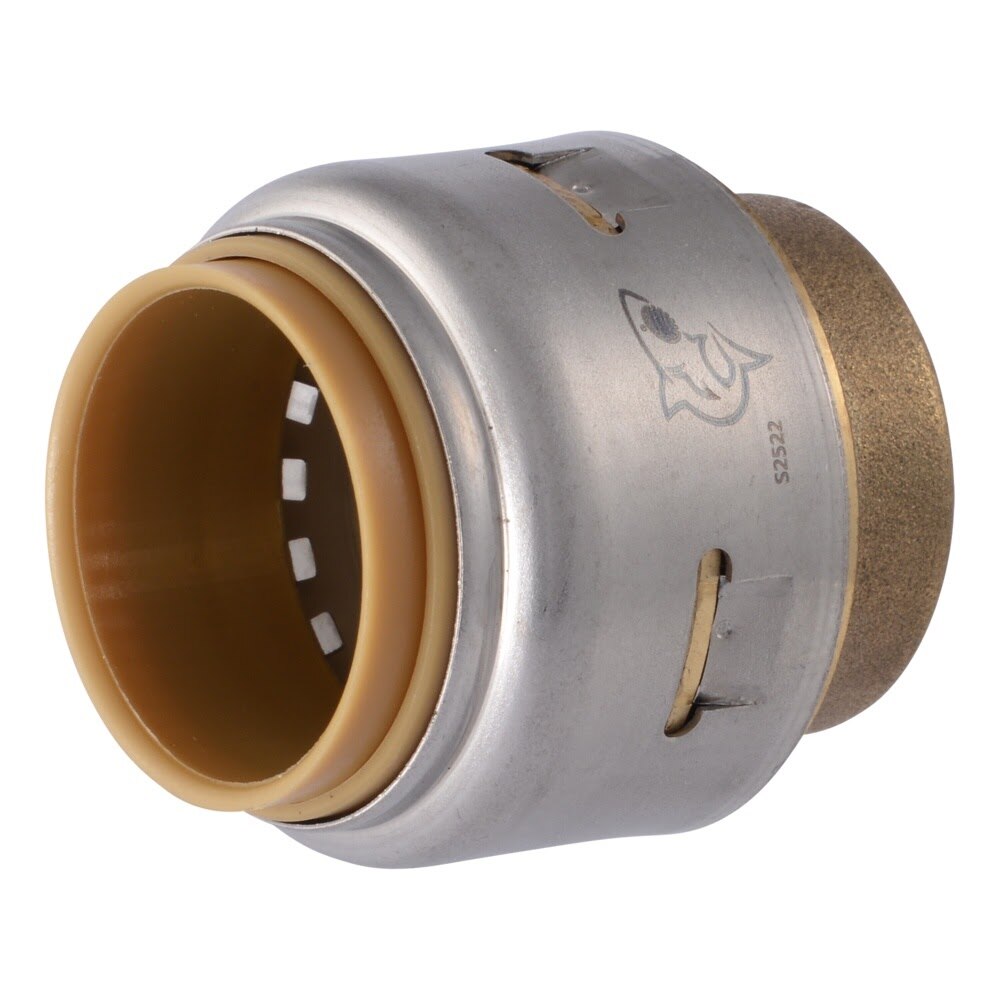

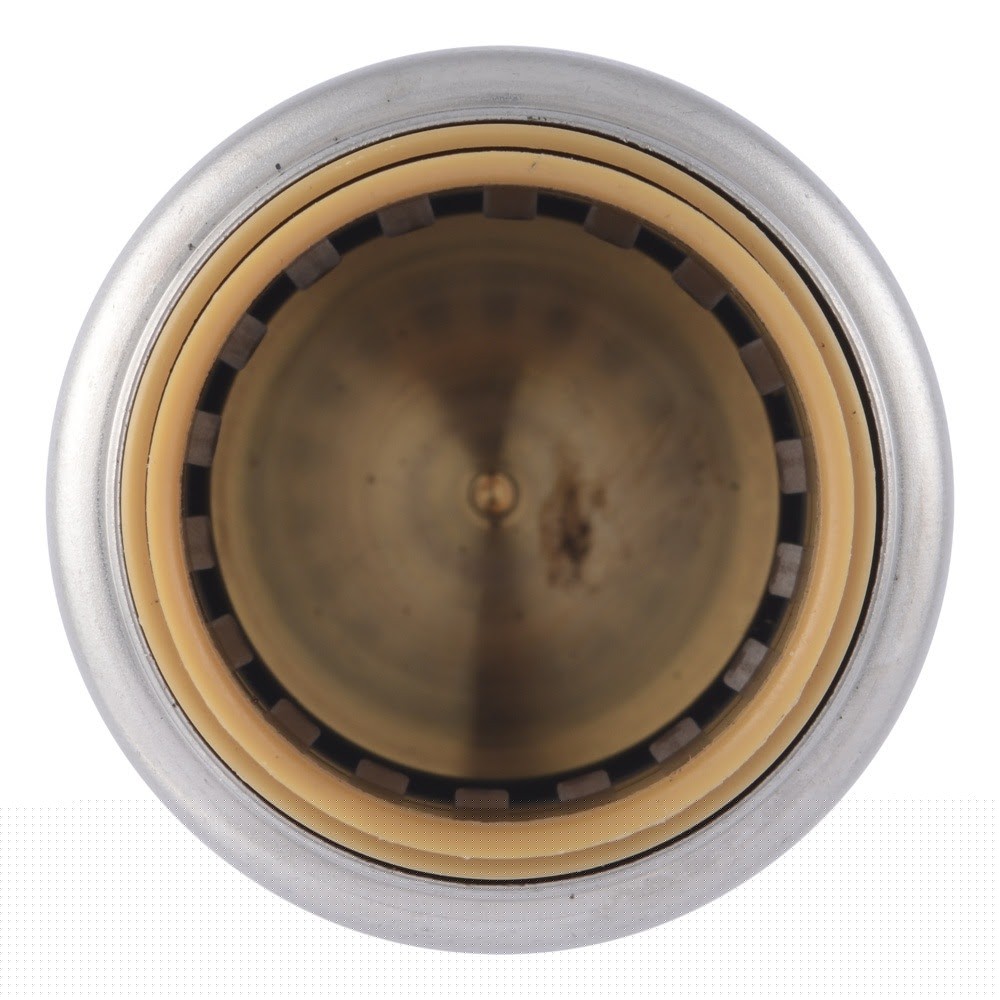

The SharkBite Max UR518A is a 3/4 in. push-to-connect brass end stop fitting designed to cap PEX, copper, CPVC, and PE-RT pipe. It installs without soldering, crimping, or glue, can be used on wet lines, and can be pressure tested immediately.
SharkBite UR518A Includes
- (1) 3/4 in. Max Push-to-Connect Brass End Stop Fitting
SharkBite UR518A Features
- Push-to-connect design for fast installation
- Caps PEX, copper, CPVC, and PE-RT pipe
- No special tools, crimping, soldering, or glue required
- Can be installed on wet lines and pressure tested immediately
- Half the insertion force with double the burst pressure
- Stainless steel retainer adds strength and durability
- High-performance DZR lead-free brass body
- Removable and can be rotated after installation
- No PEX tube liner required
- Approved for behind-the-wall applications with no access panels
- Approved for underground applications when wrapped for burial
- Rated up to 200 F and 400 PSI
SharkBite UR518A Specifications
| Brand | SharkBite |
| Model | UR518A |
| Fitting Type | Cap |
| End Type | End Stop |
| Fitting Size | 3/4 in. |
| Connection Type | Push-to-Connect |
| Material | Brass |
| Application | Potable Water |
| Compatible Pipe Material | PEX, Copper, CPVC, PE-RT |
| Maximum Working Temperature | 200 F |
| Maximum Working Pressure | 400 psi |
| Removable | Yes |
| Product Weight | 0.10 lb |
| Product Depth | 1.4 in. |
