SharkBite UR5248A Description

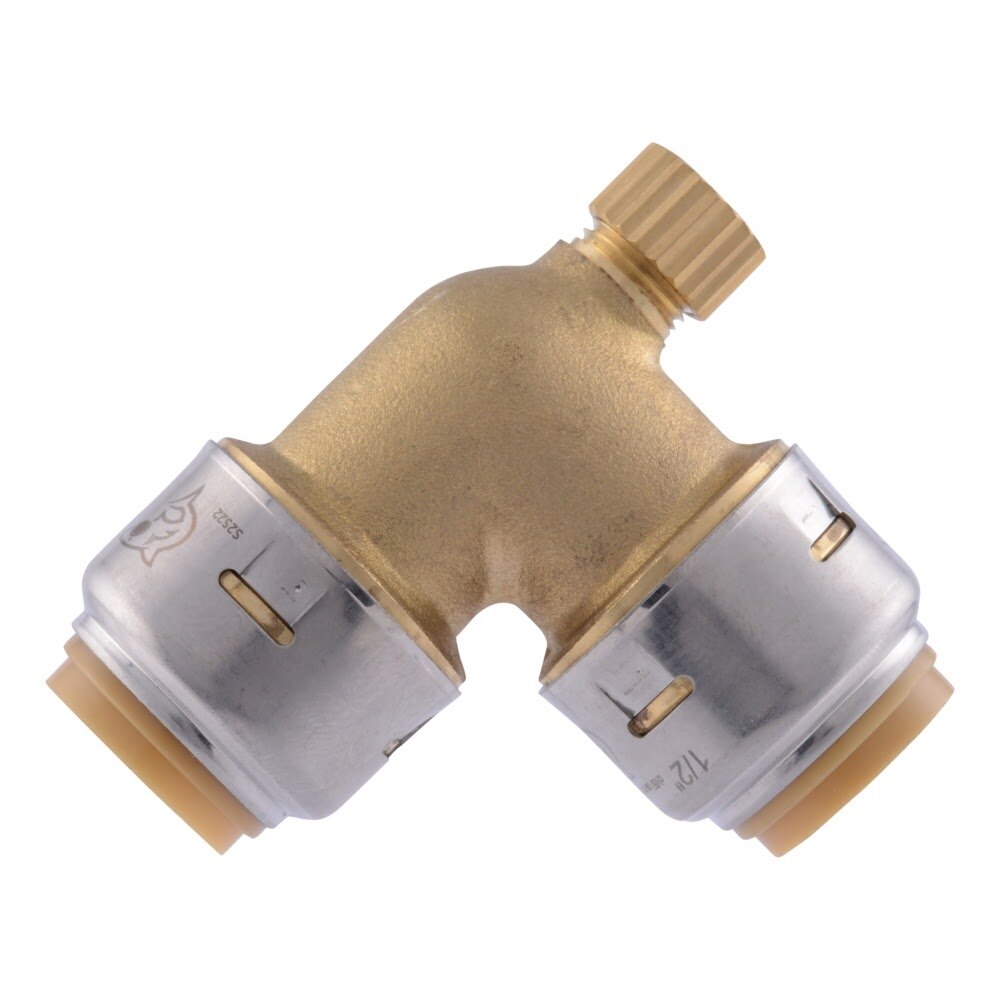

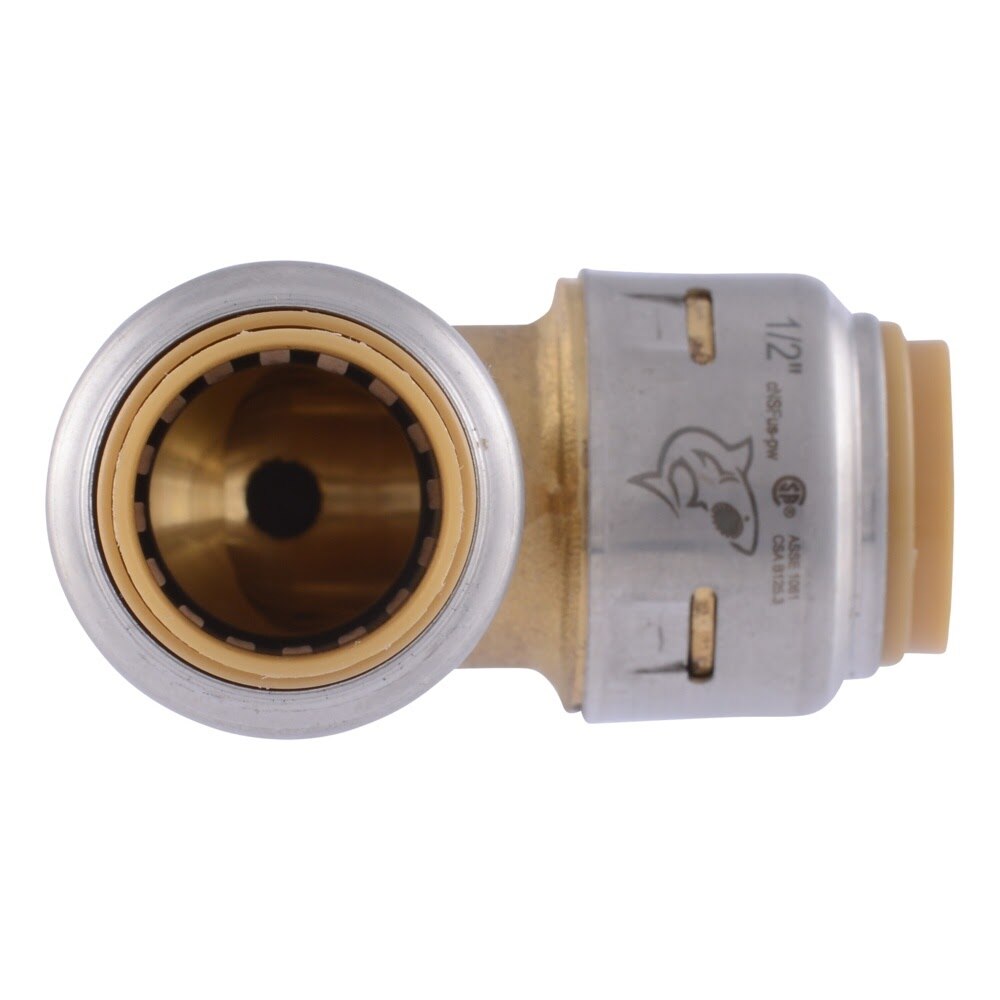

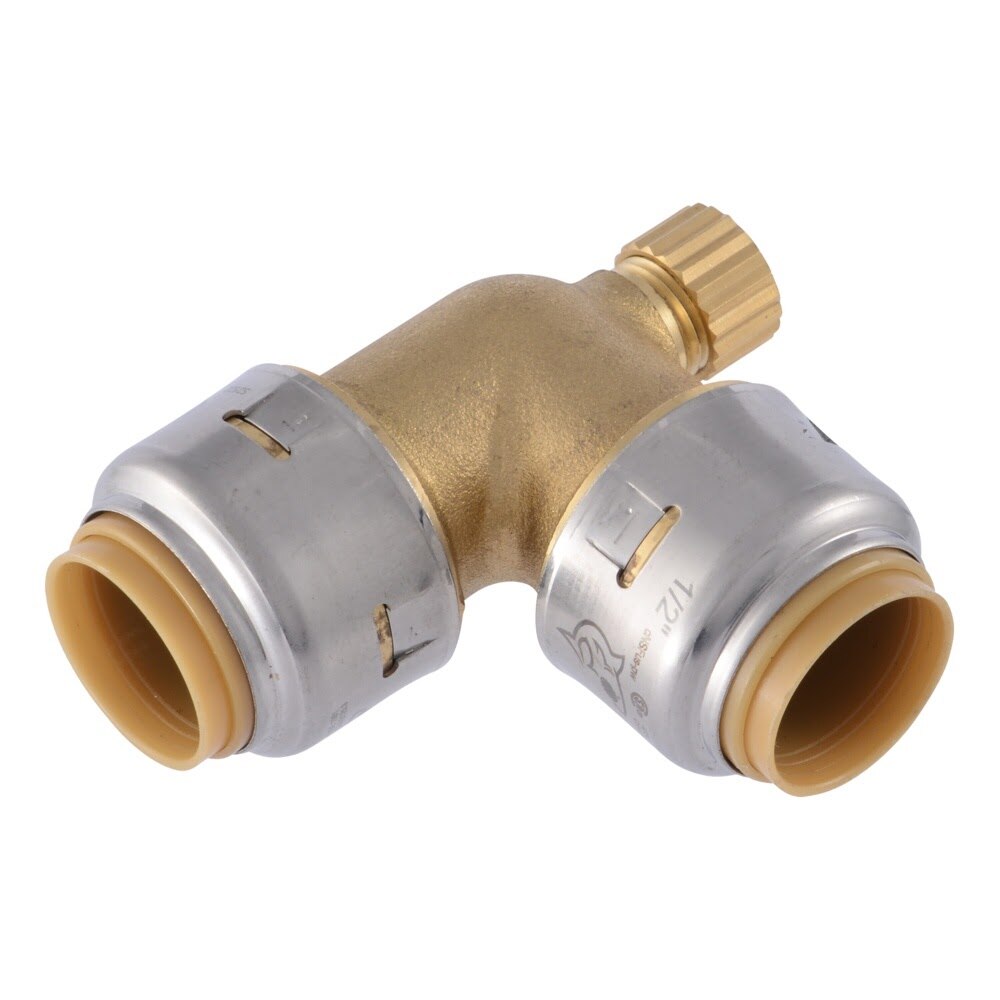

The SharkBite Max 1/2 in. x 1/2 in. 90 Degree elbow fitting with 1/8 in. NPSM drain provides a fast push-to-connect solution for potable water applications using PEX, copper, CPVC, or PE-RT pipe. Its lead-free brass body and stainless steel retainer deliver durable performance, and it can be installed on wet lines and pressure tested immediately.
SharkBite UR5248A Includes
- (1) 1/2 in. x 1/2 in. Max 90 Degree Push-to-Connect Elbow Fitting with 1/8 in. NPSM Drain
SharkBite UR5248A Features
- Push-to-connect design for PEX, copper, CPVC, and PE-RT pipe
- 90 Degree elbow fitting with 1/8 in. NPSM drain
- Half the insertion force with double the burst pressure
- Can be installed on wet lines and pressure tested immediately
- High-performance DZR lead-free brass body
- Stainless steel retainer adds strength and durability
- No special tools, crimping, soldering, or glue required
- Removable and can be rotated after installation
- No PEX tube liner required
- Approved for behind-the-wall applications with no access panels
- Approved for underground applications when wrapped for burial
- Rated to 200 F and 400 PSI
- Compliant with applicable U.S. and Canadian plumbing codes
- 25-year warranty when properly installed on PEX, copper, CPVC, and PE-RT
- 5-year warranty when properly installed with HDPE SDR-9
SharkBite UR5248A Specifications
| Product Line | Max |
| Application | Potable Water |
| Fitting Type | Elbow |
| Bend Degree | 90 Degree |
| Fitting Size | 1/2 in. x 1/2 in. |
| Drain Connection | 1/8 in. NPSM |
| Connection Type | Push Fit |
| Connection 1 | PTC |
| Connection 2 | PTC |
| Material | Brass |
| Body Material | DZR lead-free brass |
| Retainer Material | Stainless steel |
| Compatible Pipe Material | PEX, copper, CPVC, PE-RT |
| Features | Removable |
| Maximum Working Temperature | 200 F |
| Maximum Working Pressure | 400 PSI |
| Product Weight | 0.161 lb |
| Warranty | 25-year warranty on PEX, copper, CPVC and PE-RT; 5-year warranty with HDPE SDR-9 |
