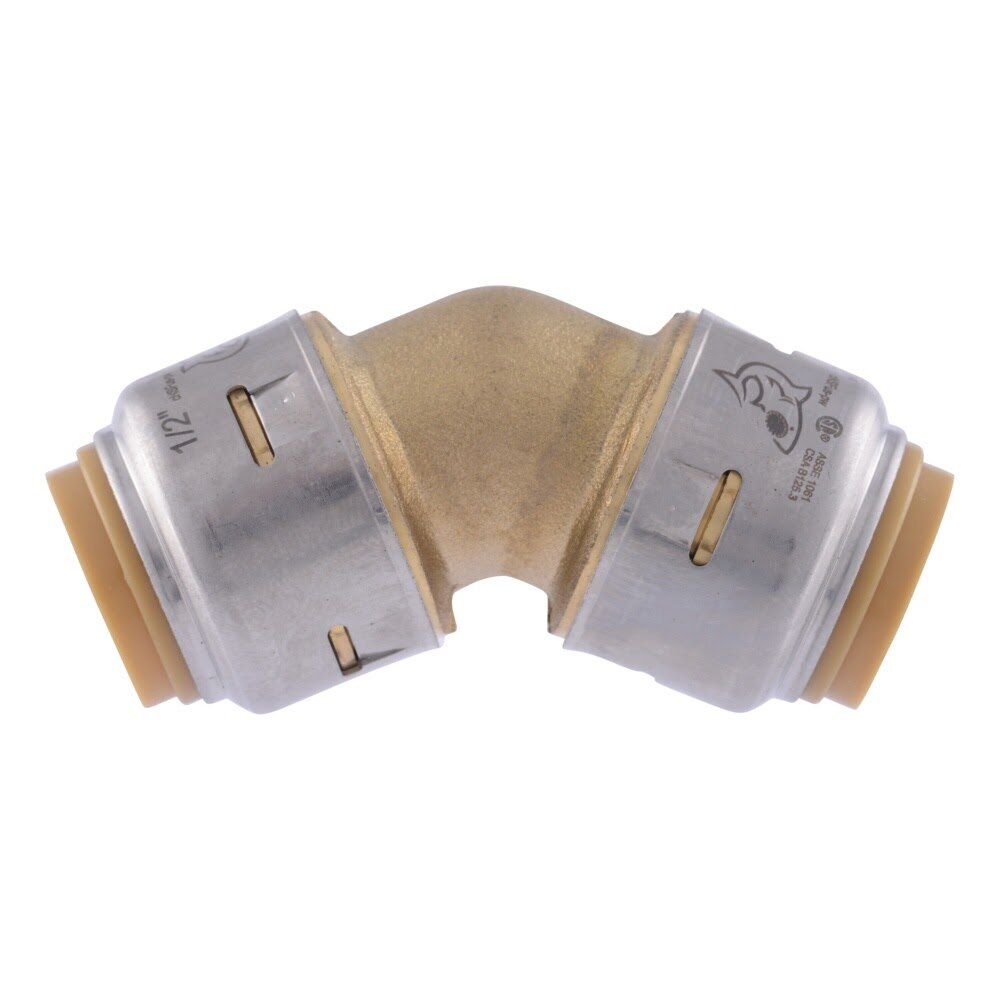

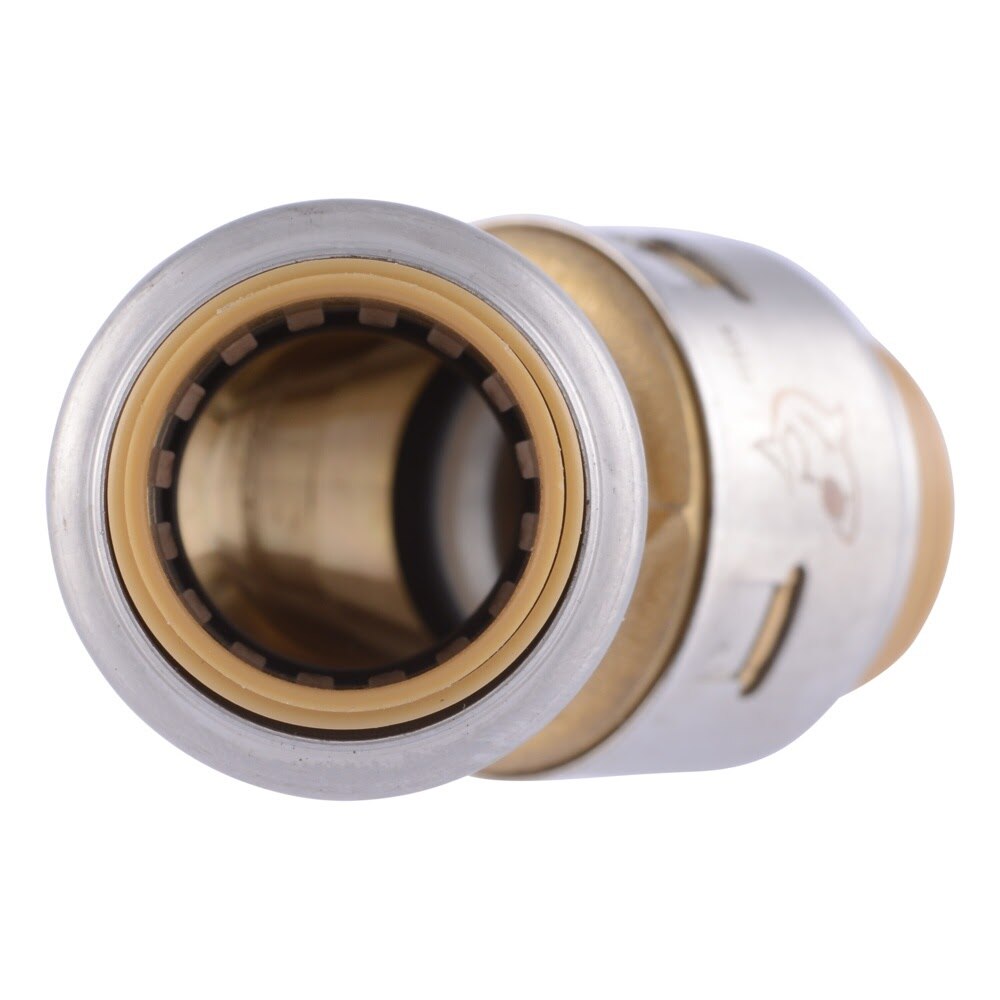

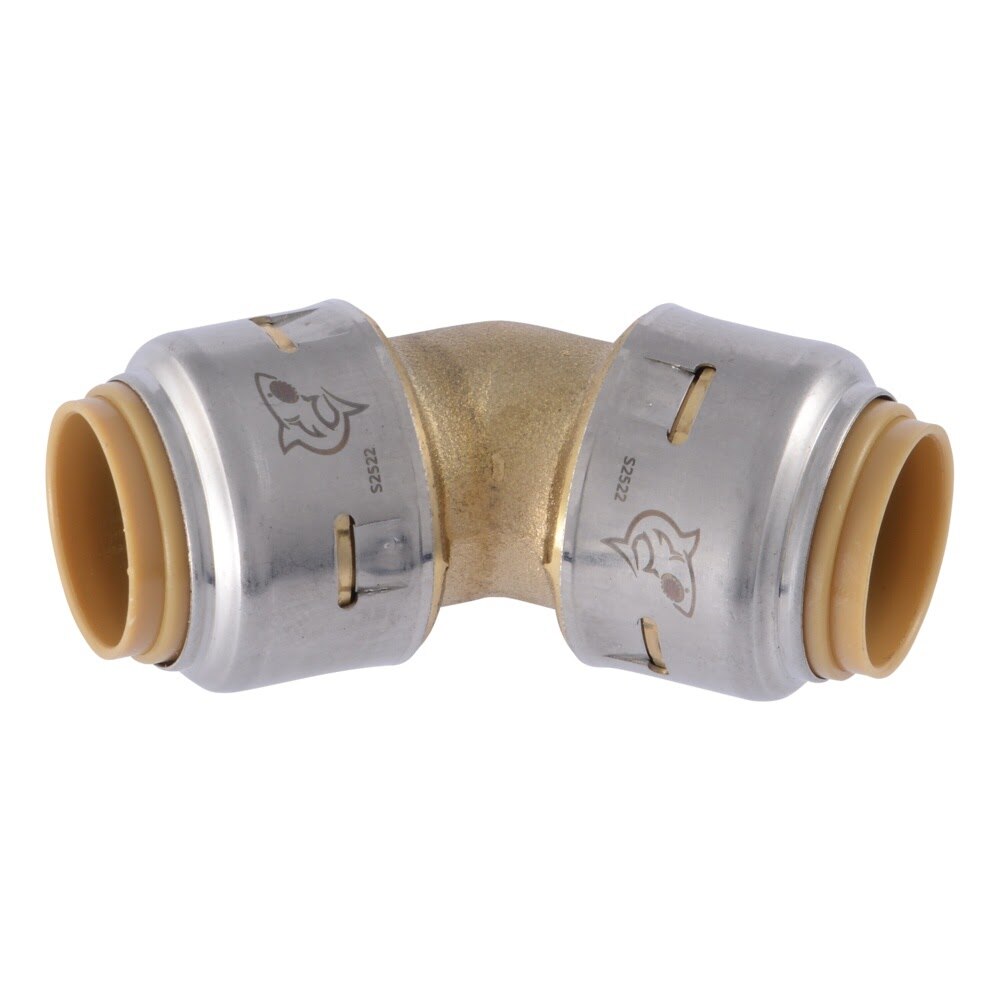

SharkBite UR648A Description
The SharkBite Max 1/2 in. x 1/2 in. push-to-connect brass 45 Degree elbow fitting offers a fast, reliable way to join PEX, copper, CPVC, and PE-RT pipe in potable water systems. Its lead-free DZR brass body and stainless steel retainer provide durability, while the removable design allows rotation after installation and immediate pressure testing, even on wet lines.
SharkBite UR648A Includes
- (1) SharkBite Max 1/2 in. x 1/2 in. 45 Degree Elbow Fitting
SharkBite UR648A Features
- Push-to-connect installation for fast connections
- Compatible with PEX, copper, CPVC, and PE-RT pipe
- Lead-free DZR brass body for durability
- Stainless steel retainer adds strength
- No special tools, crimping, soldering, or glue required
- Can be installed on wet lines and pressure tested immediately
- Removable and can be rotated after installation
- No PEX tube liner required
- Approved for behind-the-wall applications with no access panels
- Approved for underground applications when burial wrap is used
- Rated to 200 F and 400 psi
- Complies with applicable U.S. and Canadian plumbing codes
- 25-year warranty when properly installed on PEX, copper, CPVC, and PE-RT
SharkBite UR648A Specifications
| Product Line | Max |
| Fitting Type | 45 Degree Elbow |
| Fitting Size | 1/2 in. x 1/2 in. |
| Material | Brass |
| Connection Type | Push-to-Connect |
| Connection 1 | PTC |
| Connection 2 | PTC |
| Compatible Pipe Material | PEX, Copper, CPVC, PE-RT |
| Application | Potable Water |
| Maximum Working Temperature | 200 F |
| Maximum Working Pressure | 400 psi |
| Removable | Yes |
| Rotates After Installation | Yes |
| Behind-the-Wall Approved | Yes |
| Underground Approved | Yes, burial wrap required |
| Pack Size | 1 |
| Product Weight | 0.112 lb |
| Warranty | 25-year warranty when properly installed on PEX, copper, CPVC and PE-RT |
