SharkBite UR656A Description

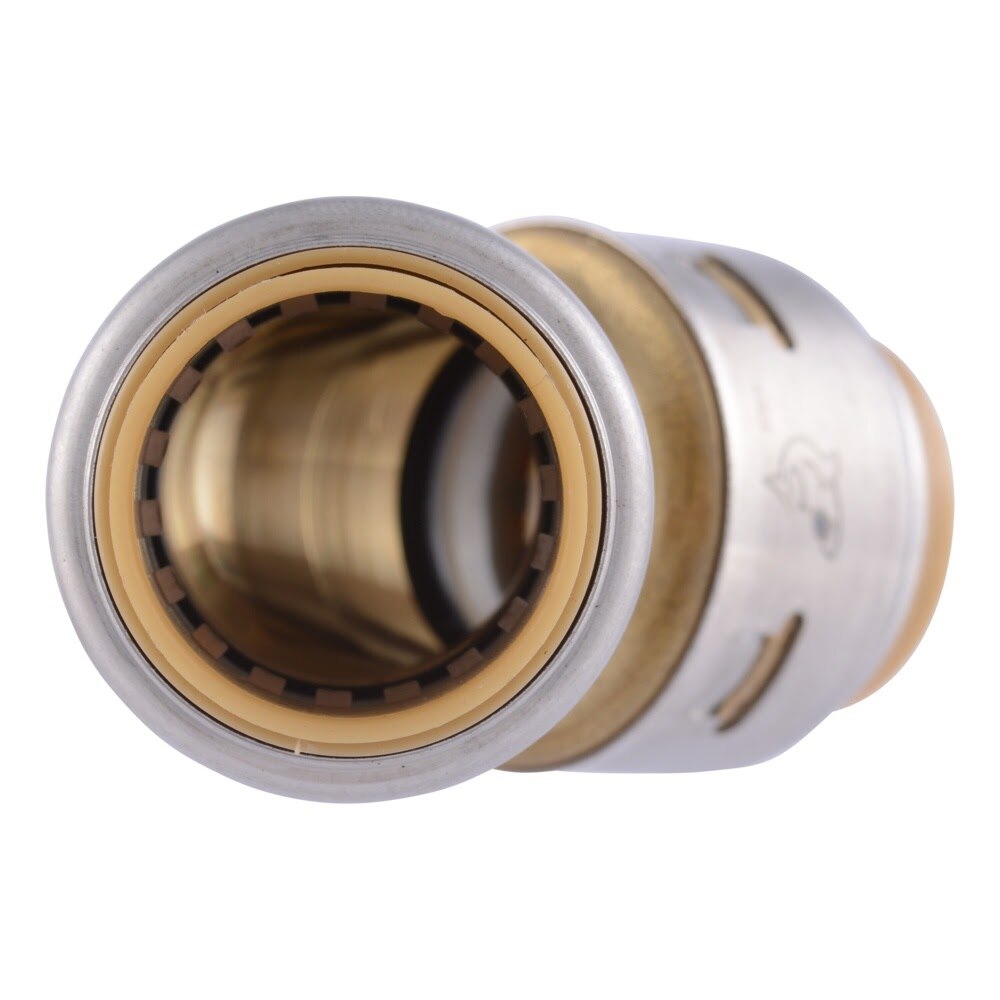

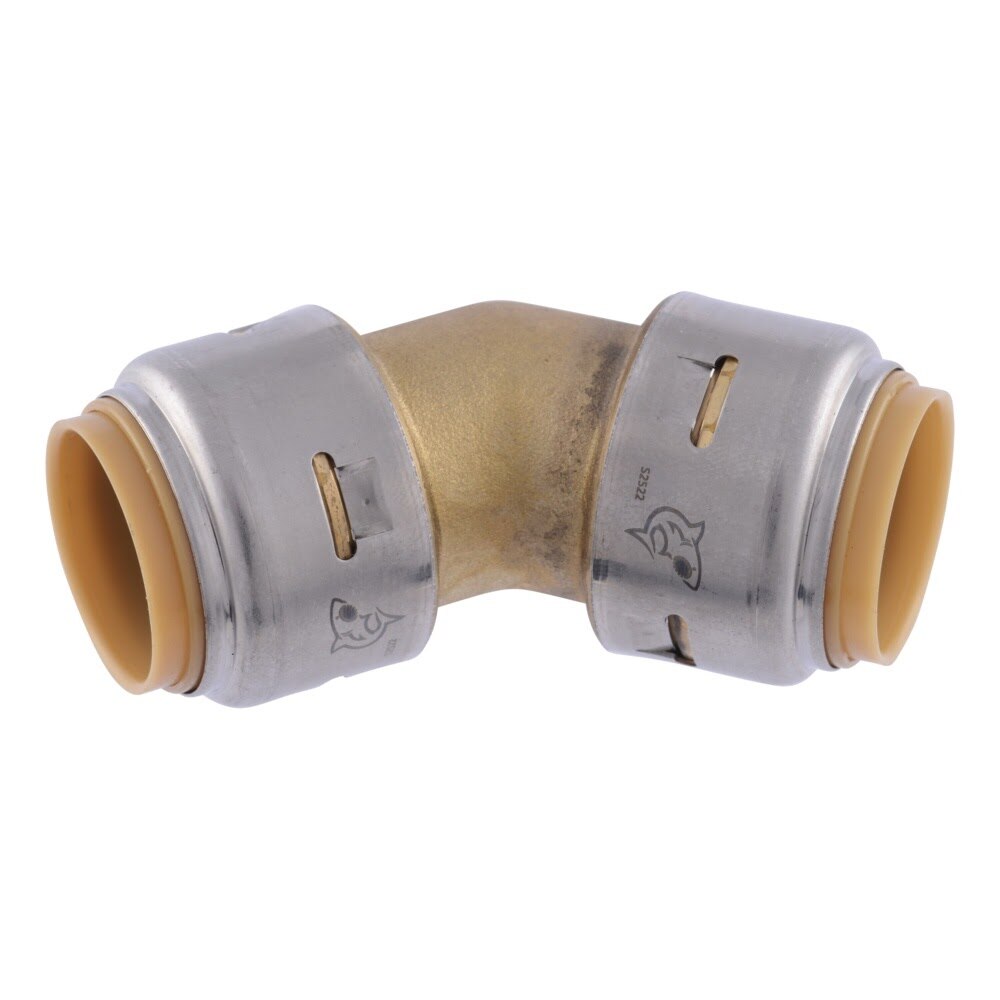

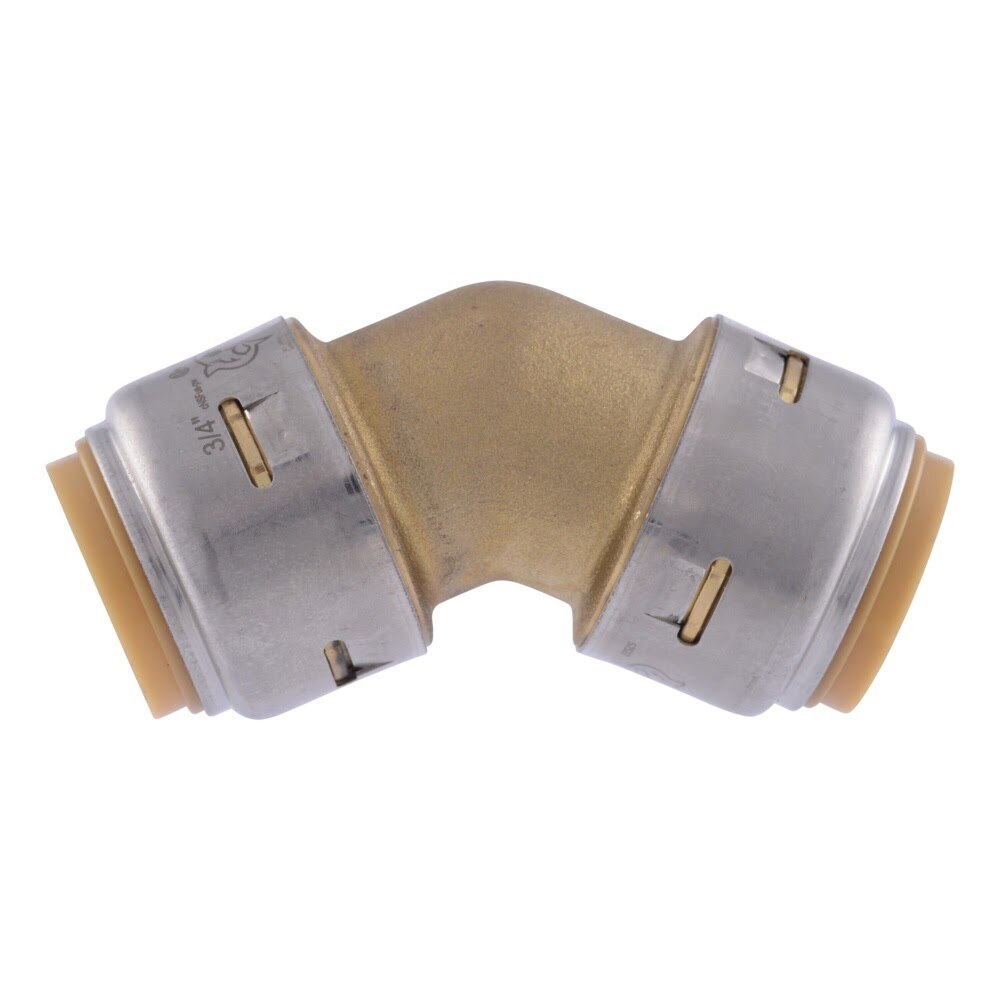

The SharkBite Max 3/4 in. x 3/4 in. 45 Degree elbow fitting offers a fast push-to-connect solution for joining pipe at a 45 Degree angle. Built with a lead-free DZR brass body and stainless steel retainer, it connects to PEX, copper, CPVC, and PE-RT pipe without soldering, crimping, or glue and can be pressure tested immediately, even on wet lines.
SharkBite UR656A Includes
- (1) SharkBite Max 45 Degree Elbow Fitting
SharkBite UR656A Features
- Push-to-connect design for fast installation
- Compatible with PEX, copper, CPVC, and PE-RT pipe
- Half the insertion force with double the burst pressure
- Can be installed on wet lines and pressure tested immediately
- Stainless steel retainer adds strength and durability
- Lead-free DZR brass body
- No special tools, crimping, soldering, or glue required
- Can be rotated after installation
- No PEX tube liner required
- Approved for behind-the-wall applications with no access panels
- Approved for underground applications with wrap required for burial
- Rated to 200 DegreeF and 400 PSI
- Removable fitting design
- 25-year warranty when properly installed on PEX, copper, CPVC, and PE-RT
SharkBite UR656A Specifications
| Application | Potable Water |
| Bend Degree | 45 Degree |
| Material | Brass |
| Compatible Pipe Material | PEX, copper, CPVC, and PE-RT |
| Connection | PTC x PTC |
| Connectivity | Push Fit |
| Features | Removable |
| Fitting Type | Elbow |
| Fitting Size Dimensions | 3/4 in. x 3/4 in. |
| Maximum Working Temperature | 200 F |
| Maximum Working Pressure | 400 psi |
| Pack Size | 1 |
| Product Weight | 0.194 lb |
| Warranty | 25-year warranty when properly installed on PEX, copper, CPVC and PE-RT |
Toolup Part # :
884682
