SharkBite URDS123814 Description

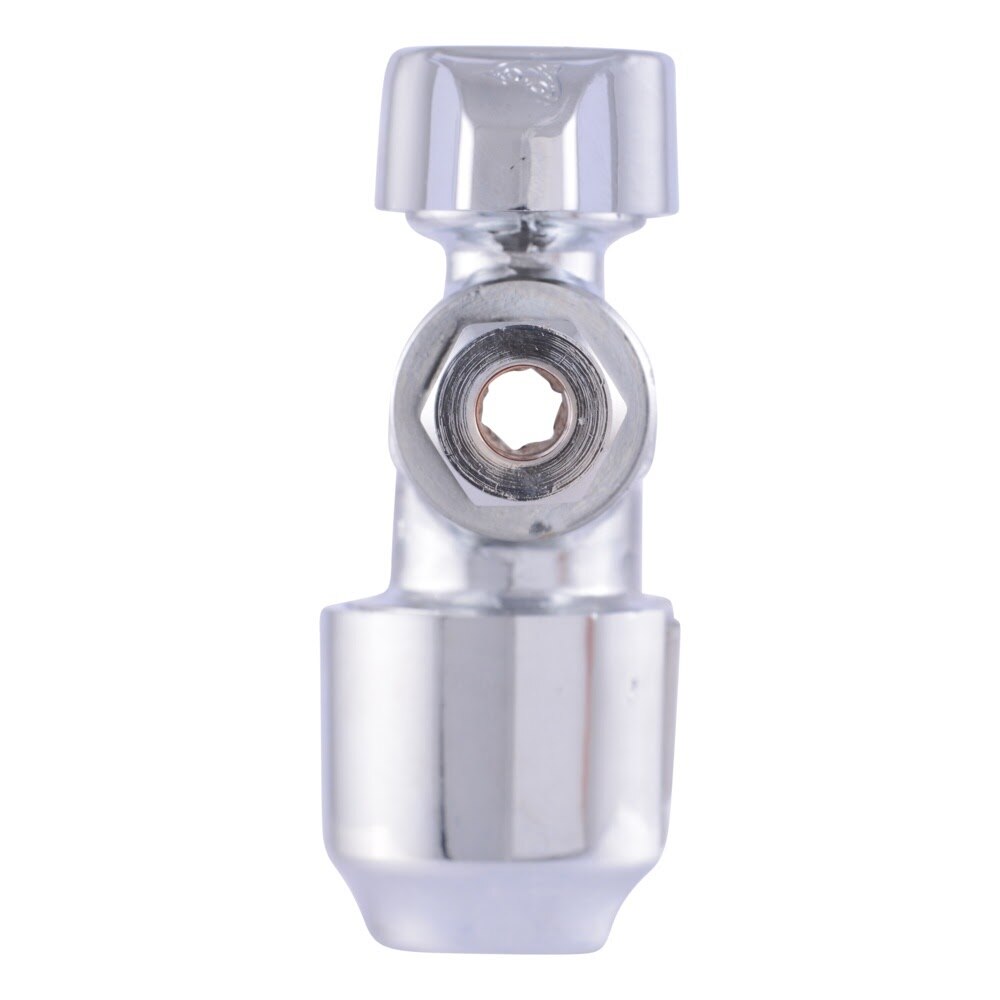

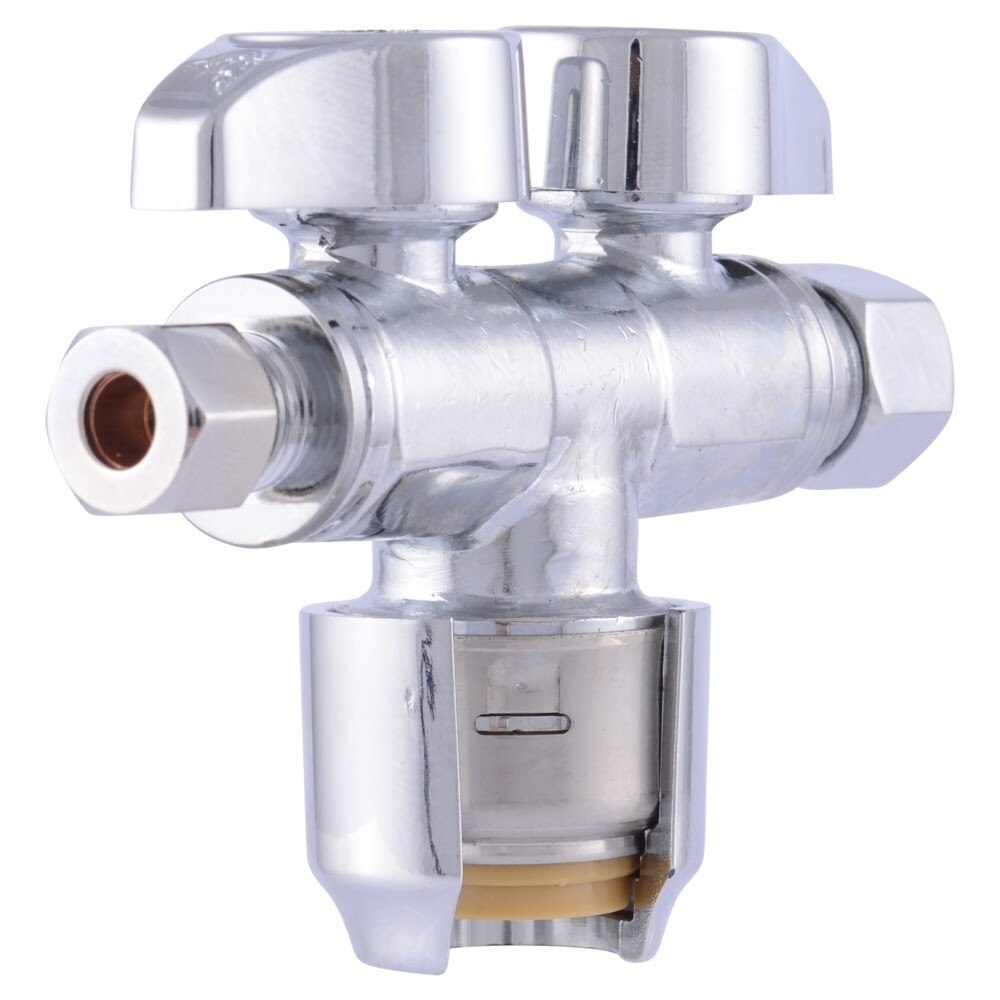

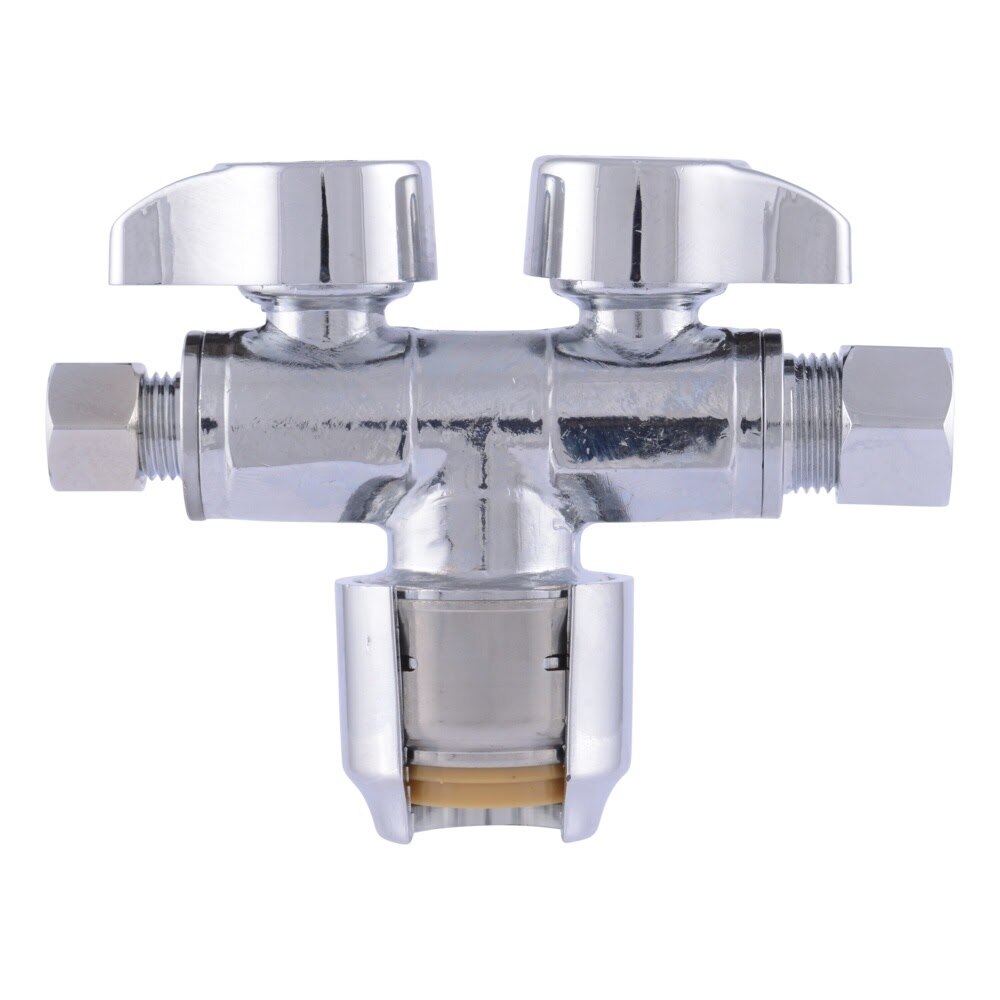

The SharkBite Max dual stop valve provides a fast push-to-connect inlet with dual compression outlets for controlling water flow to fixtures such as faucets, toilets, ice makers, and refrigerators. Built with a lead-free brass body and stainless steel retainer, it installs without special tools and can be pressure tested immediately.
SharkBite URDS123814 Includes
- (1) Dual stop valve
SharkBite URDS123814 Features
- Push-to-connect 1/2 in. inlet with 3/8 in. OD and 1/4 in. OD compression outlets
- Compatible with PEX, copper, CPVC, PE-RT, and HDPE pipe
- No special tools, crimping, soldering, or glue required
- Can be installed on wet lines and pressure tested immediately
- Lead-free DZR brass body with stainless steel retainer for durability
- Removable and can be rotated after installation
- Approved for behind-the-wall applications with no access panels
- Approved for underground applications when properly wrapped for burial
- Rated for 125 PSI and 160 DegreeF maximum working temperature
SharkBite URDS123814 Specifications
| Application | Potable Water |
| Color/Finish | Silver |
| Material | Brass |
| Compatible Pipe Material | Multi-Purpose |
| Compatible Product | Faucet, Ice Maker, Refrigerator, Toilet |
| Connection | PTC x Comp |
| Valve Configuration | Dual Outlet |
| Features | Removable |
| Indoor/Outdoor | Indoor |
| Maximum Pressure | 125 PSI |
| Maximum Working Temperature | 160 DegreeF |
| Inlet Diameter | 1/2 in. |
| Outlet 1 Diameter | 3/8 in. |
| Outlet 2 Diameter | 1/4 in. |
| Product Length | 3.465 in. |
| Product Width | 4.50 in. |
| Product Height | 6.50 in. |
| Product Weight | 0.45 lb |
| Warranty | 25-year warranty when properly installed on PEX, copper, CPVC and PE-RT |
