SharkBite URSS3068FX18BV Description

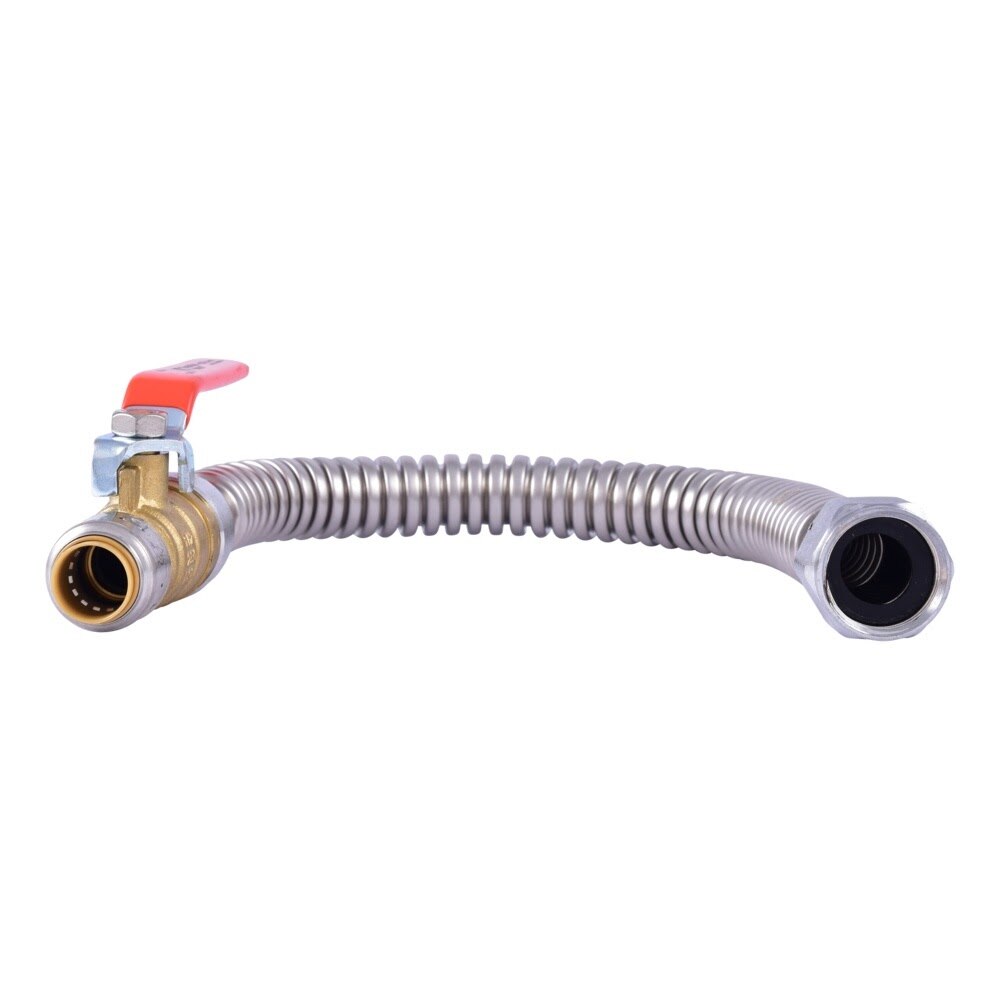

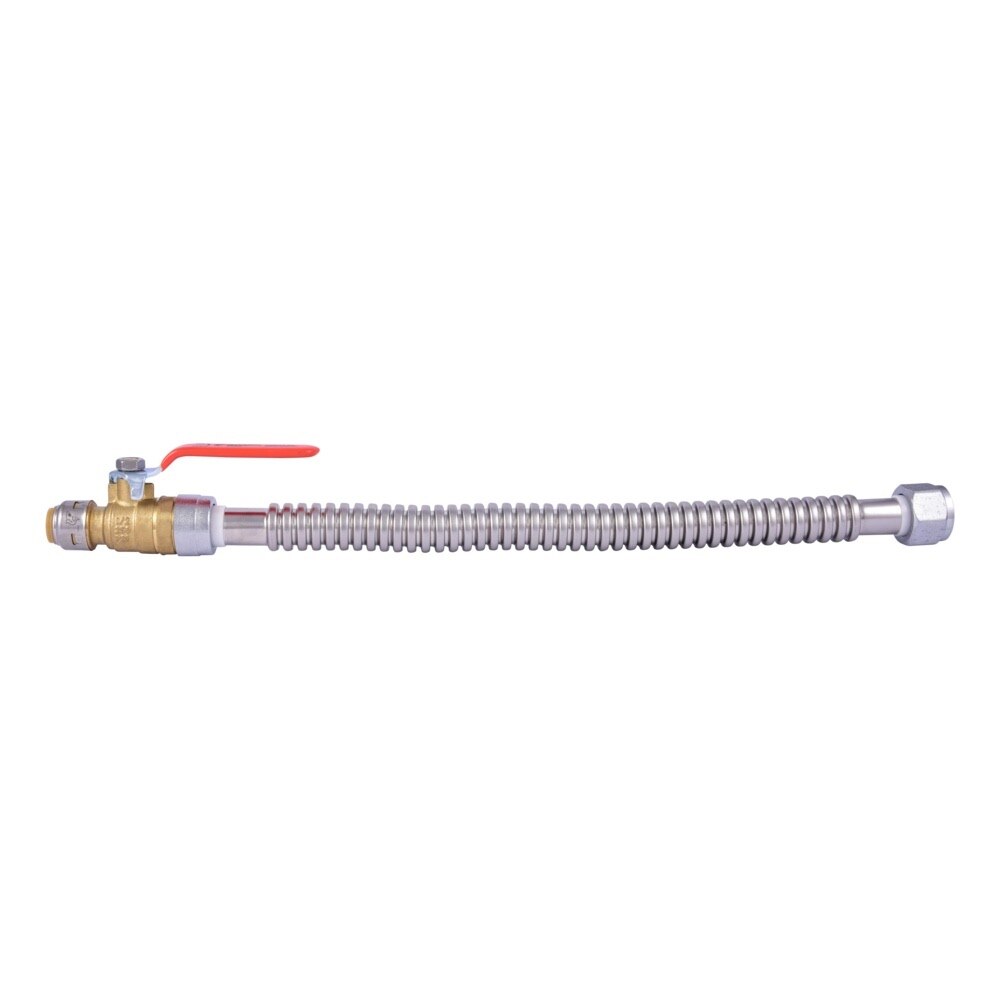

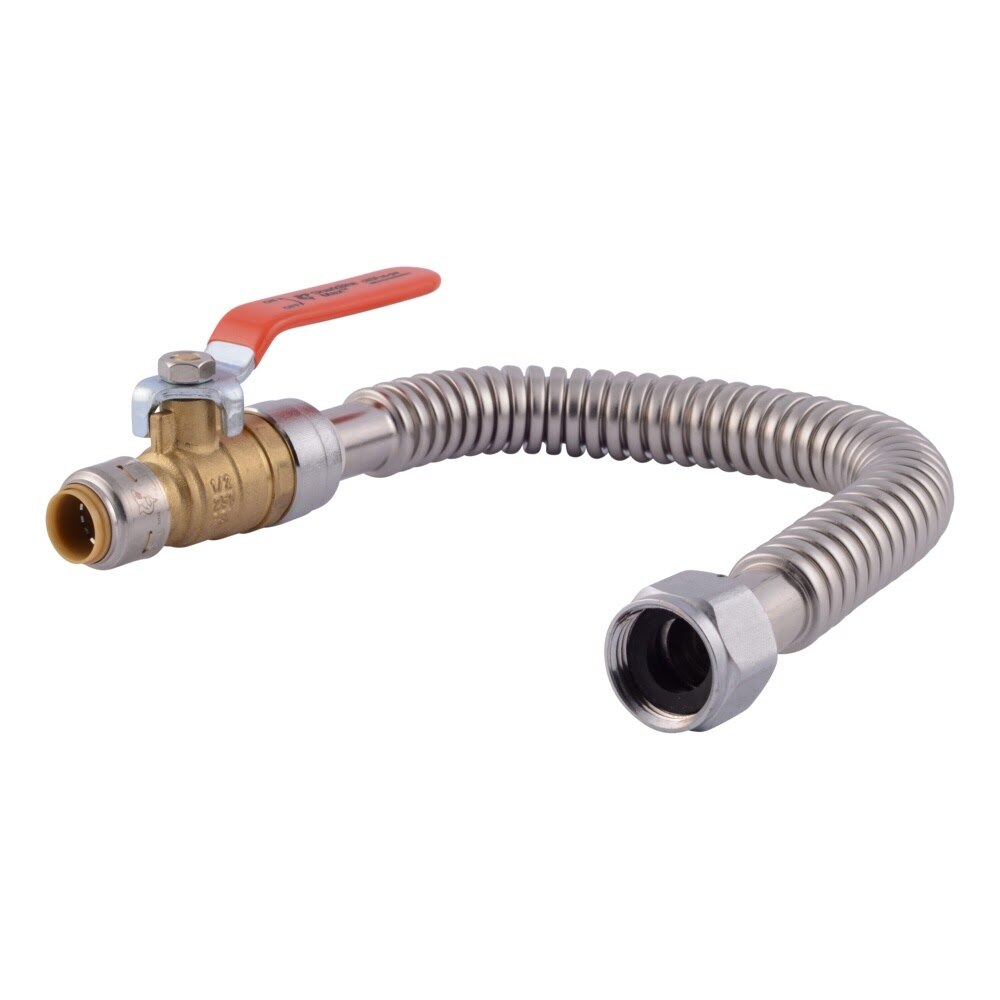

The SharkBite Max URSS3068FX18BV is an 18 in. corrugated stainless steel water heater connector with an integrated ball valve for quick shutoff and easier installation. It features a 1/2 in. push-to-connect end and a 3/4 in. FIP connection, making it a convenient solution for connecting water heaters to hot or cold water lines.
SharkBite URSS3068FX18BV Includes
- (1) 18 in. Water Heater Connector with Ball Valve
SharkBite URSS3068FX18BV Features
- 1/2 in. push-to-connect x 3/4 in. FIP connection
- 18 in. corrugated stainless steel connector for water heater hookups
- Integrated ball valve provides convenient shutoff control
- Compatible with PEX, copper, CPVC, PE-RT, and HDPE pipe
- No special tools required for installation
- Can be installed on wet or dry lines and pressure tested immediately
- Rotatable after installation and removable
- Stainless steel retainer rated to 200 psi
- Approved for electric and gas water heaters with flue vent
- No PEX tube liner required for smoother connection and less insertion force
SharkBite URSS3068FX18BV Specifications
| Brand | SharkBite |
| Model | URSS3068FX18BV |
| Series | SharkBite Max |
| Product Type | Water Heater Connector with Ball Valve |
| Connection 1 Size | 1/2 in. |
| Connection 1 Type | Push-to-Connect |
| Connection 2 Size | 3/4 in. |
| Connection 2 Type | FIP |
| Connector Length | 18 in. |
| Hose Material | Stainless Steel |
| Valve Body Material | Brass |
| Finish Family | Silver Metallic |
| Maximum Pressure | 200 psi |
| Compatible Pipe Materials | PEX, Copper, CPVC, PE-RT, HDPE |
| Water Heater Compatibility | Electric and Gas Water Heaters with Flue Vent |
| Product Height (in.) | 2.24 in |
| Product Length (in.) | 18.11 in |
| Product Width (in.) | 1.31 in |
| Shipping Weight | 0.82 lb |
| Pack Size | 1 |
