SharkBite URSS3088FX24 Description

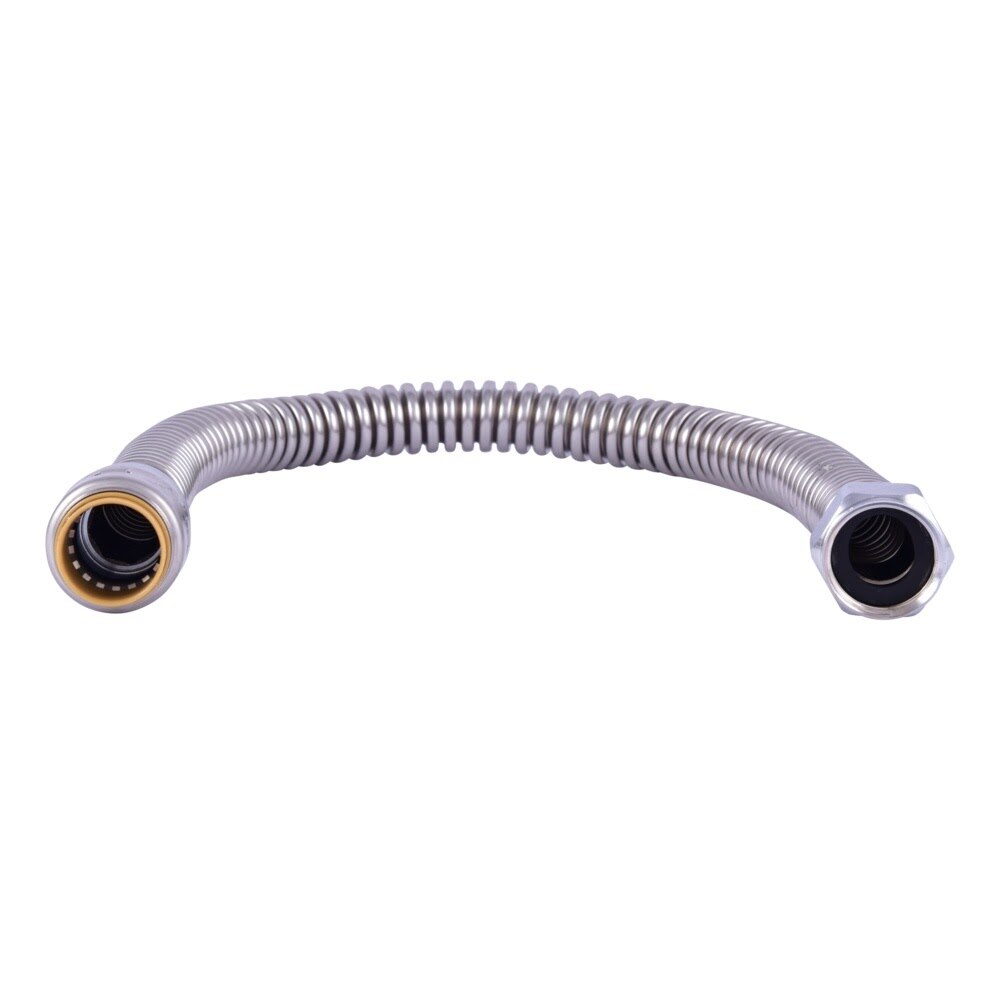

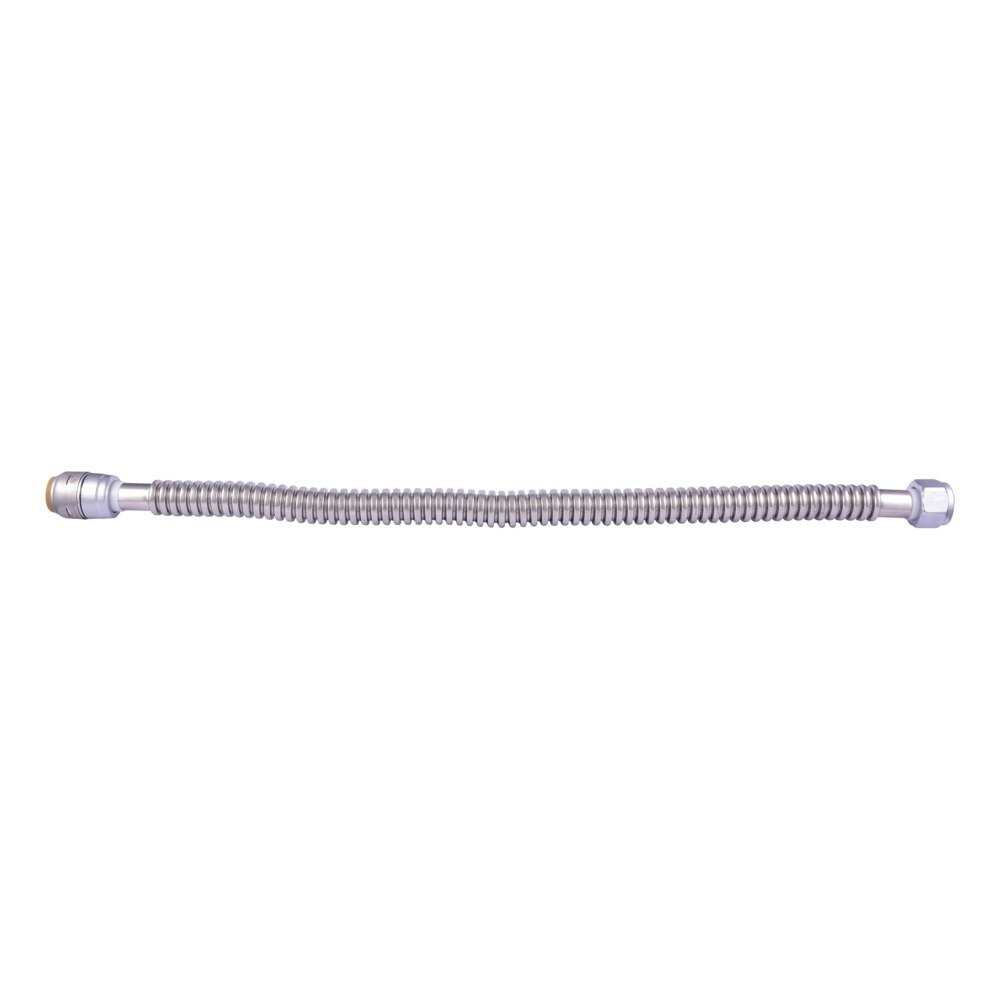

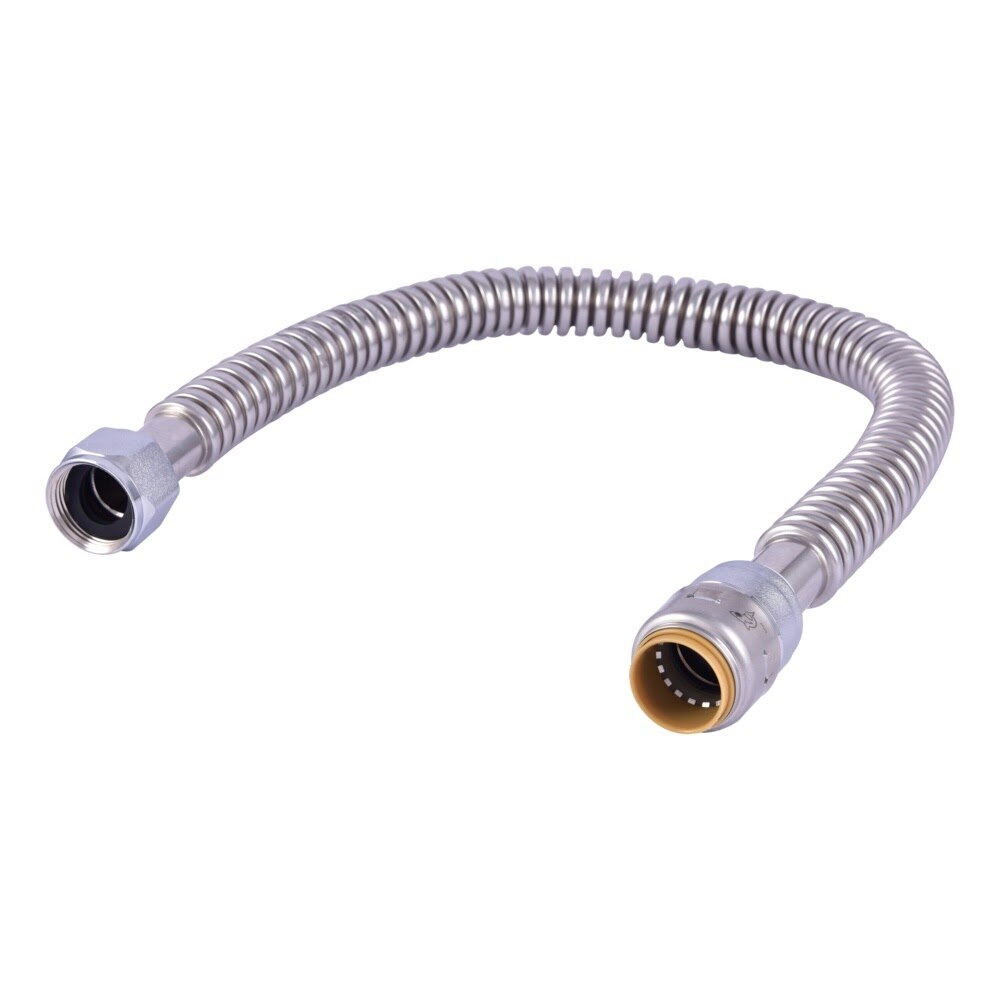

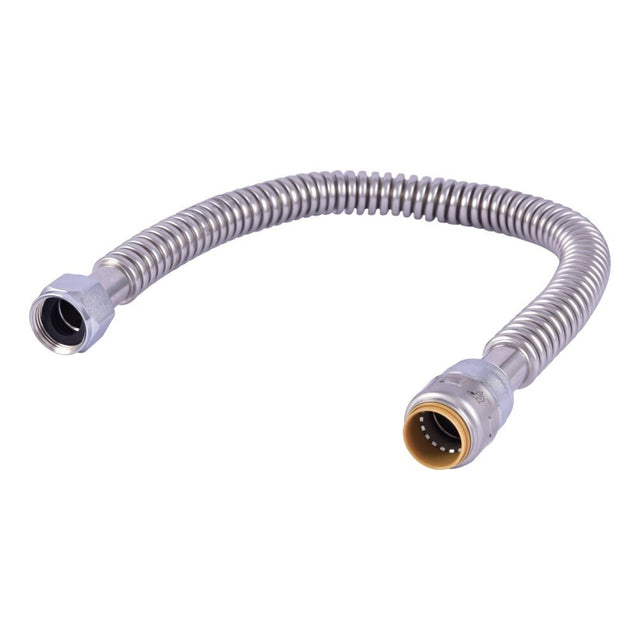

The SharkBite Max stainless steel corrugated water heater connector provides a fast, flexible way to connect 3/4 in. push-fit and 3/4 in. female iron pipe connections on water heaters. Designed for tight spaces and misaligned piping, it is compatible with PEX, copper, CPVC, PE-RT, and HDPE SDR-9 pipe and is approved for use on electric or gas water heaters with a flue vent.
SharkBite URSS3088FX24 Includes
- (1) Stainless Steel Corrugated Water Heater Connector
SharkBite URSS3088FX24 Features
- Flexible corrugated stainless steel design helps connect water heaters in tight spaces
- Push-fit x FIP connection supports faster installation
- Compatible with PEX, copper, CPVC, PE-RT, and HDPE SDR-9 pipe
- Can be installed on wet lines and pressure tested immediately
- Stainless steel retainer adds strength and durability
- High-performance DZR lead-free brass fitting body
- No special tools, crimping, soldering, or glue required
- Can be rotated after installation
- No tube liner required for PEX
- Rated to 180 degrees F and 200 psi
- Can be removed with a disconnect clip, disconnect tongs, or pro disconnect tool
SharkBite URSS3088FX24 Specifications
| Size | 3/4 in. x 3/4 in. |
| Length | 24 in. |
| Connection Type | Push-Fit x FIP |
| Thread Type | Female |
| Type | Corrugated |
| Material | Stainless Steel |
| Fitting System Compatibility | Push Fit |
| Tubing Compatibility | CPVC, PEX, Copper, PE-RT, HDPE SDR-9 |
| Insertion Depth | 1-1/8 in. |
| Temperature Rating | 180 degrees F |
| Pressure Rating | 200 psi |
| Lead Free | Yes |
| Application | Plumbing |
| Standards Met | NSF |
| Warranty | 25 Year |
