SharkBite URSS3134FX18 Description

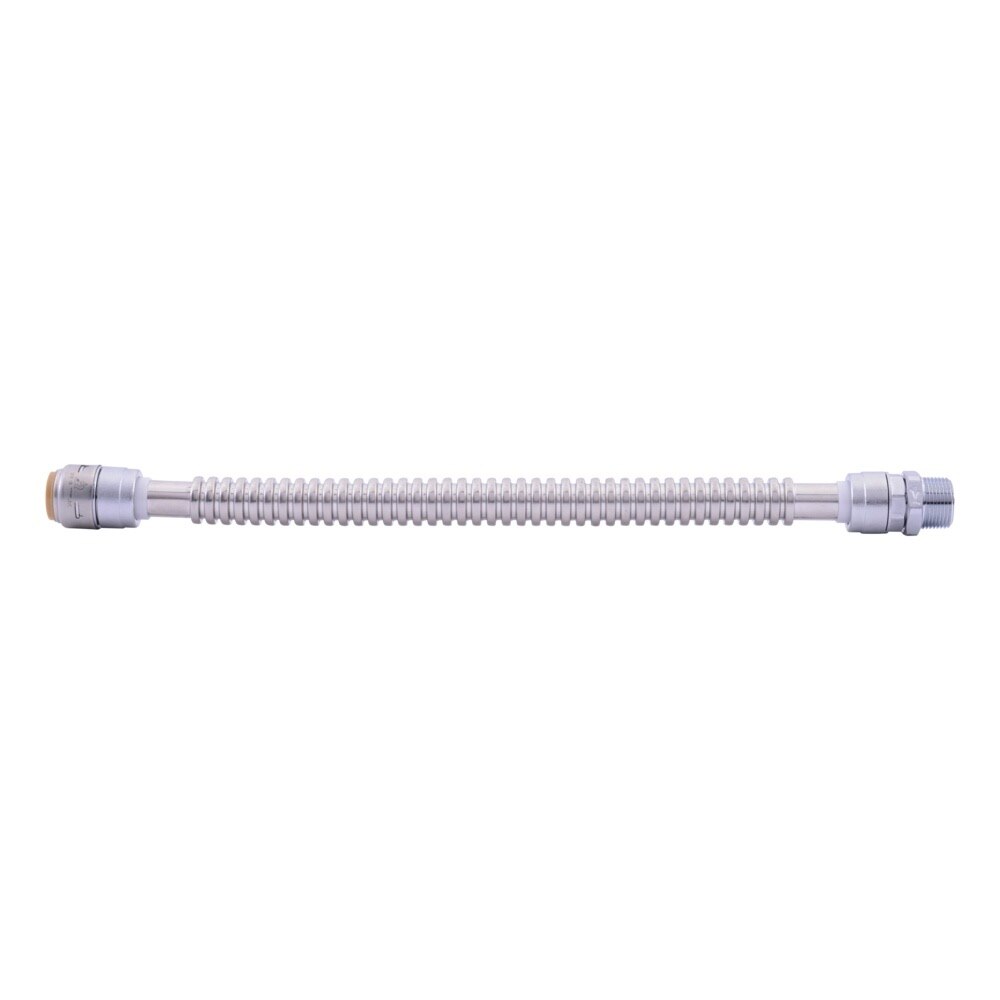

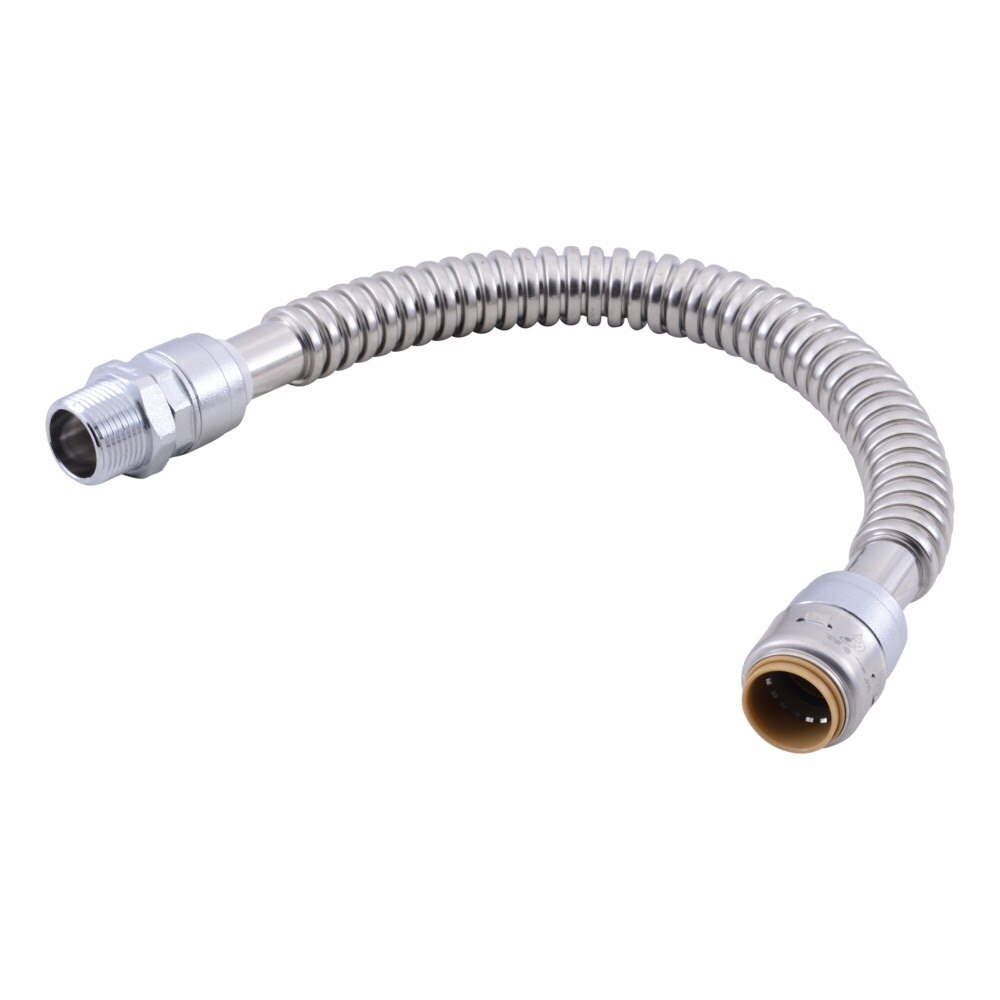

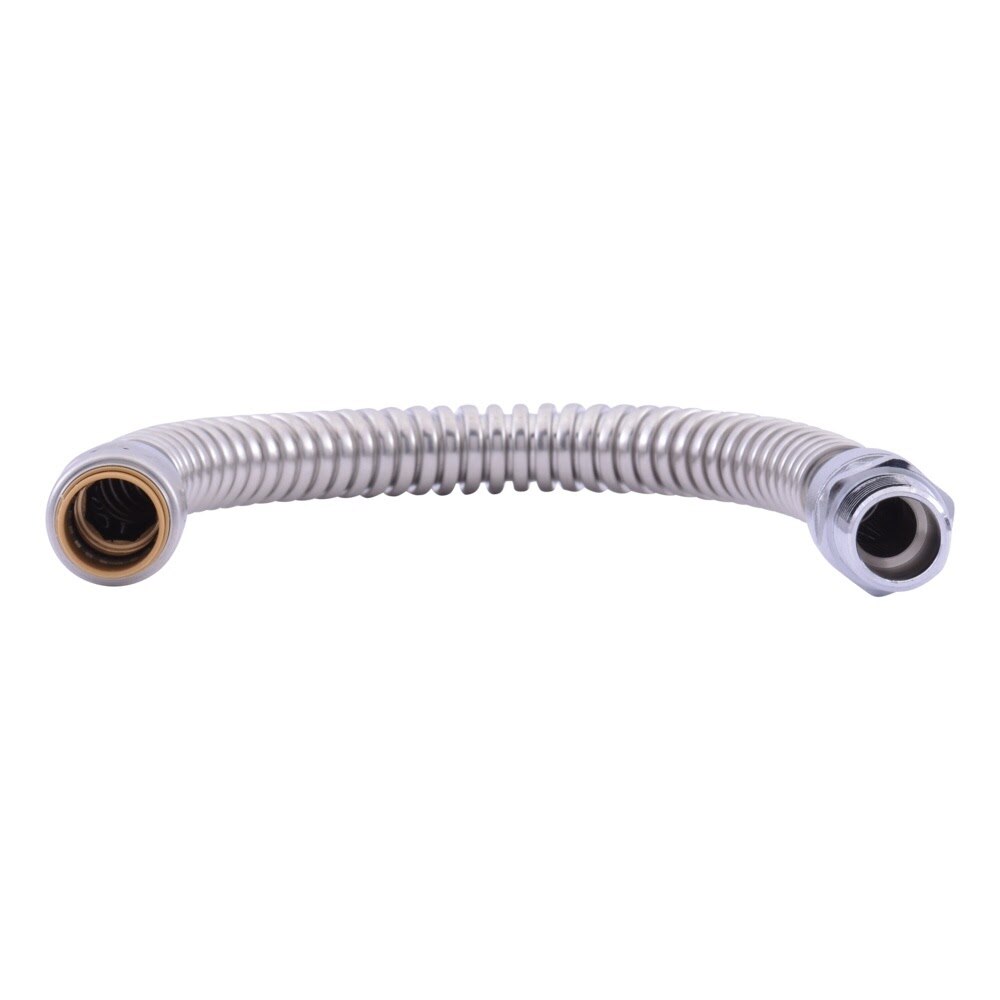

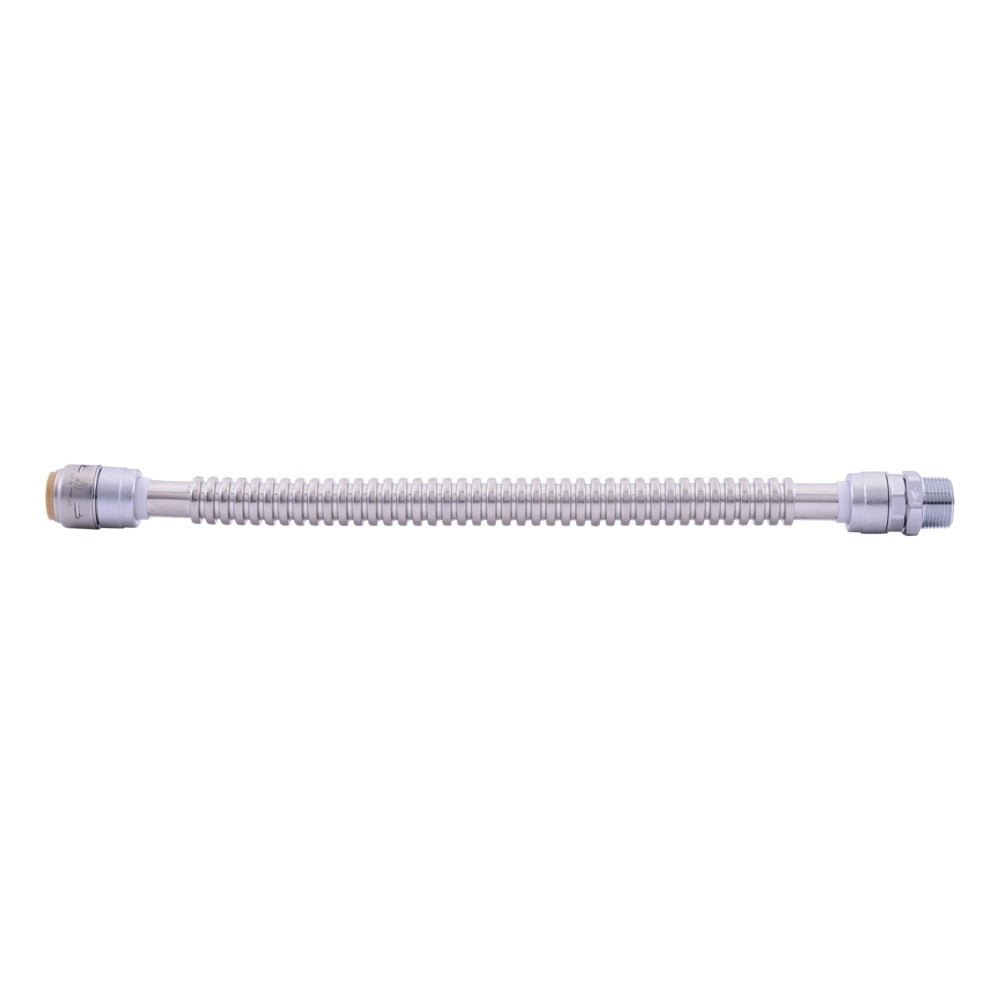

This SharkBite Max 18 in. water heater connector features a 3/4 in. push-to-connect end and a 3/4 in. MIP end for fast, flexible installation. The stainless steel corrugated design helps simplify water heater connections in tight spaces and allows immediate pressure testing without crimping, soldering, or glue.
SharkBite URSS3134FX18 Includes
- (1) 3/4 in. x 3/4 in. MIP 18 in. Stainless Steel Corrugated Water Heater Connector
SharkBite URSS3134FX18 Features
- 18 in. corrugated connector helps connect water heaters in tight spaces
- 3/4 in. push-to-connect x 3/4 in. MIP connection
- Compatible with PEX, copper, CPVC, PE-RT, and HDPE SDR-9 pipe
- Can be installed on wet lines and pressure tested immediately
- Stainless steel retainer adds strength and durability
- High-performance DZR lead-free brass fitting body
- No special tools, crimping, soldering, or glue required
- Can be rotated after installation
- No tube liner required for PEX
- Rated to 180 F and 200 psi
- Can be removed using a disconnect clip, disconnect tongs, or pro disconnect tool
SharkBite URSS3134FX18 Specifications
| Brand | SharkBite |
| Manufacturer Part Number | URSS3134FX18 |
| Product Line | Max |
| Application | Water heater connection |
| Connection Size | 3/4 in. x 3/4 in. |
| Connection Type | Push-to-connect x MIP |
| Connector Length | 18 in. |
| Material | Stainless steel |
| Fitting Body Material | DZR lead-free brass |
| Compatible Pipe Material | PEX, copper, CPVC, PE-RT, HDPE SDR-9 |
| Maximum Pressure | 200 psi |
| Maximum Temperature | 180 F |
| Product Length (in) | 17.99 |
| Product Width (in) | 1.34 |
| Product Height (in) | 1.34 |
| Product Weight (lb) | 0.67 |
