At a Glance
Pipe Size
1-1/4 in
Fitting Type
90-Degree Elbow
Connection Type
Push-Fit
Material
Brass
Sold As
Individual
Description
Description

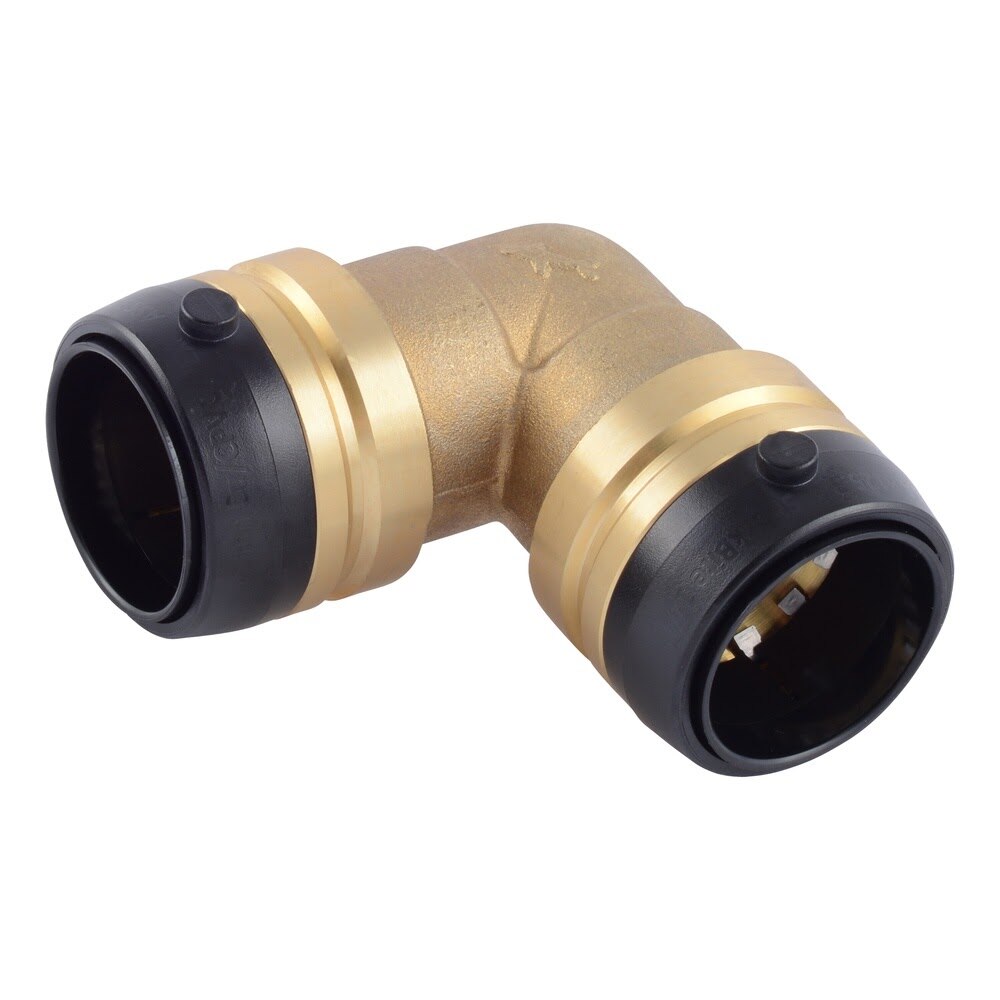

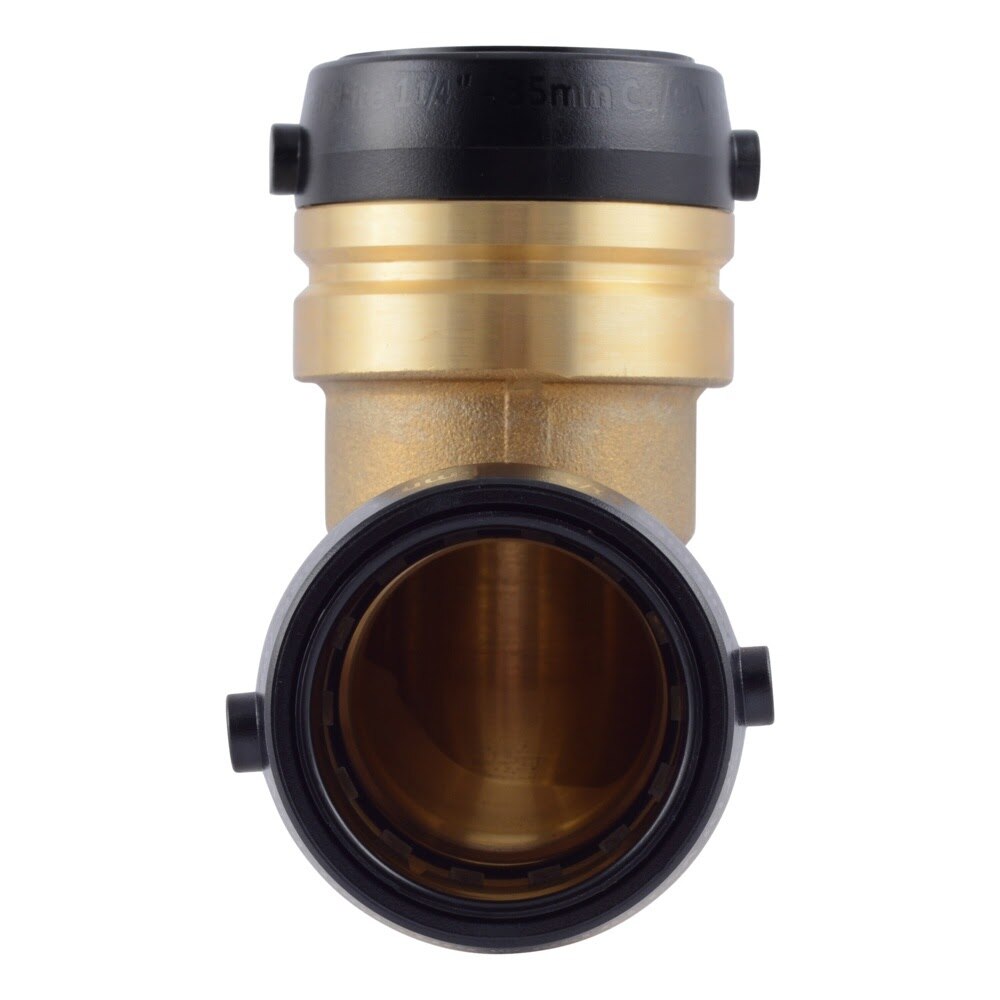

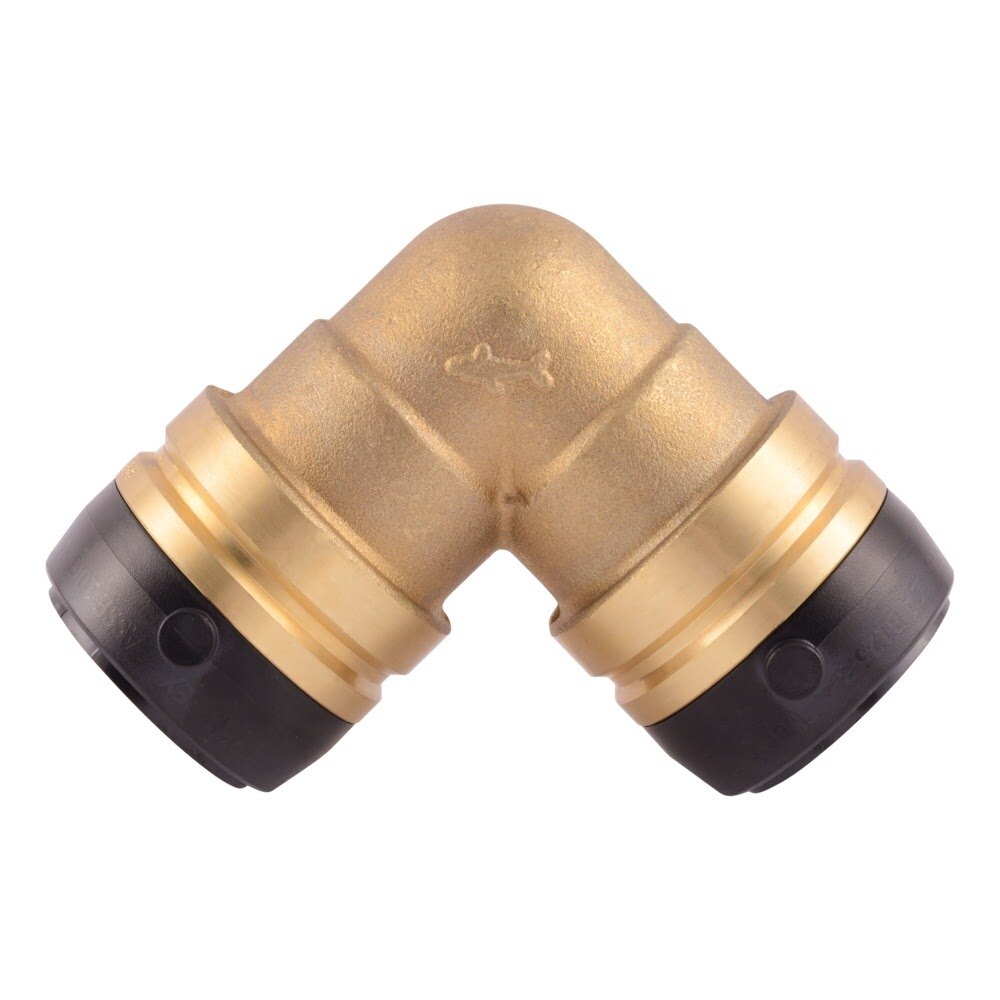

SharkBite UXL0235 Description
The SharkBite UXL0235 is a 1-1/4 in. x 1-1/4 in. brass push-to-connect 90 Degree elbow designed to join two potable water pipes at a right angle. Its push-fit design enables fast installation in tight spaces and is compatible with PEX, copper, CPVC, PE-RT, and SDR-9 HDPE pipe without soldering, crimping, glue, or special tools.
SharkBite UXL0235 Includes
- (1) 1-1/4 in. x 1-1/4 in. Push-to-Connect Brass 90 Degree Elbow
SharkBite UXL0235 Features
- Push-to-connect design allows quick, easy installation
- Connects two 1-1/4 in. pipes at a 90 Degree angle
- Compatible with PEX, copper, CPVC, PE-RT, and SDR-9 HDPE pipe
- No special tools, crimping, glue, or soldering required
- Can be installed in wet lines
- Suitable for tight-space installations
- Approved for underground and behind-the-wall applications when installed per manufacturer guidelines
- UXL variation is rated to 400 psi
- Rated to 200 DegreeF (93 DegreeC)
- Large-diameter PEX connections from 1-1/4 in. to 2 in. require a stiffener, sold separately
- Can be removed with a disconnect clip or disconnect tongs, sold separately
SharkBite UXL0235 Specifications
| Brand | SharkBite |
| Part Number | UXL0235 |
| Product Type | 90 Degree Elbow |
| Fitting Size | 1-1/4 in. x 1-1/4 in. |
| Connection Type | Push-to-Connect |
| Material | Brass |
| Application | Potable water pipe |
| Compatible Pipe Materials | PEX, copper, CPVC, PE-RT, and SDR-9 HDPE |
| Maximum Pressure | 400 psi |
| Maximum Temperature | 200 DegreeF (93 DegreeC) |
| Package Length (in) | 10.50 |
| Package Width (in) | 10.13 |
| Package Height (in) | 1.88 |
| Shipping Weight (lb) | 0.75 |
| Case Quantity | 18 |
| UPC | 697285040724 |
Toolup Part # :
883490
