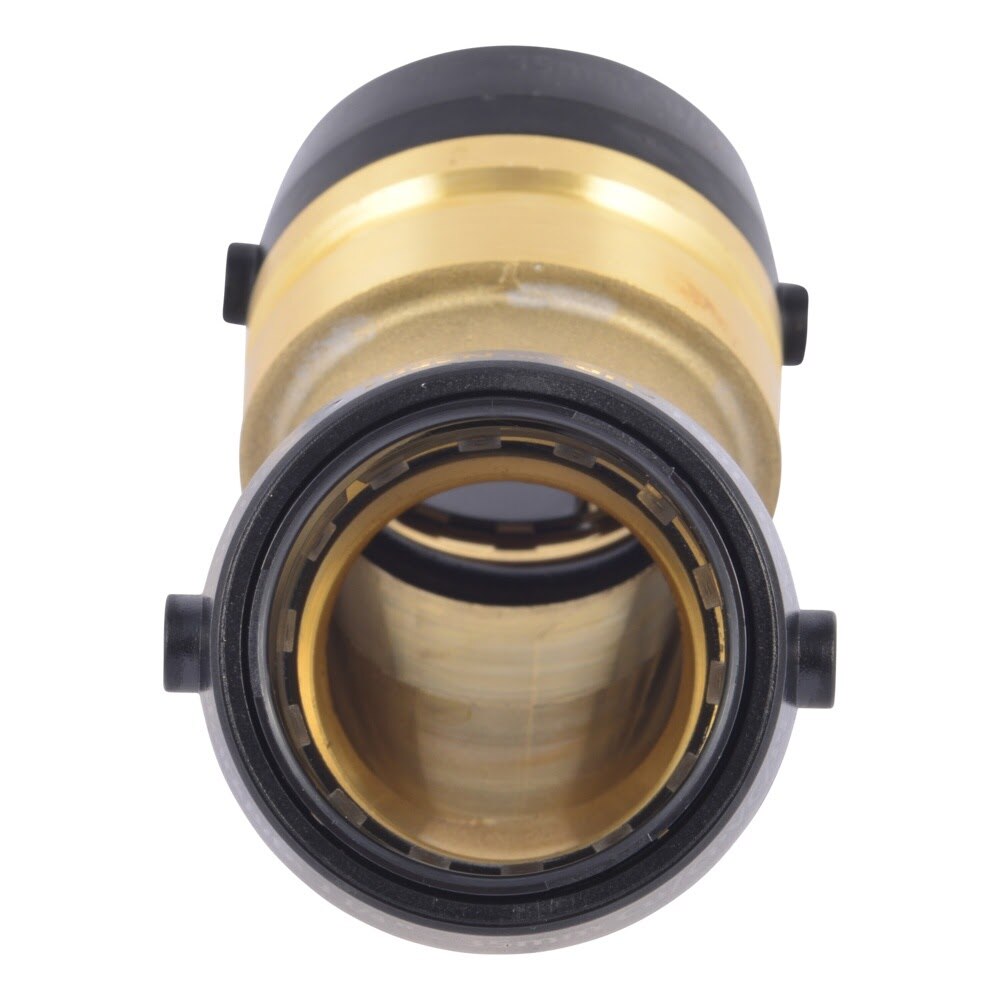

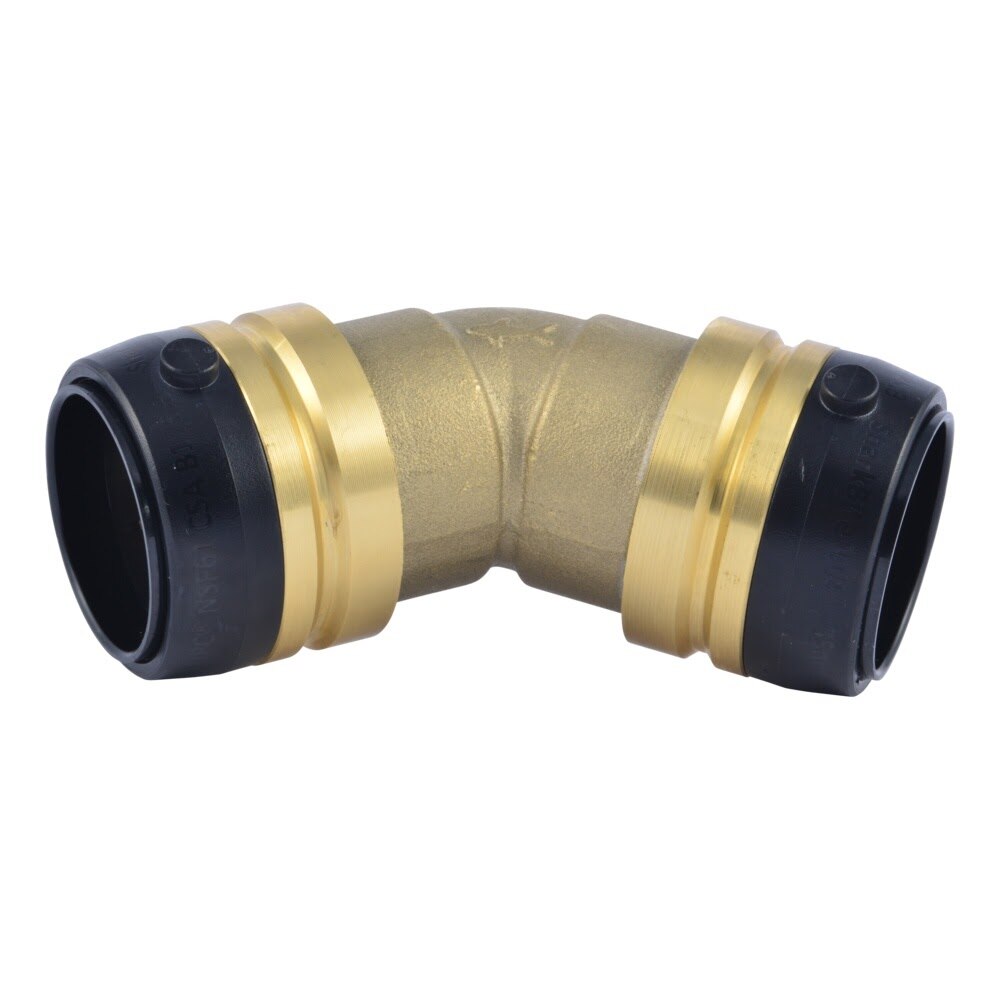

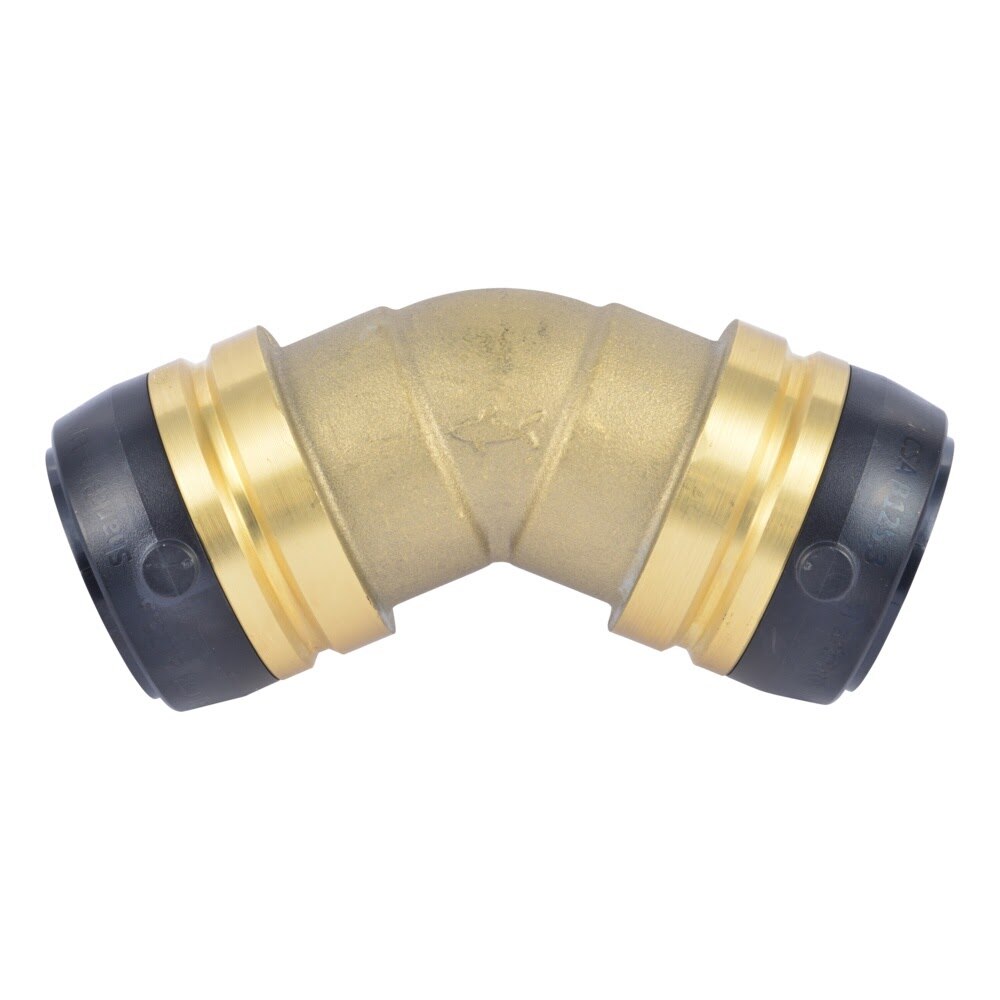

SharkBite UXL0535 Description
The SharkBite UXL0535 1-1/4 in. 45 Degree push to connect elbow connects two pipe runs at a 45 degree angle for fast installation in tight spaces. It is compatible with PEX, copper, CPVC, PE-RT, and SDR-9 HDPE pipe and installs without crimping, glue, or soldering.
SharkBite UXL0535 Includes
- (1) 1-1/4 in. 45 Degree Push to Connect Elbow
SharkBite UXL0535 Features
- Compatible with PEX, copper, CPVC, PE-RT, and SDR-9 HDPE pipe in any combination
- Push to connect design allows quick installation in tight spaces
- No special tools, crimping, glue, or soldering required
- Can be installed in wet lines
- Approved for underground and behind-the-wall applications when properly wrapped for burial
- Large diameter fittings from 1-1/4 in. to 2 in. require a stiffener for PEX connections, sold separately
- Can be removed with a disconnect clip or disconnect tongs, sold separately
- UXL series fittings are rated for 400 psi and 200 Degree F
- Faster installation helps reduce installation errors
SharkBite UXL0535 Specifications
| Brand | SharkBite |
| Manufacturer Part Number | UXL0535 |
| Product Type | 45 Degree Elbow |
| Nominal Size | 1-1/4 in. |
| Connection Type | Push to Connect |
| Compatible Pipe Materials | PEX, copper, CPVC, PE-RT, and SDR-9 HDPE |
| Pressure Rating | 400 psi |
| Maximum Temperature | 200 Degree F (93 Degree C) |
| Application | Wet lines, underground, and behind-the-wall installations |
| PEX Stiffener Requirement | Required for PEX connections, sold separately |
| UPC | 697285040755 |
| Each Shipping Weight | 0.69 lb |
Toolup Part # :
883606
