SharkBite UXL0554 Description

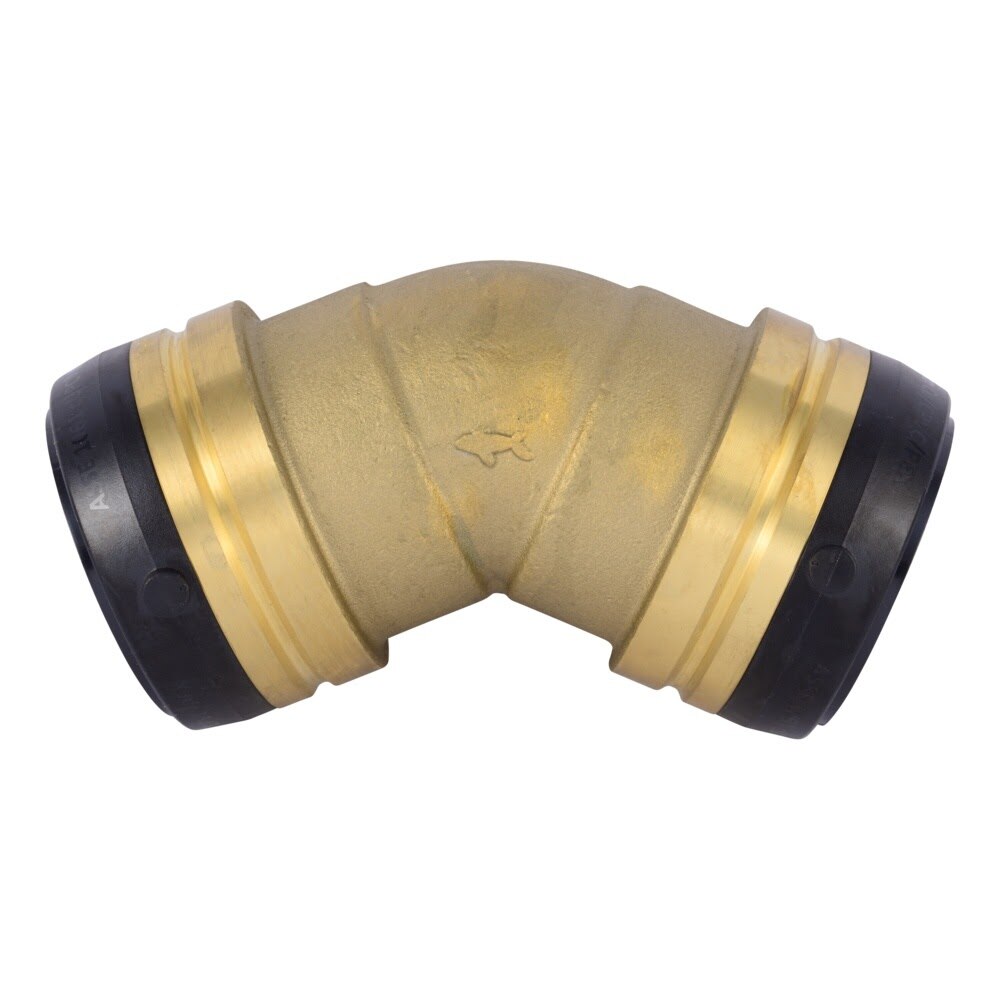

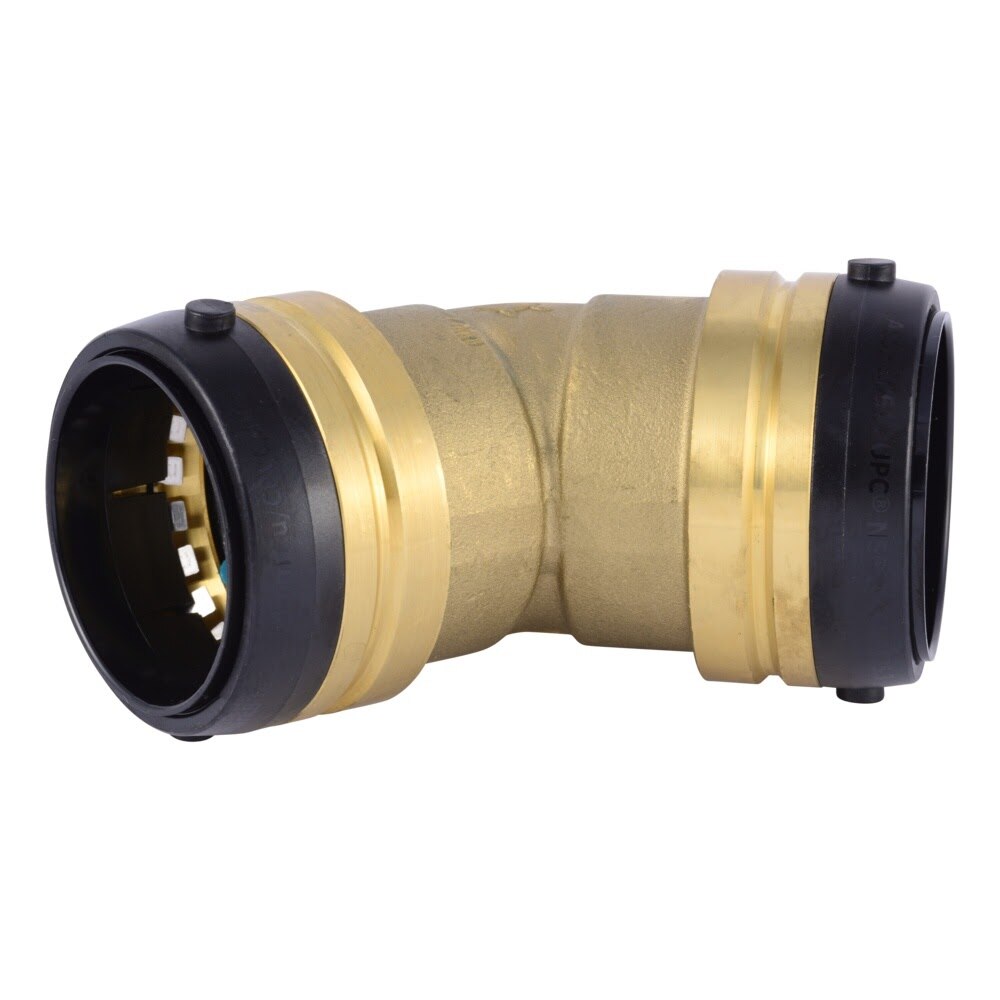

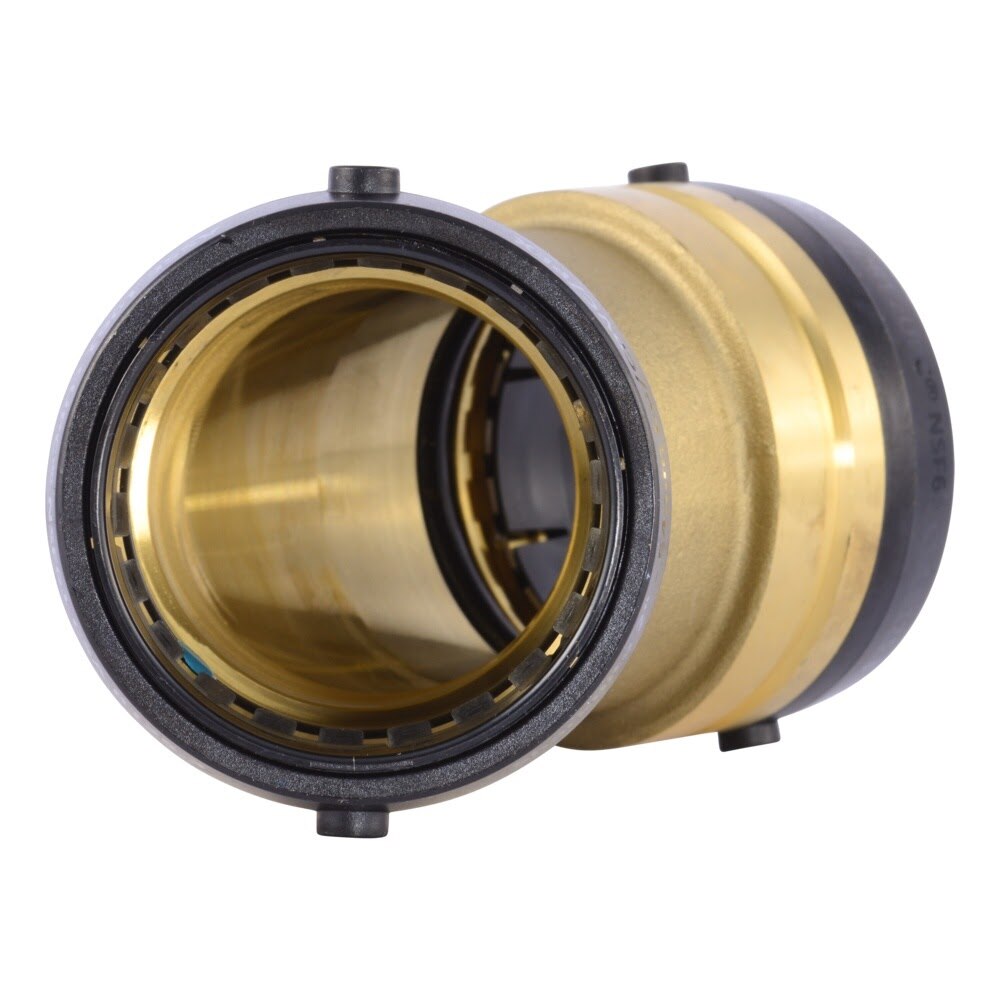

This SharkBite 2 in. x 2 in. 45 Degree elbow fitting features a SharkBite 2XL push-to-connect design for fast installation in large-diameter piping systems. Made from lead-free DZR brass alloy, it is compatible with copper, PEX when used with a SharkBite tube liner, and CPVC pipe for potable water, hydronic heating, chilled water, and irrigation applications.
SharkBite UXL0554 Includes
- (1) 2 in. x 2 in. 45 Degree Elbow Fitting
SharkBite UXL0554 Features
- 45 Degree elbow fitting for changing direction in 2 in. piping runs
- SharkBite 2XL push-to-connect design supports fast installation
- Lead-free DZR brass alloy body for durable performance
- Compatible with copper, PEX with SharkBite tube liner, and CPVC pipe
- Chloramine-resistant EPDM O-ring helps provide a reliable seal
- 316 stainless steel grab ring for secure pipe retention
- Suitable for potable water, hydronic heating, chilled water, and irrigation systems
- Rated for temperatures from 20 DegreeF to 200 DegreeF
- Maximum working pressure of 200 psi
SharkBite UXL0554 Specifications
| Brand | SharkBite |
| Part Number | UXL0554 |
| Product Type | 45 Degree Elbow |
| Size | 2 in. x 2 in. |
| Angle | 45 Degree |
| Connection Type | SharkBite 2XL Push-to-Connect |
| Material | Lead-free DZR brass alloy |
| O-Ring Material | Chloramine-resistant EPDM |
| Tube Liner Material | Copper |
| Grab Ring Material | 316 stainless steel |
| Cartridge Assembly Material | Acetyl copolymer |
| Pipe Compatibility | Copper, PEX with SharkBite tube liner, CPVC |
| Applications | Potable water, hydronic heating, chilled water, irrigation |
| Working Temperature Range | 20 DegreeF to 200 DegreeF |
| Maximum Working Pressure | 200 psi |
| Certifications | IAPMO IGC 157, ASSE 1061, NSF/ANSI 61, NSF/ANSI 372 |
| Product Length (in) | 15.25 |
| Product Width (in) | 10.50 |
| Product Height (in) | 2.72 |
| Each Shipping Weight (lb) | 1.43 |
| UPC | 697285040779 |
