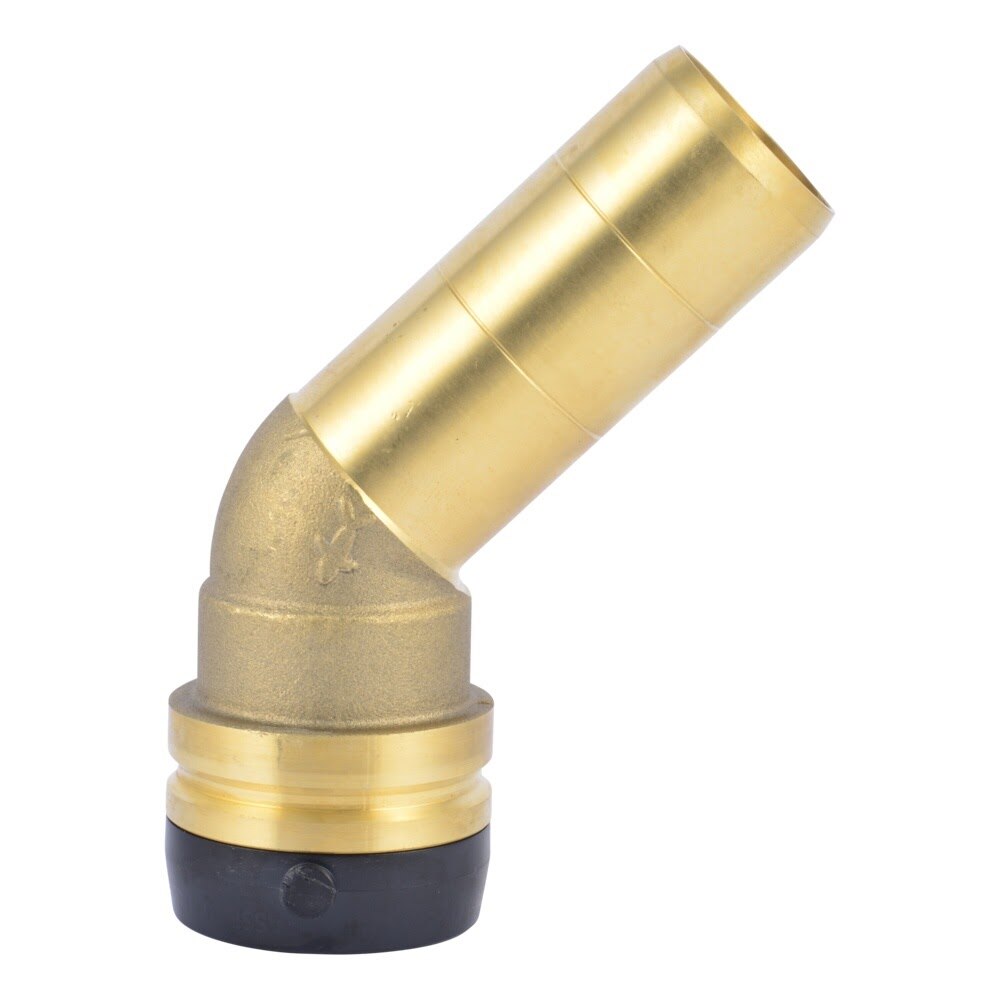

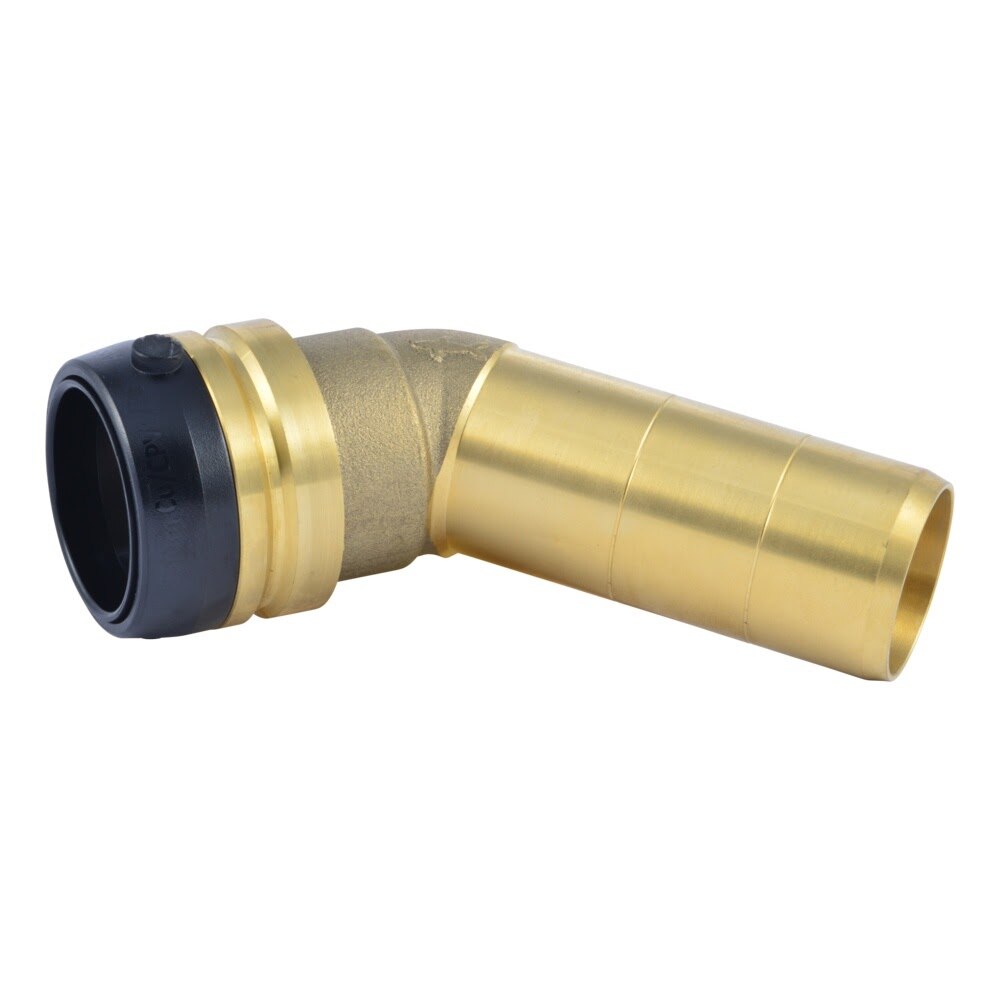

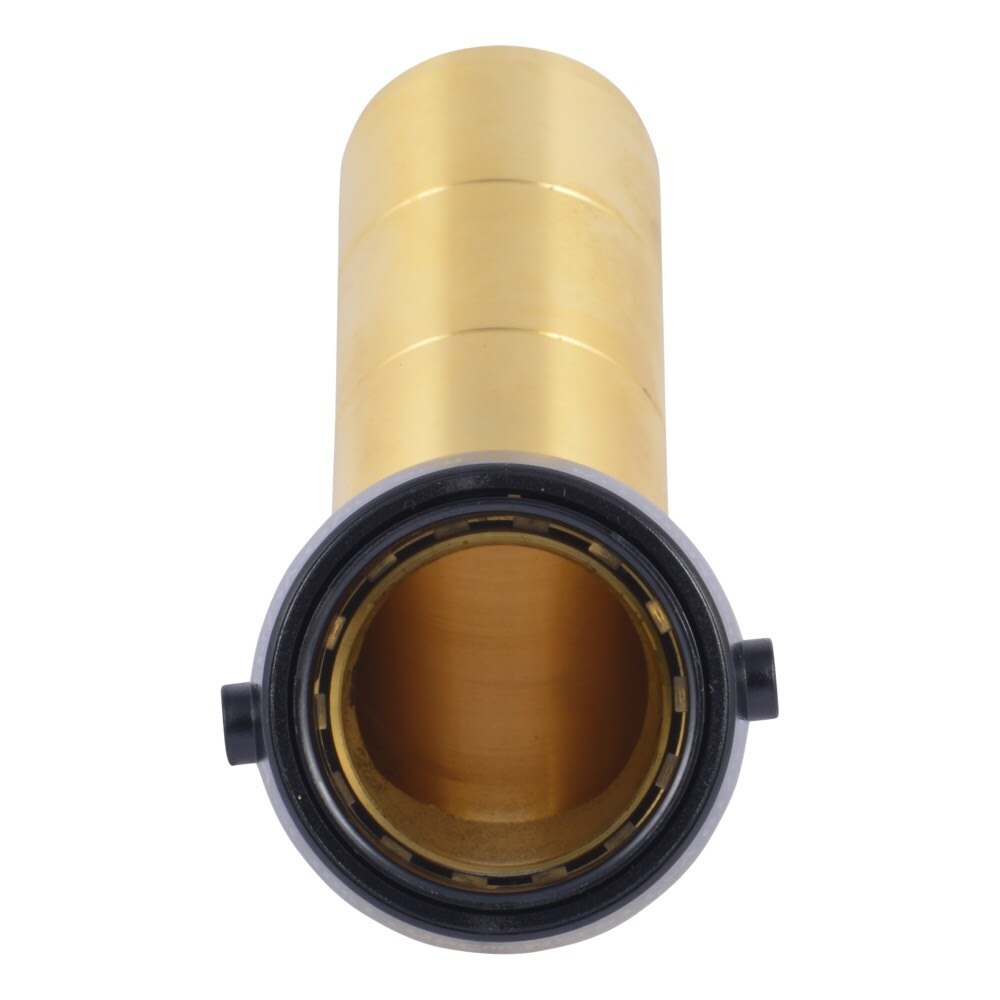

SharkBite UXL0735 Description
The SharkBite UXL0735 is a 1-1/4 in. x 1-1/4 in. 45 Degree street elbow designed for large diameter push to connect plumbing applications. Made from lead free DZR brass and built with a chloramine resistant EPDM O-ring, it provides a durable connection for compatible copper, PEX, and CPVC pipe in potable water, hydronic heating, chilled water, and irrigation systems.
SharkBite UXL0735 Includes
- (1) 1-1/4 in. x 1-1/4 in. 45 Degree Street Elbow
SharkBite UXL0735 Features
- 45 Degree street elbow fitting for directional changes in piping runs
- Large diameter SharkBite push to connect connection for fast installation
- Lead free DZR brass body for durability and corrosion resistance
- Compatible with copper, PEX, and CPVC pipe
- Chloramine resistant EPDM O-ring helps provide reliable sealing
- 316 stainless steel grab ring for secure pipe retention
- Rated for temperatures from 20 DegreeF to 200 DegreeF
- Maximum working pressure of 200 psi
SharkBite UXL0735 Specifications
| Brand | SharkBite |
| Part Number | UXL0735 |
| Size | 1-1/4 in. x 1-1/4 in. |
| Angle | 45 Degree |
| Fitting Type | Street Elbow |
| Connection Type | SharkBite 2XL x Tube |
| Material | Lead Free DZR Brass Alloy |
| O-Ring Material | Chloramine Resistant EPDM |
| Tube Liner Material | Copper |
| Grab Ring Material | 316 Stainless Steel |
| Cartridge Assembly Material | Acetyl Copolymer |
| Temperature Range | 20 DegreeF to 200 DegreeF |
| Maximum Working Pressure | 200 psi |
| Certifications | IAPMO IGC 157, ASSE 1061, NSF/ANSI 61, NSF/ANSI 372 |
| Dimension A | 1.26 in. |
| Dimension B | 1.38 in. |
| Dimension C | 3.85 in. |
| Dimension D | 5.05 in. |
| UPC | 697285040786 |
