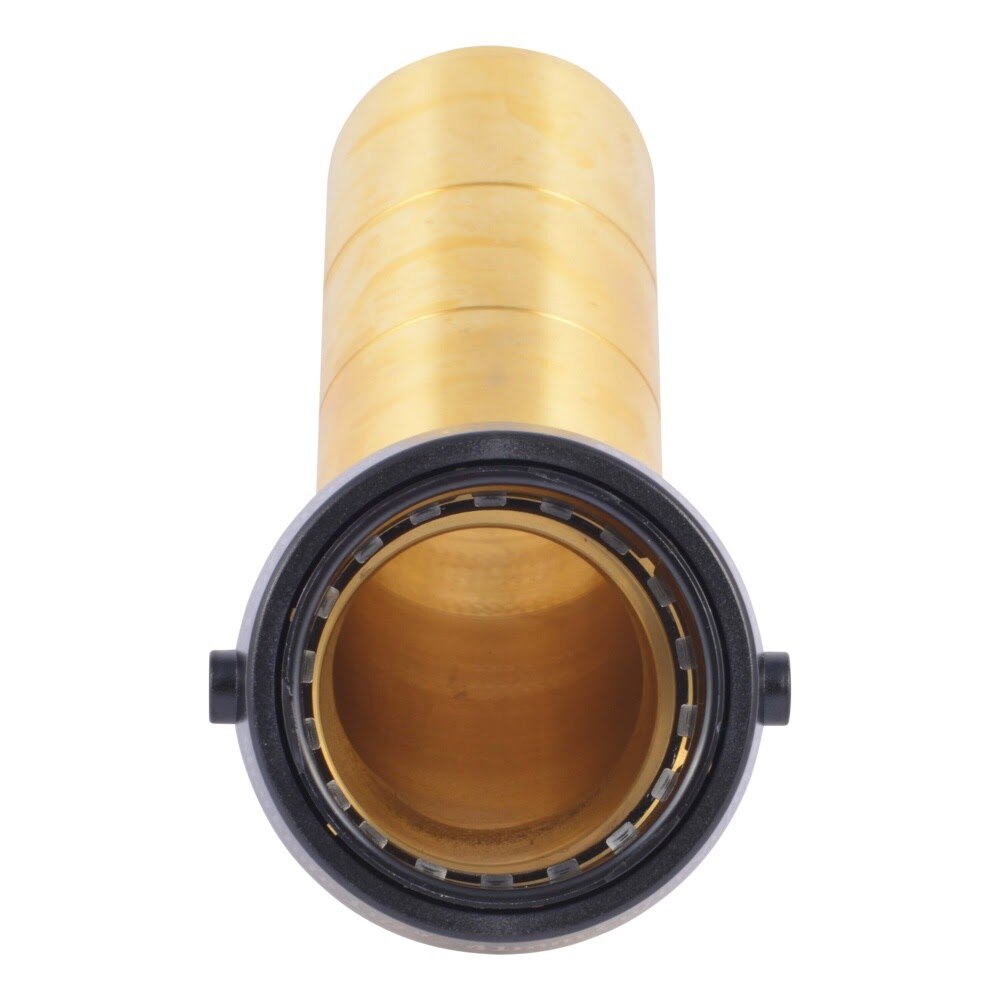

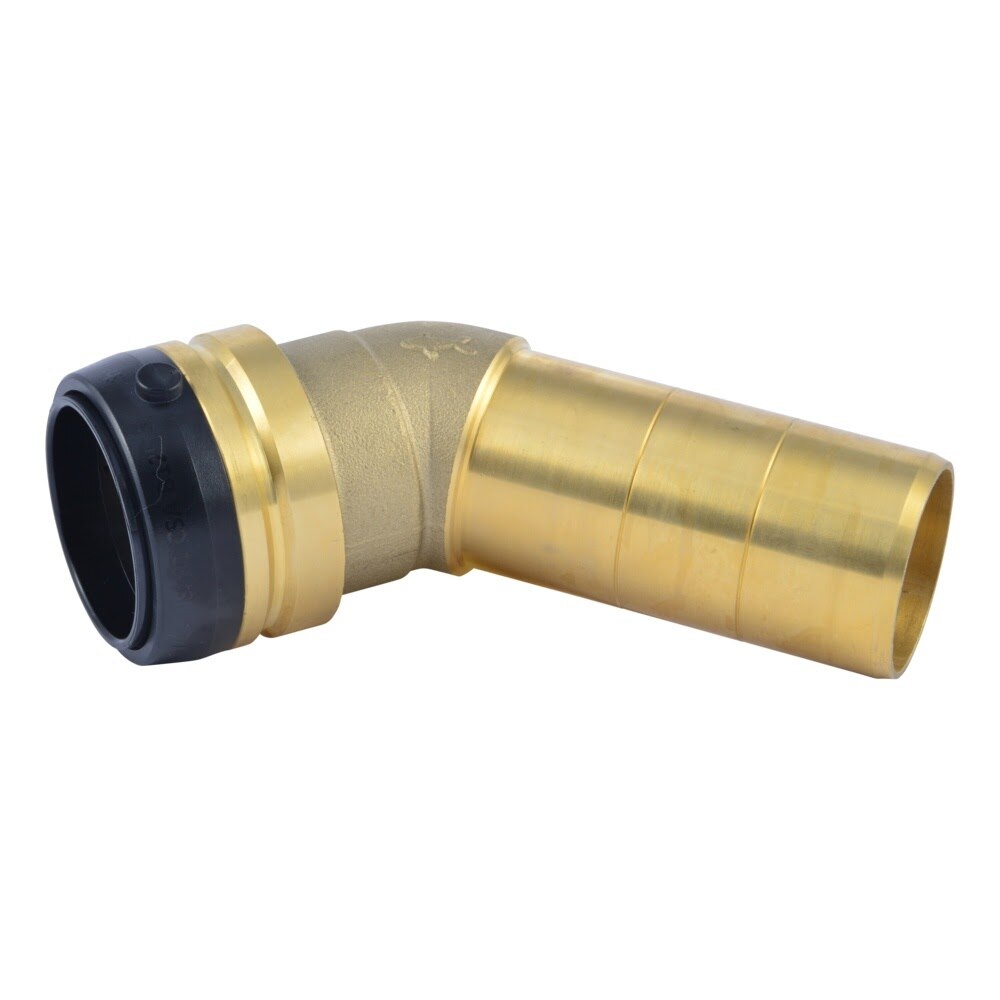

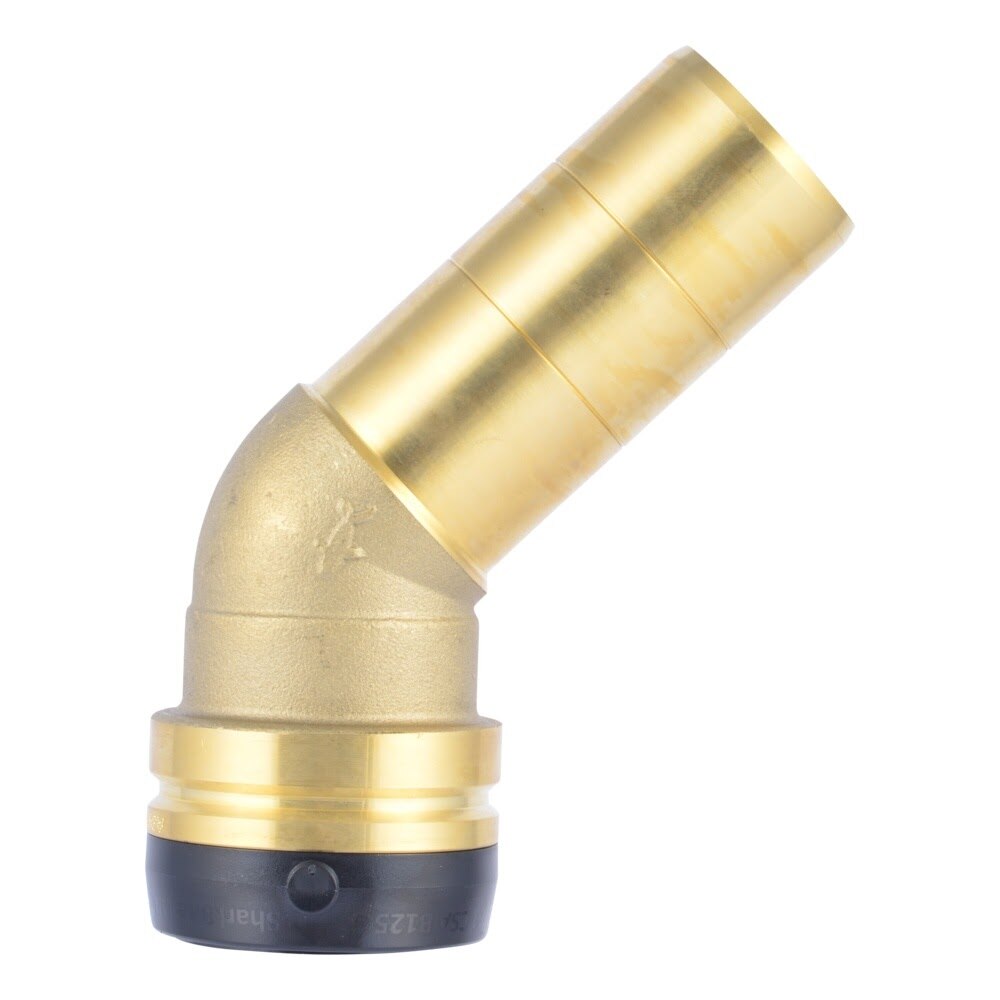

SharkBite UXL0741 Description
The SharkBite UXL0741 1-1/2 in. x 1-1/2 in. 45 Degree Street Elbow is a lead-free brass fitting designed to create a 45 Degree change in direction in large-diameter piping runs. It features a SharkBite 2XL x tube connection and is suitable for use with copper, PEX, and CPVC pipe in potable water, hydronic heating, chilled water, and irrigation applications.
SharkBite UXL0741 Includes
- (1) 1-1/2 in. x 1-1/2 in. 45 Degree Street Elbow Fitting
SharkBite UXL0741 Features
- 1-1/2 in. x 1-1/2 in. street elbow creates a 45 Degree directional change
- SharkBite 2XL x tube connection supports fast installation
- Lead-free DZR brass body for durability
- Compatible with copper, PEX, and CPVC pipe
- Chloramine-resistant O-ring helps provide a secure seal
- 316 stainless steel grab ring adds holding strength
- Rated for temperatures from 20F to 200F
- Maximum working pressure of 200 psi
- Suitable for potable water, hydronic heating, chilled water, and irrigation systems
SharkBite UXL0741 Specifications
| Product Type | Street Elbow |
| Size | 1-1/2 in. x 1-1/2 in. |
| Angle | 45 Degree |
| Connection Type | SharkBite 2XL x Tube |
| Body Material | DZR Brass Lead-Free Alloy |
| O-Ring | Chloramine Resistant O-Ring |
| Tube Liner Material | Copper |
| Grab Ring Material | 316 Stainless Steel |
| Cartridge Assembly Material | Acetyl Copolymer |
| Compatible Pipe Materials | Copper, PEX, CPVC |
| Temperature Range | 20F to 200F |
| Maximum Working Pressure | 200 psi |
| Applications | Potable water, hydronic heating, chilled water, irrigation |
| Certifications | IAPMO IGC 157, ASSE 1061, NSF/ANSI 61, NSF/ANSI 372 |
| Dimension A | 1.50 in. |
| Dimension B | 1.63 in. |
| Dimension C | 4.37 in. |
| Dimension D | 5.55 in. |
