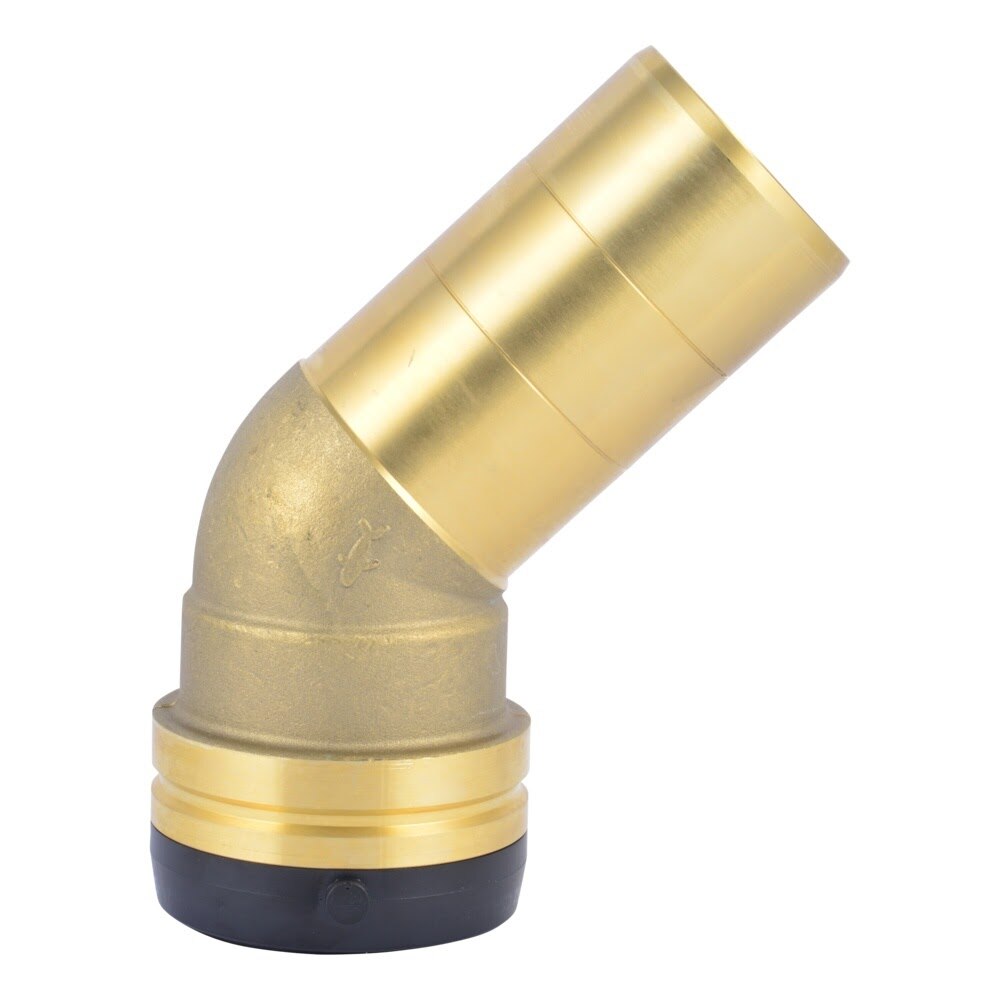

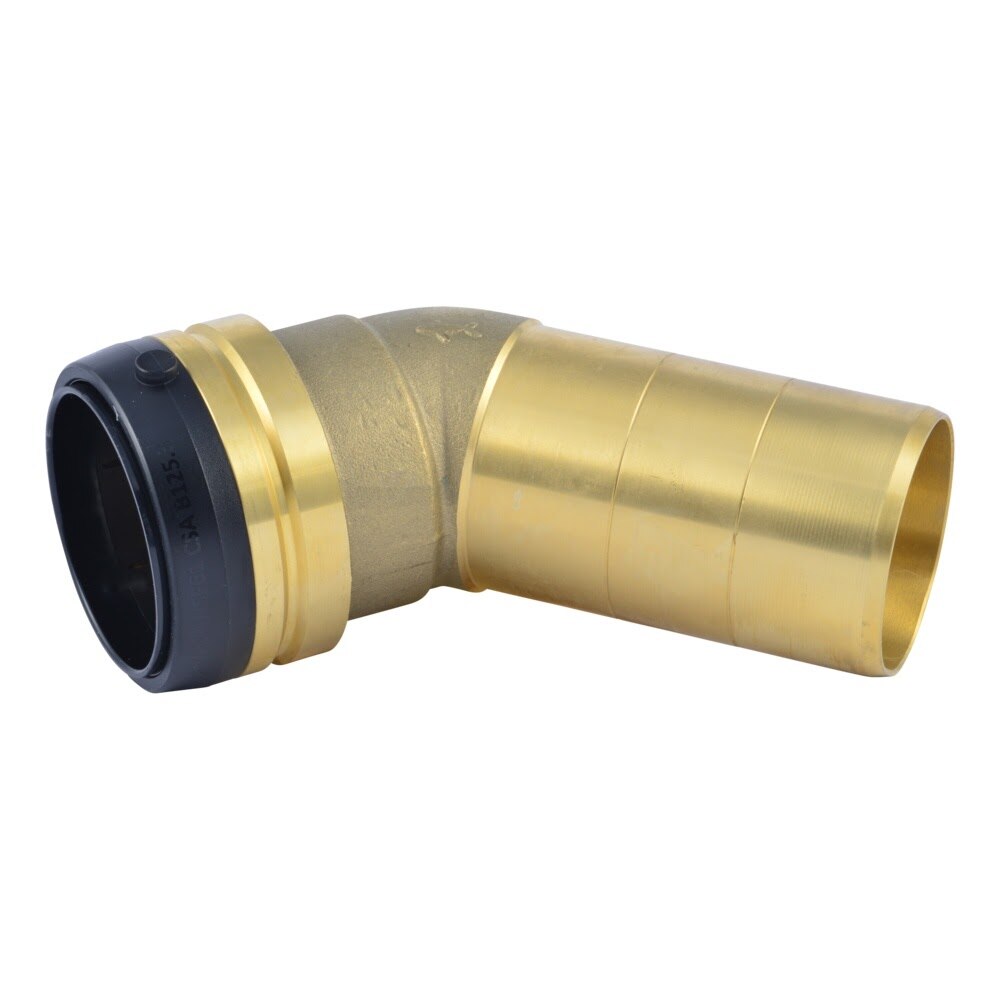

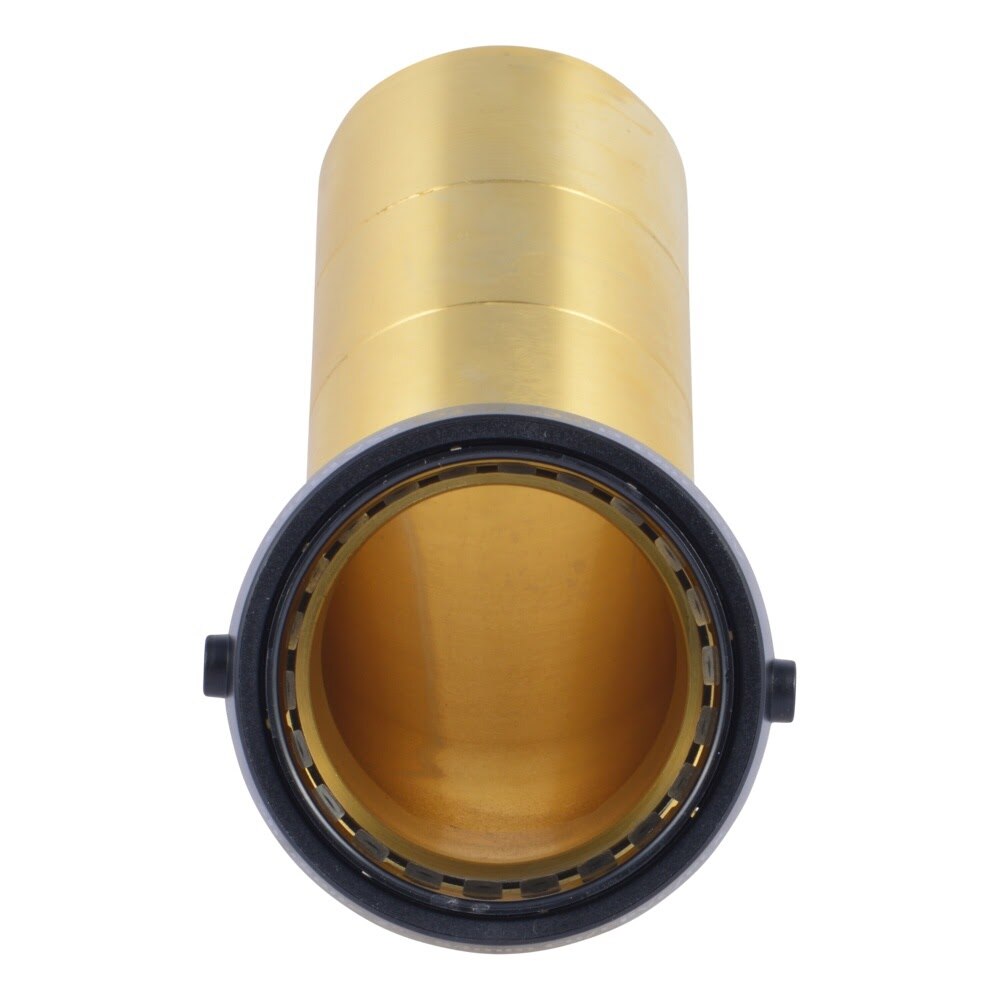

SharkBite UXL0754 Description
This SharkBite 2 in. x 2 in. 45 Degree street elbow is a large diameter push fit fitting with a lead free DZR brass body. It is suitable for copper, PEX with a SharkBite tube liner, and CPVC pipe in potable water, hydronic heating, chilled water, and irrigation applications.
SharkBite UXL0754 Includes
- (1) 2 in. x 2 in. 45 Degree Street Elbow
SharkBite UXL0754 Features
- 2 in. x 2 in. street 45 Degree elbow configuration
- SharkBite 2XL x tube connection
- Lead free DZR brass alloy body
- Chloramine resistant O-ring
- Copper tube liner
- 316 stainless steel grab ring
- Acetyl copolymer cartridge assembly
- Suitable for copper, PEX, and CPVC pipe
- PEX installations require a SharkBite tube liner
- For potable water, hydronic heating, chilled water, and irrigation applications
- Operates from 20 F to 200 F
- Maximum working pressure of 200 psi
- Certified to IAPMO IGC 157, ASSE 1061, NSF ANSI 61, and NSF ANSI 372
SharkBite UXL0754 Specifications
| Brand | SharkBite |
| SKU | UXL0754 |
| Product Type | Street Elbow |
| Size | 2 in. x 2 in. |
| Angle | 45 Degree |
| Connection Type | SharkBite 2XL x Tube |
| Body Material | DZR Brass-Lead Free Alloy |
| O-Ring Material | Chloramine Resistant EDPM O-Ring |
| Tube Liner Material | Copper |
| Grab Ring Material | 316 Stainless Steel |
| Cartridge Assembly Material | Acetyl Copolymer |
| Applications | Potable water, hydronic heating, chilled water, and general water distribution for irrigation |
| Temperature Range | 20 F to 200 F |
| Maximum Working Pressure | 200 psi |
| Certifications | IAPMO IGC 157, ASSE 1061, NSF/ANSI 61, NSF/ANSI 372 |
| Each Shipping Weight | 1.36 lb |
