SharkBite UXL08352828 Description

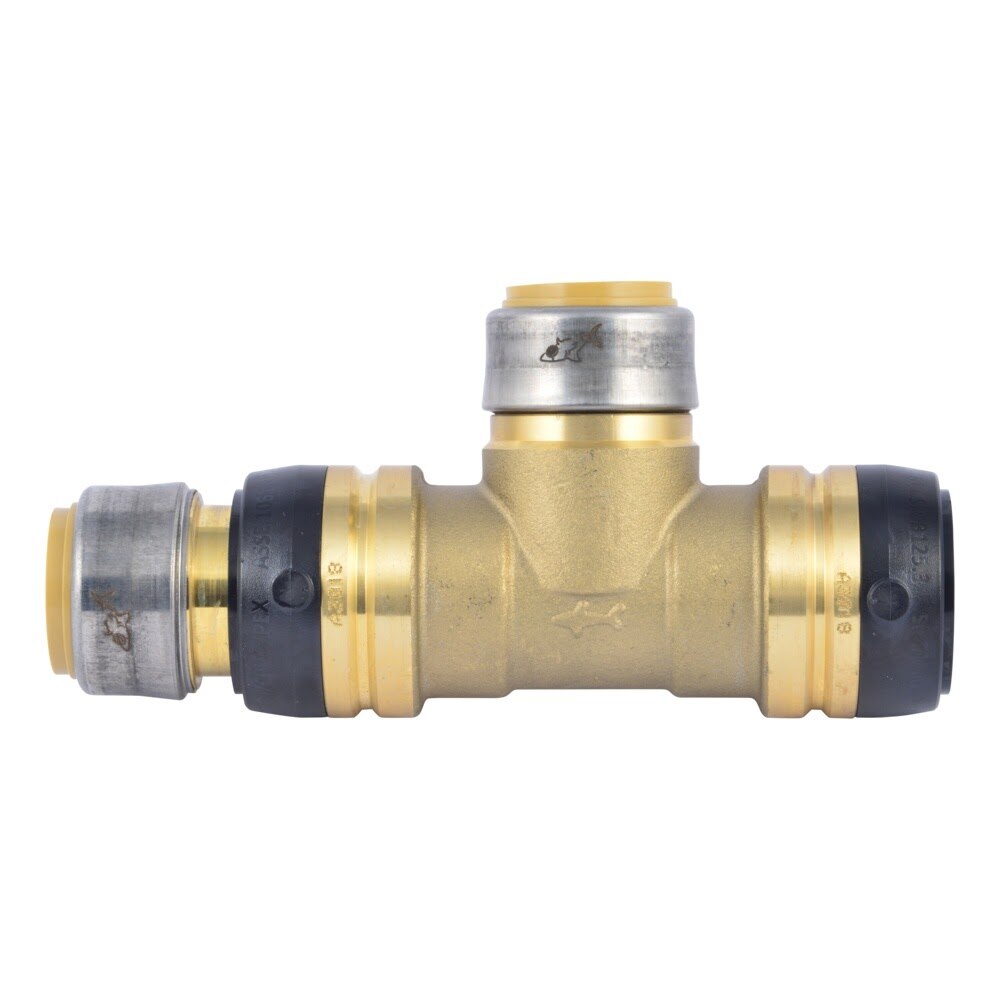

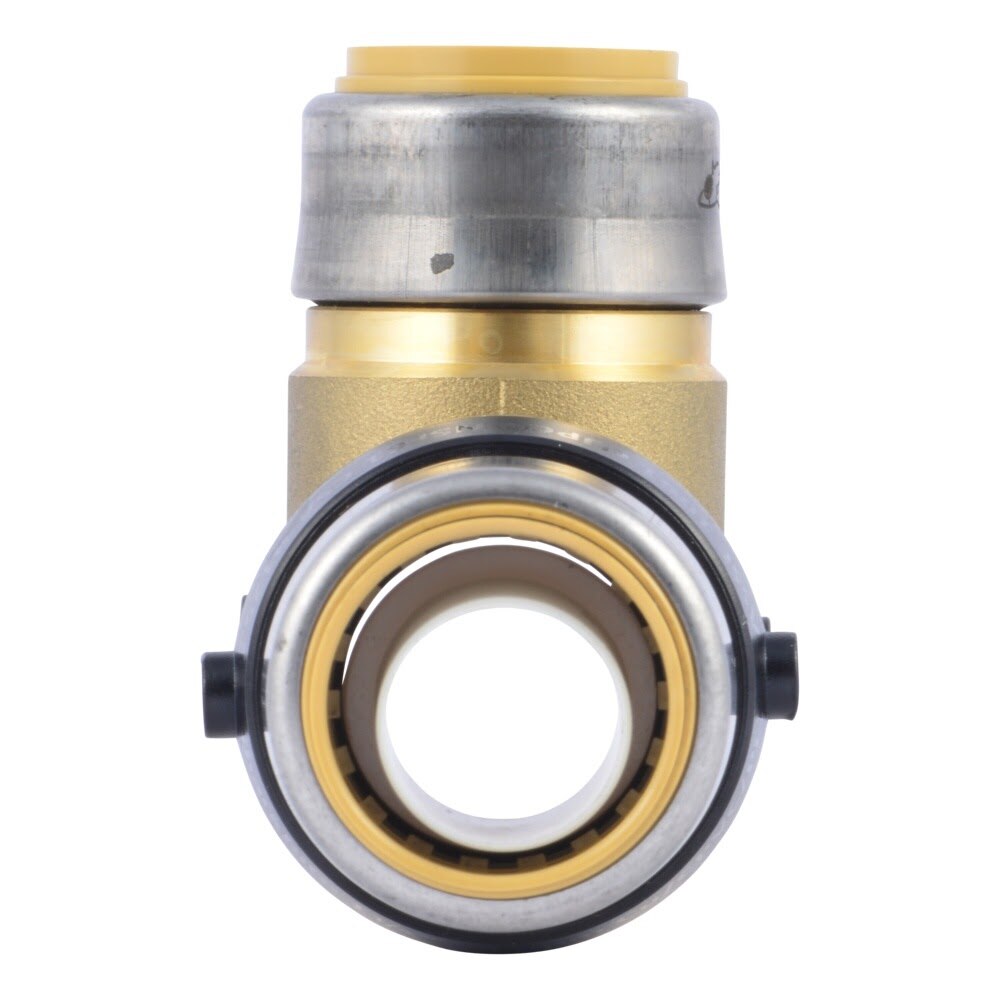

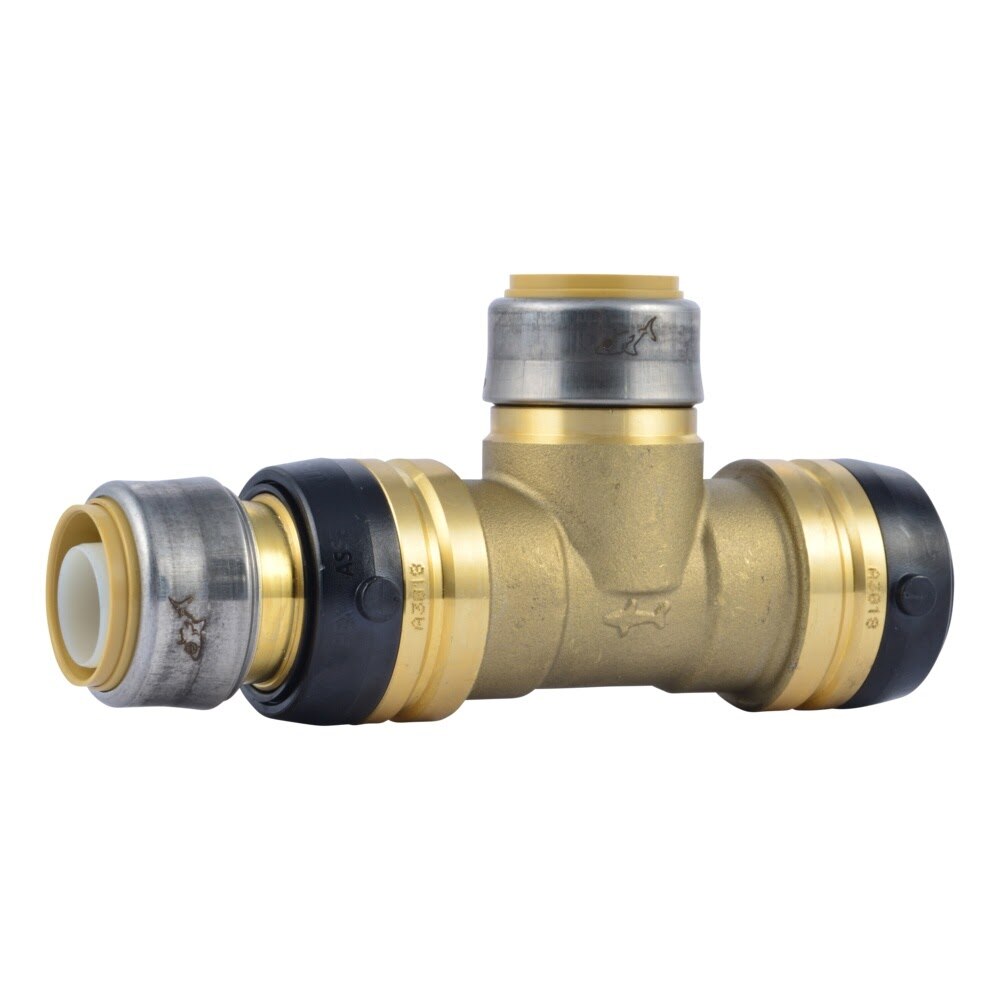

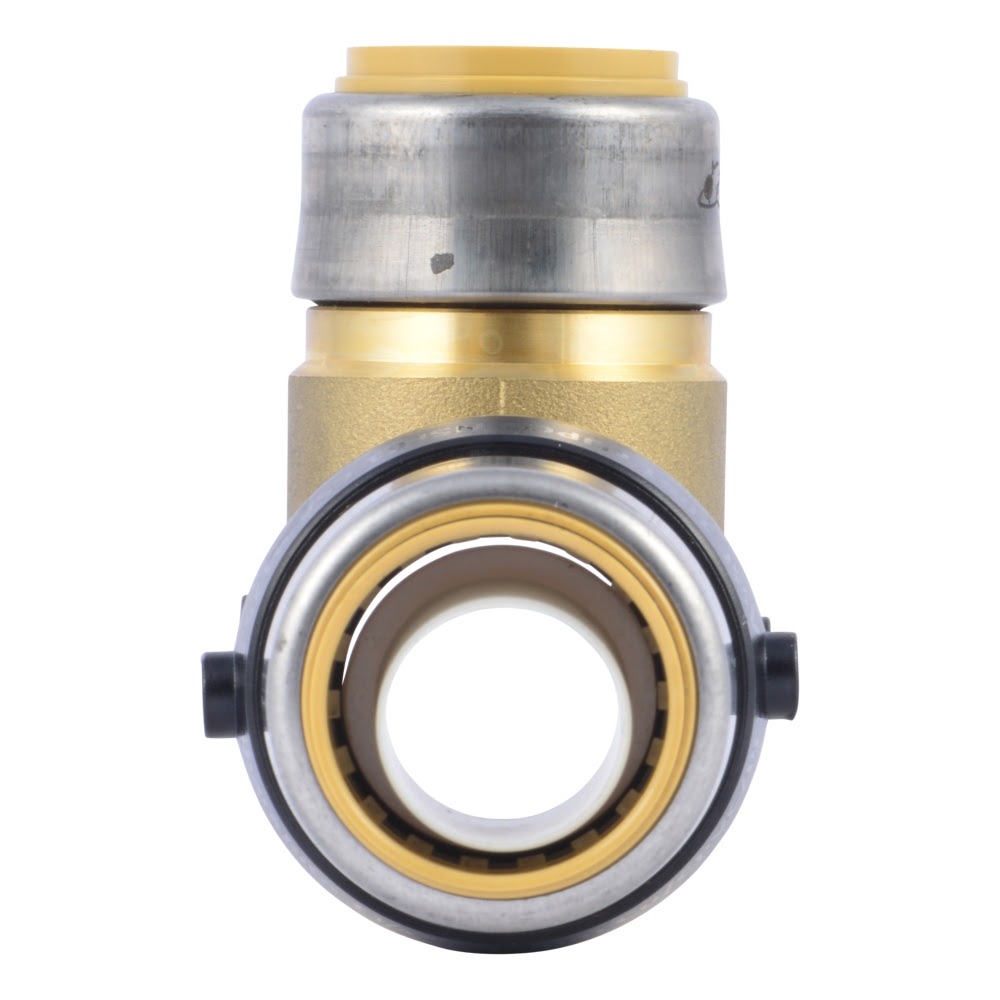

The SharkBite UXL08352828 is a 1-1/4 in. x 1 in. x 1 in. SharkBite 2XL reducing tee designed for large-diameter push-to-connect plumbing connections. Made with a lead-free DZR brass body, it is suitable for use with copper, PEX with a SharkBite tube liner, and CPVC pipe in potable water, hydronic heating, chilled water, and irrigation applications.
SharkBite UXL08352828 Includes
- (1) SharkBite 1-1/4 in. x 1 in. x 1 in. Reducing Tee
SharkBite UXL08352828 Features
- SharkBite 2XL push-to-connect reducing tee for large-diameter CTS systems
- Lead-free DZR brass body for durability and corrosion resistance
- Compatible with copper, PEX with SharkBite tube liner, and CPVC pipe
- Suitable for potable water, hydronic heating, chilled water, and irrigation applications
- Chloramine-resistant O-ring design
- 316 stainless steel grab ring for secure pipe retention
- Rated for operating temperatures from 20°F to 200°F
- Maximum working pressure of 200 psi
- Certified to ASSE 1061, NSF/ANSI 61, NSF/ANSI 372, and IAPMO IGC 157
SharkBite UXL08352828 Specifications
| Product Type | Reducing Tee |
| Size | 1-1/4 in. x 1 in. x 1 in. |
| Connection Type | SharkBite 2XL push-to-connect |
| Body Material | DZR brass lead-free alloy |
| O-Ring | Chloramine Resistant EDPM O-Ring |
| Tube Liner | Copper |
| Grab Ring | 316 stainless steel |
| Cartridge Assembly | Acetyl copolymer |
| Compatible Pipe Material | Copper, PEX with SharkBite tube liner, CPVC |
| Applications | Potable water, hydronic heating, chilled water, irrigation |
| Operating Temperature Range | 20°F to 200°F |
| Maximum Working Pressure | 200 psi |
| Certifications | IAPMO IGC 157, ASSE 1061, NSF/ANSI 61, NSF/ANSI 372 |
| Dimension A | 1.260 in. |
| Dimension B | 1.260 in. |
| Dimension D | 4.98 in. |
| Product Weight | 1.18 lb |
