SharkBite UXL114140M Description

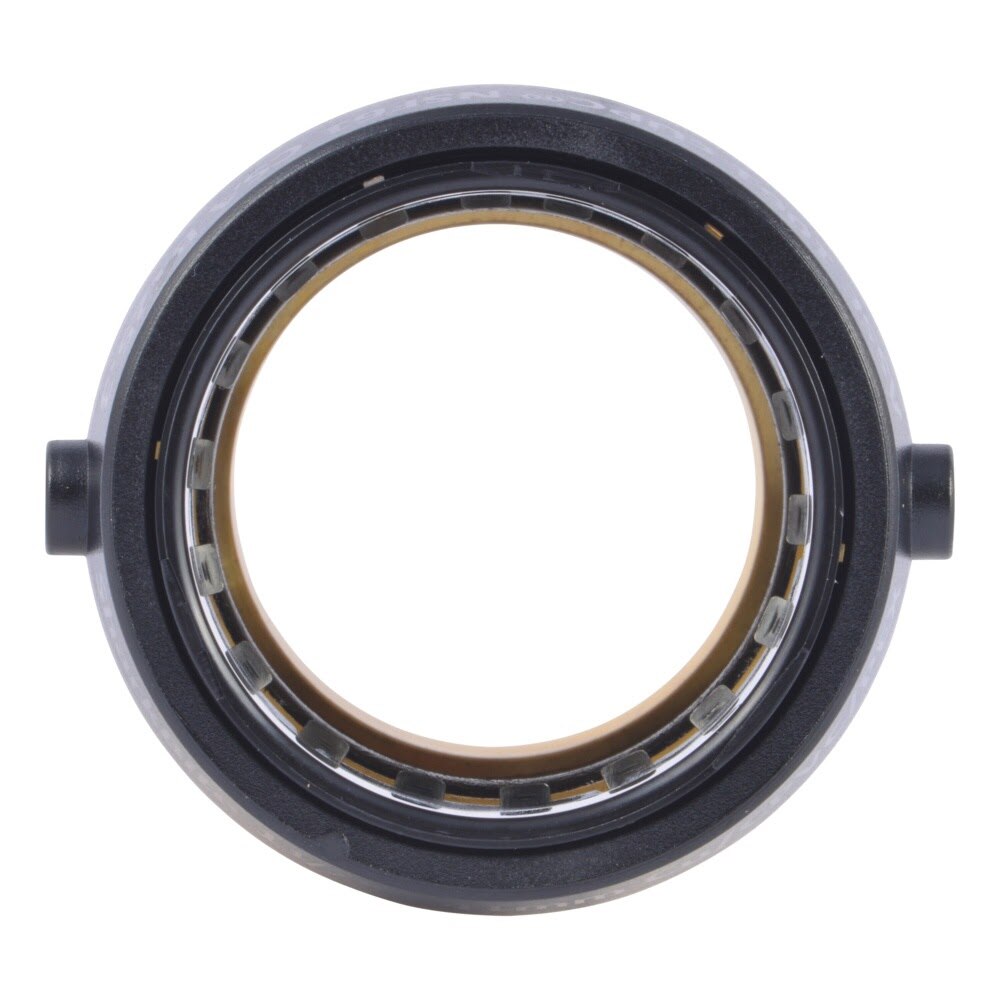

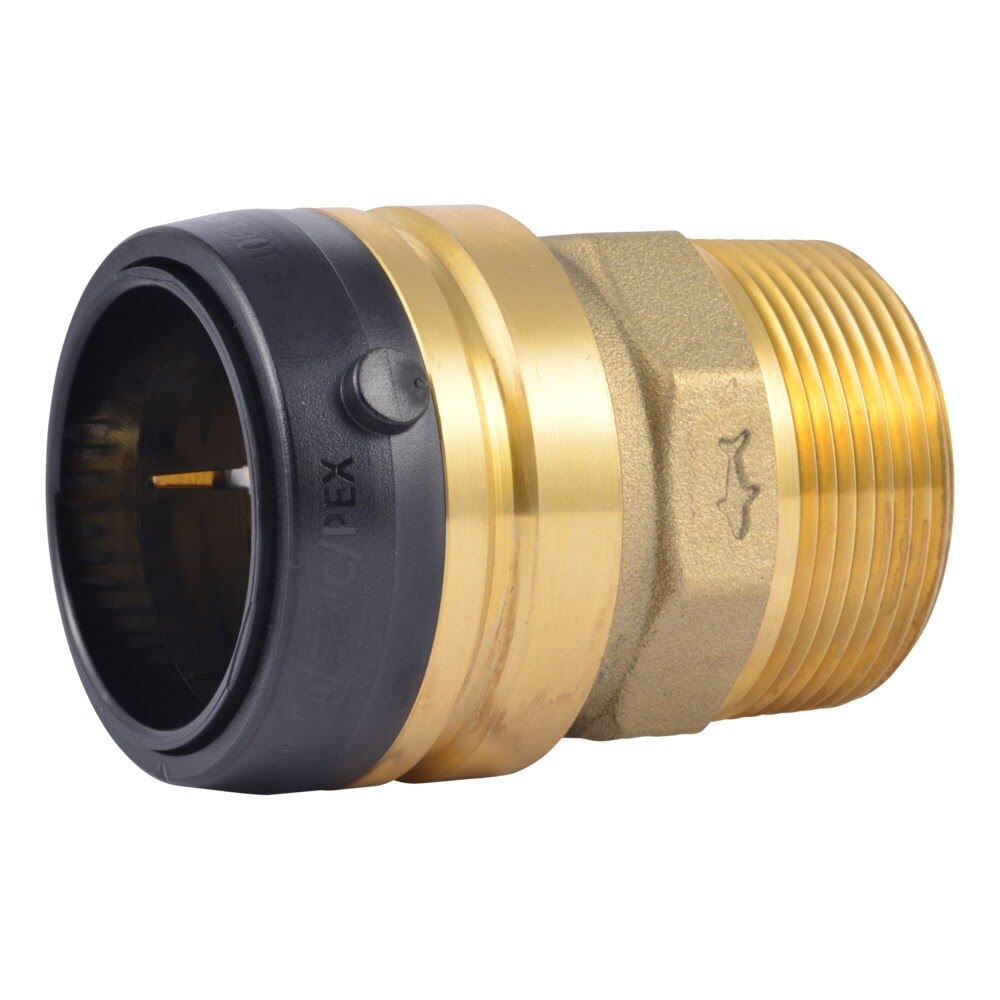

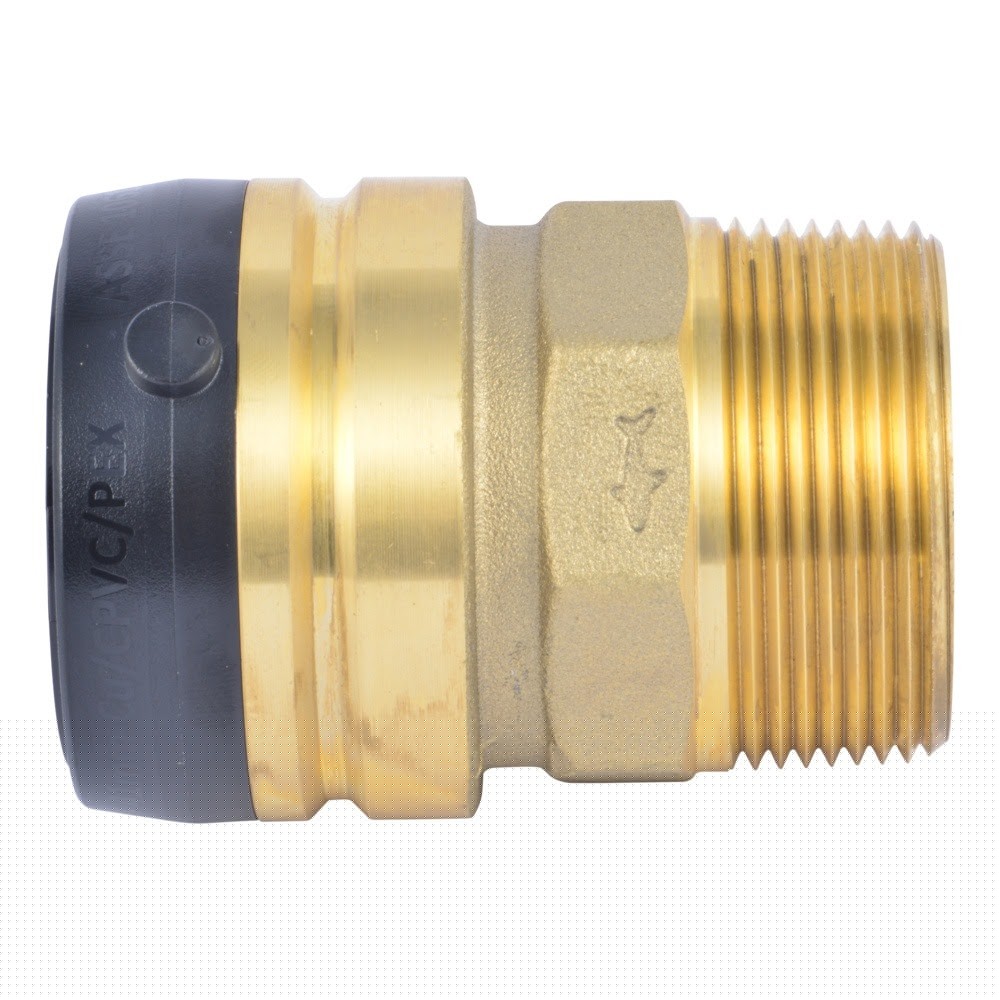

The SharkBite UXL114140M is a 1-1/2 in. x 1-1/2 in. push-to-connect male adapter designed to transition compatible pipe to a male NPT threaded connection. This lead-free brass fitting installs without crimping, glue, or soldering and is rated for up to 400 psi and 200 degrees F for dependable large-diameter plumbing applications.
SharkBite UXL114140M Includes
- (1) 1-1/2 in. x 1-1/2 in. Push-to-Connect MNPT Adapter
SharkBite UXL114140M Features
- Push-to-connect design allows fast connection to a male NPT threaded end
- Compatible with PEX, copper, CPVC, PE-RT, and SDR-9 HDPE pipe
- No special tools, crimping, glue, or soldering required
- Can be installed in wet lines
- Approved for underground and behind-the-wall applications when properly wrapped for burial
- UXL variation is rated up to 400 psi
- Rated for temperatures up to 200 degrees F (93 degrees C)
- Large diameter fittings from 1-1/4 in. to 2 in. require a stiffener when connecting to PEX pipe
- Removable using a disconnect clip or disconnect tongs sold separately
- Lead-free brass construction for durable plumbing connections
SharkBite UXL114140M Specifications
| Brand | SharkBite |
| Part Number | UXL114140M |
| Product Type | Push Male Adapter |
| Inlet Connection | 1-1/2 in. Push-to-Connect |
| Outlet Connection | 1-1/2 in. MNPT |
| Connection Type | Push-to-Connect x Male NPT |
| Material | Lead-Free Brass |
| Pressure Rating | 400 psi |
| Maximum Temperature | 200 degrees F (93 degrees C) |
| Compatible Pipe Materials | PEX, copper, CPVC, PE-RT, and SDR-9 HDPE |
| Installation | Wet lines, underground, and behind-the-wall applications |
| Each Shipping Weight | 0.78 lb |
| UPC | 697285040700 |
Toolup Part # :
883453
