SharkBite UXLBV41 Description

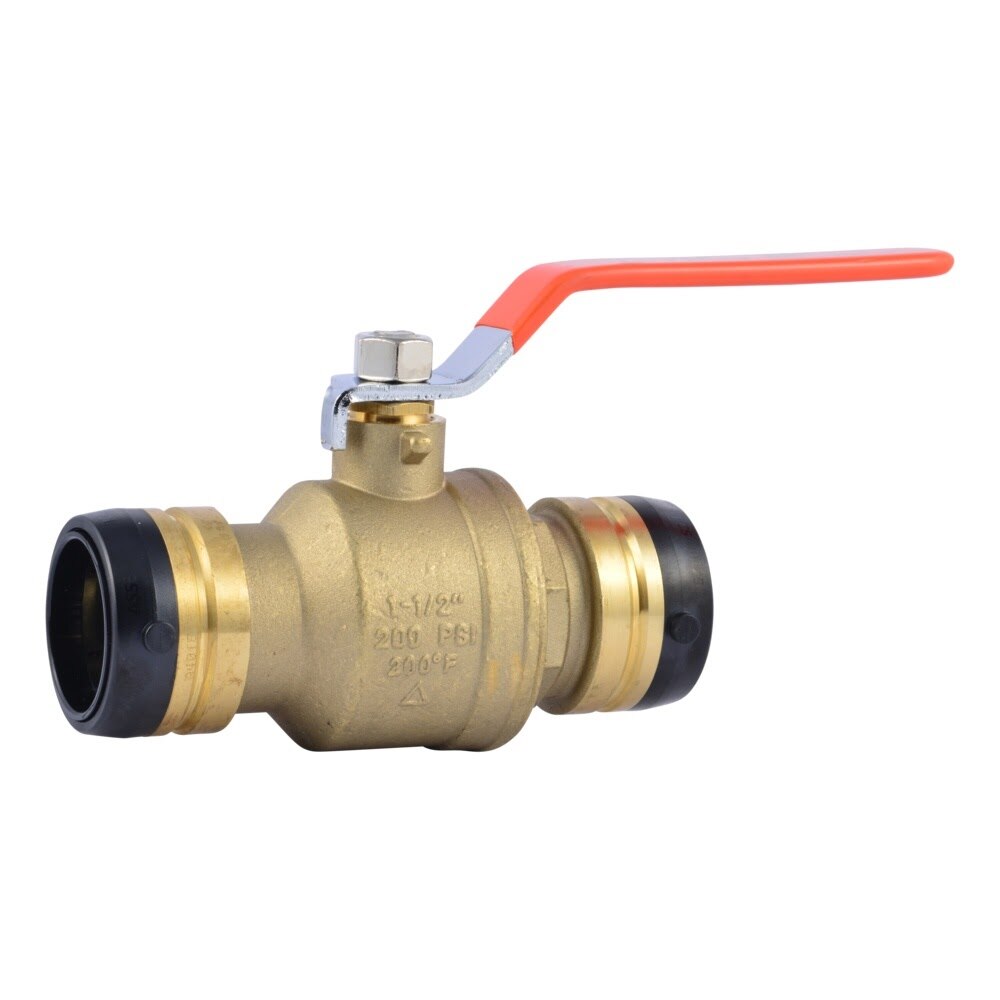

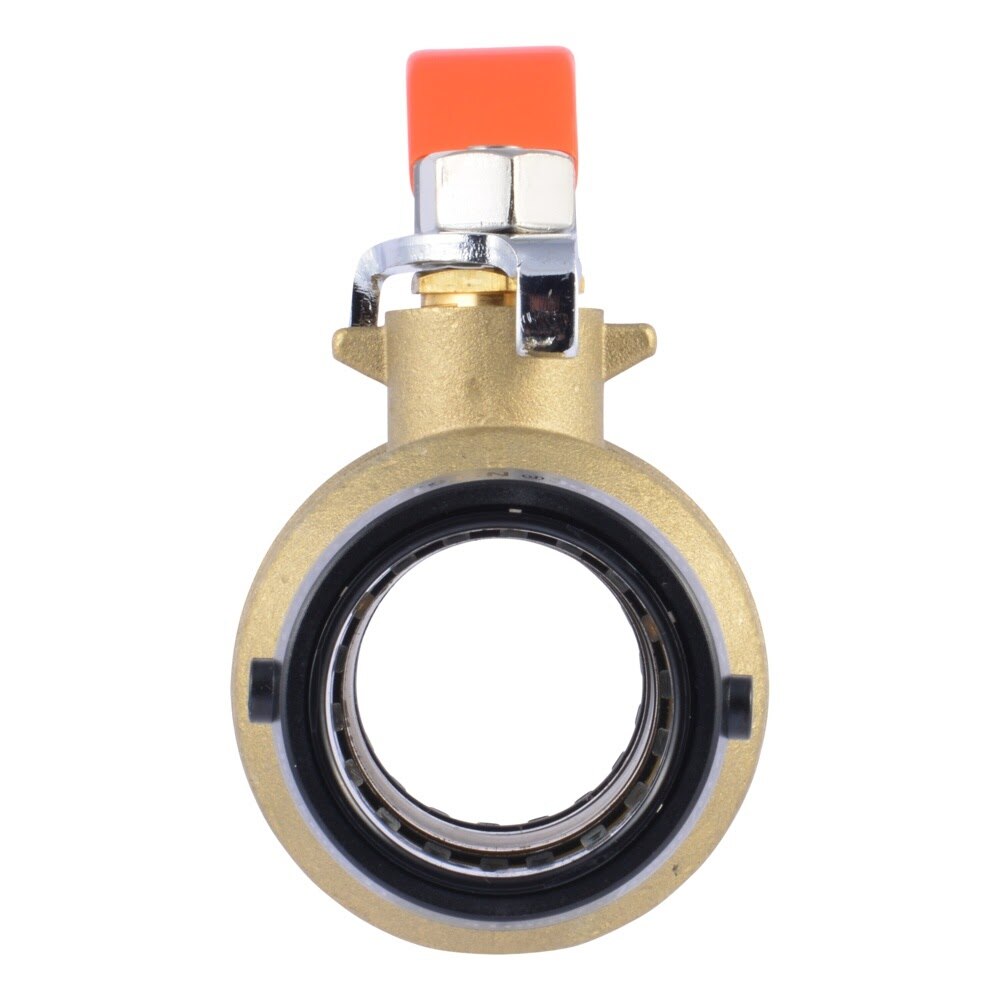

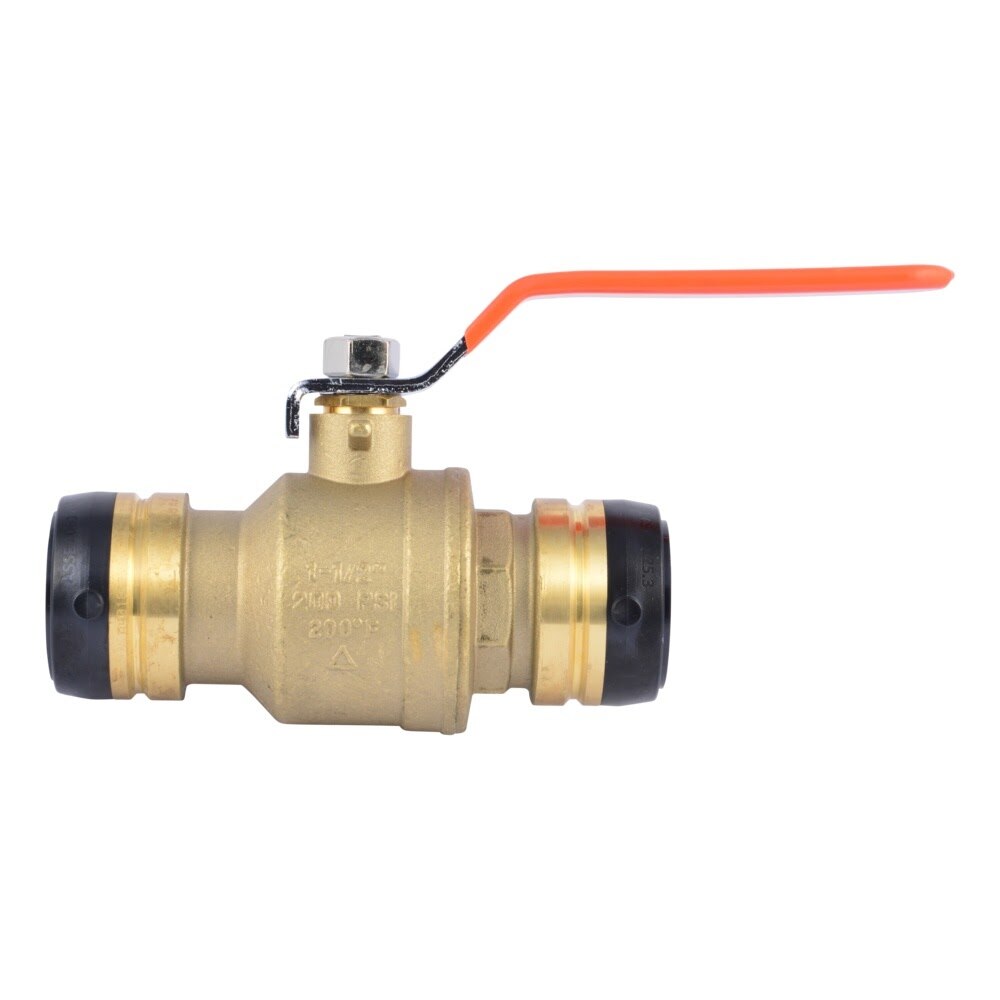

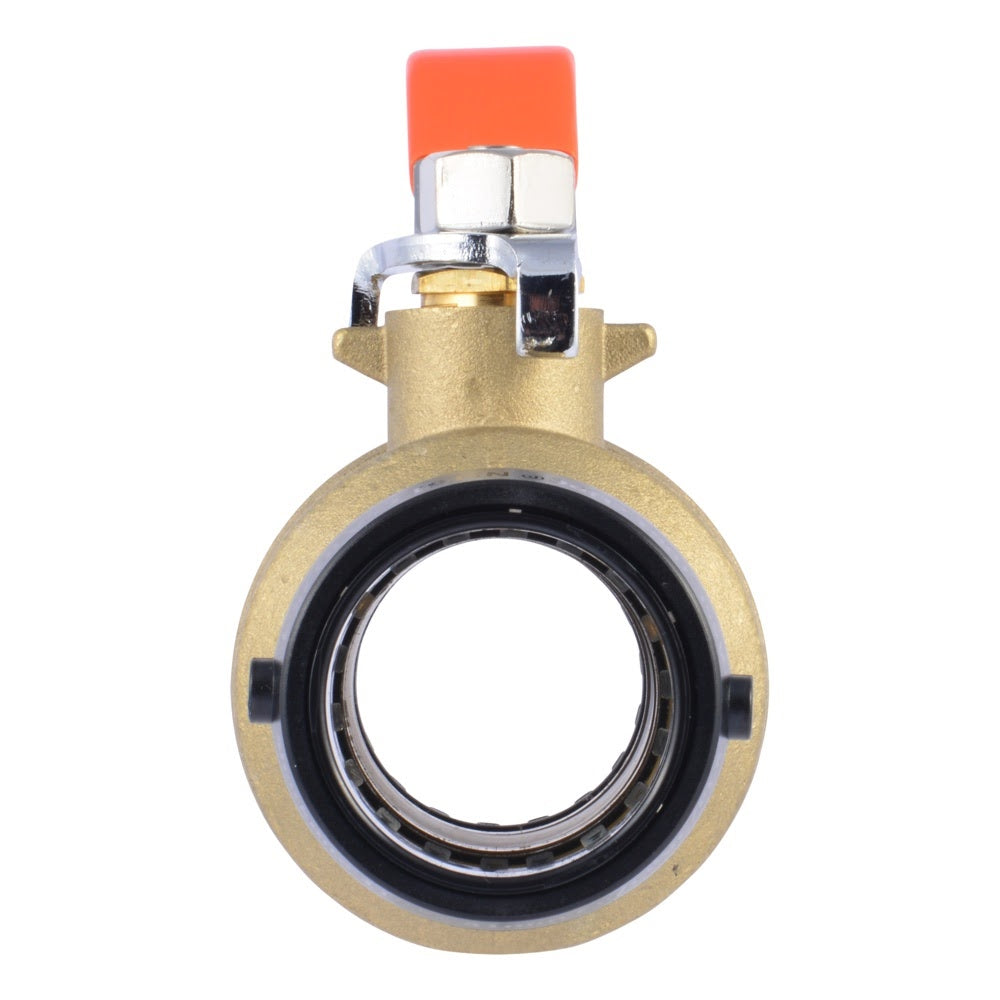

This 1-1/2 in. SharkBite brass ball valve uses push-to-connect ends for fast installation on potable water lines. The quarter-turn lever handle provides simple shutoff control, and the lead-free body works with PEX, copper, CPVC, PE-RT, and HDPE pipe without special tools.
SharkBite UXLBV41 Includes
- (1) 1-1/2 in. Brass Push-to-Connect Quarter-Turn Ball Valve
SharkBite UXLBV41 Features
- Push-to-connect design installs quickly without special tools
- Quarter-turn lever handle allows easy on and off flow control
- Compatible with PEX, copper, CPVC, PE-RT, and HDPE pipe
- Lead-free DZR corrosion-resistant brass body
- Rated for up to 200 PSI and 200 Degrees F
- Works on wet or dry lines and can be pressure tested immediately
- Rotatable after installation and removable with a disconnect tool
- Approved for behind-the-wall and underground applications when properly wrapped for burial
- Suitable for potable water systems
SharkBite UXLBV41 Specifications
| Application | Potable Water |
| Material | Brass |
| Connection | Push-to-Connect x Push-to-Connect |
| Valve Type | Quarter-Turn Ball Valve |
| Handle Style | Lever |
| Lead Free | Yes |
| Compatible Pipe Material | PEX, Copper, CPVC, PE-RT, HDPE |
| Inlet Diameter (In.) | 1-1/2 |
| Outlet Diameter (In.) | 1-1/2 |
| Maximum Pressure (PSI) | 200 PSI |
| Maximum Working Temperature (F) | 200 |
| Indoor/Outdoor | Indoor |
| Product Length (in.) | 9.45 |
| Product Width (in.) | 4.91 |
| Product Height (in.) | 2.21 |
| Product Weight (lb) | 3.04 |
| Warranty | 25-Year when used with PEX, copper, CPVC, and PE-RT pipe; 5-Year when used with SDR-9 HDPE pipe |
