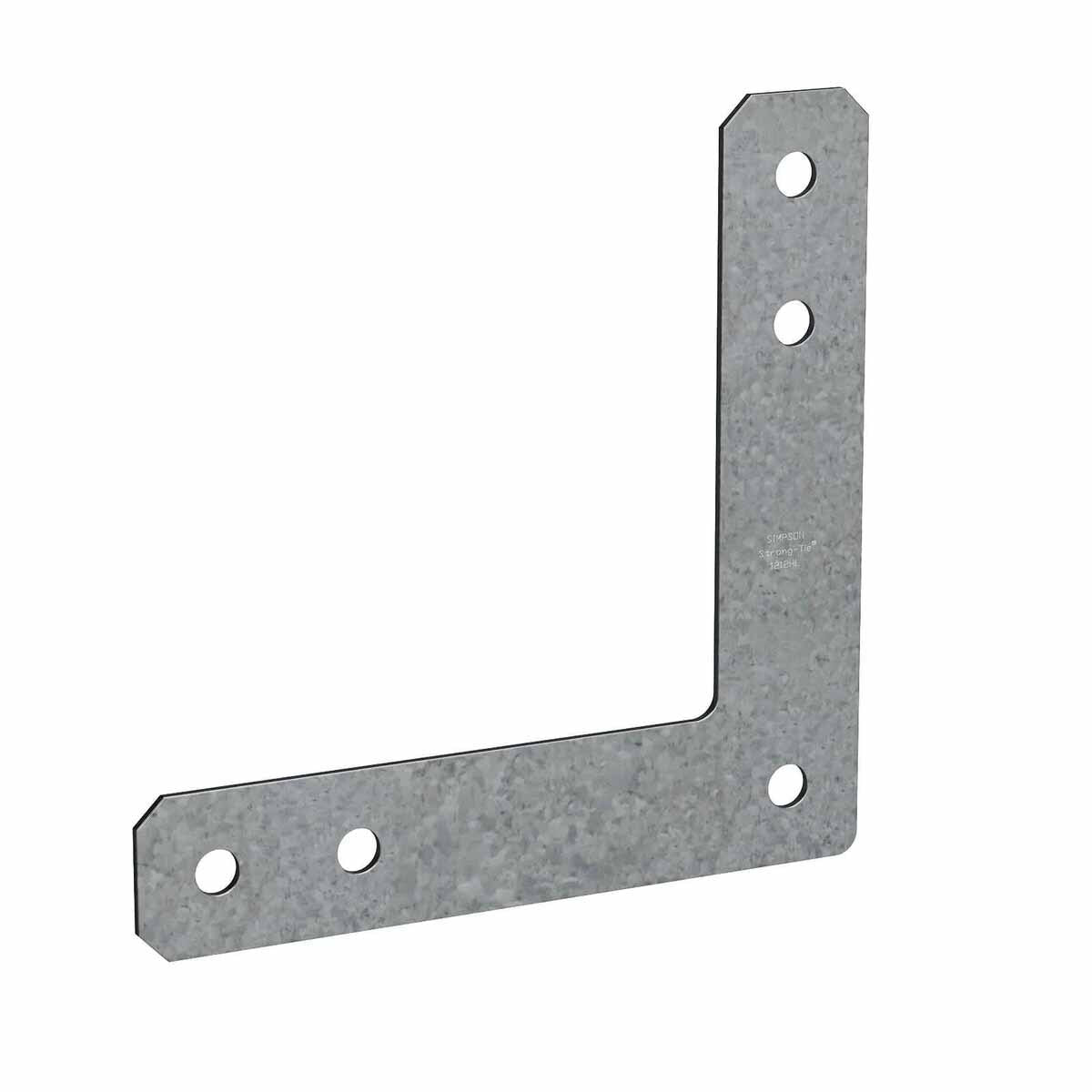

Simpson Strong-Tie 1212HLHDG Description
The Simpson Strong-Tie 1212HLHDG Heavy L Strap is designed for wood-to-wood connections, featuring a durable hot-dip galvanized finish and a robust 7-gauge thickness.
Simpson Strong-Tie 1212HLHDG Includes
- (1) Heavy L Strap 12 x 12" 7-Gauge Hot-Dip Galvanized
Simpson Strong-Tie 1212HLHDG Features
- Galvanized for corrosion resistance
- Versatile for a variety of beam-to-column projects
- Load rated for uplift and lateral forces
Simpson Strong-Tie 1212HLHDG Applications
- Wood-to-wood connections in construction
- Beam-to-column fastening for structural support

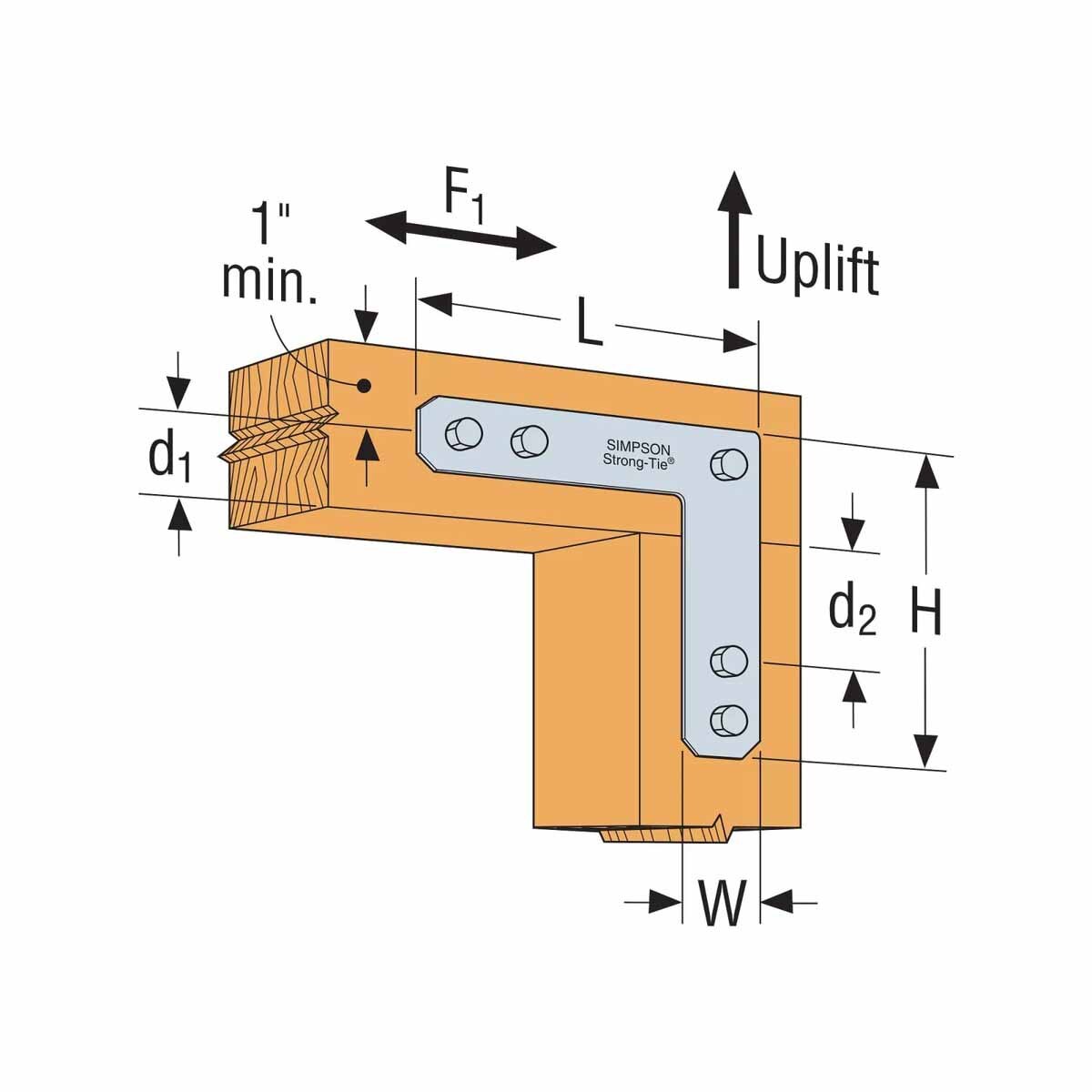

Simpson Strong-Tie 1212HLHDG Installation Overview
- Use all specified fasteners as per guidelines.
- Install connectors in pairs to ensure load rating.

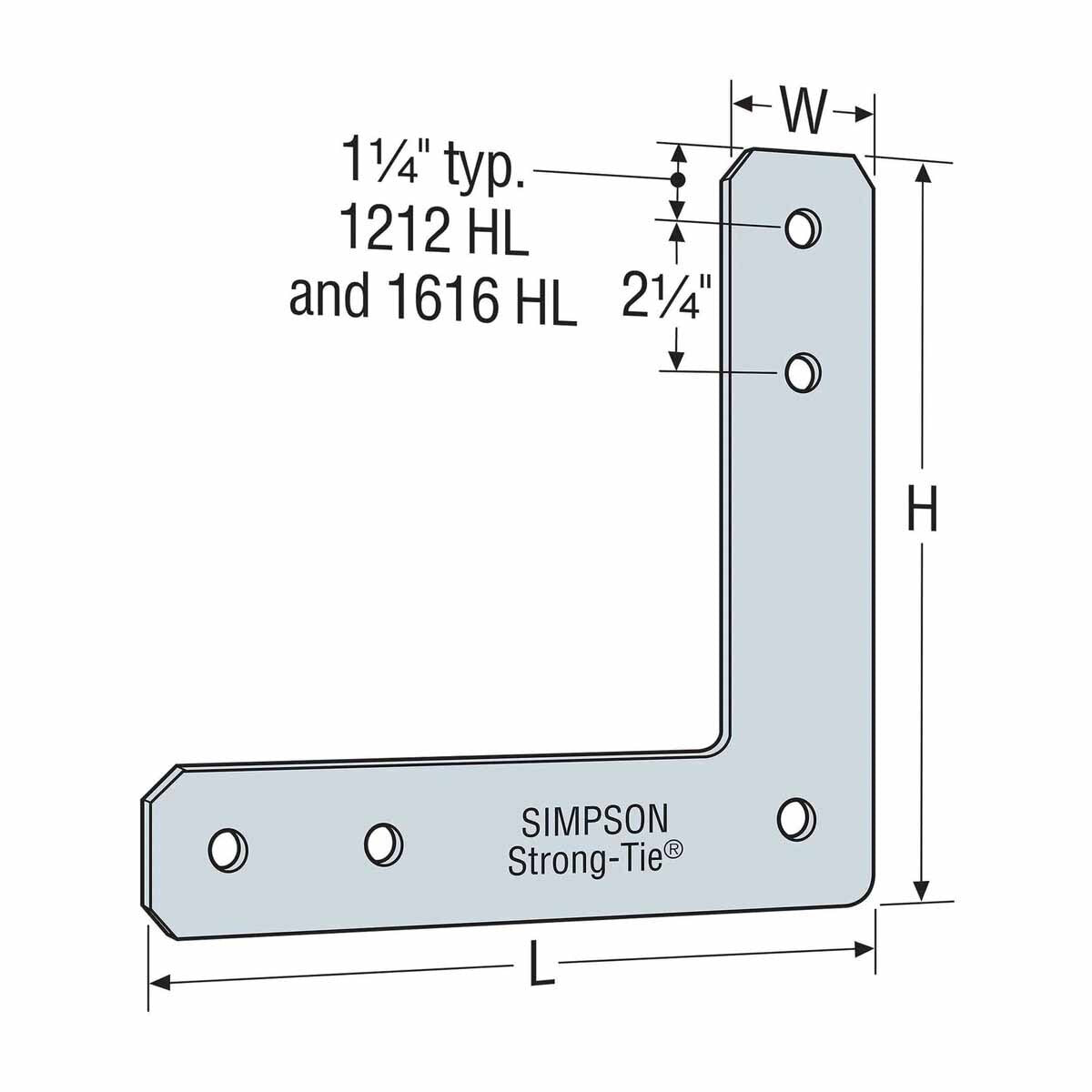

Simpson Strong-Tie 1212HLHDG Specifications
| Finish | Hot-Dip Galvanized |
| Material | Galvanized Steel |
| Thickness | 7 Gauge |
| Width | 2-1/2" |
| Height | 12" |
| Length | 12" |
| Fasteners required | Bolts - (5) 5/8" |
| Quantity | 1 |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
